Double blades log sawing machine , electric table saw, Circular Blade Sawmill with carriage

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: TT400-1500, TT2000,TT3000, etc
Minimum Order Quantity: 1 SET Twin blades circular sawmill
Price: US $2,800 - 9,800 / Set
Packaging Details: iron made frame pallet
Delivery Time: within 20 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 3000sets/year
Detail Information
Name: Wood Sliding Table Saw Condition: New
Cutting Log Dia.: No More Than 480mm Or 19'' Operation: Manual Or Digital Auto Control
Power: 7.5kw X 2 Cutting Log Diameter Max.: 1500, 2000, 3000mm
Feeding: Manual Or Fequency Auto Feeding Type: Circular Blade Saw
Voltage: 380v/3phase Or As Customer Needs Or With Diesel Engine Warranty: 12 Months
Highlight:

double blade log sawmill

,

electric table sawmill

,

circular blade sawmill with carriage


Product Description

Twin Blades Circular Sawmill with Log Carriage

  • The round log can slitting naturally,slitting totally,can sawing round wood to square timber.
  • The circular saw blade can avoid band saw blade bending,or dig hole on wood.
  • The round log table saw mill is high safety ,high flatness of sawing surface,suitable for short wood,hard wood,large diameter wood.
  • The production capacity is more than 4 timers than band sawmill.
  • The specification is adjustable,Convenient to move the running rule,accuracy.
  • The track use linear guideway,accuracy,no error,wear resistent.
  • The machine have 2 separate motors,separate switches,Can only use one motor when sawing small diameter wood log.

Technical data:



Model

TT1500 TT2500 TT3000



Max Sawing Wood Diameter

400mm 400mm 400mm



Max Sawing Wood Length

1500mm 2500mm 3000mm



Saw Blade Diameter

500mm 500mm 500mm



Motor Power

7.5KW*2 7.5KW*2 7.5KW*2



Rail Length

3000mm 5000mm 5800mm



Wood Fasten Model

Pneumatic Pneumatic Pneumatic



Carriage Rail Model

Linear Axis Linear Axis Linear Axis

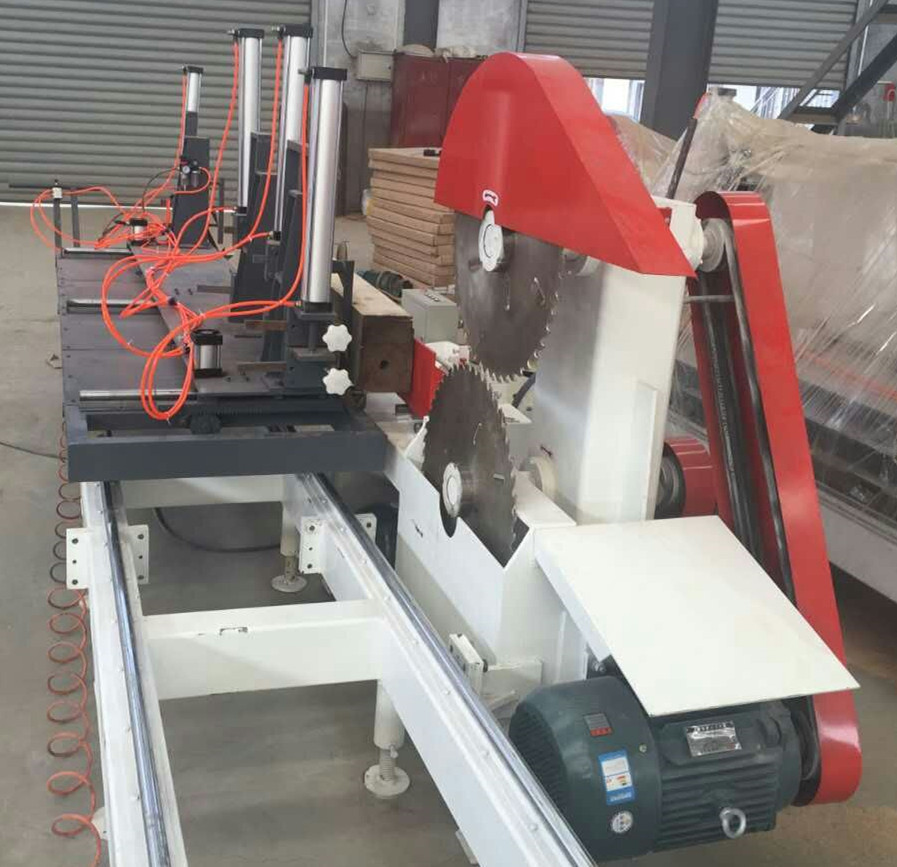

Double blades log sawing machine , electric table saw, Circular Blade Sawmill with carriage 0

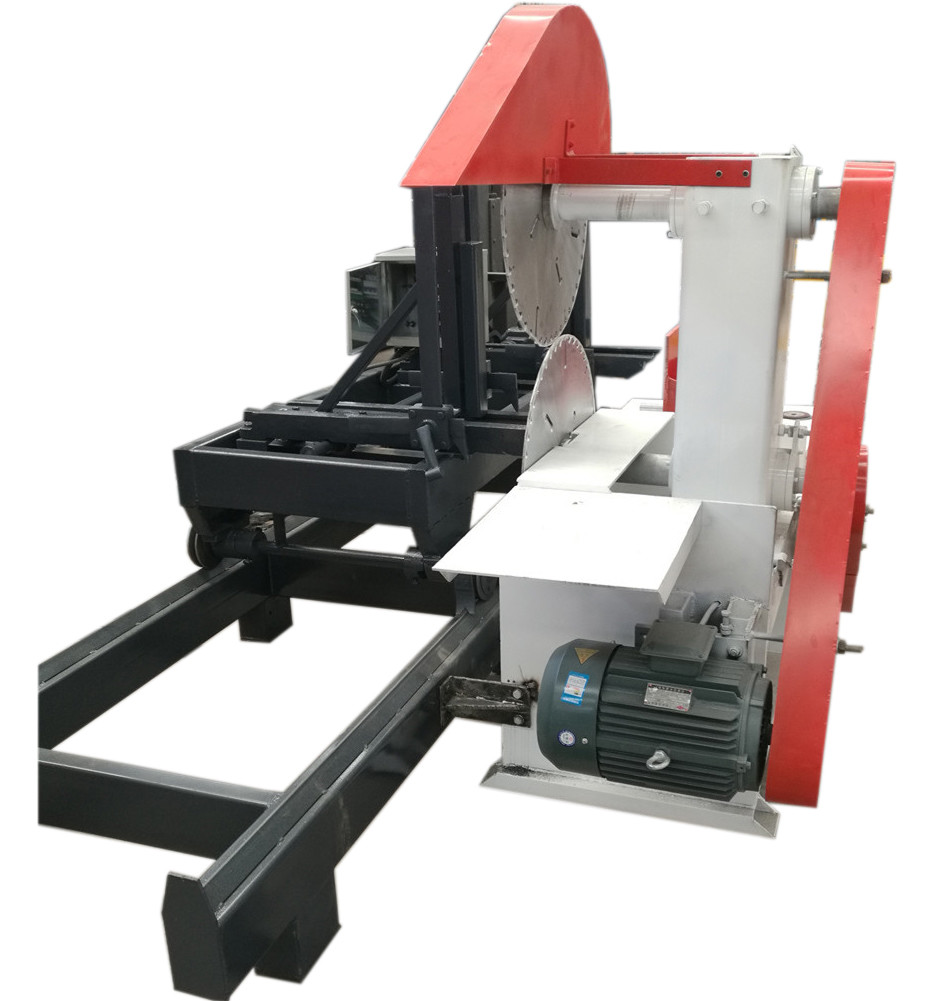

Double blades log sawing machine , electric table saw, Circular Blade Sawmill with carriage 1

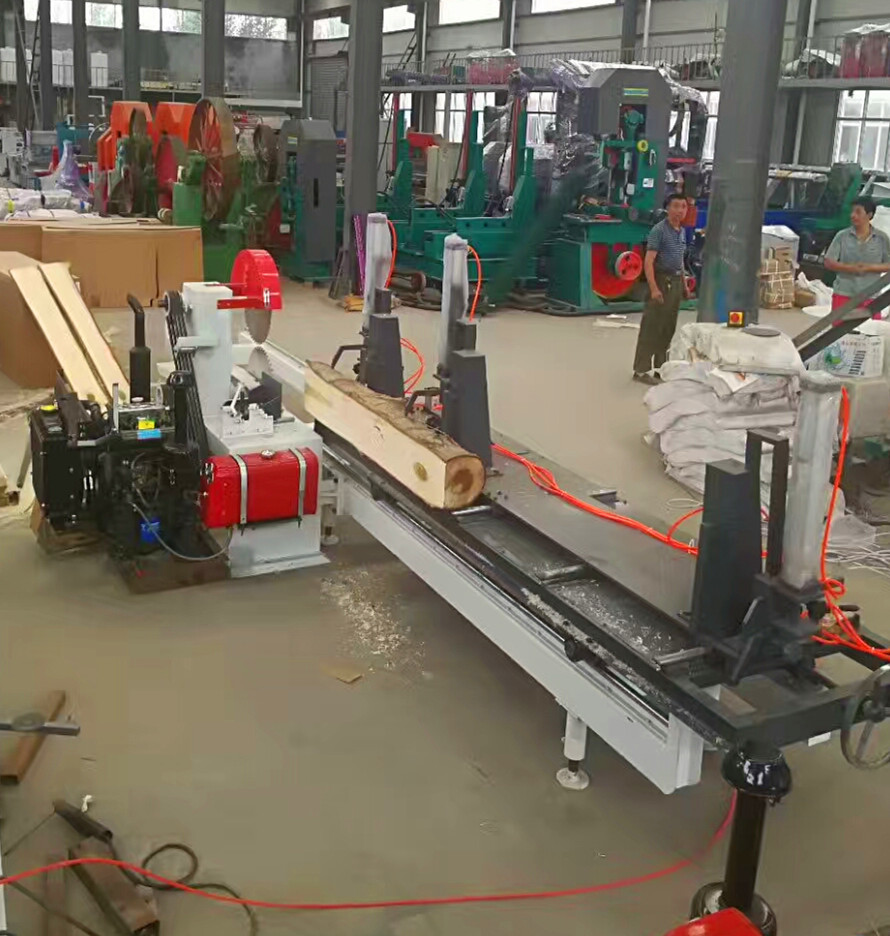

Double blades log sawing machine , electric table saw, Circular Blade Sawmill with carriage 2

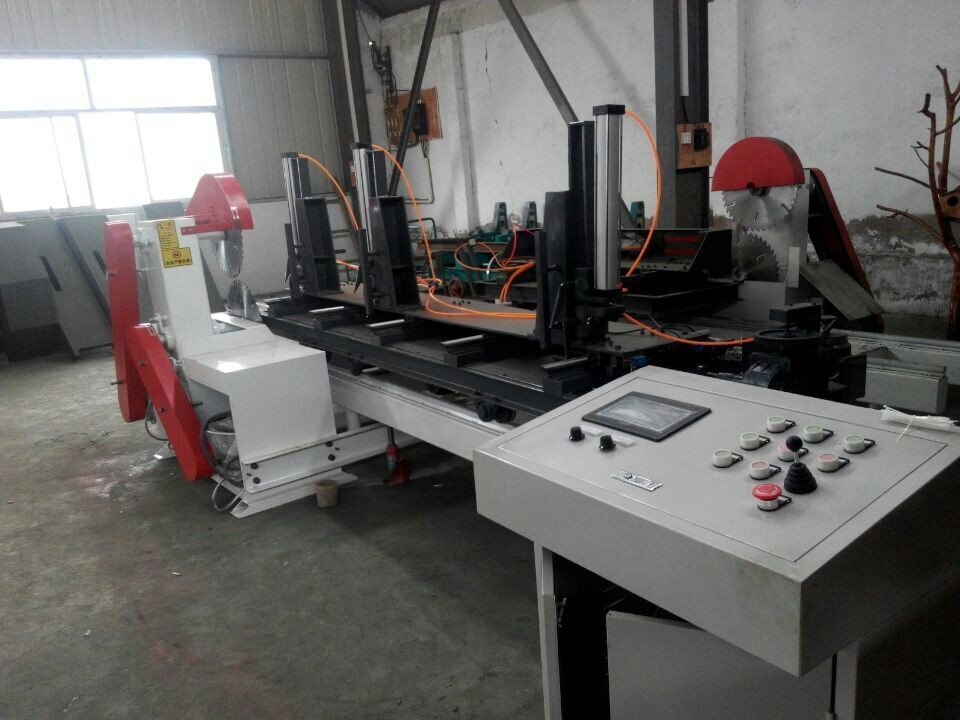

Wood Sliding Table Sawmill -Computer type

Specifications:

model CT1500 CT2000 CT3000
Cut log max. diameter 400mm 400mm 400mm
Cut length 1.5m 2m 3m
Blade diameter 500mm 500mm 500mm
Main Motor power 7.5KW*2 7.5KW X 2 sets 7.5KW X 2 sets
Track length 3500mm 5000mm 6500mm
Log clamping Pneumatic up/down Pneumatic up/down Pneumatic up/down
Carriage Rail Mode Linear Axis Linear Axis Linear Axis
Feeding mode frequency control frequency control frequency control
Setting size mode Touch screen computer control Touch screen computer control Touch screen computer control

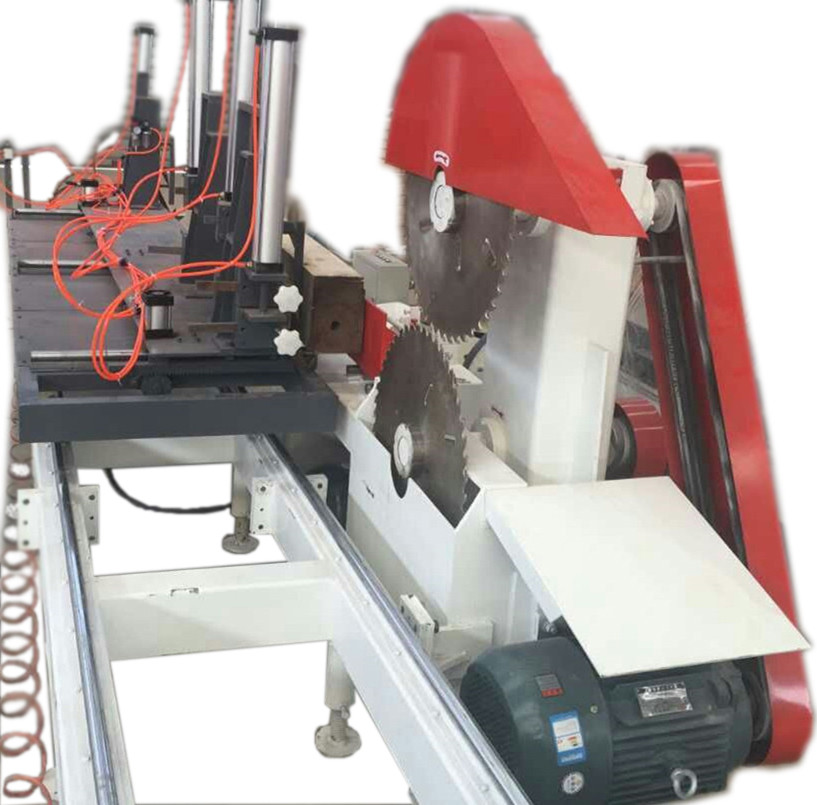

Double blades log sawing machine , electric table saw, Circular Blade Sawmill with carriage 3
