Lumber cutting Multi Blade Saw Multirip Saw Mills /SH160-400 Multiple Blade Rip Saw Machine

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH80-300,SH120-25-,SH160-250,SH120-300,SH160-400

Minimum Order Quantity:	1 SET
Price:	US $3,300 - 12,000 / Set
Packaging Details:	wooden pallet or iron frame packing
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year

Get Best Price Contact Now

Detail Information

Condition:	New	Type:	Rip Saw
Usage:	Woodworking	Warranty:	12 Months
Operation:	Automatic	Max.sawing Depth:	160mm
Max. Sawing Width:	400mm	Blade Arrangement:	Up/down On 2 Spindles

Product Description

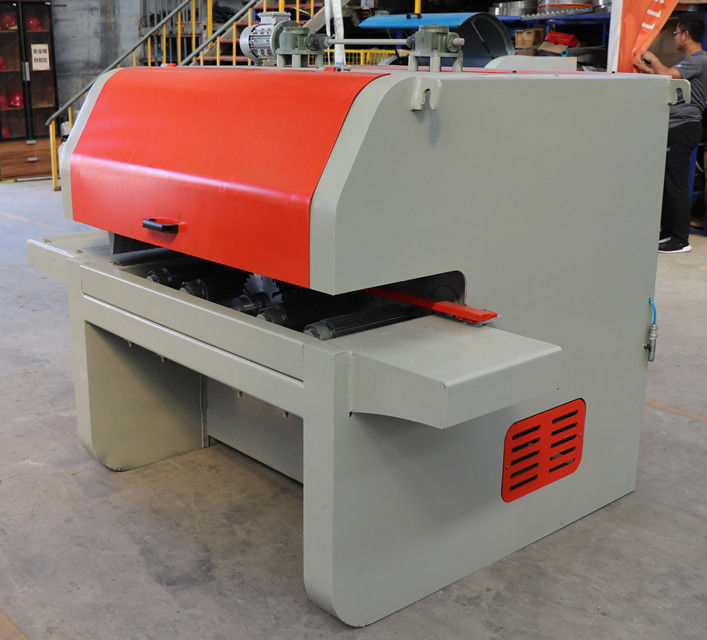

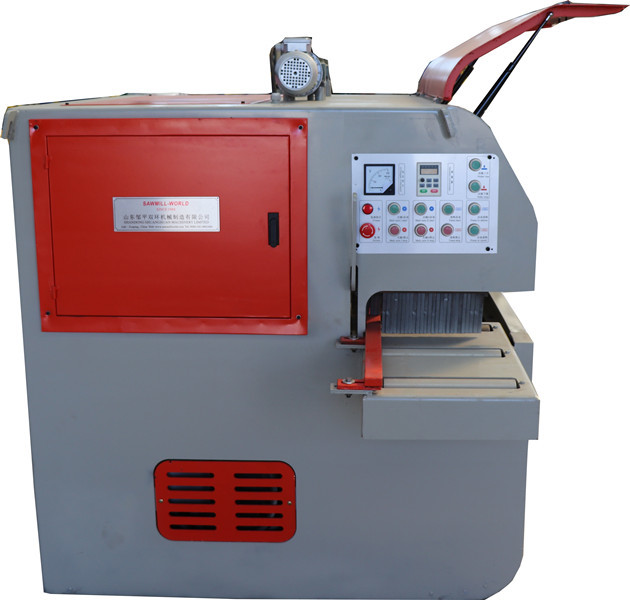

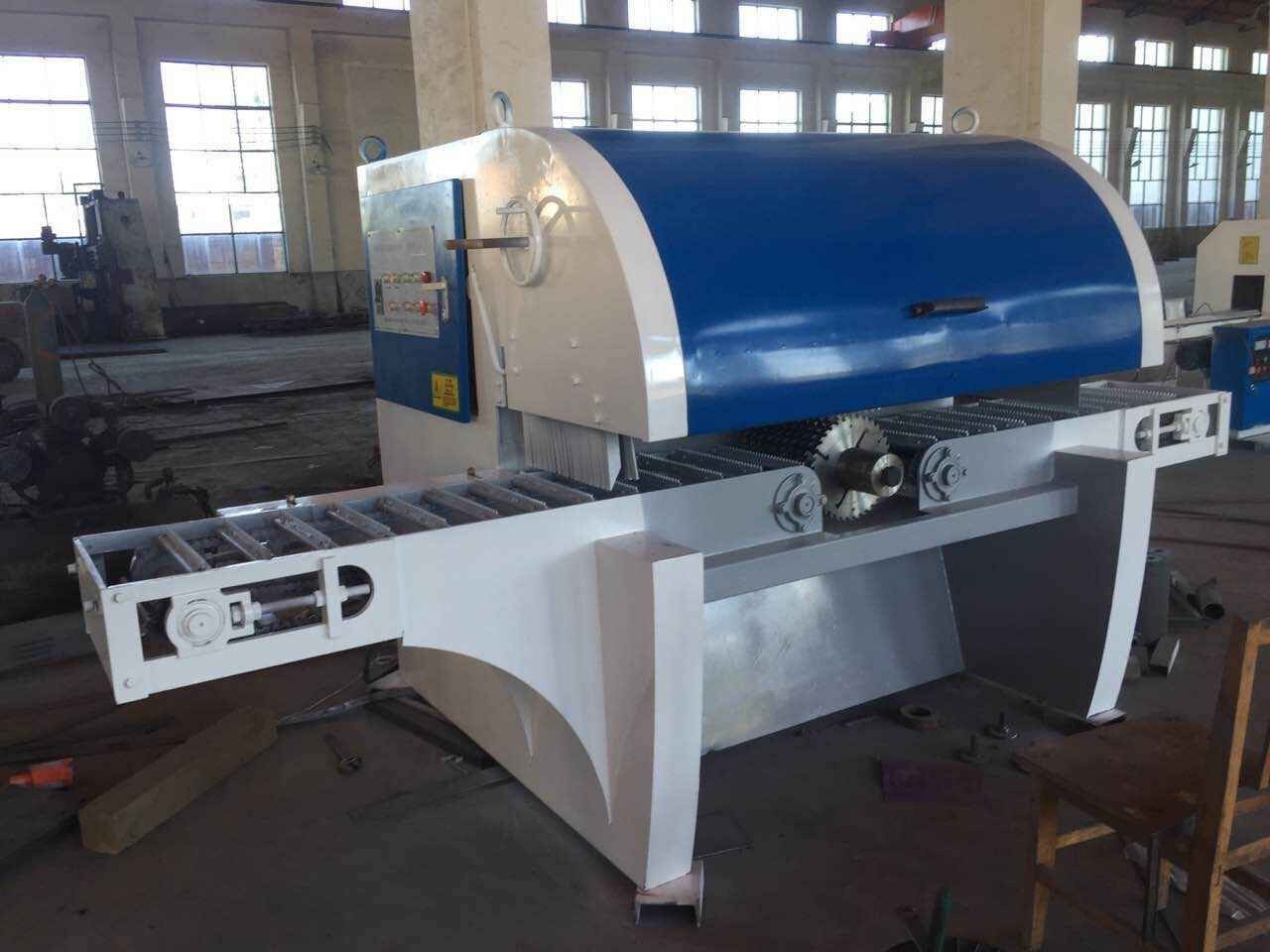

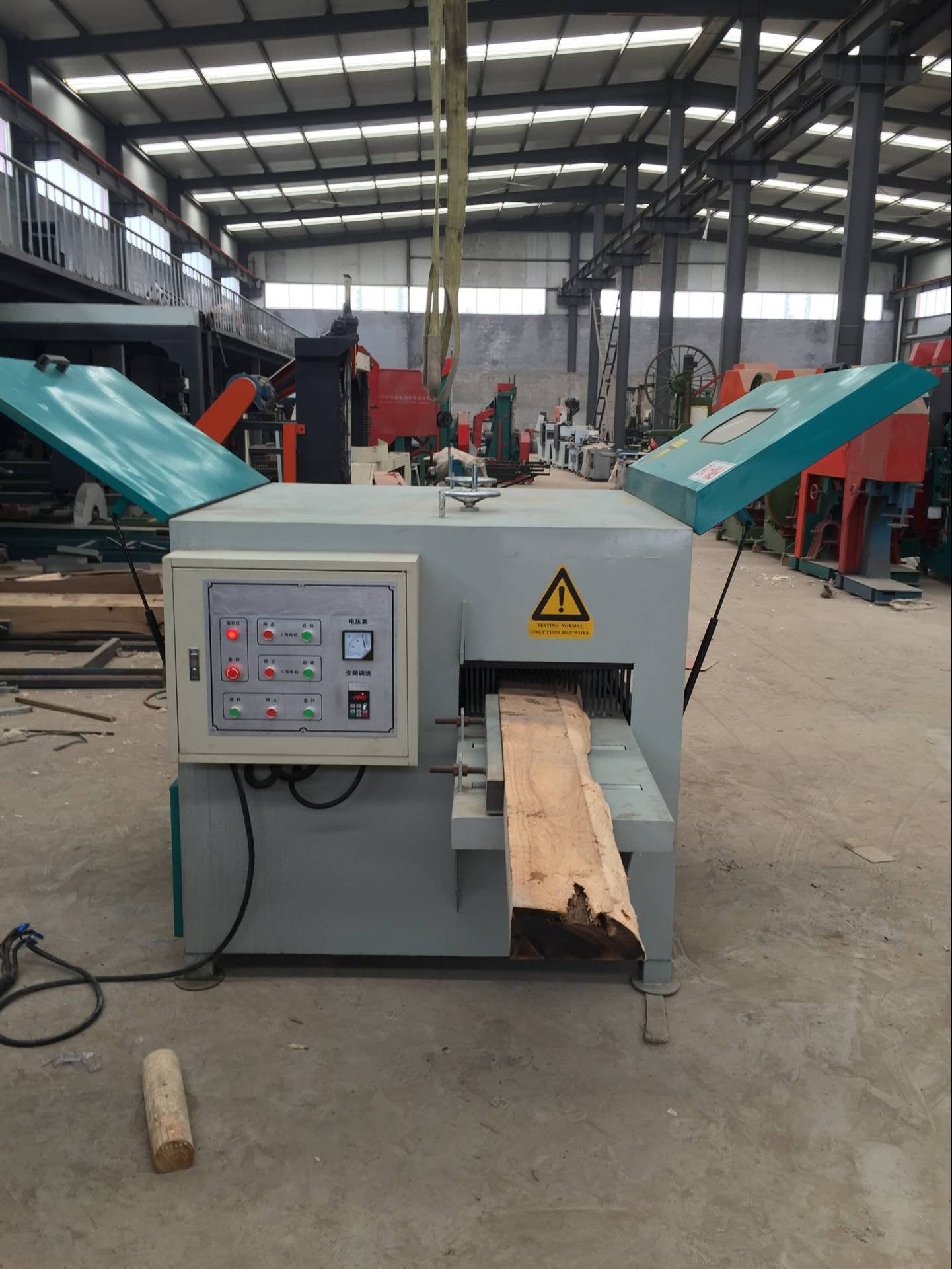

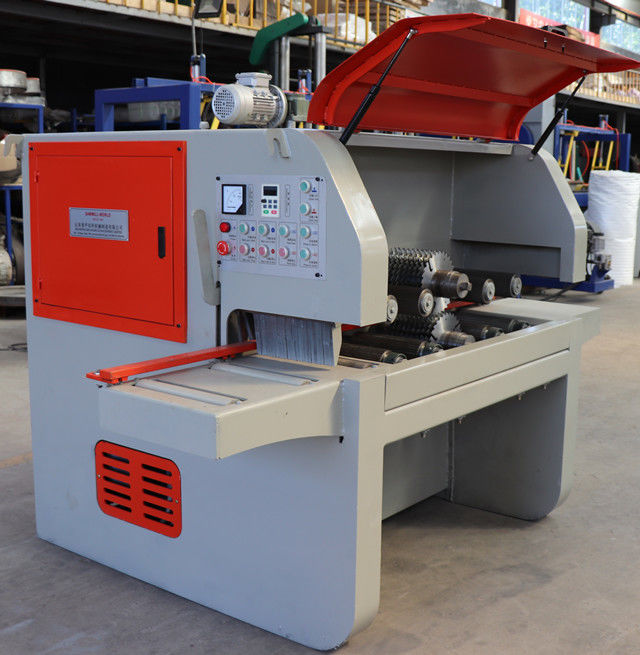

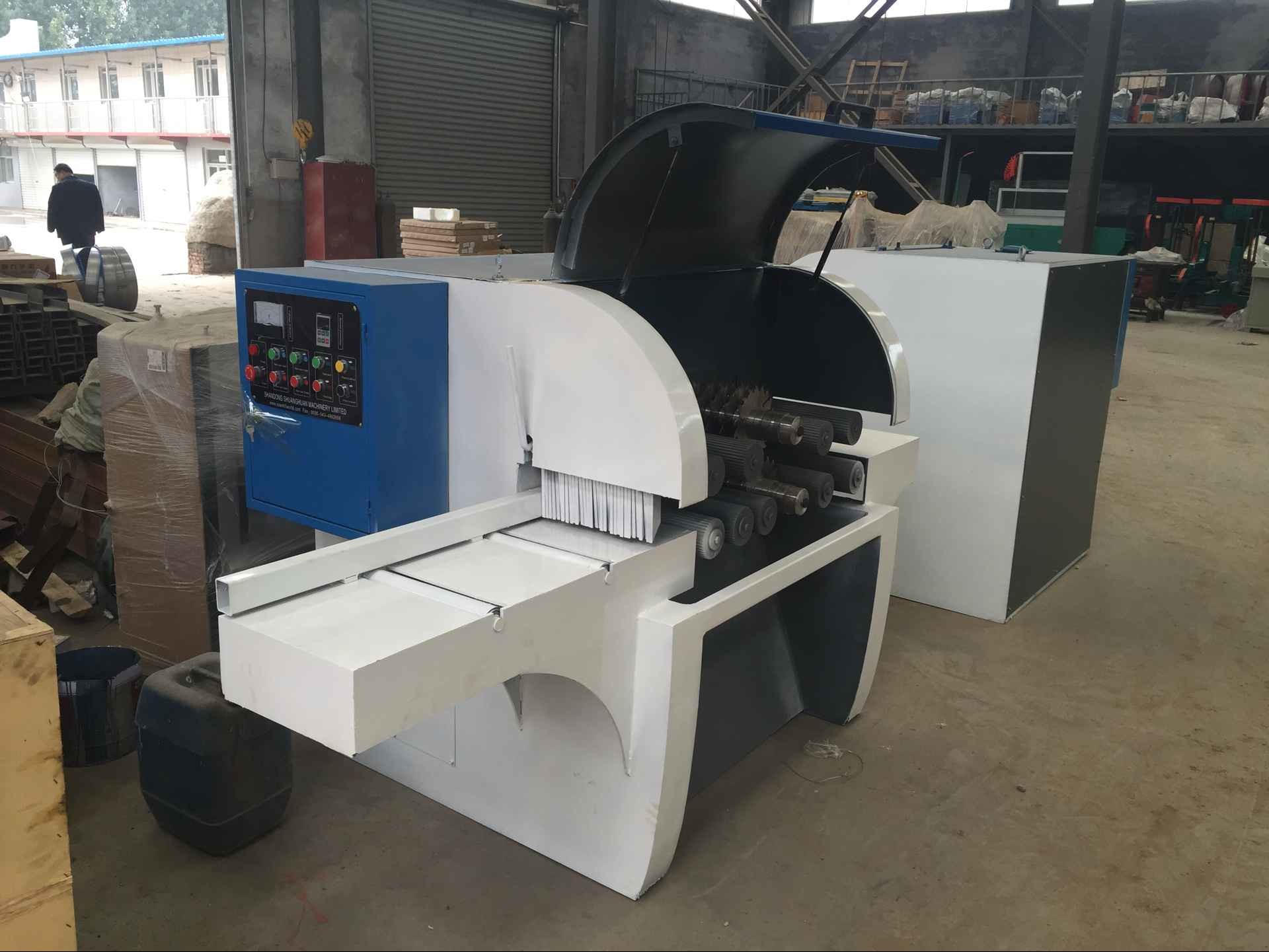

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness

Specifications:

Model		SH80-300		SH120-250		SH160-250
Max. sawing width		300mm		250mm		250mm
Max. sawing thickness		80mm		120mm		160mm
Min sawing length		600mm		500mm		500mm
Motor power		15kw x2		22kw x2		30kw x2
Saw blade diameter		180mm		230mm		255mm
Machine weight		1200kg		1800kg		2000kg
Model	SH120-300		SH160-300		SH160-400
Max. sawing width	300mm		300mm		400mm
Max. sawing thickness	120mm		160mm		160mm
Min sawing length	600mm		600mm		600mm
Motor power	22kw x2		30kw x2		37kw x2
Saw blade diameter	230mm		280mm		280mm
Machine weight	2500kg		2800kg		3000kg
Feeding	Variable frequency speed adjustable automatic feeding
Cooling blade	Spindle center water cooling blade
