300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine

300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine
300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine
300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine
Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: QT2000, QT3000, QT4000
Minimum Order Quantity: 1 SET
Price: USD2800-6900/SET
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight
Supply Ability: 1000sets/year
Get Best Price Contact Now
Detail Information
Name: Multi Blade Circular Sawmill Condition: New
Max. Sawing Height: 100mm Max. Sawing Length: 4000mm
Circular Blade Diameter: 300mm Main Motor Power: 3kw X 2, 3kw X 3, 3kw X 4sets
Main Shaft Diameter: 30mm Weight: 600kgs To 1000kgs
Guarantee: 1year After-sales Service: Video Technical Support, Working Test Before Delivery
Highlight:

300mm Wood Cutting Panel Saw Machine

,

300mm Multi Rip Saw Machine

,

multirip Wood Cutting Panel Saw Machine

Product Description

Multi Blades Wood Panels Cutting Off Saw, Multiple Circular Blade Sawmill for wood ends cutting

Multi Blades Circular Saw for wood panels cutting off

  • cutting both ends of the panels in same length
  • cutting length is adjustable
  • with auto feeding
  • chain drive

Technical data:



Multi blades cutting off circular saw
Model QT2000 QT3000 QT4000
Cutting height 100mm 100mm 100mm
Cutting width 2000mm 3000mm 4000mm
Circular blade diameter 300mm 300mm 300mm
Main motor power 3kw x2 3kw x3 3kw x4
weight 620kgs 820kgs 1020kgs
Overall size 3200x1800x1150mm 2200x1800x1150mm 4800x1800x1150mm

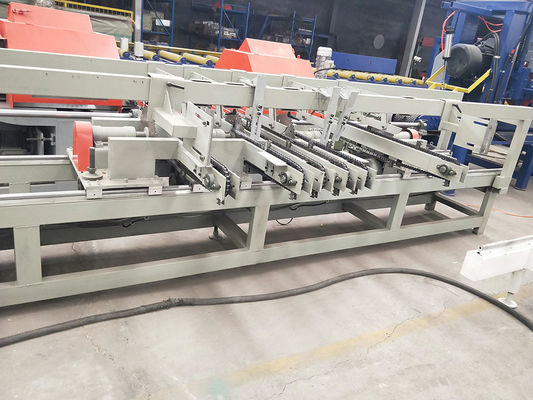

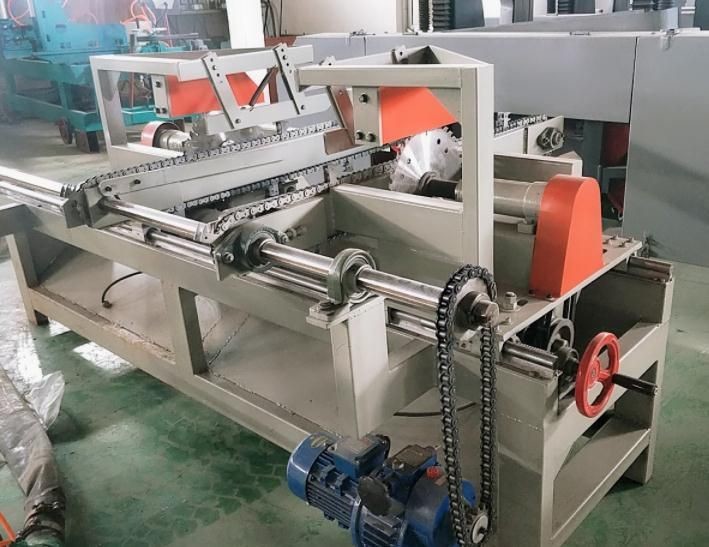

Photos:

300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 0

300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 1

Multi Blades Ripsaw for Planks/Lumber Cutting

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness



Specifications:

Multi Blades Rip Saw- For wood panels/plank cutting

Model
SH60-300
SH80-300
SH100-300
SH120-300
SH150-300
Max. Sawing width
250-300mm
250-300mm
250-300mm
250-300mm
250-300mm
Max. Sawing thickness
60mm
30-80mm
40-100mm
50-120mm
60-150mm
Motor
18.5KW/22KW
22KW*2
22KW*2
22KW*2
30KW*2
Saw Blade Diameter
150MM
180mm
210mm
230mm
255mm
Spindle Diameter
50mm
50mm
50mm
50mm
50mm
Weight
1190kg
1260kg
1420kg
1560kg
1620kg

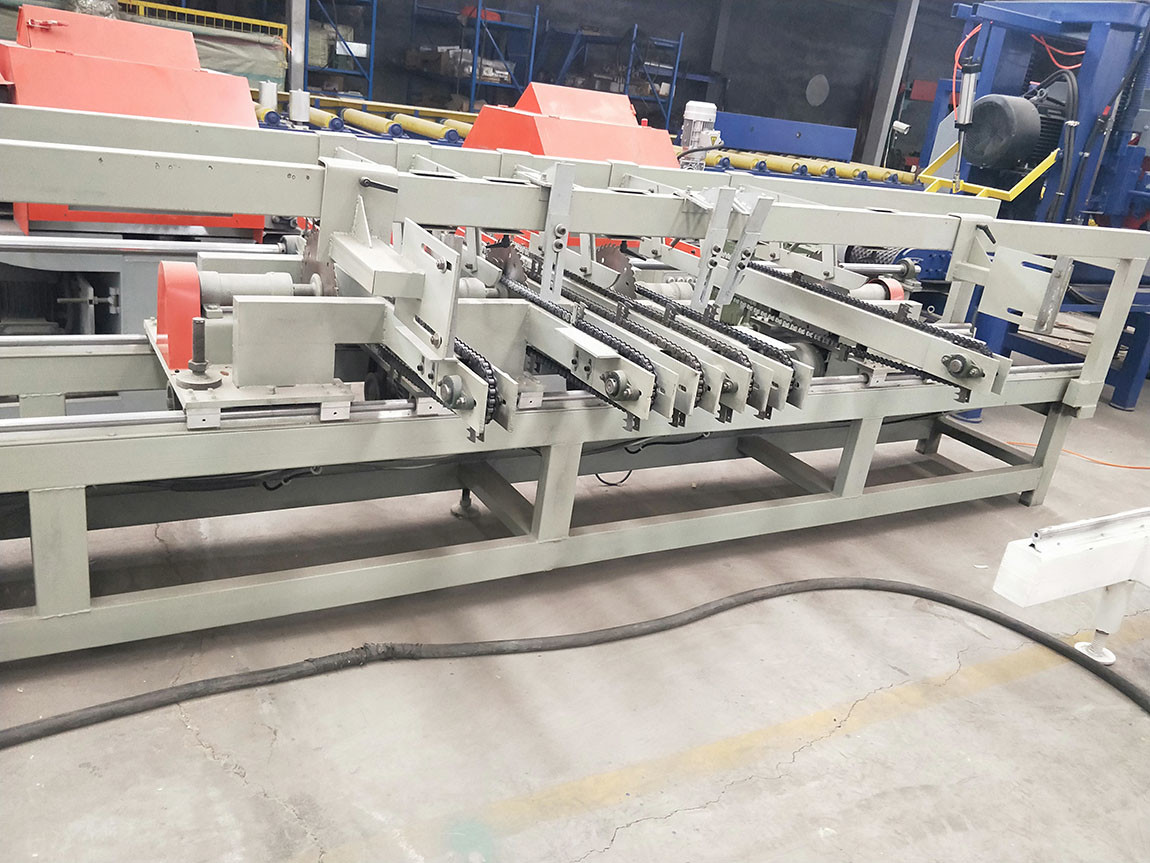

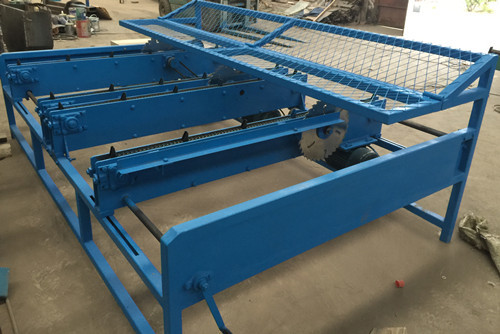

300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 2300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 3

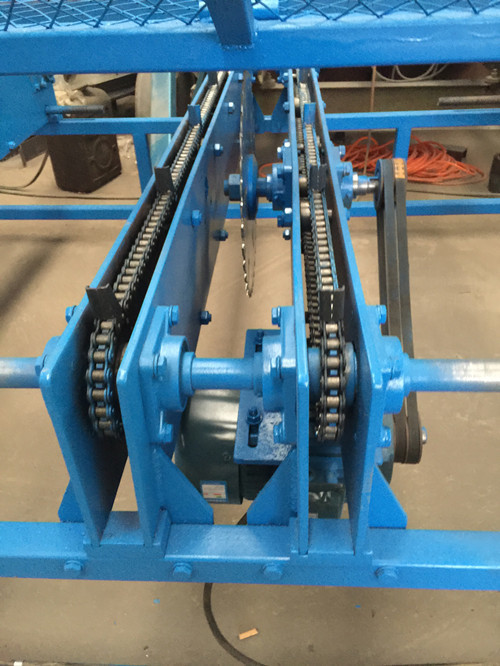

300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 4

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model
SH100-400
SH120-400
SH160-400
SH200-400
SH250-400
SH270-400
SH290-400
Sawing width
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
350-400mm
Sawing thickness
40-100mm
50-120mm
70-160mm
90-200mm
110-250mm
130-270mm
150-290mm
Motor
30kw*2
37kw*2
37/45kw
37/45kw
45kw*2
45/55kw
55KW*2
Saw Blade Diameter
180MM
230mm
255mm
230mm
280mm
280mm
380mm
Spindle Diameter
70mm
70mm
70mm
80mm
80mm
80mm
100mm
Weight
2330kg
2450kg
2480kg
2550kg
2580kg
2620kg
2700kg

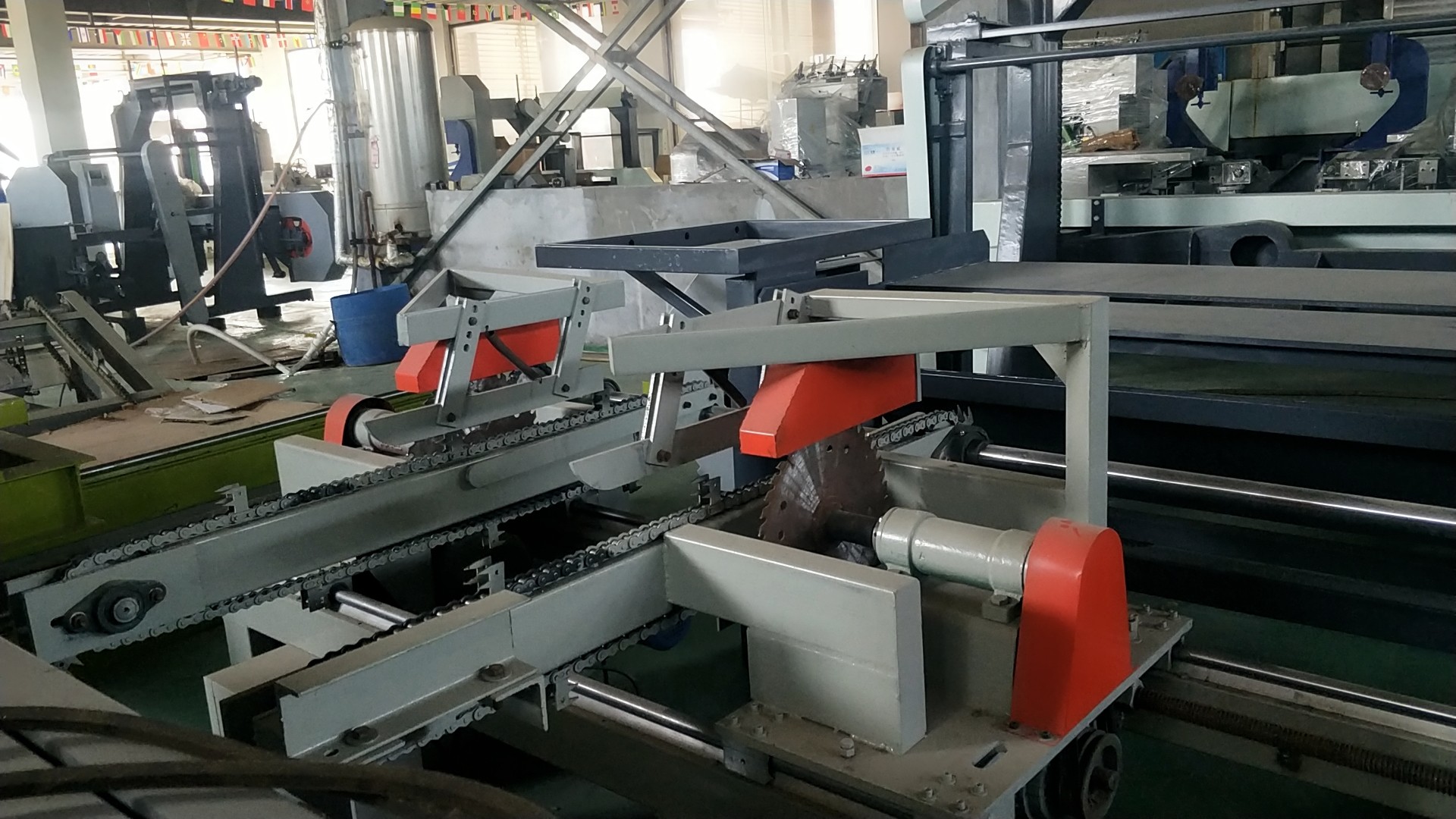

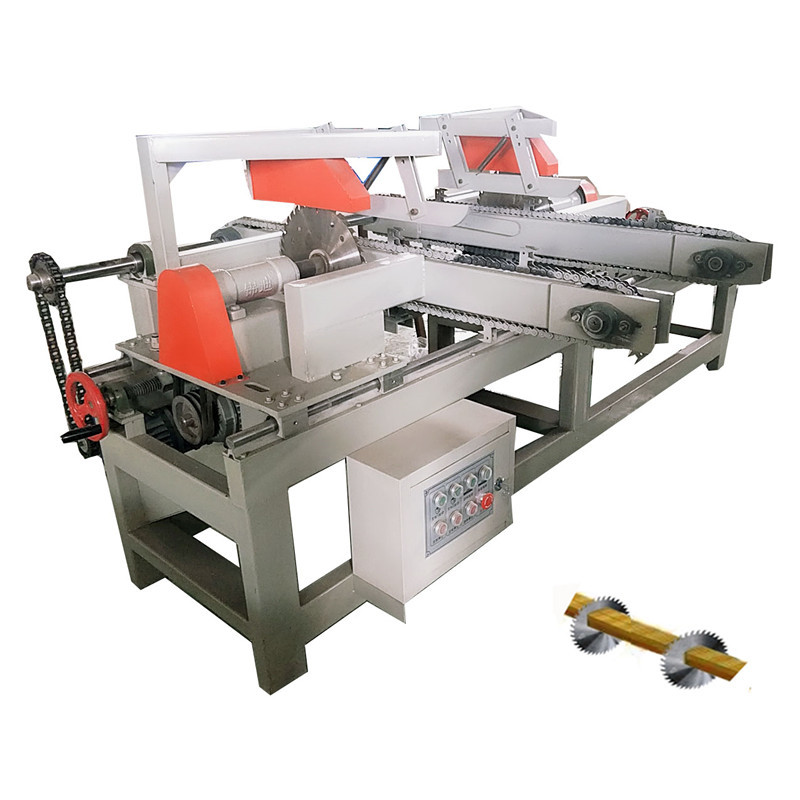

300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 5300mm Multi Rip Saw Machine Wood Cutting Panel Saw Machine 6
