SH120-400 Double Arbor Multiple RipSaw, Multi Blades Rip Saw Machine from China
| Place of Origin | shandong province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SH120-250, SH160-250, SH160-400，SH160-300 |
| Minimum Order Quantity | 1set |
| Price | $3,000 - $15,000 / Sets |
| Packaging Details | plywood case |
| Delivery Time | 5-8 work days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200 Sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Multiple Ripsaw | Condition | New |
|---|---|---|---|
| Max.sawing Thickness | 120mm | Max. Sawing Width | 400mm |
| Feeding | Frequency Auto Feeding And Speed Adjustable | Blade Cooling | Axis Center Watering |
Product Description

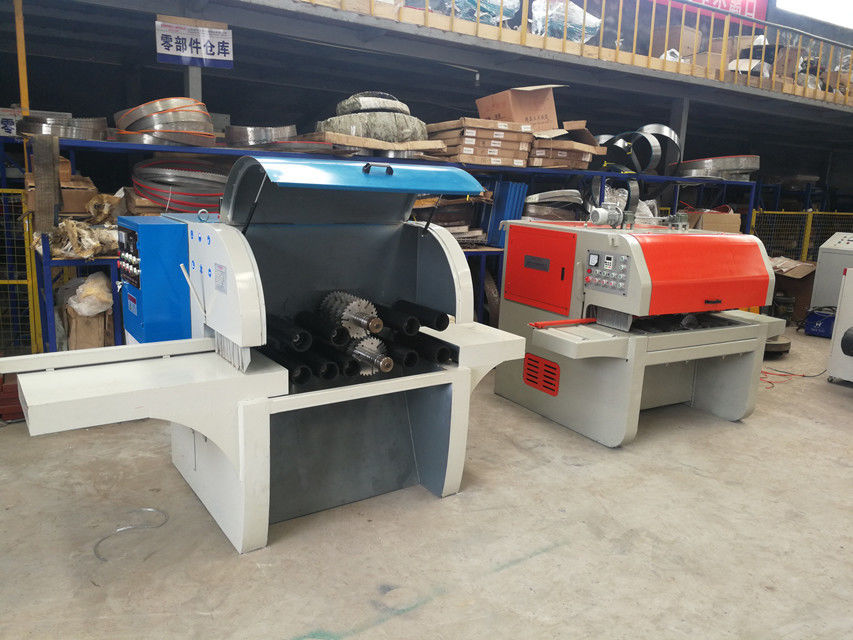

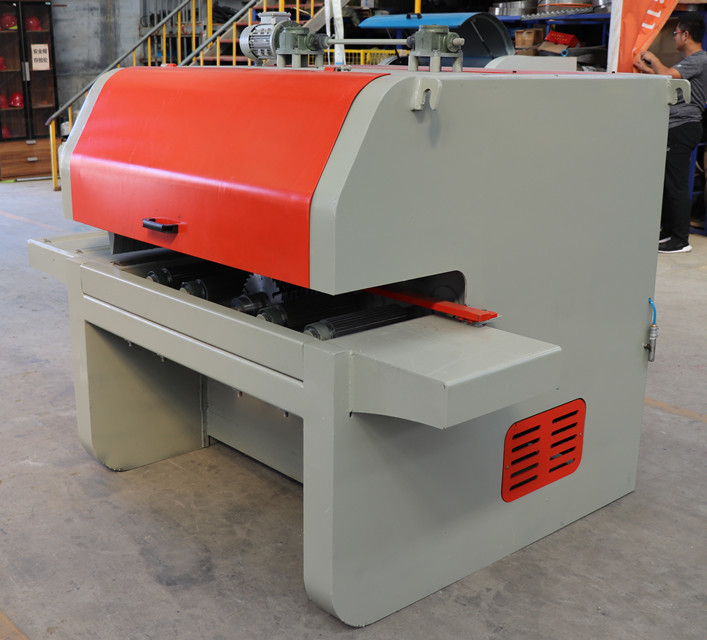

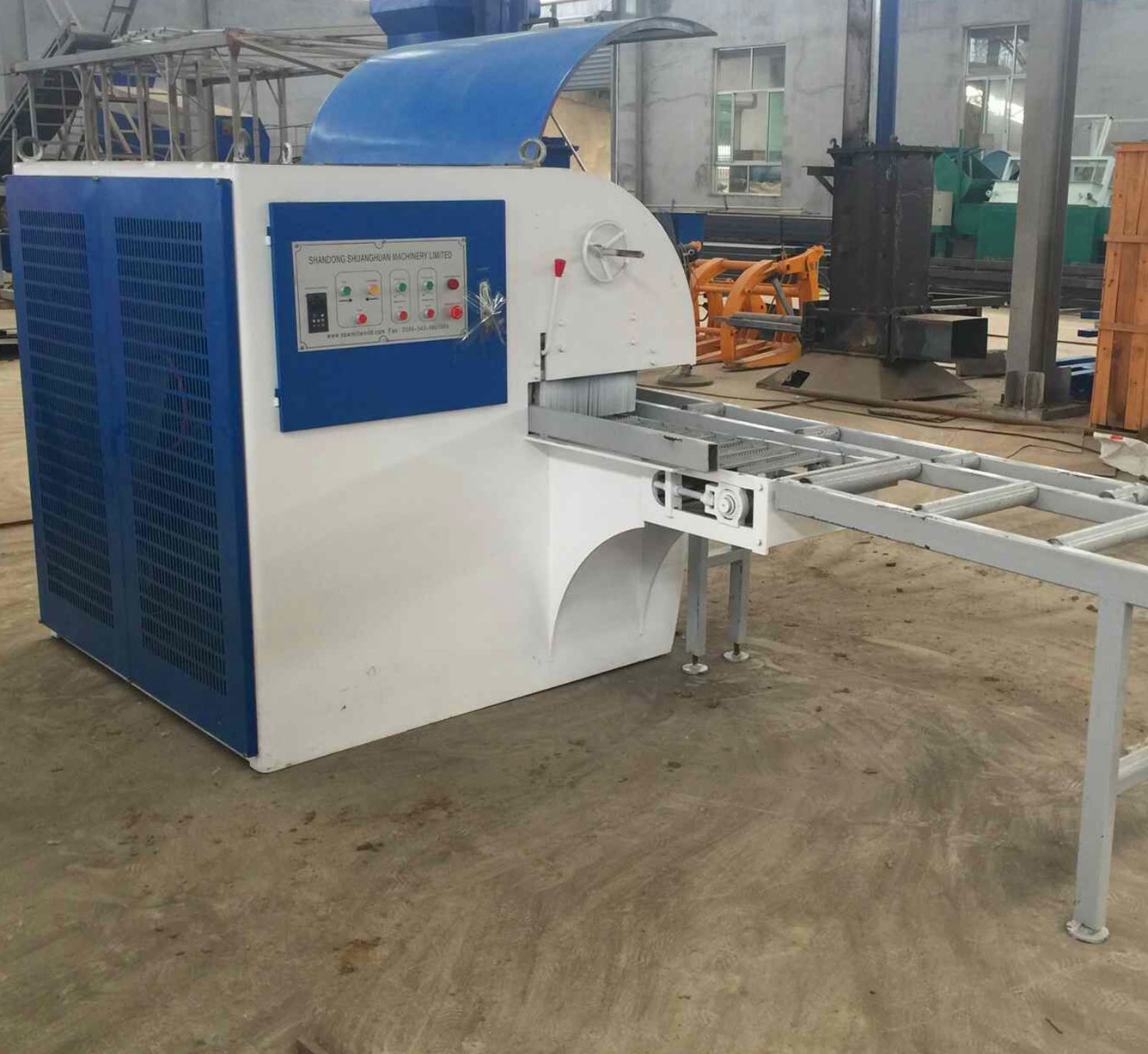

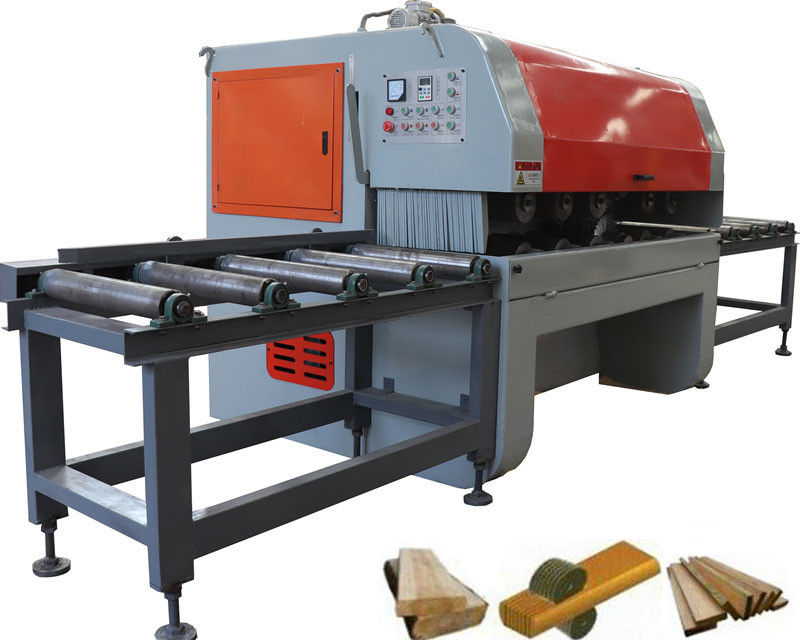

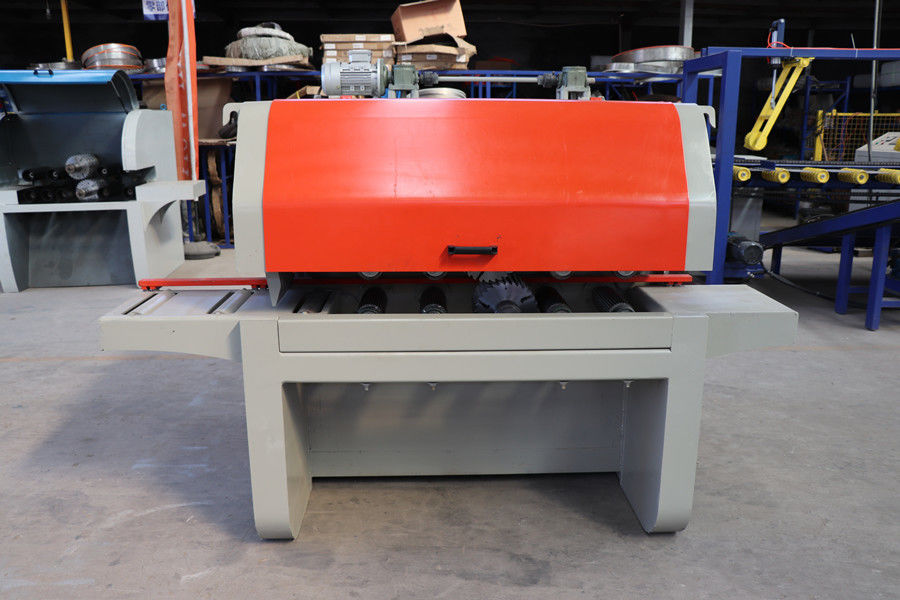

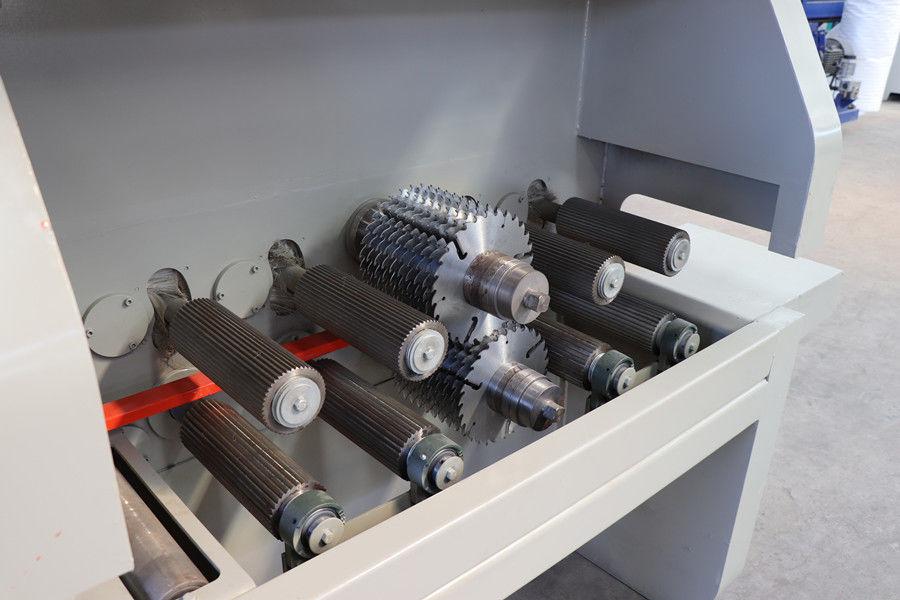

Double Spindle Panel Cutting Multiple Blades Rip Saw
Introduction:
1. With Inverter auto feeding
2. With carbide blade for hardwood cutting
3. With spindle center spraying water to cool blade
4. With automatic panel controlling
5. Sawing width/thickness can be done as customer needs
6. Can change big motor as customer needs
Specifications:
| Model | SH80-300 | SH120-250 | SH160-250 |
| Max. sawing width | 300mm | 250mm | 250mm |
| Max. sawing thickness | 80mm | 120mm | 160mm |
| Min sawing length | 600mm | 500mm | 500mm |
| Motor power | 15kw x2 | 22kw x2 | 30kw x2 |
| Saw blade diameter | 180mm | 230mm | 255mm |
| Machine weight | 1200kg | 1800kg | 2000kg |
| Model | SH120-300 | SH160-300 | SH160-400 |
| Max. sawing width | 300mm | 300mm | 400mm |
| Max. sawing thickness | 120mm | 160mm | 160mm |
| Min sawing length | 600mm | 600mm | 600mm |
| Motor power | 22kw x2 | 30kw x2 | 37kw x2 |
| Saw blade diameter | 230mm | 280mm | 280mm |
| Machine weight | 2500kg | 2800kg | 3000kg |
| Feeding | Variable frequency speed adjustable automatic feeding | ||
| Cooling blade | Spindle center water cooling blade | ||
