Lumber Industrial Sawmill Equipment 350mm Log Milling Machine

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SLS350, SLS500
Minimum Order Quantity: 1 set wood saw machine vertical band sawmill
Price: US $13,000 - 50,000 / Set
Packaging Details: container loading
Delivery Time: within 20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000sets/year
Detail Information
Features: High Efficiency And Auto Setworks Name: Twin Vertical Band Sawmill
Condition: New Sawing Log Max. Diameter: 350mm, 500mm
Sawing Log Max. Length: 3meters Or As Customer Needs Blade Size: 50-70mm
Feeding: Inverter Operation: PLC Touching Screen Auto Setworks
Function: Sawing Both Edges Of Log Or Into Timber After-sales Service: Video Technical Support, Working Test Before Delivery
Highlight:

Lumber Industrial Sawmill Equipment

,

350mm Log Milling Machine

,

350mm Industrial Sawmill Equipment


Product Description

Twin Vertical Band Saw Cutting Machine Price Wood Cutting Sawmill Machine

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

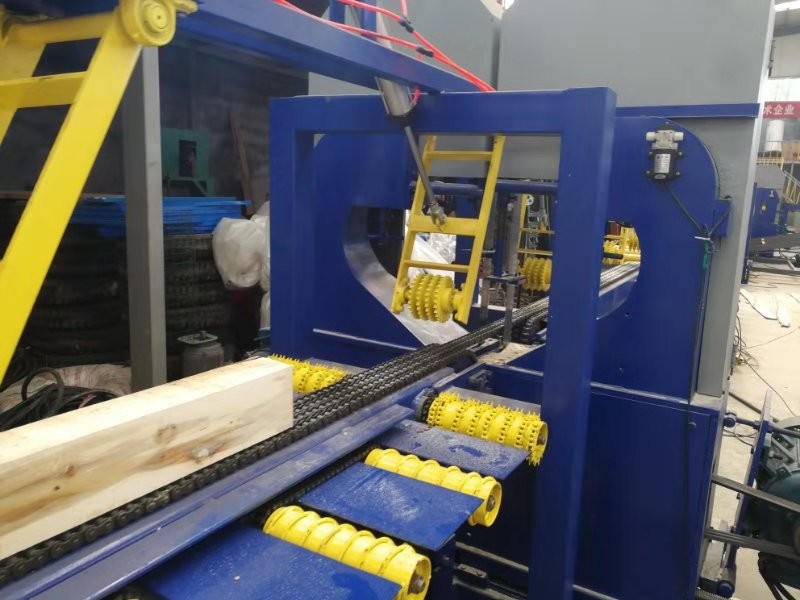

Lumber Industrial Sawmill Equipment 350mm Log Milling Machine 0

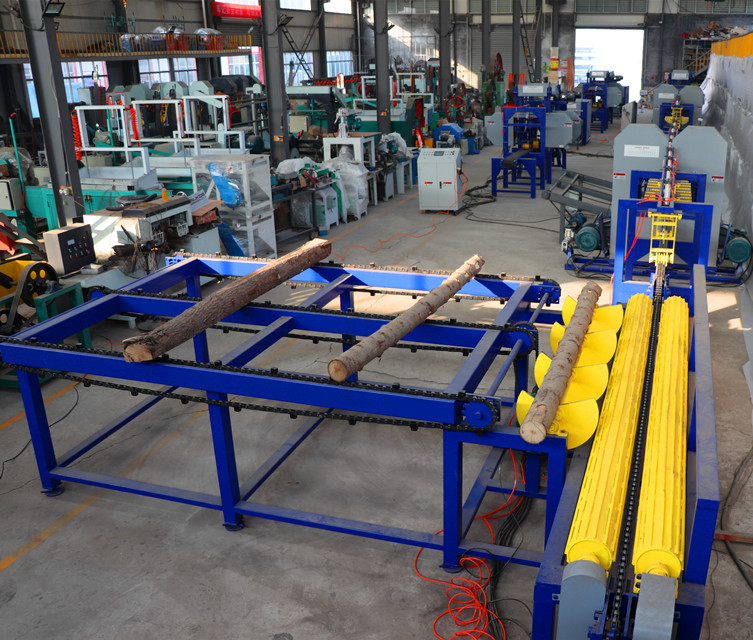

Lumber Industrial Sawmill Equipment 350mm Log Milling Machine 1

Optional - slabs slope conveyor

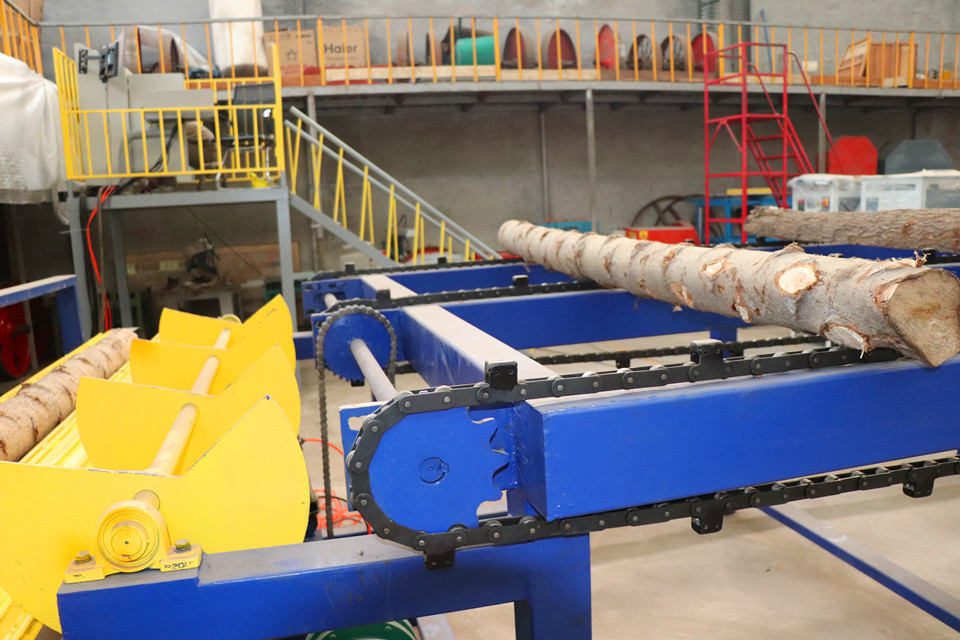

Lumber Industrial Sawmill Equipment 350mm Log Milling Machine 2
Optional - log loading deck

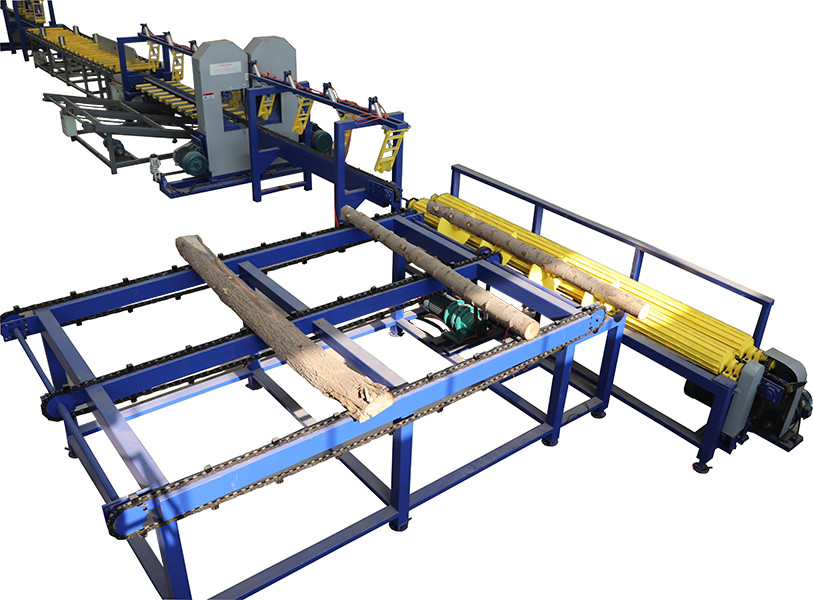

Lumber Industrial Sawmill Equipment 350mm Log Milling Machine 3
Optional -Roller conveyor

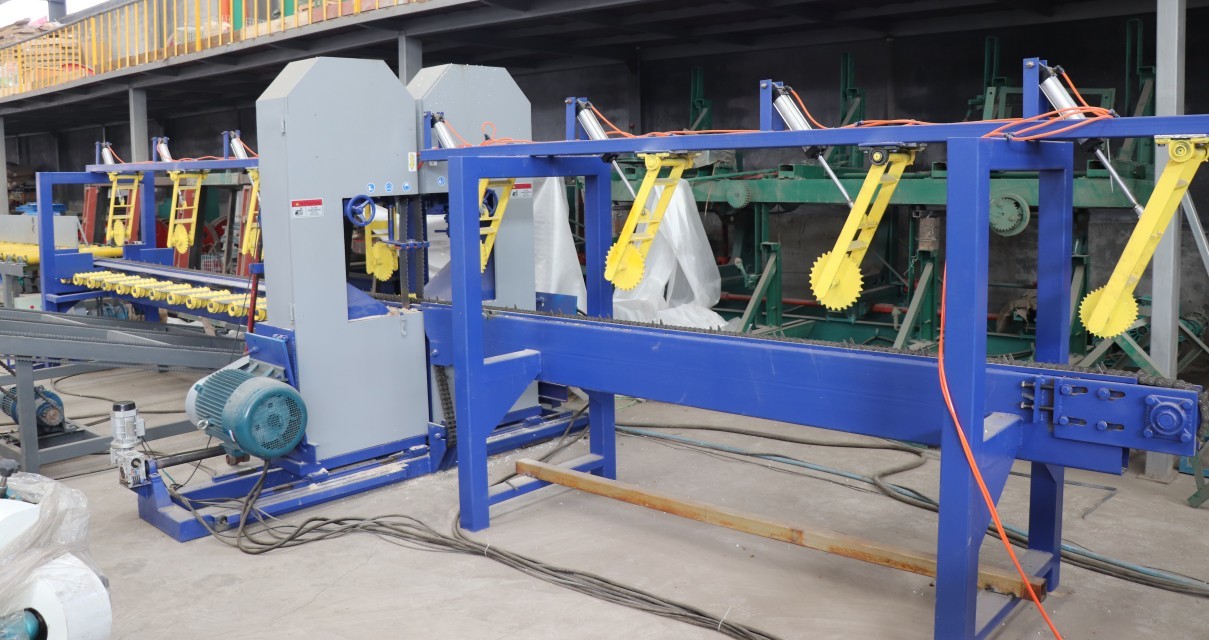

Lumber Industrial Sawmill Equipment 350mm Log Milling Machine 4

Twin bandsaw complete sawmill line

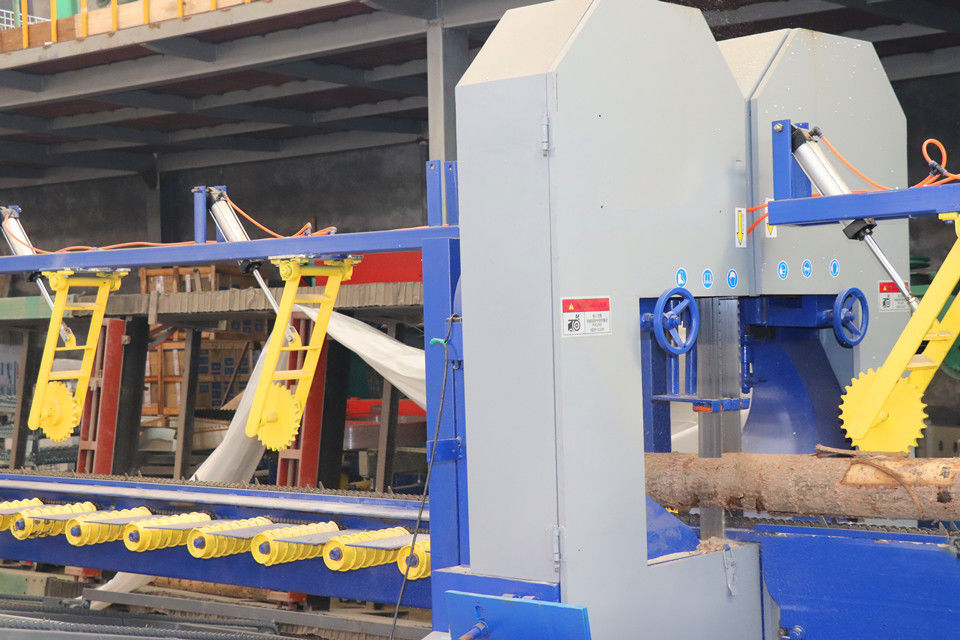

Lumber Industrial Sawmill Equipment 350mm Log Milling Machine 5

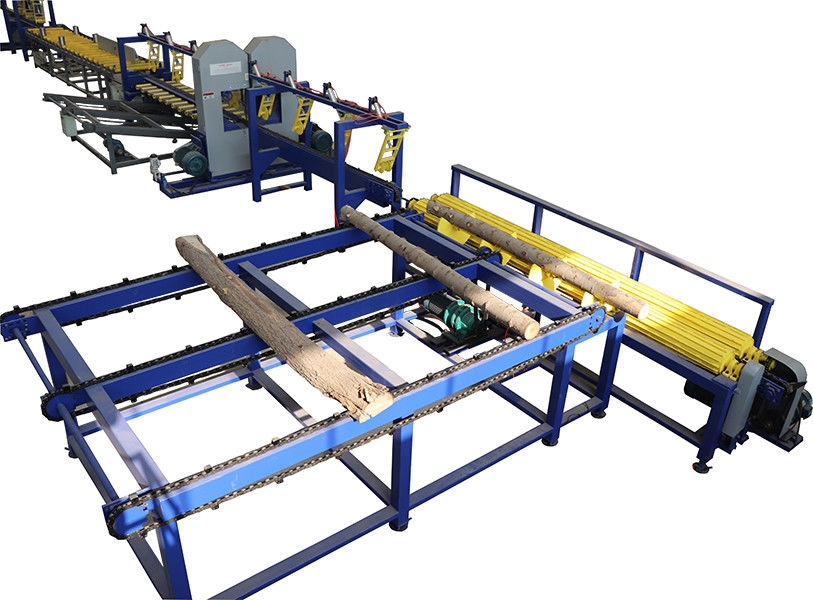

Lumber Industrial Sawmill Equipment 350mm Log Milling Machine 6
