Small Multi Blade Rip Saw for log edges cutting, Board Edger Saw Machine
Multi Blades Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 230mm | 230mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |

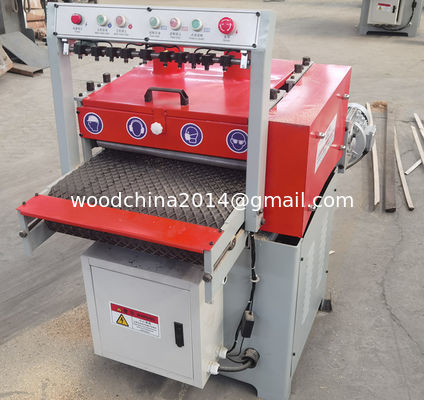

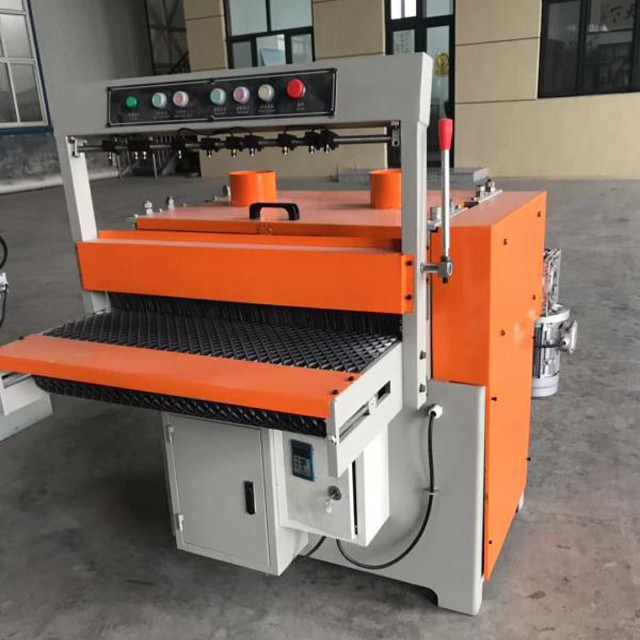

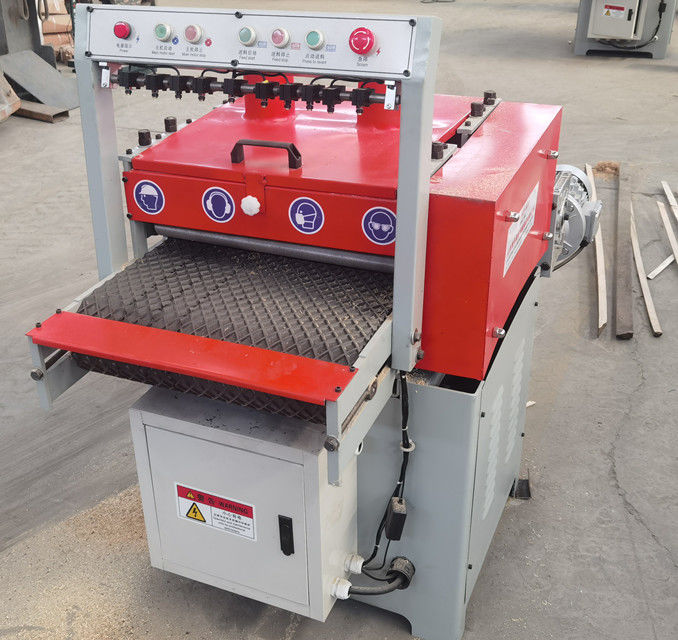

Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
Double Spindle Panel Cutting Multiple Blades Rip Saw
1.Used for Lumber/Panels/Planks Cutting
2.Max. cutting depth/thciness is upto 160mm
3.Max. cutting width is upto 400mm
4.Big motor power, fit for hardwood cutting
5.Blades is placed on up/down abrod/spindle .
6.We present one set discs on your cutting thickness
Specifications:
Multi Blades Rip Saw- For wood panels/plank cutting
