| Place of Origin: | Shandong province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | MJ328,MJ329,MJ3310,MJ3210 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $5,000 - 50,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 100 sets/quarter |
| Condition: | New | Type: | Vertical Band Saw |
|---|---|---|---|
| Usage: | Woodcutting | Voltage: | 380v/3phase/50HZ Or As Customer Needs |
| Warranty: | 12 Months | After-sale Service Provided: | Engineers Available To Service Machines Overseas |
Descriptions of vertical band saw wood machine

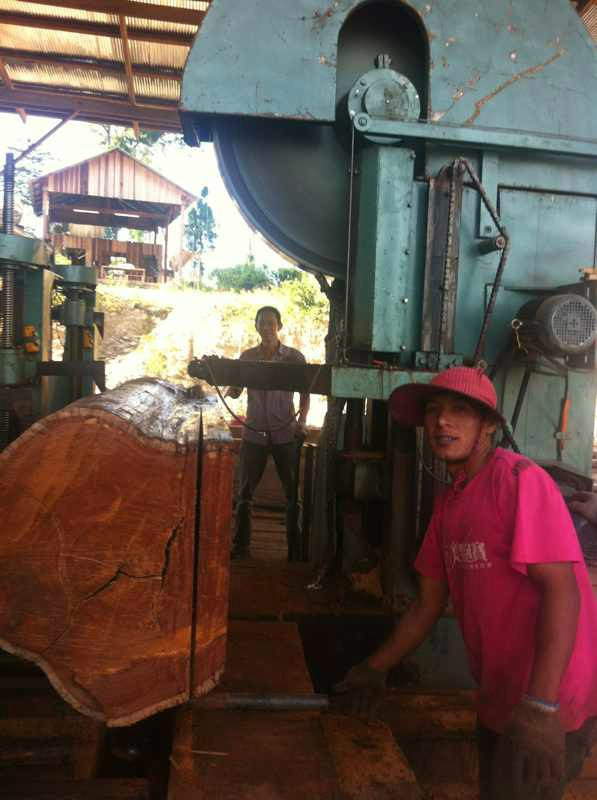

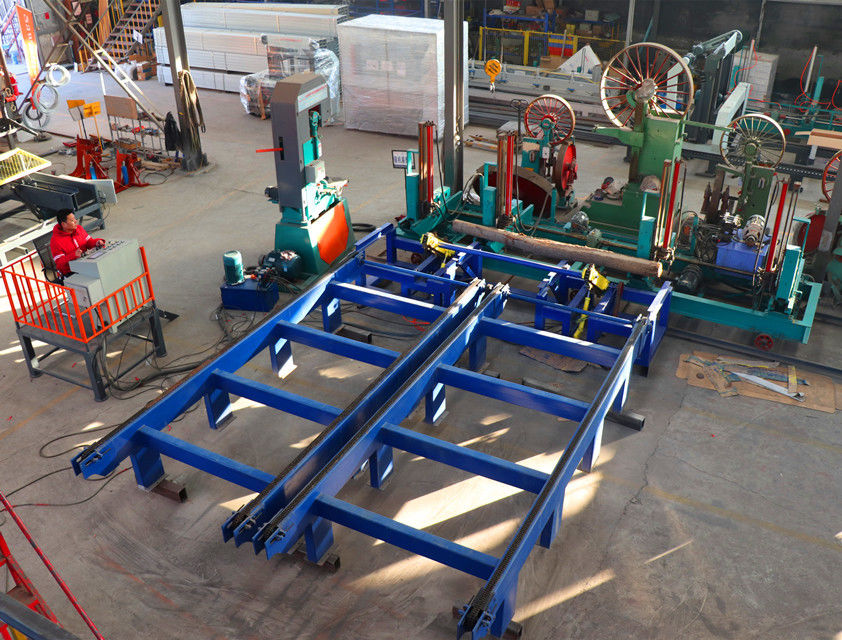

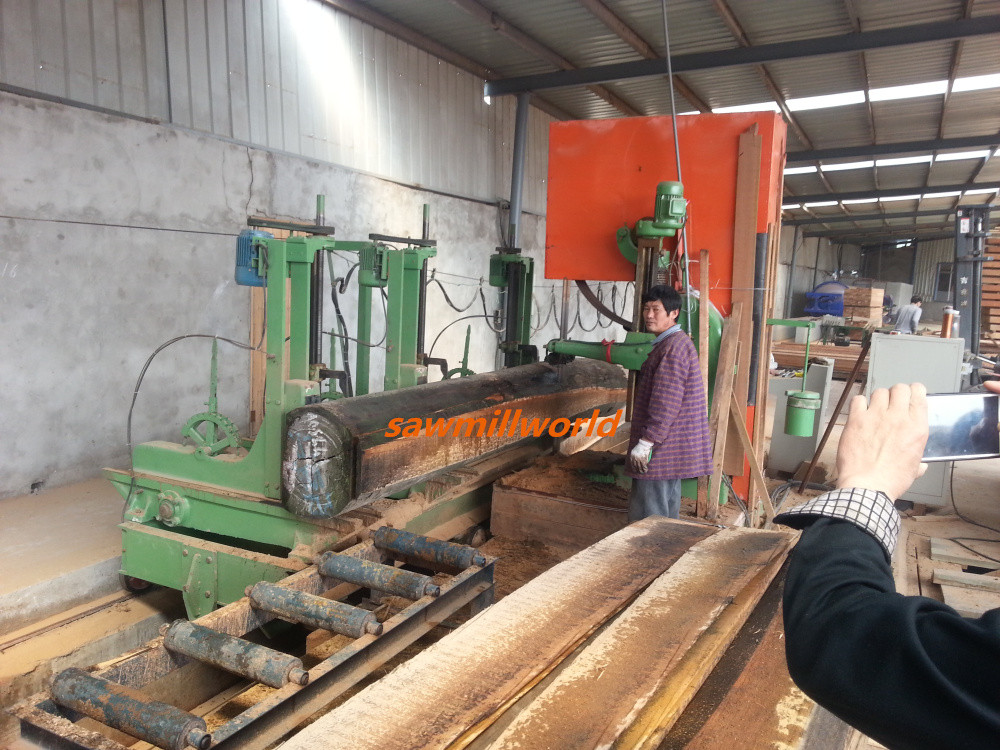

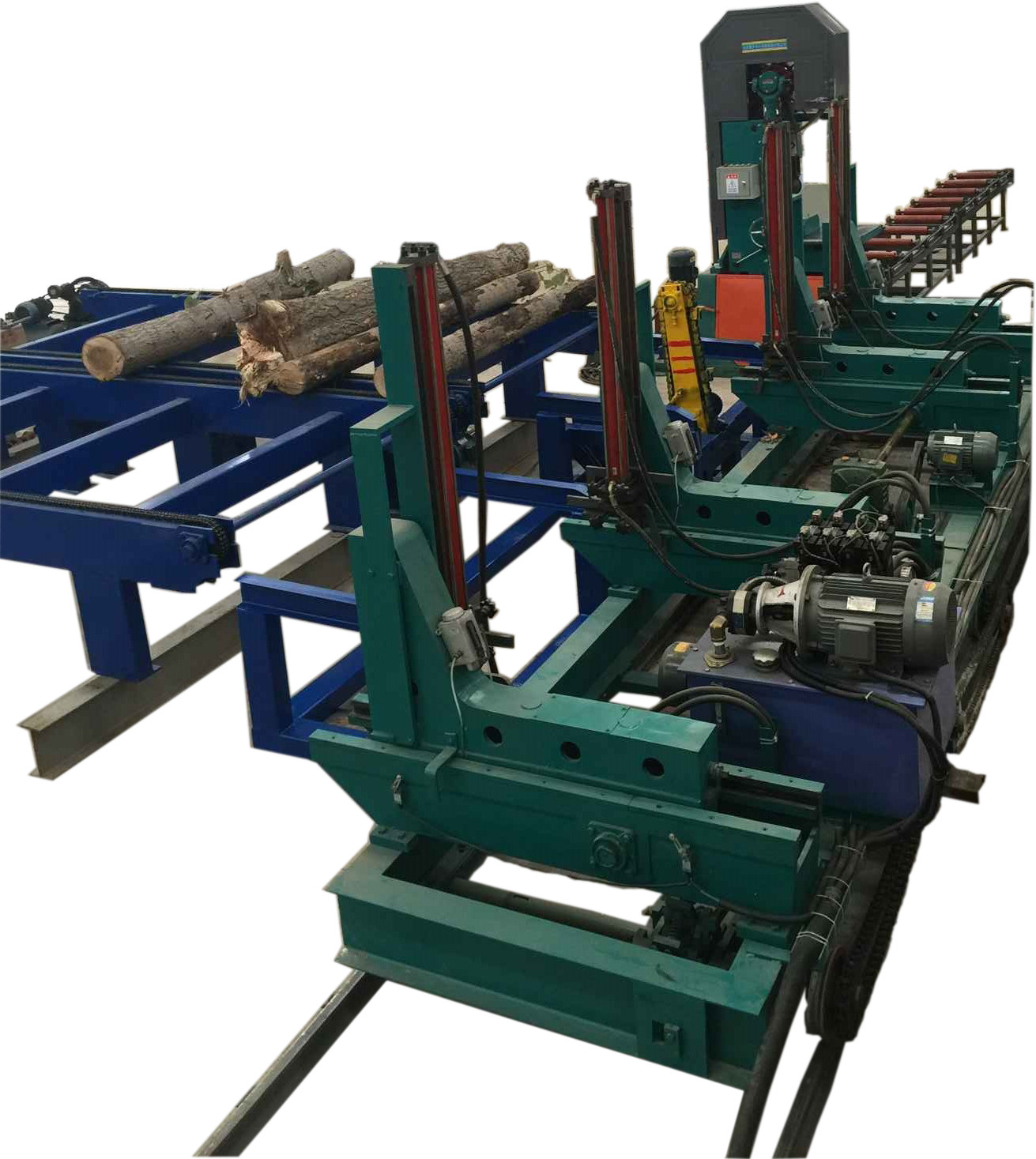

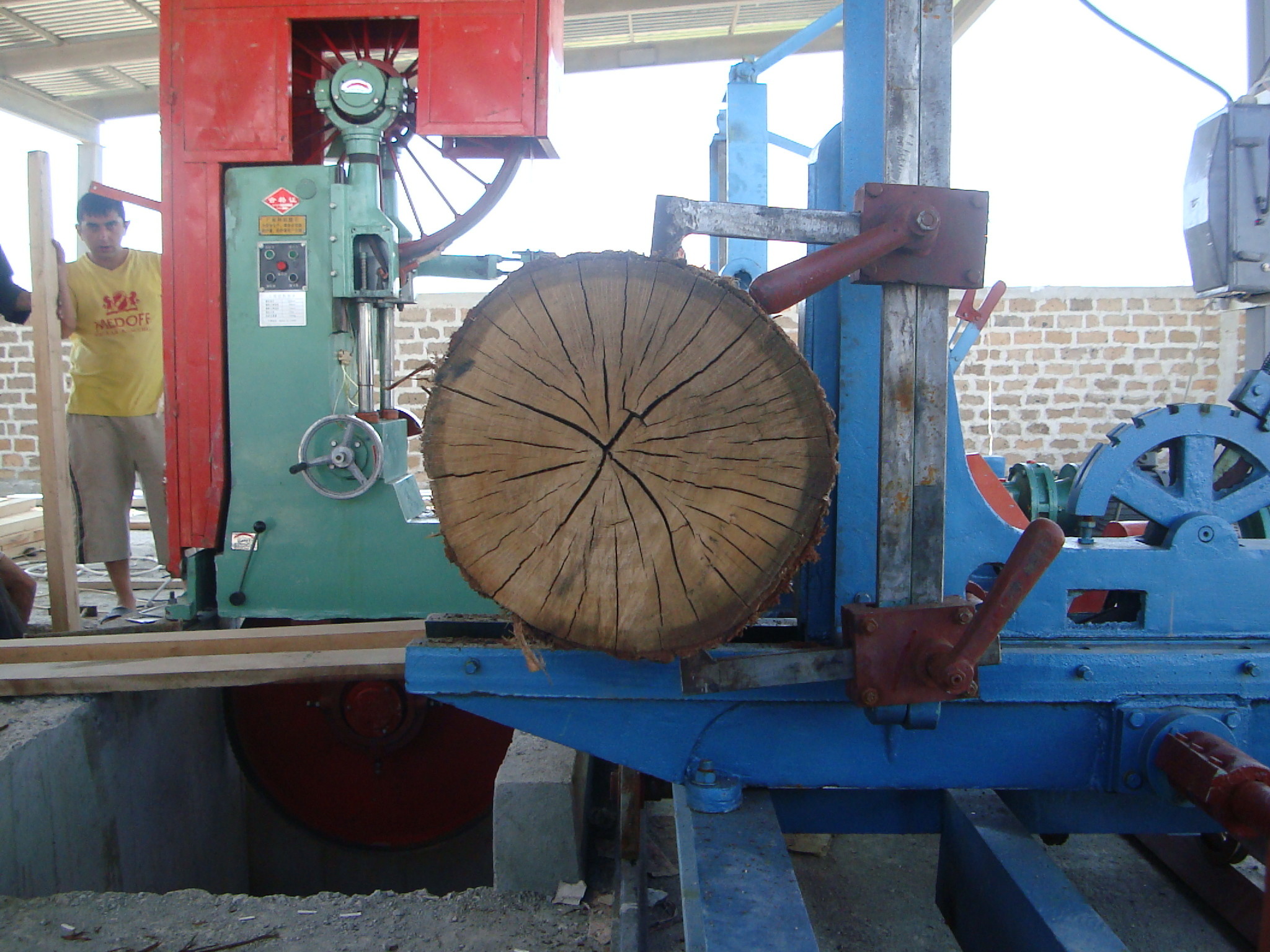

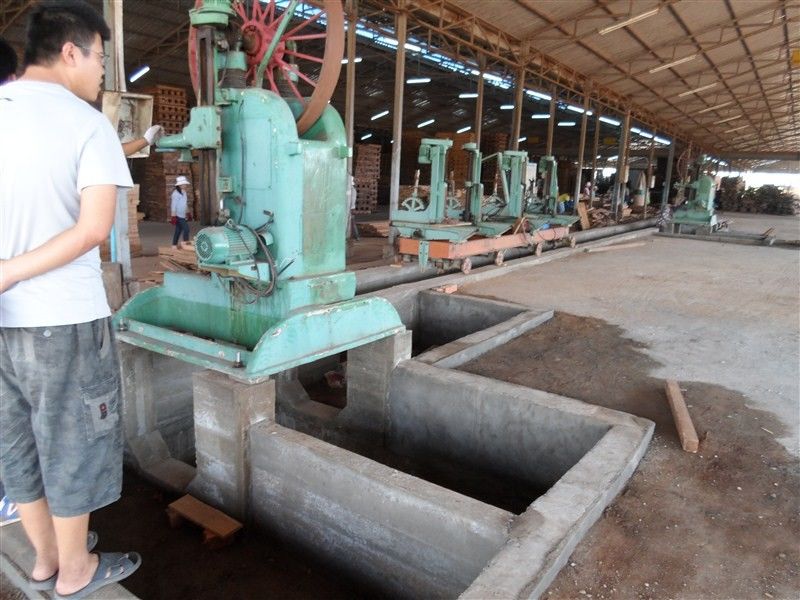

Vertical Band Sawmill With CNC Log Carriage
This lathe is mainly used to Vertical cut or slab-cut logs of a large or middle diameter or re-saw timbers into slabs and square logs of various specifications and it smoothly runs at a high efficiency.In combination with carriage, it will enlarge the working range and improve product quality and hence is the ideal equipment for wood working enterprises.
Applications:Processing large and middle logs and square logs together with large-or middle-size wood band saws.
Features:Automatic micro-computer control,feeding,and automatic dimensioning;high efficiency and low labor intensity;high precision,and easy operation.
| Technical Parameter | MJ3212-Z5000 | MJ3212-Z3000 | MJ3310-Z5000 | MJ3310-Z3000 |
| Saw Wheel Diameter (MM) | 1250 | 1250 | 1070 | 1000 |
| Saw Wheel Speed RPM | 650 | 650 | 650 | 650 |
| Saw Blade Length (MM) | 8600 | 8600 | 7400 | 7400 |
| Saw Blade Width(MM) | 150 | 150 | 150 | 150 |
| Saw Clip Movement Motor( KW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Saw Wheel Movement Motor( KW) | 0.75 | 0.75 | 0.75 | 0.75 |
| Main Motor Power( KW) | 37 | 37 | 30 | 30 |
| Carriage Clip Stake Quantity | 4 | 4 | 4 | 3 |
| Carriage Wheel Quantity | 3 | 3 | 3 | 2 |
| forward and backward | Electric | Electric | Electric | Electric |
| Sawing Thickness Setting | Electric | Electric | Electric | Electric |
| Max Sawing Wood Diameter(MM) | 1200 | 1200 | 1000 | 1000 |
| Max Sawing Wood Length(MM) | 6000 | 4000 | 6000 | 4000 |
| Track Length(MM) | 16000 | 12000 | 16000 | 12000 |
| Weight (KG) | 7200 | 6500 | 4900 | 4200 |
|
Technical Parameter |
MJ328 |
MJ329 |
MJ3210 |
MJ3310 |
MJ3212 |
|
|
Saw Wheel Diameter |
800mm |
900mm |
1000mm |
1070mm |
1250mm |
|
|
Saw Wheel Width |
110mm |
120mm |
120mm |
120mm |
140mm |
|
|
Saw Wheel Speed |
750r·p·m |
750r·p·m |
750r·p·m |
750r·p·m |
750r·p·m |
|
|
Saw Wheel& Clip Model |
Manual |
Manual |
Automatic |
Automatic |
Automatic |
|
|
Saw Wheel Length |
5700mm |
6400mm |
6800mm |
7400mm |
8600mm |
|
|
Max Sawing Wood Diameter |
650mm |
750mm |
900mm |
1000mm |
1200mm |
|
|
Main Motor Power |
11kw |
15kw |
22kw |
30kw |
37kw |
|
|
Weight |
1000kg |
1300kg |
1600kg |
1800kg |
3200kg |
|
Include main motor
Include iron-made safe protective casing
Include manual lubrication
Include foundry work platform
