SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH216, SH218, etc

Minimum Order Quantity:	1 SET
Price:	US $9,300 - 15,800 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	2000sets/year

Get Best Price Contact Now

Detail Information

Condition:	New	Application:	Make Wood Into Small Chips
Production Capacity:	5-7ton/hour	Voltage:	380V, 3PHASE/50HZ Or As Customer Needs
Power(W):	55KW	Warranty:	12 Months
Other:	Can Customise Machine As Customer Needs

Product Description

Drum clipper is a kind of specialized equipment to manufacture wood chip, which can be used for the manufacture of flake board, fiber board and paper. The small-sized drum clipper is the best equipment for labs of factories. Raw materials for drum clipper are thin timber, branches, remainder of wood processing (slab, batten, heart of log) and sugar cane stalk, reed, bamboo.

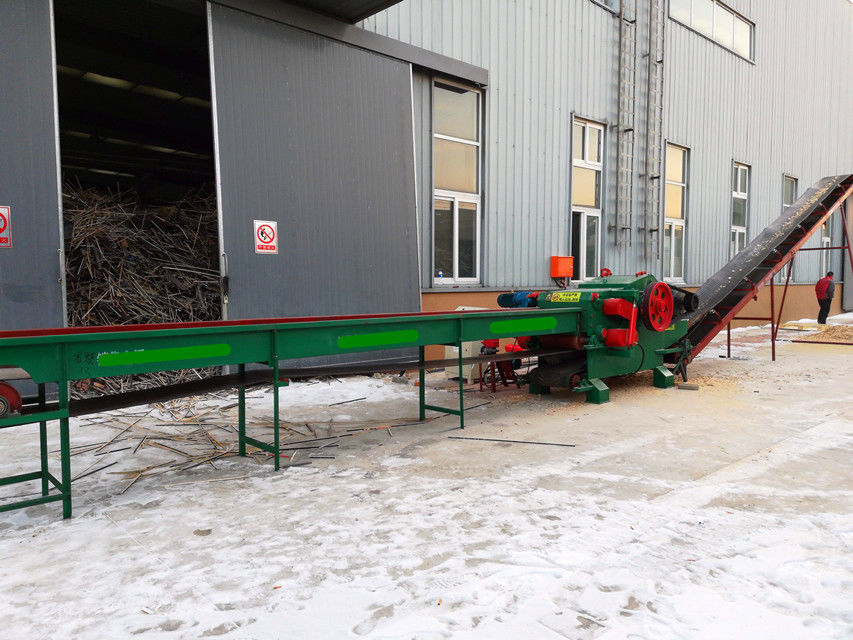

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 0

Specification:

Model	SH216	SH218
Feeding Inlet	240*540mm	310*680mm
Rotor Diameter	650mm	800mm
Blade Quantity	2 or 3	2 or 3
Motor Power	55KW	110KW
In Feed Conveyor	6000mm	6000mm
Out Feed Conveyor	10000mm	10000mm
Capacity	7-10T/H	9-13T/H
Weight	4070KG	7500KG

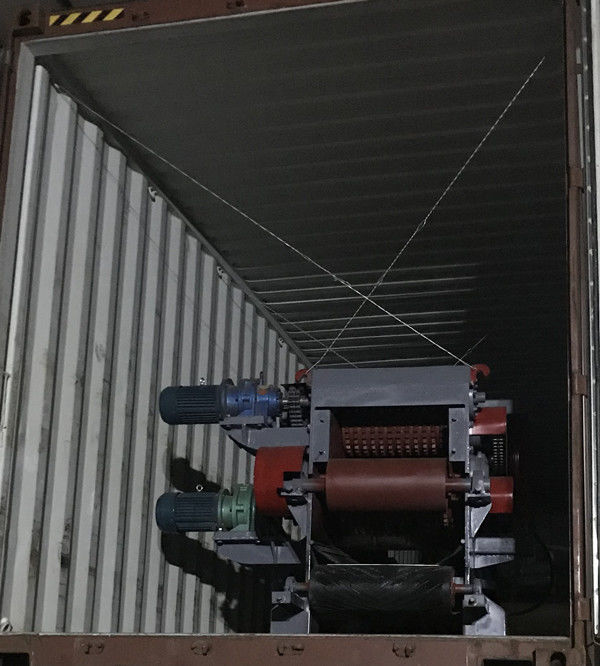

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 1

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 2

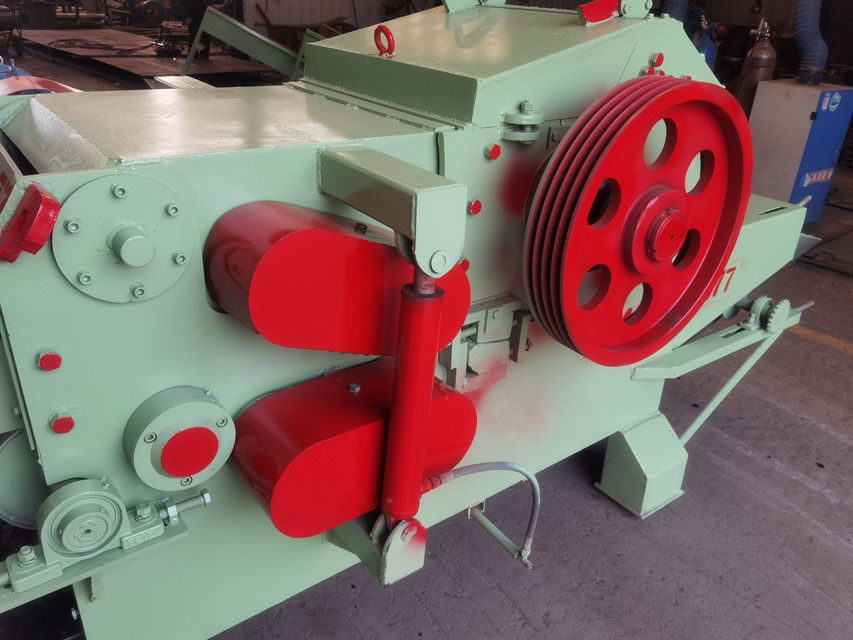

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 3

Wood Composite Crusher

Model		SH2000-1000	SH1300-600	SH1400-600	SH1600-600
Feeding inlet size		2000x1000mm	1250x600mm	1400x600mm	1600x600mm
Blade roller diameter		1400mm	850mm	850mm	850mm
Blade roller speed		750RPM	850RPM	850RPM	850RPM
Production capacity		70-100ton/H	12-15ton/H	18-20ton/H	25-30ton/H
1	YG8 hammer blade qty	86pcs	20pcs	24pcs	28pcs
2	Blade qty	3groups/9tablets	2groups/4tablets	2groups/4tablets	2groups/4tablets
Max. Processing log diameter		<800mm	450mm	450mm	450mm
Main motor power		450kw	160kw	200kw	250kw
Wood chipper size		3-5cm	2-4cm	2-4cm	2-4cm
Working life of blades		4000T-5000T	4000T-6000T	4000T-6000T	4000T-6000T
Optional : Diesel engine power 400HP is workable Wheels for mobile usage Hydraulic collapsible outlet conveyor Magnetic machine to suck out iron products

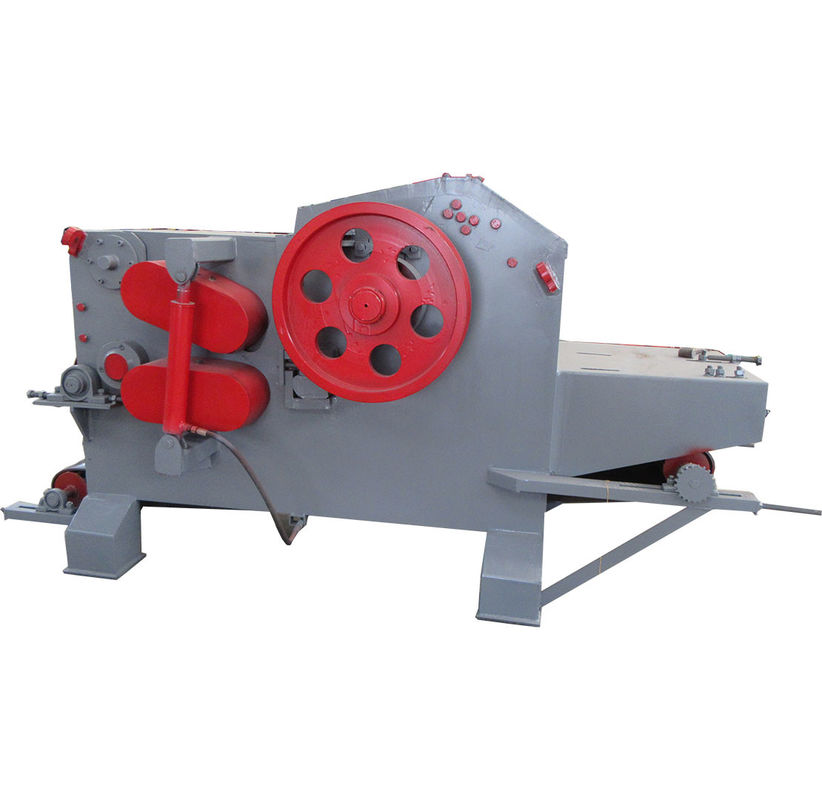

Image of Electrical type

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 4

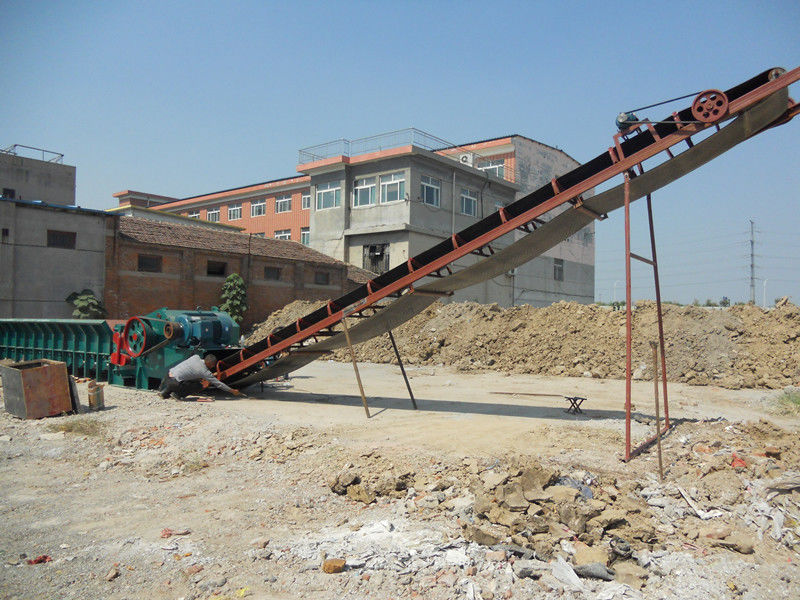

Image of Electrical Mobile usage type

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 5

Image of Diesel Mobile usage type

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 6

SH216 Wood Drum Chipper, Log Chipping Machine, Wasted Wood Crusher Price 7
