Automatic wood sawdust pellet machine, Wood Powder Grinding Machine,Sawdust Wood Crusher for sale
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SHMF1300-700, SHMF1500-800 |
| Minimum Order Quantity | 1 SET |
| Price | US $8,000-4,9000 / Sets |
| Packaging Details | container loading of wood sawdust crusher |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 500 sets/Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Sawdust Wood Crusher | Feeding Inlet Size | 1300*700mm,1500*800mm |
|---|---|---|---|
| Roll Diameter | 700mm, 800mm | Blade Quantity | 84pcs |
| Raw Material | Wood Chips Wood Pieces | Main Motor Power | 132kw, 160KW |
| Raw Wood Chipper Size | 2-5 Cm | Operation | Automatic Distant Control |
| Capacity | 4-8 Tons/Hour | Magnetic System | Optional To Such Out Iron Nails, Etc |
| Keywords | Sawdust Wood Hammer Mill | Application | Processing Wood Chips Into Sawdust |
Product Description

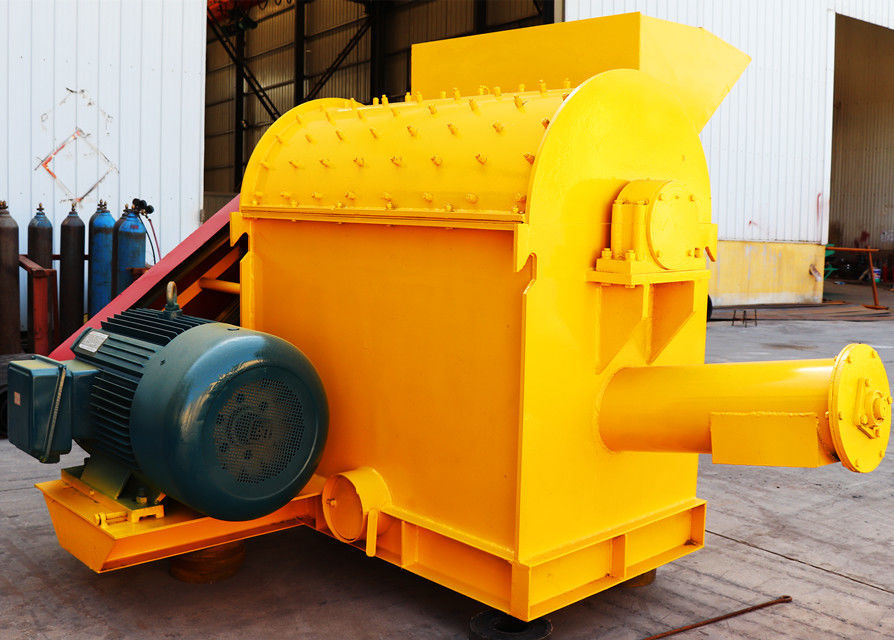

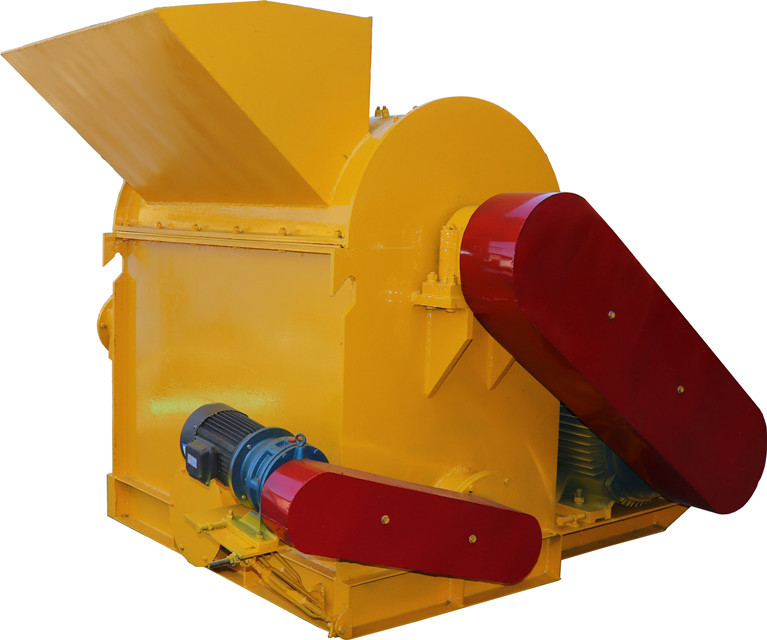

Wood Sawdust Machine
- Automatic operation system.
- Optional-Sacron Cyclone Dust Collector.
- With Bag dust collection system.
- With Magnetic system
Technical Data:
| Model | SHMF1300-700 | SHMF1500-800 |
| Feeding inlet size | 1300X700mm | 1500X800mm |
| Blade shaft diameter | 700mm | 800mm |
| Blade quantity | 84pcs | 84pcs |
| Main motor power | 132kw | 160kw |
| Production capacity | 4-5ton/hour | 6-8ton/hour |
| Feeding system | 1set,5.5KW,With strong magnetic machine | |
| Discharging system | 1set | |
| Bag dust collection | 1 unit(40bags, with Supports and pipes) | |
| Sacron Cyclone Dust Collector | 1unit(1200MM dia., with Supports and pipes) | |
| With Soft start inverter integrated control cabinet | ||
SH1300-600 Series Wood Crusher Machine is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Technical Parameter Of Host System Equipment
| Model | SH1300-600 |
| Feeding Inlet | 1300*600MM |
| Blade Roller Diameter | 850MM |
| Blade Roller Speed | 850RPM |
| Capacity | 15-20T/Hour |
| YG8 Hammer Blade Quantity OR Blades | 22 pcs hammers or 2sets blades |
| Max Processing Wood Diameter | 450MM |
| Electric motor power | 160KW |
| Wood Chipper Size | 20-40MM |
| Working Life Of THE Hammer Blades | 4000T-6000T |
Technical Parameter Of Feeding System
| Model | SH1300-600 |
| Slot Chain Plate Feeding Conveyor | 1 Set |
| Feeding Motor Power | 7.5KW+11KW |
| Chain Plate Width | 1260MM |
| Conveyor Length | 6000MM |
| Feeding Speed | 2-18M/Min |
| Chain Material | 16Mn |
| Position Limited Wheel | 5 |
| Gear Box | Hard Teeth Faces |
Technical Parameter Of Discharging System
| Model | SH1300-600 |
| Outlet Conveyor Belt | 1Set |
| First Outlet Motor | 4KW With Gear Box |
| Second Outlet Motor | 5.5KW With Gear Box |
| Conveyor Material | 14-16# Channel/ Square Tube |
| Conveyor Length*Width | 10m*1m |
| Conveyor Material | Nylon 4 Layer |
| Outlet Height | 3800-4500MM |
Intelligent Electronic Control System
| Model | SH1300-600 |
| Large Control Cabinet | Ground |
| Host Start Model | Soft Start |
| Feeding Speed Control Model | Variable Frequency |
| Electrical Control | Control Cabinet + Remote Control |
High Efficiency Hydraulic System
| Model | SH1300-600 |
| Control Model | Solenoid Valve |
| Hydraulic Oil Pump | 3KW |
| Hydraulic Oil Tank | 120L |
