Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper

  • Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper
  • Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper
  • Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper
  • Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper
  • Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper
  • Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SH216, SH218, etc
Minimum Order Quantity 1 SET Wood Drum Chipper
Price USD11,000-72,000/SET
Packaging Details container loading of wood chipper
Delivery Time within 25 days for wood chipper
Payment Terms Western Union, T/T
Supply Ability 1500 Sets/Year of Wood Chipper

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Drum Wood Chipper Application Crush Wood Logs Into Wood Chips
Keywords Wood Chipper Feeding Inlet Size 240x540mm, 310x680mm
Wood Chip Size 20-30mm Blade Quantity 2pcs
Motor Power 55KW, 110KW Rotor Diameter 600mm, 800mm
Capacity 5ton To 15ton/hour Feeding Conveyor Length 6meters
Leave a Message
Product Description

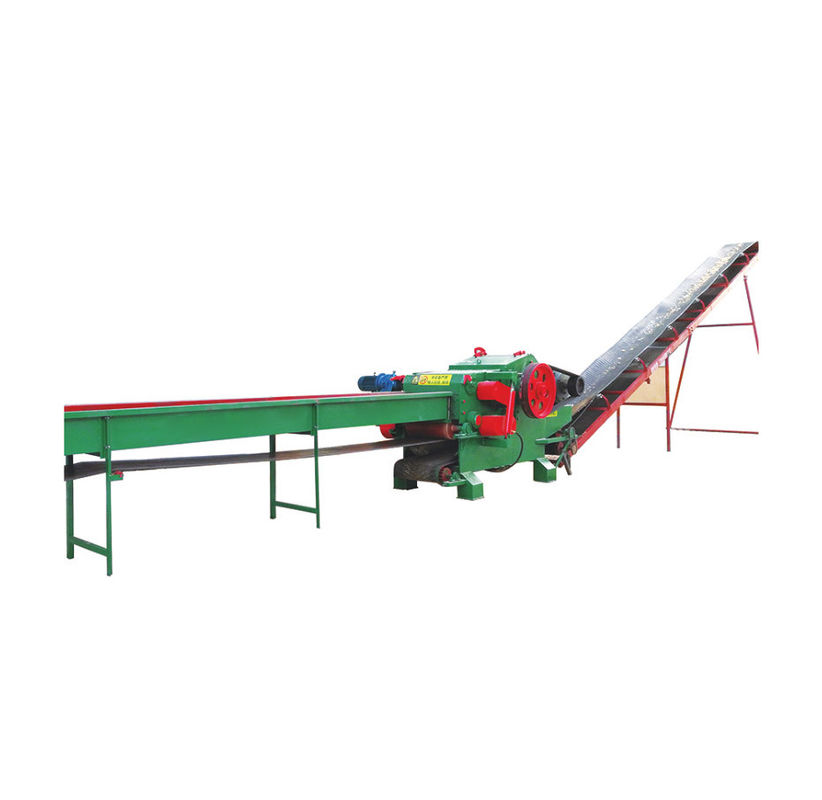

Wood Logs Chipper

Introduction:

1. Processing log diameter : 50-300mm

2. End chips size :20-40mm

3. Production capacity : 7-15tons/hour

4. We can also do production line design as customer needs

Technical Data

Model SH216 SH218
Feeding Inlet 240*540mm 310*680mm
Rotor Diameter 650mm 800mm
Blade Quantity 2 or 3 2 or 3
Motor Power 55KW 110KW
In Feed Conveyor 6000mm 6000mm
Out Feed Conveyor 10000mm 10000mm
Capacity 7-10T/H 9-13T/H
Weight 4070KG 7500KG



































Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper 0

Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper 1

Related Products:

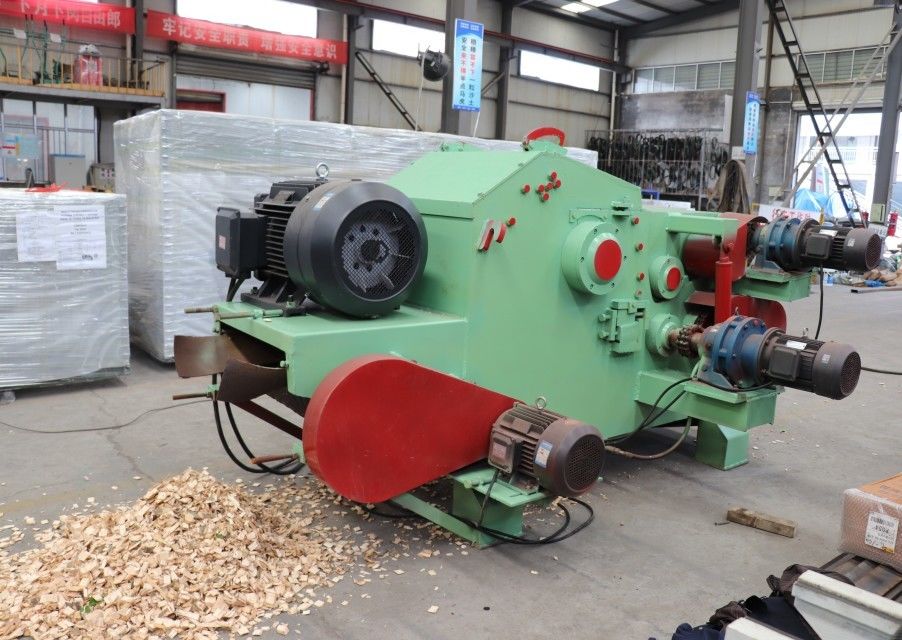

Disc Wood Chipper Machine
Specification SHJP1600
Feeding inlet size 450*450mm
Knife No. 6片
Main motor power 185kw
Horizontal feed conveyor 8000mm
Slope outfeed conveyor 10000mm
Wood chipper size 20-35mm
Discharging type down
Production capacity 25-30t/h

Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper 2



Wood Composite Crusher

Model SH2000-1000 SH1300-600 SH1400-600 SH1600-600
Feeding inlet size 2000x1000mm 1250x600mm 1400x600mm 1600x600mm
Blade roller diameter 1400mm 850mm 850mm 850mm
Blade roller speed 750RPM 850RPM 850RPM 850RPM
Production capacity 70-100ton/H 12-15ton/H 18-20ton/H 25-30ton/H
1 YG8 hammer blade qty 86pcs 20pcs 24pcs 28pcs
2 Blade qty 3groups/9tablets 2groups/4tablets 2groups/4tablets 2groups/4tablets
Max. Processing log diameter <800mm 450mm 450mm 450mm
Main motor power 450kw 160kw 200kw 250kw
Wood chipper size 3-5cm 2-4cm 2-4cm 2-4cm
Working life of blades 4000T-5000T 4000T-6000T 4000T-6000T 4000T-6000T

Optional :

  • Diesel engine power 400HP is workable
  • Wheels for mobile usage
  • Hydraulic collapsible outlet conveyor
  • Magnetic machine to suck out iron products



Image of Electrical type

Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper 3

Image of Diesel engine type

Drum And Disc Wood Chipper Shredder Machine, Drum Wood Chipper, Disc Wood Chipper 4
