Detail Information

Name:	Wood Pallet Notching Machine	Slot Width:	200-230mm
Process Wood Length:	Max 1400mm	Wood Pallet Width:	Max 90mm
Wood Pallet Thickness:	40-60mm	Main Motor:	30kw
Machine Wight:	1000kgs	Key Words:	Pallet Notcher, Pallet Notching Machine
Highlight:	90mm Double Head Notcher , Notcher Wood Pallet Machine , 800pcs/H Double Head Notcher

Product Description

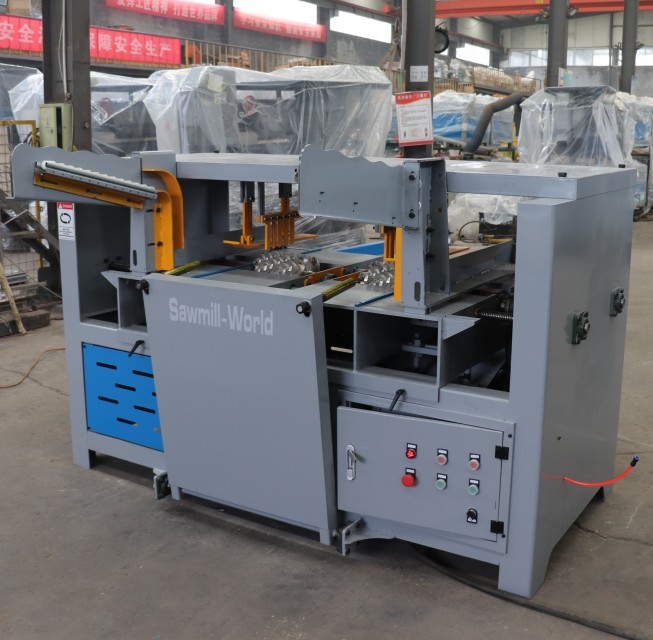

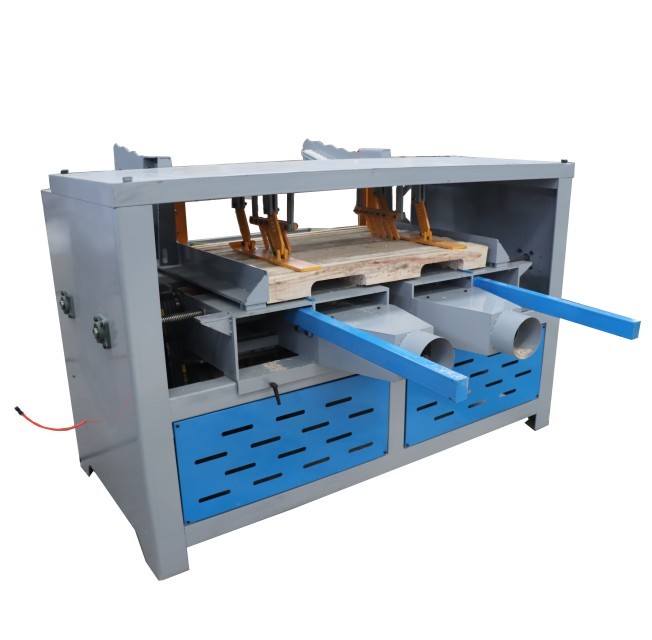

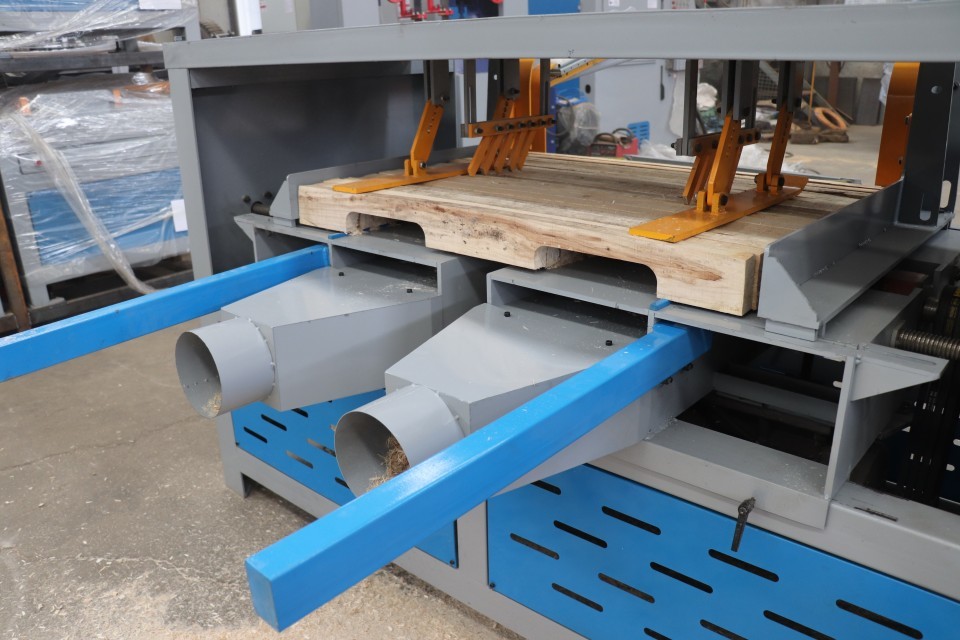

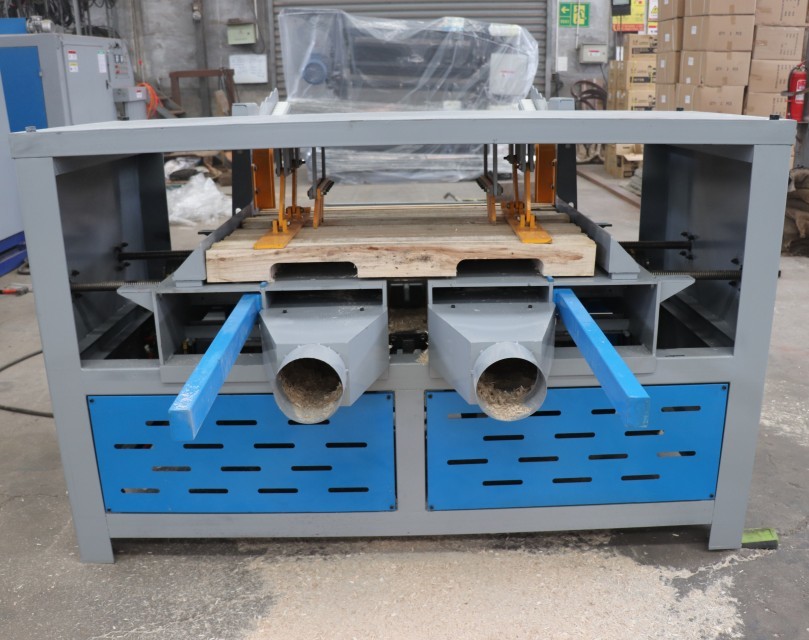

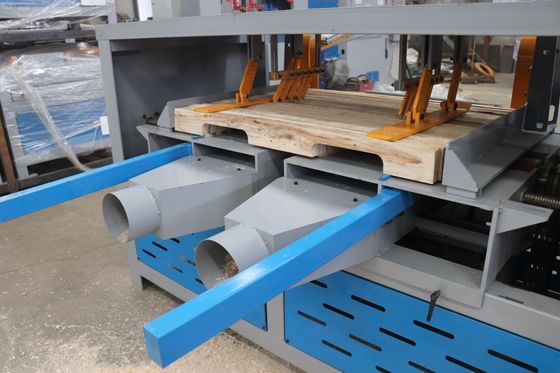

Automatic Double Head Wood Pallet Notching Machine, automatic Euro wood pallet machine

Slot Milling Machine /Notcher Pallet Machine

Making slots onthe wood boards for pallet production
Technial data

Model	WPN-1	WPN-2
Power	15kw	30kw
Material of knife	Alloy	Alloy
Capacity	600-800pics/h	1800pics/h
Processing size	Wood pallet length: max 1800mm	Wood pallet length: max 1400mm
	Wood pallet width: 160mm	Wood pallet width: max 90mm
	Wood pallet thickness:40-60mm	Wood pallet thickness: 40-60mm
	Slot depth: <45mm	Slot depth: <45mm
	Slot width: 200-230mm	Slot width: 200-230mm
Machine size	120011001200mm	230013001300mm
Machine wight	400kg	1000kg
Feature	Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

Single Head type

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 0

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 1
Double head type

Related Products
Euro Pallet Automatic Wood Pallet Making Line

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 4

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine

Model	SLDJ-1300-3
Block width	60-150mm
Board Length	600-1300mm
Nail gun	CN703Stanley BOSTITCH Stitch CN703
Nailing method	1 nail, 2 nails, 3 nails, 4 nails, 5 nails
Air pressure	0.8MPA
Nail gun speed	4-8 s/time
Motor power	1.5KW Servomotor
Voltage	220V(Customized)
Operating mode	Touch screen
Production mode	Manual discharge/automatic pin pier

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 5

2,Automatic European pallet nailing machine

Model	AEPN-1300
Wood pallet length	700-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	2kw Servo motor
Air pressure	0.8MPA
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Number of nail guns	6P CN70,CN58
Weight	2000kg

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 6

3.Wood pallet branding machine

Model	LY-4
Processing Size	800-1300mm
Branding material	Copper/die steel
Air pressure	0.8MPA
Branding speed	4-8 s/time with pallet machine speed
Motor power	0.75KW*2
Number of branding	1-6 pcs
Control mod	Pallet machine production line integrated supporting
Voltage	380V(Customized)
Machine size	250021001600mm

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 7

4. Pallet angle cutting machine

Model	PQ1300-4
Processing size	800-1300mm
Circular saw blade diameter	300mm
Motor power	2.2KW*4
Working mode	Automatic feed,Automatic Angle cutting
Weight	350kg

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 8

5. Wooden pallet palletizer

Model	MD-1300Z
Processing size	800-1300mm
Lift control	Hydraulic
Palletizing speed	4-8 s/time
Model power	5.2KW

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 9

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness

Specifications:

Model		SH80-300		SH120-250		SH160-250
Max. sawing width		300mm		250mm		250mm
Max. sawing thickness		80mm		120mm		160mm
Min sawing length		600mm		500mm		500mm
Motor power		15kw x2		22kw x2		30kw x2
Saw blade diameter		180mm		230mm		255mm
Machine weight		1200kg		1800kg		2000kg
Model	SH120-300		SH160-300		SH160-400
Max. sawing width	300mm		300mm		400mm
Max. sawing thickness	120mm		160mm		160mm
Min sawing length	600mm		600mm		600mm
Motor power	22kw x2		30kw x2		37kw x2
Saw blade diameter	230mm		280mm		280mm
Machine weight	2500kg		2800kg		3000kg
Feeding	Variable frequency speed adjustable automatic feeding
Cooling blade	Spindle center water cooling blade

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 10

Wood Pallet Machine Double Head Notcher Pallet Notching Machine600-800pcs/H 11
