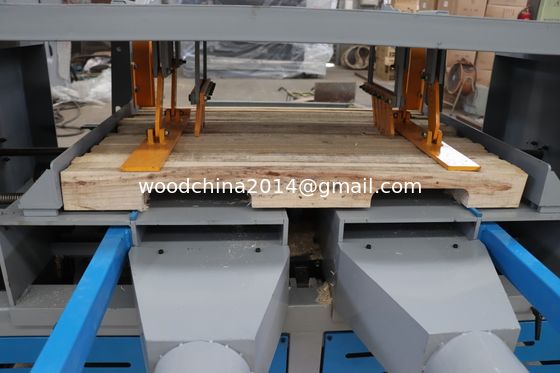

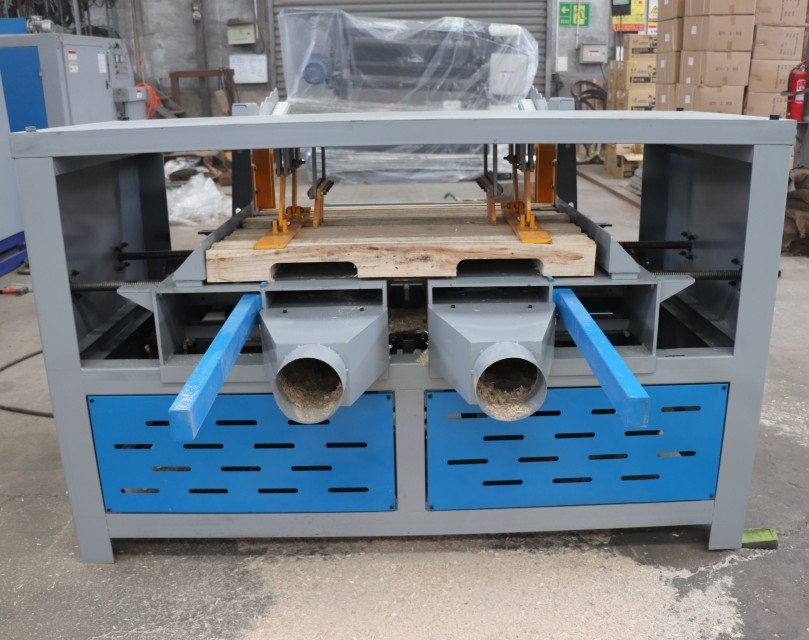

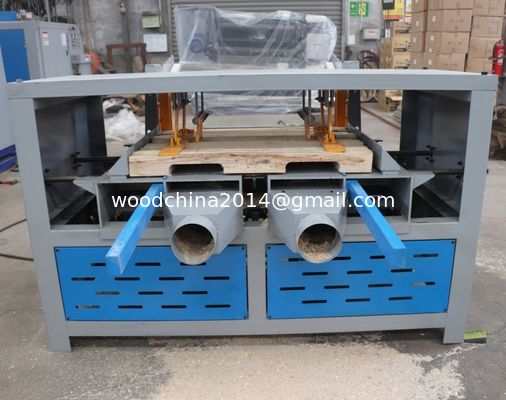

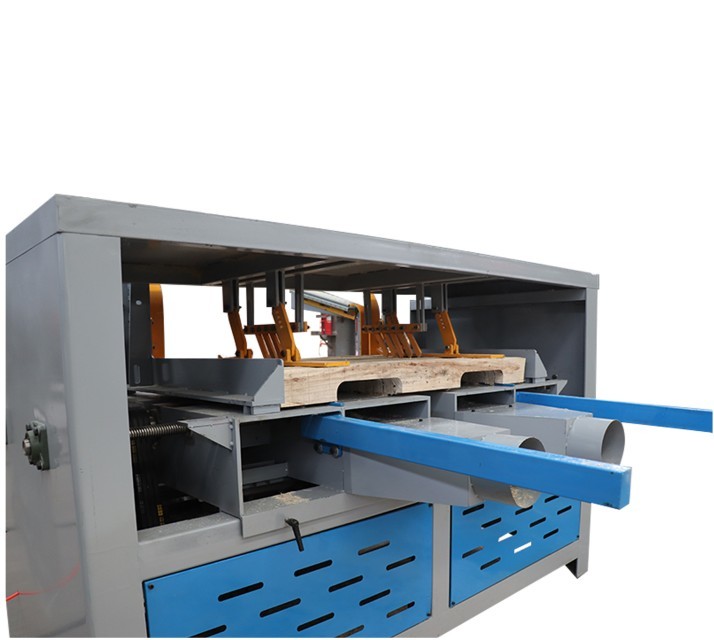

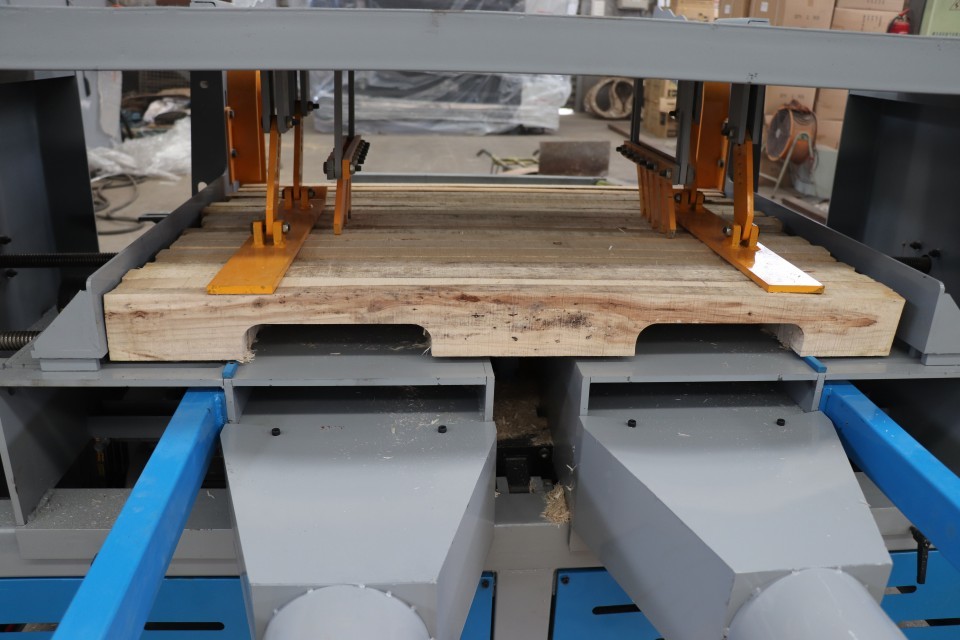

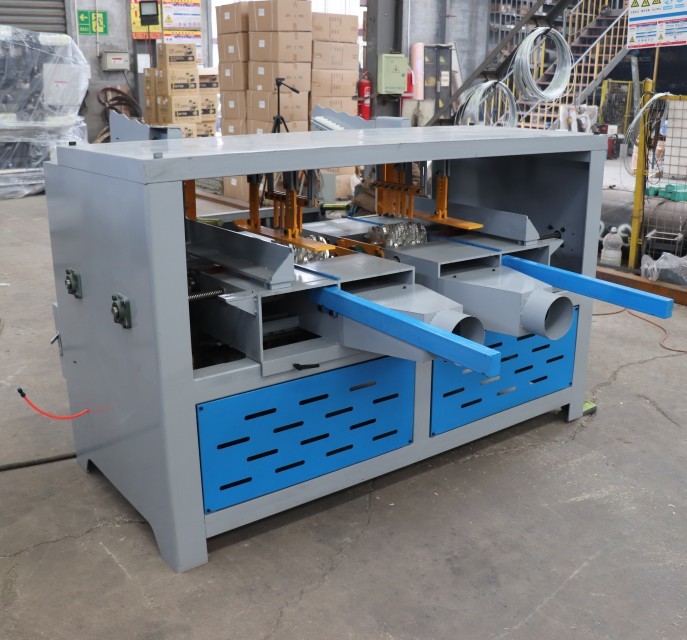

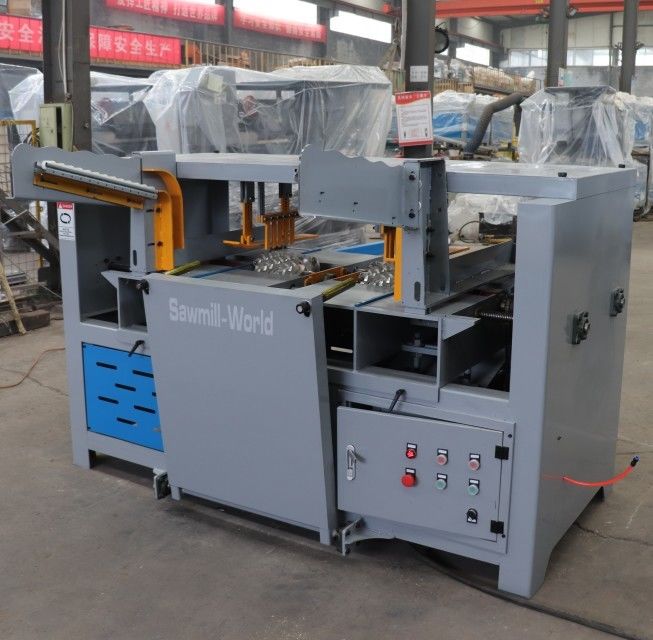

Pallet Notching,Wood Pallet Notching Machine, Pallet Notcher with double slots
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | WPN-1, WPN-2 |
| Minimum Order Quantity | 1 SET Wood Pallet Notching |
| Price | USD2800-3200/SET |
| Packaging Details | wooden pallet or iron frame packings |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 100sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Pallet Notching | Application | Making Slot For Wood Pallet |
|---|---|---|---|
| Processing Slot Width | 200-230mm | Processing Slot Depth | <45mm |
| Wood Pallet Length | Max 1800mm Or Max. 1400mm | Wood Pallet Thickness | 40-60mm |
| Wood Pallet Width | 160mm Or 90mm Max. | Motor Power | 15KW, 30kw |
| After Warranty Service | Video Technical Support, Spare Parts | Warranty | 1 Year |
Product Description
Slot Milling Machine /Notcher Pallet Machine
- Making slots onthe wood boards for pallet production
- Technial data
| Model | WPN-1 | WPN-2 |
| Power | 15kw | 30kw |
| Material of knife | Alloy | Alloy |
| Capacity | 600-800pics/h | 1800pics/h |
| Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
| Wood pallet width: 160mm | Wood pallet width: max 90mm | |
| Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
| Slot depth: <45mm | Slot depth: <45mm | |
| Slot width: 200-230mm | Slot width: 200-230mm | |
| Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
| Machine wight | 400kg | 1000kg |
| Feature | Slot smooth, size consistent | |
| Apply for many kinds of slots, also can customized. | ||

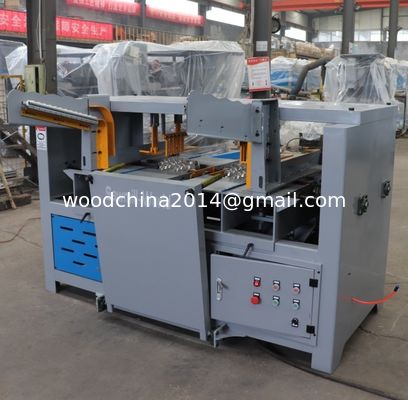

Single blade type

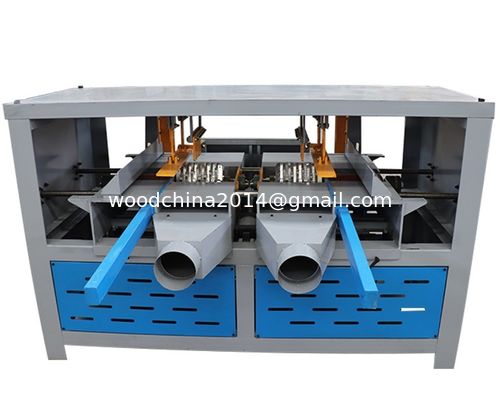

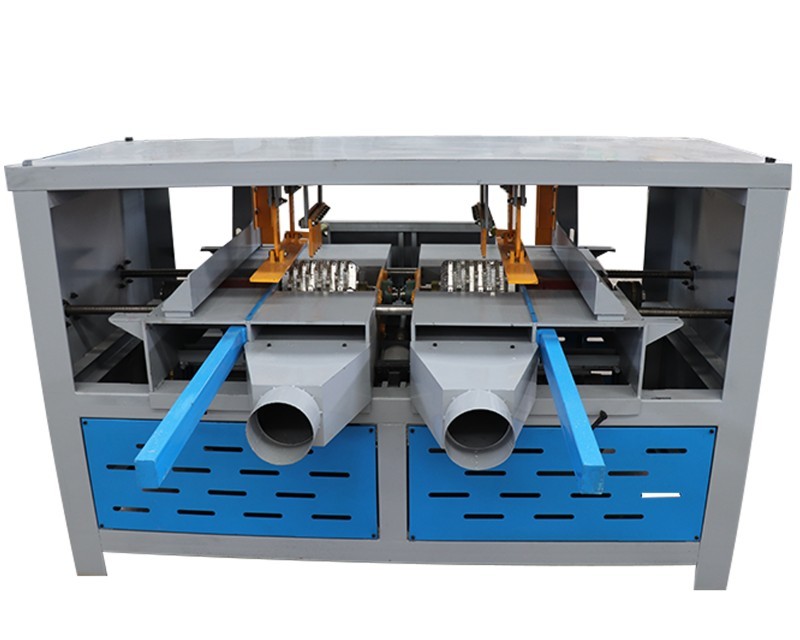

Double blade type
Related Products
Semi-Automatic Pallet Nailing Machine with Palletizer
Technical data
| Model | AWPN-1500 |
| Wood pallet length | 600-1300mm |
| Wood pallet width | 800-1700mm |
| Feeding mode | Hand pull |
| Palletizing mode | Automatic |
| Operational mode | Pneumatic operation |
| Voltage | 380V,480V or other |
| Air pressure | 0.8MPA |
| Tank size | 0.2 cubic |
| Nail gun speed | 7 times /second. |
| Production efficiency | 1-2pcs /min |
| Apply a nail | Less than 90mm |
| Number of nail guns | 3P OR 4P |
| Palletizing quantity | 10P |
| Weight | 2000kg |
Wood Pallet Dismanling Sawmill
1. easy operation
2. Ideal tool to take apart wooden pallet to save engrgy.
3. Strong saw blade to cutting the nail .
Specifications :
Model |
TP1400 |
Table Width |
1400mm |
Table Length |
1200mm |
Cutting Thickness |
5mm-150mm |
Saw Wheel Diameter |
500mm |
Motor Power |
7.5KW |
Processing Pallet Efficiecy |
40-60 pcs/min |
Band Saw Blade Size |
USA Blade 5550*41*1.3 mm |
Overall Size |
2800*1500*1500mm |
Weight |
700KG |
Wood Pallet Crusher
Technical data
| Model | SHTF1350 |
| Feeding Inlet | 1350*230mm |
| Blade Shaft Diameter | 450mm |
| Blade Quantity | 36 |
| Motor Power | 37KW |
| Conveyor belt length | 3000mm |
| Production Capacity | 60 Pallets/Hour |
| Weight | 3200KG |
|
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor |
|
