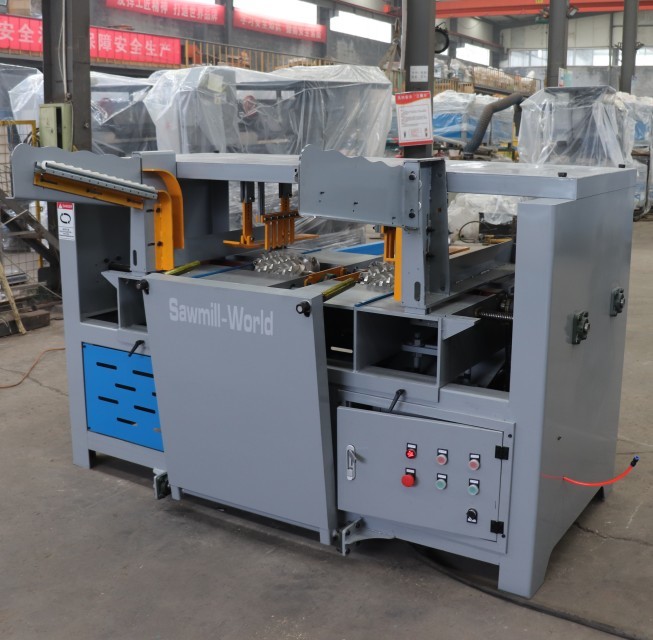

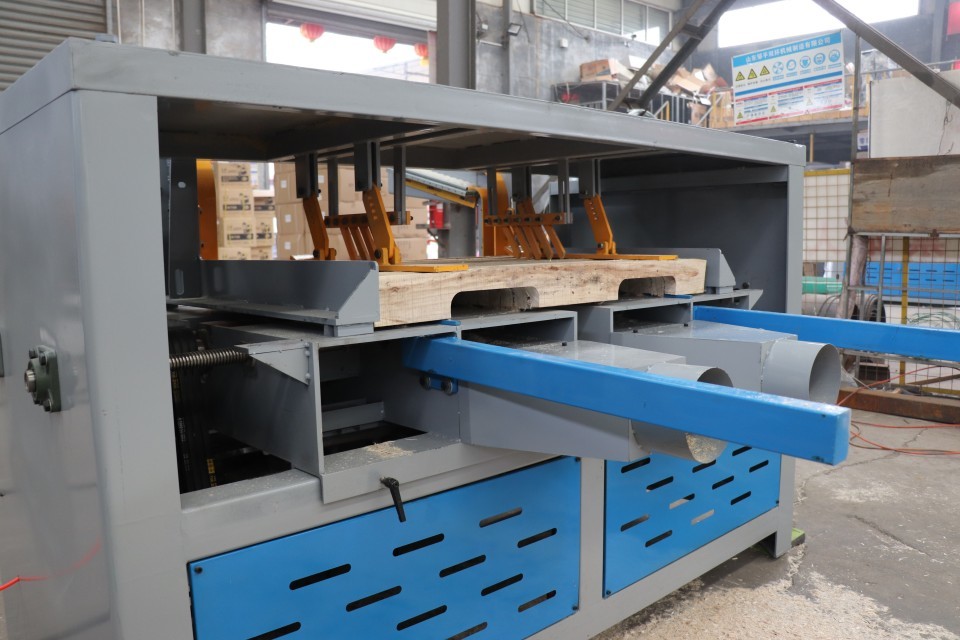

Automatic wood pallet notcher with single/double head, Pallet Notching Machine

  • Automatic wood pallet notcher with single/double head, Pallet Notching Machine
  • Automatic wood pallet notcher with single/double head, Pallet Notching Machine
  • Automatic wood pallet notcher with single/double head, Pallet Notching Machine
  • Automatic wood pallet notcher with single/double head, Pallet Notching Machine
  • Automatic wood pallet notcher with single/double head, Pallet Notching Machine
  • Automatic wood pallet notcher with single/double head, Pallet Notching Machine
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number WPN-1, WPN-2
Minimum Order Quantity 1 SET Wood Pallet Notching
Price USD2800-3200/SET
Packaging Details wooden pallet or iron frame packings
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 100sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Automatic Wood Pallet Notcher Application Making Grooves For Wood Pallet
Processing Slot Width 200-230mm Processing Slot Depth <45mm
Wood Pallet Length Max 1800mm Or Max. 1400mm Wood Pallet Thickness 40-60mm
Wood Pallet Width 160mm Or 90mm Max. Motor Power 15KW, 30kw
After Warranty Service Video Technical Support, Spare Parts Warranty 1 Year
After-sales Service Video Technical Support, Spare Parts
Leave a Message
Product Description

Slot Milling Machine /Notcher Pallet Machine

  • Making slots on the wood boards for pallet production
  • Technial data
Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

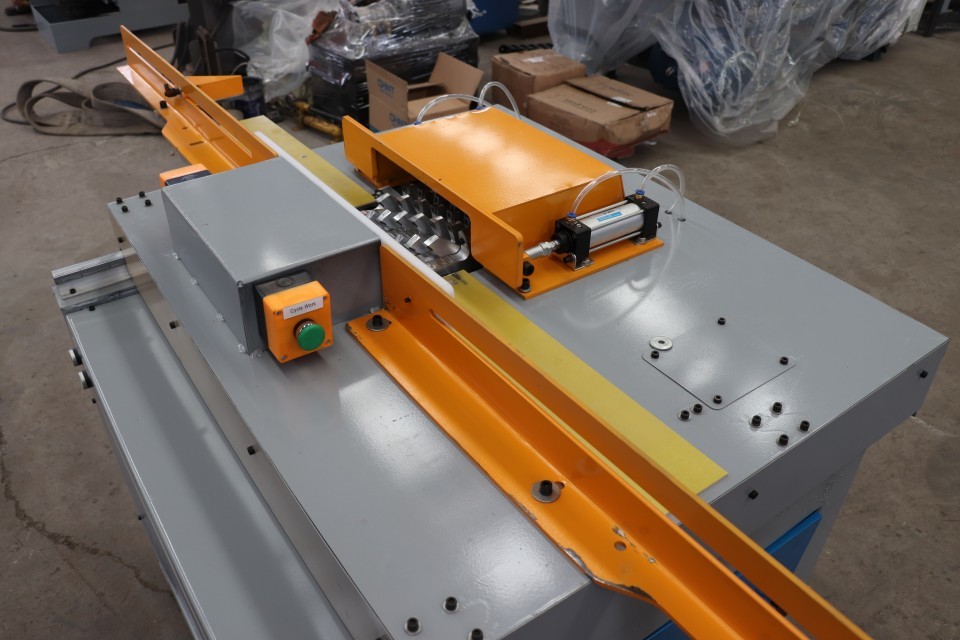

Single blade type
Automatic wood pallet notcher with single/double head, Pallet Notching Machine 0
Automatic wood pallet notcher with single/double head, Pallet Notching Machine 1

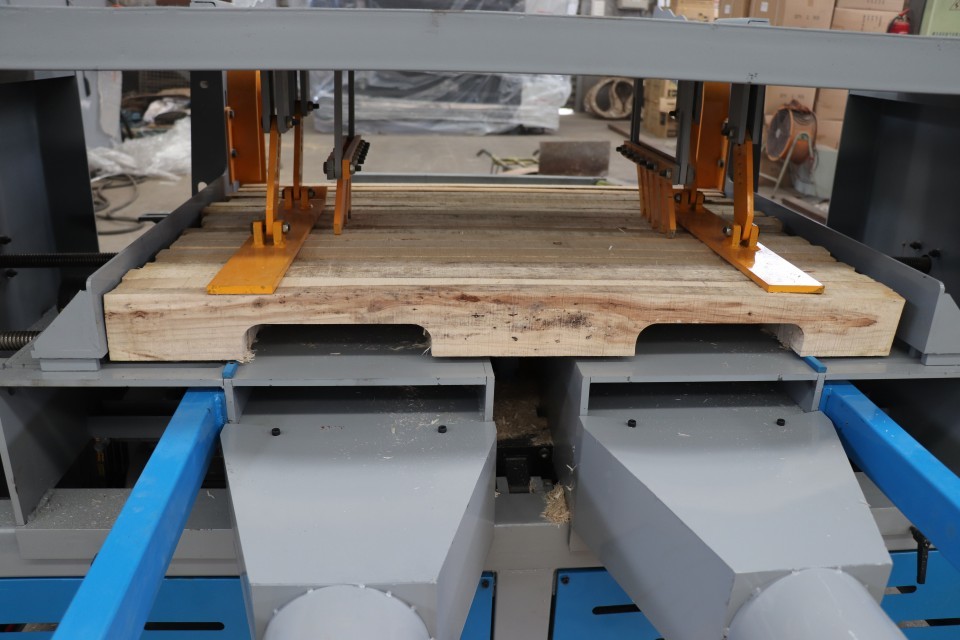

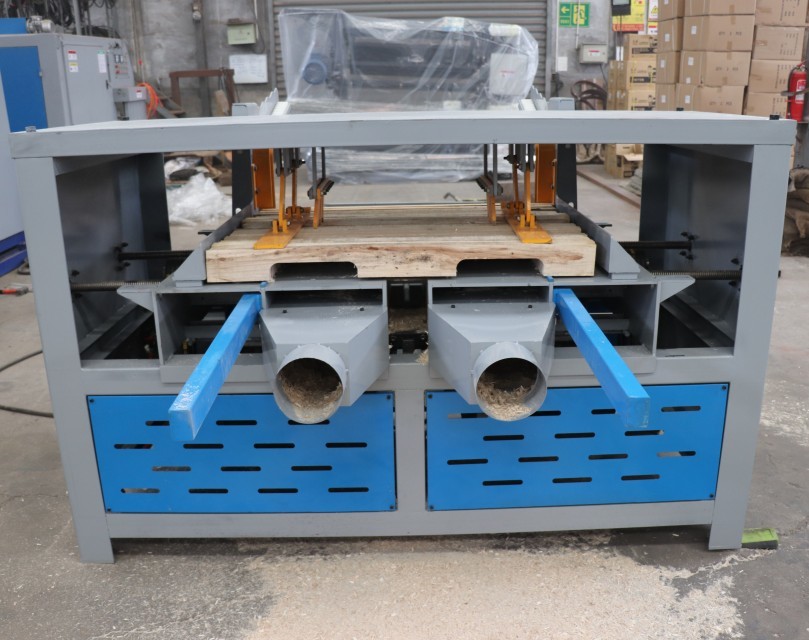

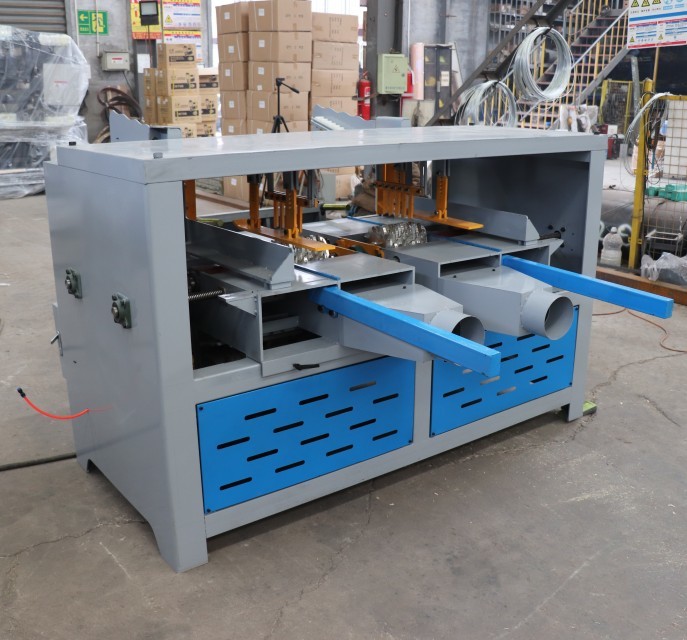

Double blade type
Automatic wood pallet notcher with single/double head, Pallet Notching Machine 2
Related Products
Automatic Wood Pallet Nailing Machine with Automatic palletizer

https://www.chinawoodsawmill.com/sale-34552015-pneumatic-pt-1500-wood-pallet-nailing-machine-pneumatic-pallet-nailing-table.html

Model AS 1250- 3 nail guns type AS1250- 4 nail guns type
Nailing Range 800—1250mm 800—1250mm
Operation ,Automatic PLC touching screen PLC touching screen
Nail capacity 3000 nails/large coil nails 3000 nails/large coil nails
Number of Coil Nail Guns 3 4
Air pressure 0.8MPA 0.8MPA
Receiving Automatic palletizing (pneumatic) Automatic palletizing (pneumatic)
Production prodedure Manual feeding/automatic nailing/automatic palletizing
Pallet type American tray , European tray American tray, European tray
Wight 1000kg 1200kg
Palletizer equipment parameters
Processing size 800-1250mm pallet nailing machine supporting
Air compressure 0.8MPA
working speed 4-8 seconds/each
Motor power 1.5KW/3phase
Controlling Integrated supporting of pallet nailing machine production line
Production mode Automatic feeding of pallet nailing machine

Automatic wood pallet notcher with single/double head, Pallet Notching Machine 3

Multi Blades Rip Saw

https://www.chinawoodsawmill.com/sale-7937793-woodworking-machine-square-timber-multiple-blade-rip-saw-machine.html

Automatic wood pallet notcher with single/double head, Pallet Notching Machine 4
Wood Pallet Dismanling Sawmill

https://www.chinawoodsawmill.com/sale-34861818-ce-approved-pallets-dismantler-machinery-for-sale-pallet-dismantling-machine.html
1. easy operation
2. Ideal tool to take apart wooden pallet to save engrgy.
3. Strong saw blade to cutting the nail .
Specifications :



Model		 TP1400

Table Width		 1400mm

Table Length		 1200mm

Cutting Thickness		 5mm-150mm

Saw Wheel Diameter		 500mm

Motor Power		 7.5KW

Processing Pallet Efficiecy		 40-60 pcs/min

Band Saw Blade Size		 USA Blade 5550*41*1.3 mm

Overall Size		 2800*1500*1500mm

Weight		 700KG


Automatic wood pallet notcher with single/double head, Pallet Notching Machine 5
