Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SHBH500-2,SHBH500-4,SHBH500-6
Minimum Order Quantity 1 SET sawdust shaving machine
Price US $3,800 - 15,800 / Set
Packaging Details export pallet packing or film wrapped container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wood Shaving Machine Capacity 1000kgs/Hour
Shaft Quantity 6pcs Blade Quantity 84pcs/shaft
Bucket Length 1400mm Power(w) 30.75kw
Operation Automatic Shaving Depth 0.1-0.5mm Adjustable
Application Making Wood Shavings,cut The Wood Into Shavings Making Bed For Animal After-sales Service Provided Video Technical Support,Free Spare Parts
Keywords Wood Shaving Machine,Wood Log Shaver,shaving Mill
High Light

1000kgs/H Wood Shaving Machine

,

Screw Shaft Wood Shaving Machine

,

Wood Shaving Machine For Animal Bedding

Leave a Message
Product Description

Sawdust Mill Screw shaft Wood Shaving Machine for animal beeding to process sticks into particle



Wood Shaving Machine

  • Processing raw materials :​Process wood sticks,twigs,branches,wood scraps into shaving.
  • Adjust the size and thickness of the wood shaving.
  • It is the material for Plywood,furniture or paper factory.
  • Add as filler to prevent damage when transport some fragile items.
  • Use as nest shavings filler in poultry or animal breeding.

Technical Specifications:

Screw Shaft Wood Shaving Machine

Model SHBH500-2-L SHBH500-4-L SHBH500-6-L
Processing wood max. length(mm) 800 1400 1400
Processing max. width/diameter(mm) 500 500 500
Shaft quantity 2 4 6
Blade (pcs) 84pcs/shaft 84pcs/shaft 84pcs/shaft
Motor speed (rpm) 3500 3500 3500
Bin length (mm) 800 1400 1400
Total Motor power (kw) 10.5KW 23.25KW 30.75KW
Shaving depth (mm) 0.1-0.5mm adjustable 0.1-0.5mm adjustable 0.1-0.5mm adjustable
Shavings output 300KG/H 700KG/H 1000KG/H
Machine weight 950kgs 1800kgs 2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;



Image of Shavings

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 0

Screw Shaft

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 1

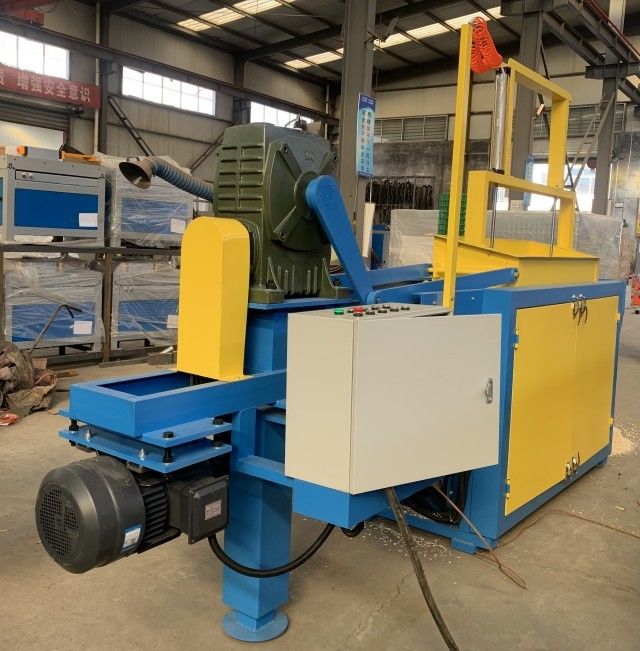

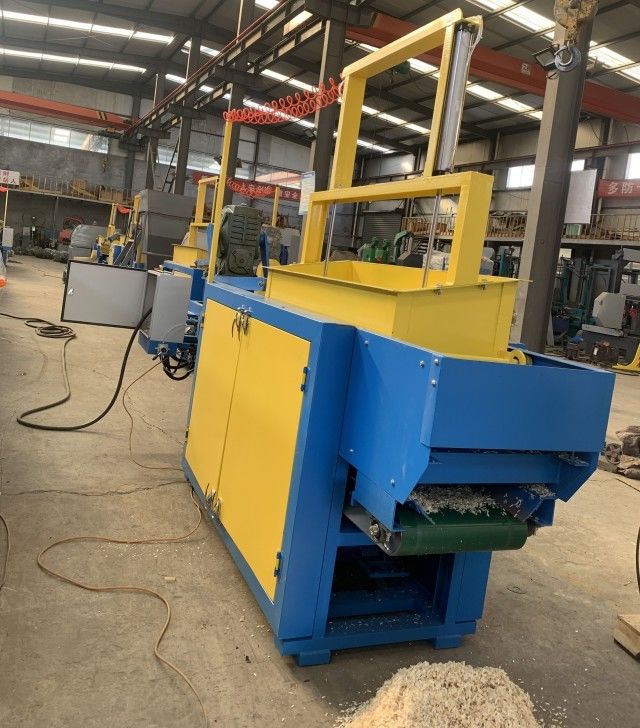

Model SHBH500-6-L &SHBH500-4-L

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 2Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 3

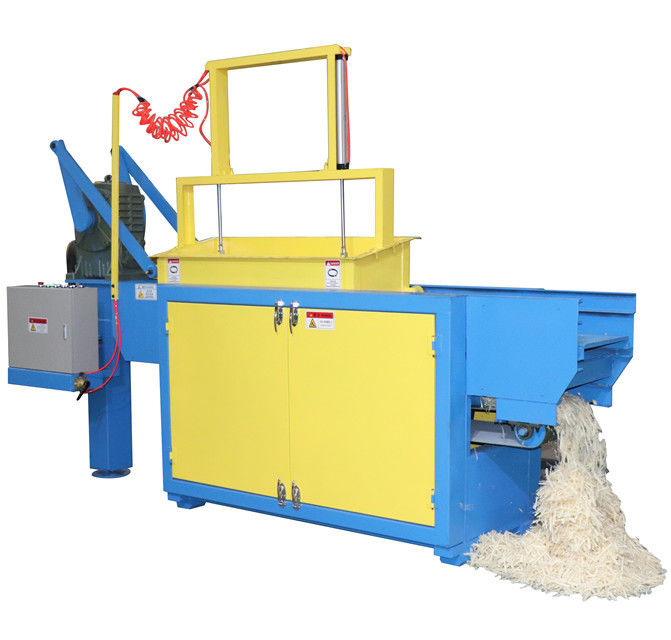

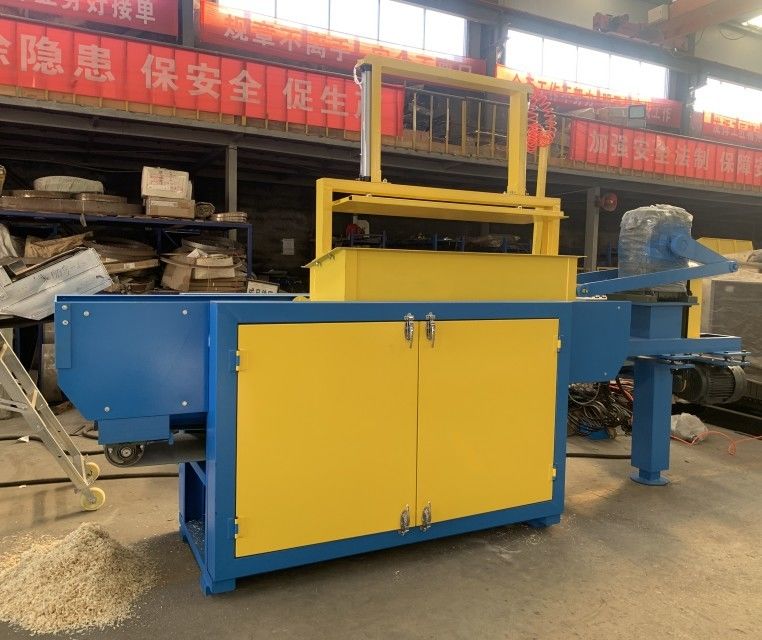

Model SHBH500-2-L

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 4

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 5

Related Products

Shavings Dryer

  • Technical data
Model HG500 HG1000
Capacity 500kg/hour 1000kg/hour
Overall size 4200x1300x1500mm 5100x1500x1700mm
Inner cylinder size 1000x2800x3mm 1200x3600x4mm
Electric motor 3kw 4kw
Gearbox ZQ200 ZQ250
Electric heating power 40-50KW 60-80KW
Burning coal/woods 20-30kg/hour 40-50kg/hour
Burning natural gas 7.8m3/hour 13m3/hour
Dehumidifying fan 170w 170w

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 6

Shavings Packing Machine

Technical data:

Model SHDB-20 SHDB-1
Main electric motor 22KW 22KW
Hydraulic pump 25VQ25 25VQ25
Hydraulic valve LQ32 LQ32
Hydraulic oil tank ɸ140 &ɸ160 ɸ80&ɸ125&ɸ63
Electrical System PLC control PLC control
Operation system manual +automatic manual +automatic
Filter 400L/min 400L/min
Cooling system air cooling air cooling
Heating system 3kw 3kw
Oil tank 500L 260L
bale size 40x60x20cm 350*130*60mm
bale weight 15 to 20kgs/bag 1kg/bag
Capacity 60-80bags/hour 200bags/hour

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 7

Screw Shaft Wood Shaving Machine For Animal Bedding 1000kgs/Hour 8

Wood Wool Machine
