Double blade heads Pallet Notcher Machine, Wood Pallet Notcher for american tray
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | WPN-1, WPN-2 |
| Minimum Order Quantity | 1 SET wood pallet notcher |
| Price | USD2800-3200/SET |
| Packaging Details | wooden pallet or iron frame packings |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 100sets/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Pallet Notcher | Motor Power | 15KW, 30kw |
|---|---|---|---|
| Processing Slot Width | 200-230mm | Processing Slot Depth | <45mm |
| Wood Pallet Length | Max 1800mm Or Max. 1400mm | Wood Pallet Thickness | 40-60mm |
| Wood Pallet Width | 160mm Or 90mm Max. | After Warranty Service | Video Technical Support, Spare Parts |
| Warranty | 1 Year | After-sales Service | Video Technical Support, Spare Parts |
| Feature | Slot Smooth, Size Consistent |
Product Description
Slot Milling Machine /Notcher Pallet Machine
- Making slots on the wood boards for pallet production
- Technial data
| Model | WPN-1 | WPN-2 |
| Power | 15kw | 30kw |
| Material of knife | Alloy | Alloy |
| Capacity | 600-800pics/h | 1800pics/h |
| Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
| Wood pallet width: 160mm | Wood pallet width: max 90mm | |
| Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
| Slot depth: <45mm | Slot depth: <45mm | |
| Slot width: 200-230mm | Slot width: 200-230mm | |
| Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
| Machine wight | 400kg | 1000kg |
| Feature | Slot smooth, size consistent | |
| Apply for many kinds of slots, also can customized. | ||

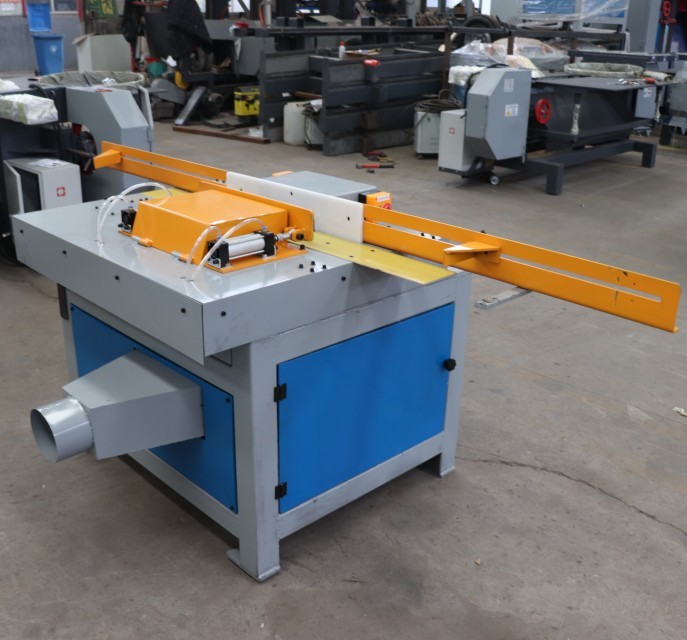

Single blade type
Double blade type
Related Products

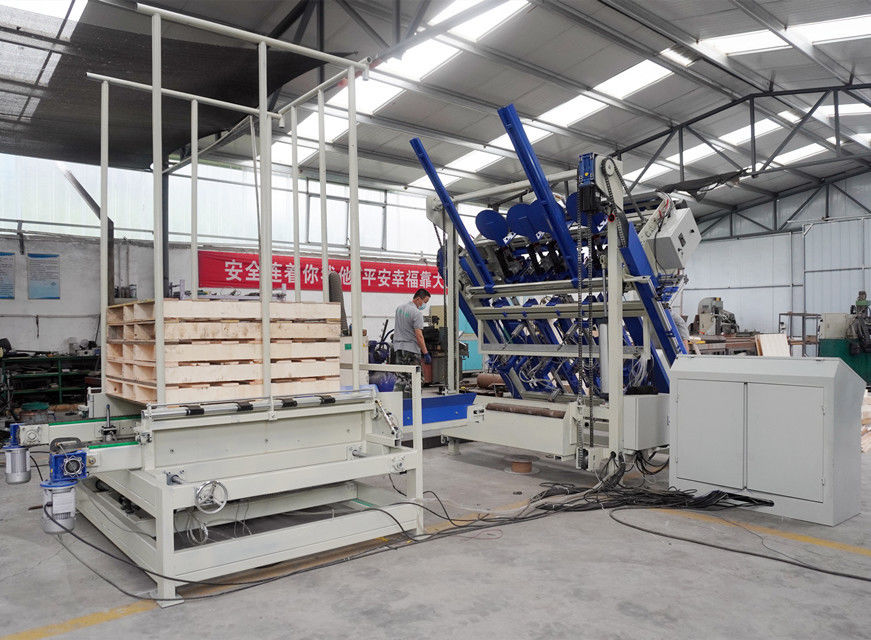

Automatic Wood Pallet Nailing Machine with Automatic palletizer
| Model | AS 1250- 3 nail guns type | AS1250- 4 nail guns type |
| Nailing Range | 800—1250mm | 800—1250mm |
| Operation ,Automatic | PLC touching screen | PLC touching screen |
| Nail capacity | 3000 nails/large coil nails | 3000 nails/large coil nails |
| Number of Coil Nail Guns | 3 | 4 |
| Air pressure | 0.8MPA | 0.8MPA |
| Receiving | Automatic palletizing (pneumatic) | Automatic palletizing (pneumatic) |
| Production prodedure | Manual feeding/automatic nailing/automatic palletizing | |
| Pallet type | American tray , European tray | American tray, European tray |
| Wight | 1000kg | 1200kg |
| Palletizer equipment parameters | ||
| Processing size | 800-1250mm pallet nailing machine supporting | |
| Air compressure | 0.8MPA | |
| working speed | 4-8 seconds/each | |
| Motor power | 1.5KW/3phase | |
| Controlling | Integrated supporting of pallet nailing machine production line | |
| Production mode | Automatic feeding of pallet nailing machine | |
Multi Blades Rip Saw
Wood Pallet Dismanling Sawmill
https://www.chinawoodsawmill.com/sale-34861818-ce-approved-pallets-dismantler-machinery-for-sale-pallet-dismantling-machine.html
1. easy operation
2. Ideal tool to take apart wooden pallet to save engrgy.
3. Strong saw blade to cutting the nail .
Specifications :
Model |
TP1400 |
Table Width |
1400mm |
Table Length |
1200mm |
Cutting Thickness |
5mm-150mm |
Saw Wheel Diameter |
500mm |
Motor Power |
7.5KW |
Processing Pallet Efficiecy |
40-60 pcs/min |
Band Saw Blade Size |
USA Blade 5550*41*1.3 mm |
Overall Size |
2800*1500*1500mm |
Weight |
700KG |
