Detail Information

Name:	Semi-Automatic Pallet Nailing Machine With Stacker	Pallet Length:	70cm To 130cm
Capacity:	300 Pallets /8hours	Operating Pressure:	0.8MPA
Number Of Coil Nail Guns:	3pc	Qty Of Beams:	3beams
Pallet Type:	American Tray	Stacker Working Mode:	Pneumatic
Weight:	440kgs	After-sales Service Provided:	Online Support,Free Spare Parts,commissioning And Training

Product Description

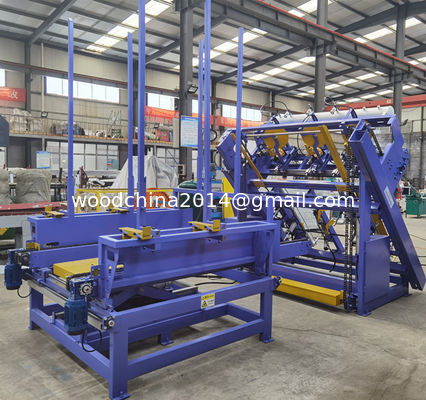

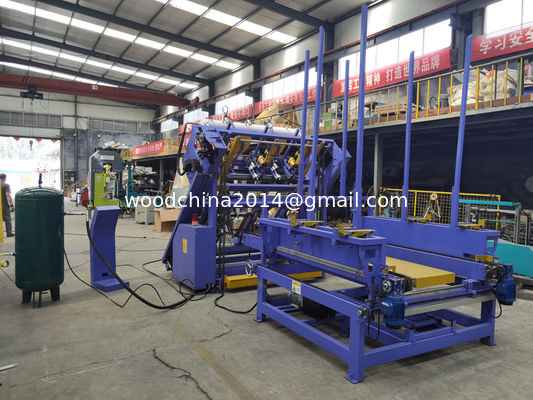

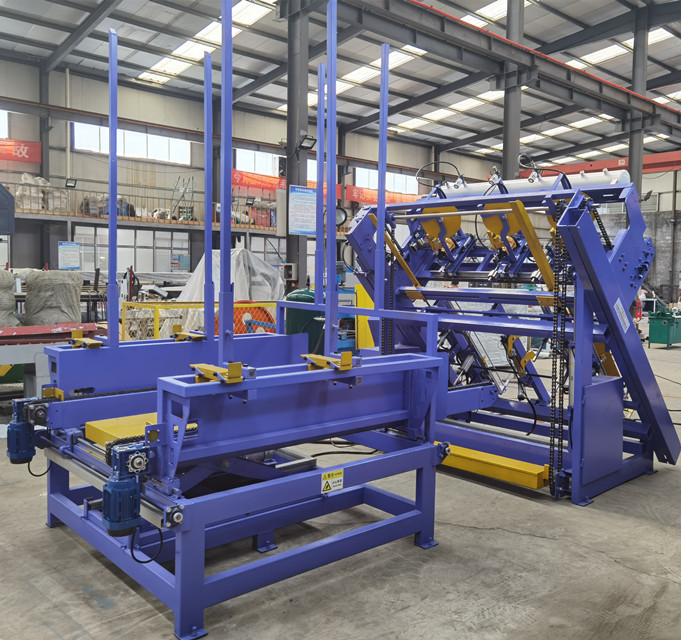

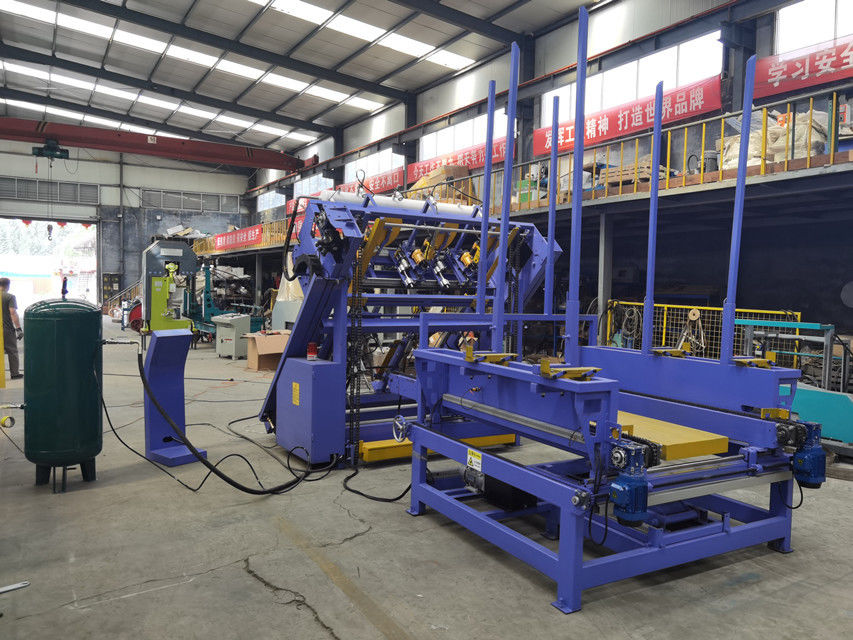

Semi-Automatic Pallet Nailing Machine with Palletizer

Wood pallet making machine pallet nailing machine for sale, pallet legs cutting machine 0

Wood pallet making machine pallet nailing machine for sale, pallet legs cutting machine 1

Wood pallet making machine pallet nailing machine for sale, pallet legs cutting machine 2

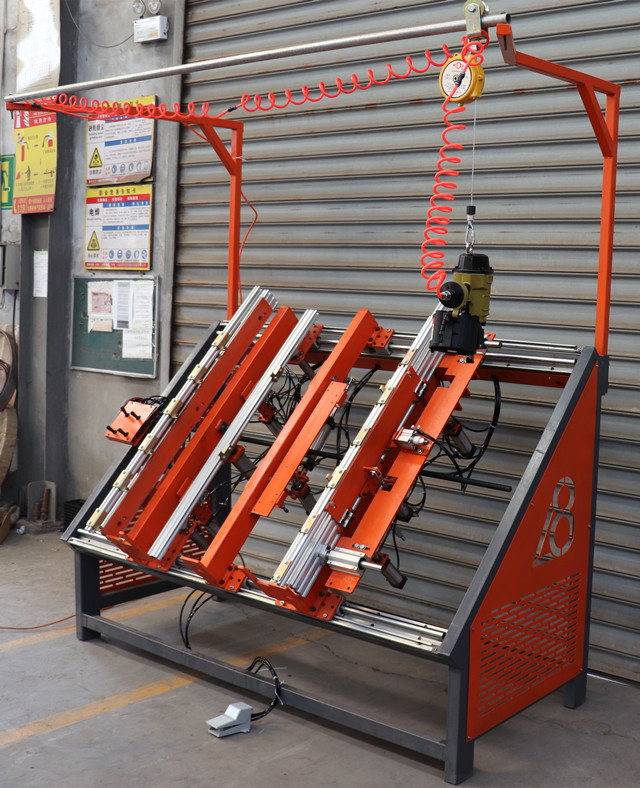

A universal pneumatic nailing table, Pneumatico PT-1500 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Technical specifications:

Weight: 440 kg
Operating pressure: up to 8 bar
Material: structural steel

Dimensions of the pallets:

Width: 800 – 1500 mm
Length: 1300 mm

Instruction:

Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:
Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table

Wood pallet making machine pallet nailing machine for sale, pallet legs cutting machine 3

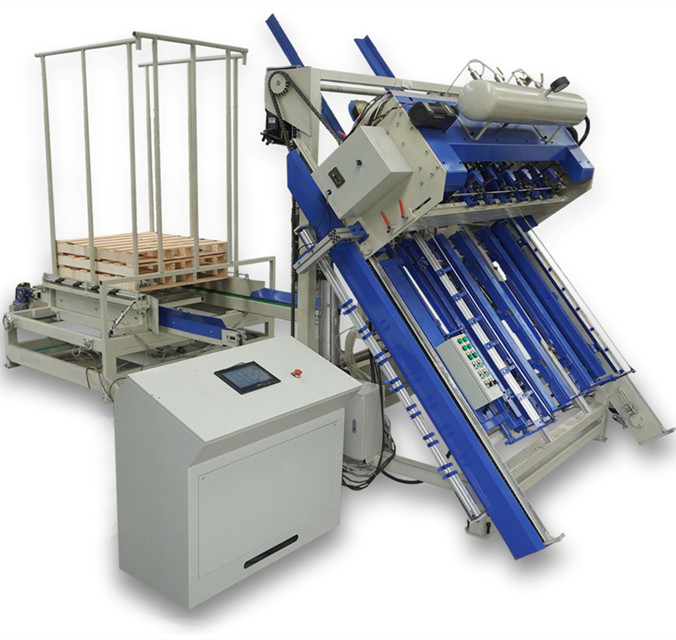

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data

			Model
			AWPN-1300

			Working mode
			Automatic feeding and stacking

			Operation mode
			Touch screen

			Operational mode
			Pneumatic operation

			Voltage and power
			220V/ 2kw Servo motor

			Air pressure
			0.8MPA

			Tank size
			0.2 cubic

			Nail gun speed
			7 times /second.

			Production efficiency
			1-2pcs /min

			Apply a nail
			Less than 90mm

			Number of nail guns
			3P OR 4P

			Weight
			2000kg

			Size
			Host machine 1660*1970*2217mm

			Stacking 2945*2054*1410

Related Products
Pallet Notcher
https://www.chinawoodsawmill.com/sale-36043562-pallet-notching-wood-pallet-notching-machine-pallet-notcher-with-double-slots.html

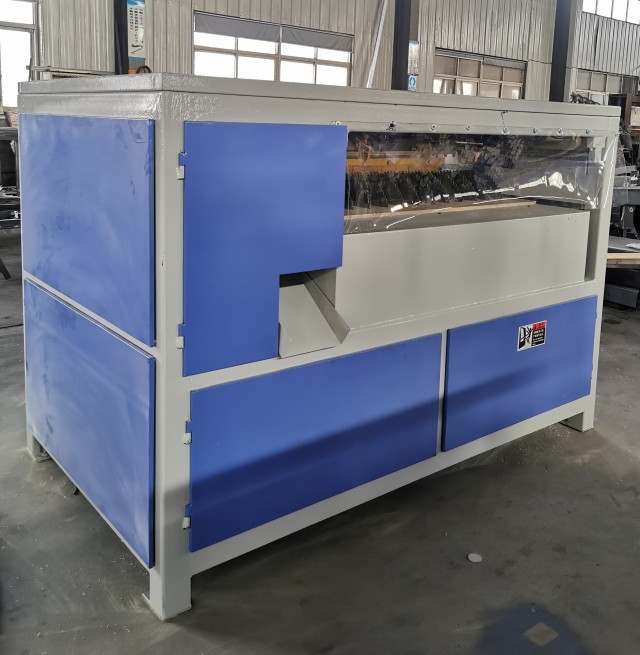

Wood block multi-blade saw

			Model
			BM-1250

			Cutting Length
			1250mm

			Cutting Thickness
			100mm

			Cutting Width
			200mm

			Saw Diameter
			355mm

			Motor
			30kw

			Weight
			1600kg

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SP1300-3,PT-1500,AWPN-1300,etc

Minimum Order Quantity:	1 SET Pallet nailing machine Automatic
Price:	US $4,200 - 21,500 / Set
Packaging Details:	container loading of Pallet nailing machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of Pallet nailing machine
