wood shaving machine price, small wood shaving machine, wood shaving machine for horse bedding

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SHBH500-2,SHBH500-4,SHBH500-6
Minimum Order Quantity 1 SET wood shaving machine
Price US $3,800 - 15,800 / Set
Packaging Details export pallet packing or film wrapped container loading
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Wood Shaving Machine Capacity 1000kgs/Hour
Shaft Quantity 2, 4, 6pcs Blade Quantity 4, 6, 24pcs
Bucket Length 1400mm Power(w) 10.5kw, 23.25kw, 30.75kw
Operation Automatic Shaving Depth 0.2-1mm Adjustable
Application Making Wood Shavings,cut The Wood Into Shavings Making Bed For Animal After-sales Service Provided Video Technical Support,Free Spare Parts
Keywords Wood Shaving Machine,Wood Log Shaver,shaving Mill
Leave a Message
Product Description

Wood Shaving Machine

  • Processing raw materials :​Process wood sticks,twigs,branches,wood scraps into shaving.
  • Adjust the size and thickness of the wood shaving.
  • It is the material for Plywood,furniture or paper factory.
  • Add as filler to prevent damage when transport some fragile items.
  • Use as nest shavings filler in poultry or animal breeding.



Working video link : https://youtu.be/hYl98MumWqI

video link : https://youtu.be/Ls9bCIdzzpU



Technical Specifications:

  • Bucket length: 1400mm
  • capacity: 1000kgs/hour
  • Shaft quantity: 6pcs
  • Blade quantity: 16pcs or 84pcs
Model SHBH500-2 SHBH500-4 SHBH500-6
Processing wood max. length(mm) 800 1400 1400
Processing max. width/diameter(mm) 500 500 500
Shaft quantity 2 4 6
Blade (pcs) 8 16 24
Motor speed (rpm) 3500 3500 3500
Bin length (mm) 800 1400 1400
Total Motor power (kw) 10.5KW 23.25KW 30.75KW
Shaving depth (mm) 0.2-1 0.2-1 0.2-1
Shavings output 500KG/H 1000KG/H 1500KG/H
Machine weight 950kgs 1800kgs 2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;

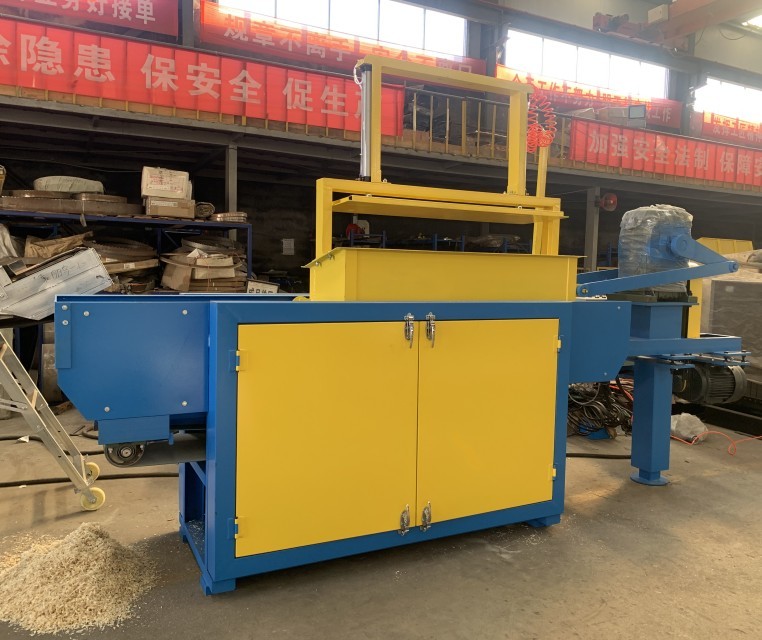

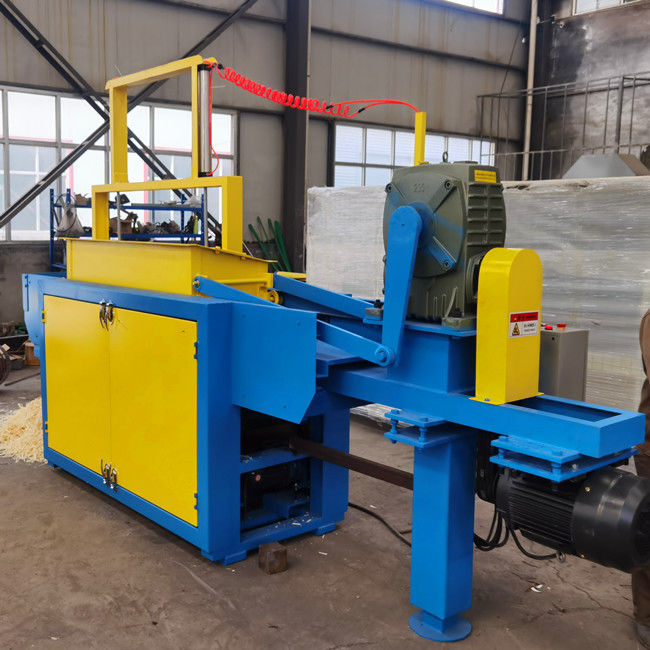

Model SHBH500-4 & SHBH500-6

wood shaving machine price, small wood shaving machine, wood shaving machine for horse bedding 0

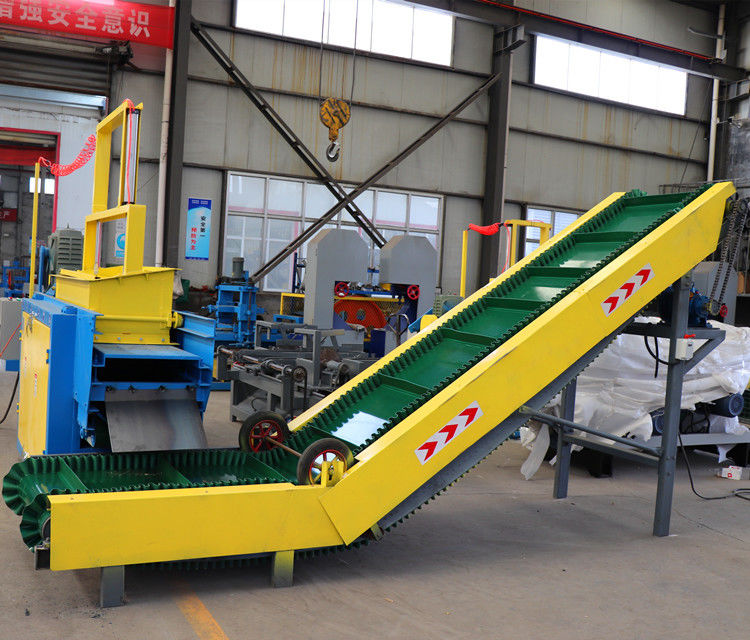

Model SHBH500-2

wood shaving machine price, small wood shaving machine, wood shaving machine for horse bedding 1

wood shaving machine price, small wood shaving machine, wood shaving machine for horse bedding 2

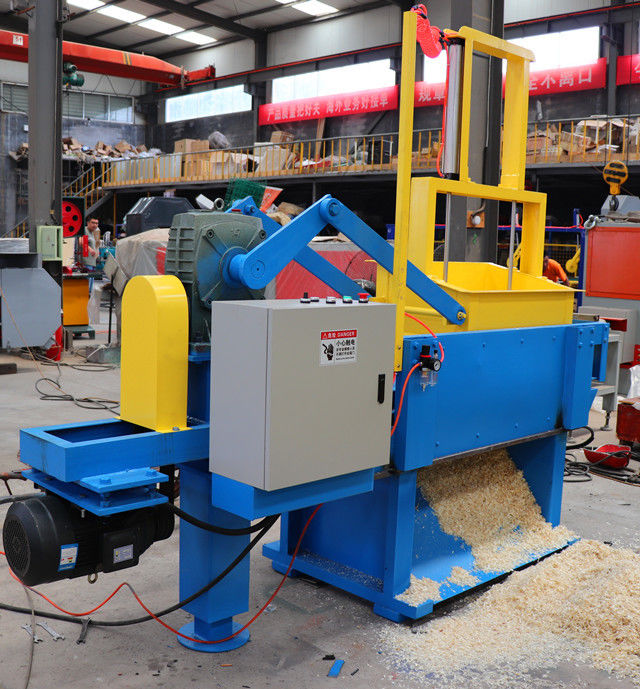

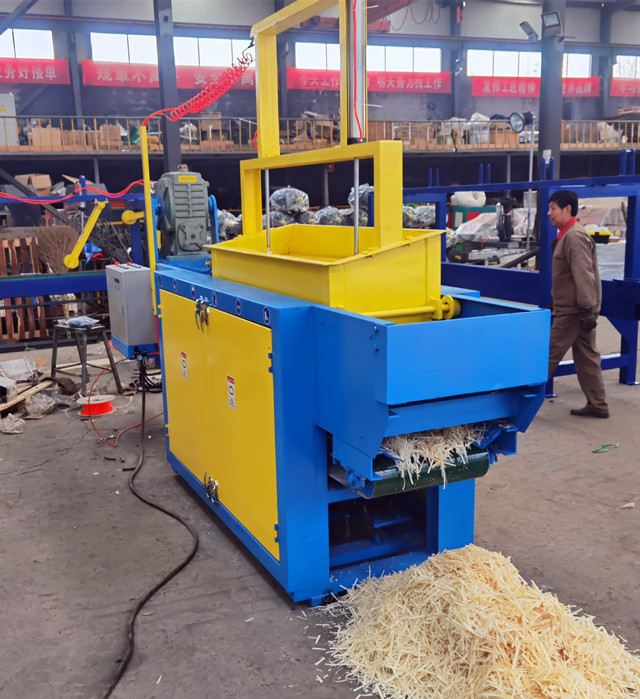

Screw Shaft Wood Shaving Machine

Model SHBH500-2-L SHBH500-4-L SHBH500-6-L
Processing wood max. length(mm) 800 1400 1400
Processing max. width/diameter(mm) 500 500 500
Shaft quantity 2 4 6
Blade (pcs) 84pcs/shaft 84pcs/shaft 84pcs/shaft
Motor speed (rpm) 3500 3500 3500
Bin length (mm) 800 1400 1400
Total Motor power (kw) 10.5KW 23.25KW 30.75KW
Shaving depth (mm) 0.1-0.5mm adjustable 0.1-0.5mm adjustable 0.1-0.5mm adjustable
Shavings output 300KG/H 700KG/H 1000KG/H
Machine weight 950kgs 1800kgs 2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;

wood shaving machine price, small wood shaving machine, wood shaving machine for horse bedding 3wood shaving machine price, small wood shaving machine, wood shaving machine for horse bedding 4

Screw Shaft

wood shaving machine price, small wood shaving machine, wood shaving machine for horse bedding 5
