Euro pallet automatic nailing machine/wooden pallet production line for sale

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	PT-1600

Minimum Order Quantity:	1 SET Pallet nailing machine
Price:	US $4,200 - 21,500 / Set
Packaging Details:	container loading of Pallet nailing machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of Pallet nailing machine

Get Best Price Contact Now

Detail Information

Name:	Pneumatic Pallet Nailing Table	Pallet Width:	800-1600 Mm
Pallet Length:	600-1300mm	Capacity:	240-320 Pallets /8hours
Operating Pressure:	0.8MPA	Number Of Coil Nail Guns:	2P (CN70、CN55)
Weight:	650kgs	Qty Of Stringers:	2, 3, 4, Or 5 Stringers
Pneumatic Clamp:	Easily Centers The Blocks	Pneumatic Lift:	Raises Pallet To Minimize Operator Lifting
After-sales Service Provided:	Online Support,Free Spare Parts,commissioning And Training
Highlight:	Euro pallet automatic nailing machine , wooden pallet production line , pallet nailing machine with warranty

Product Description

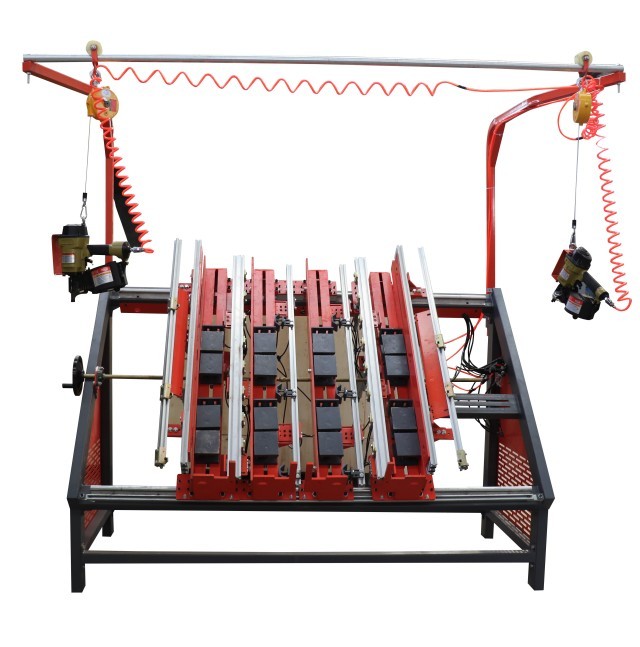

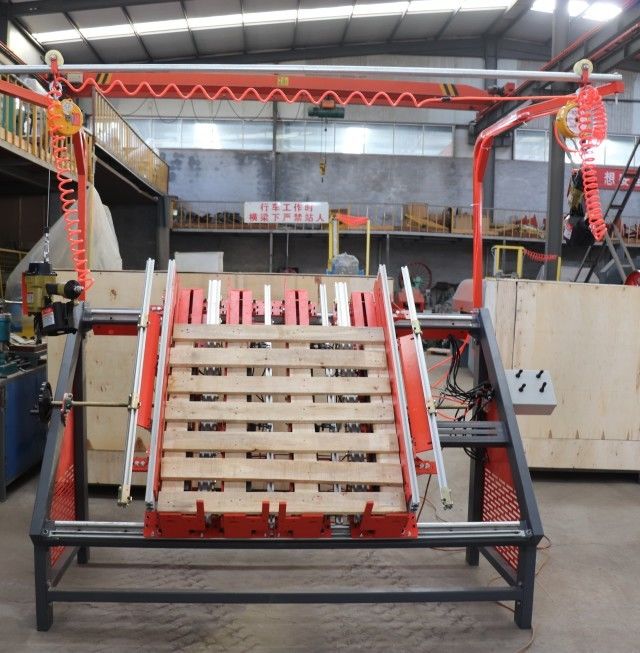

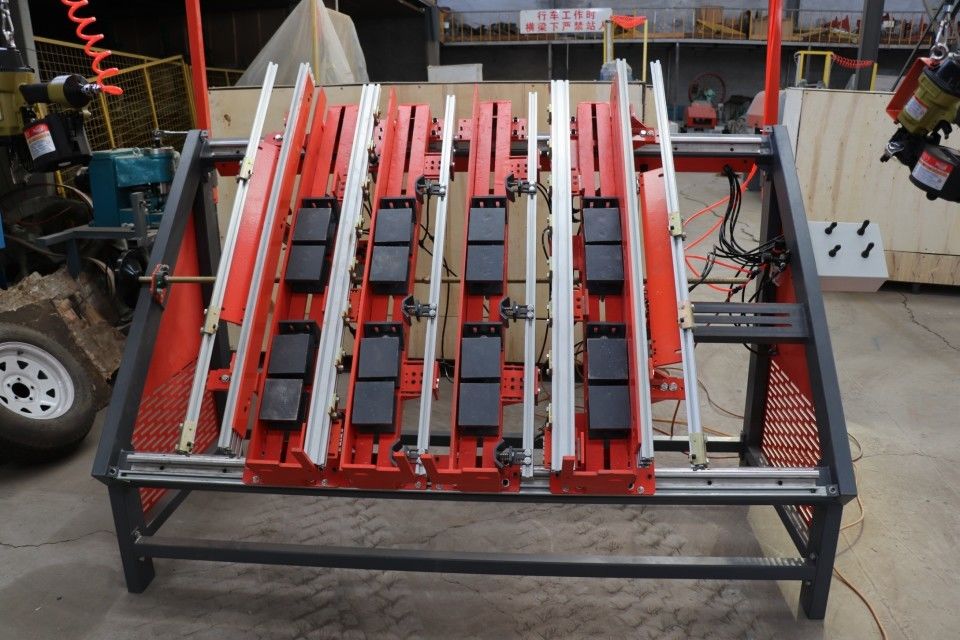

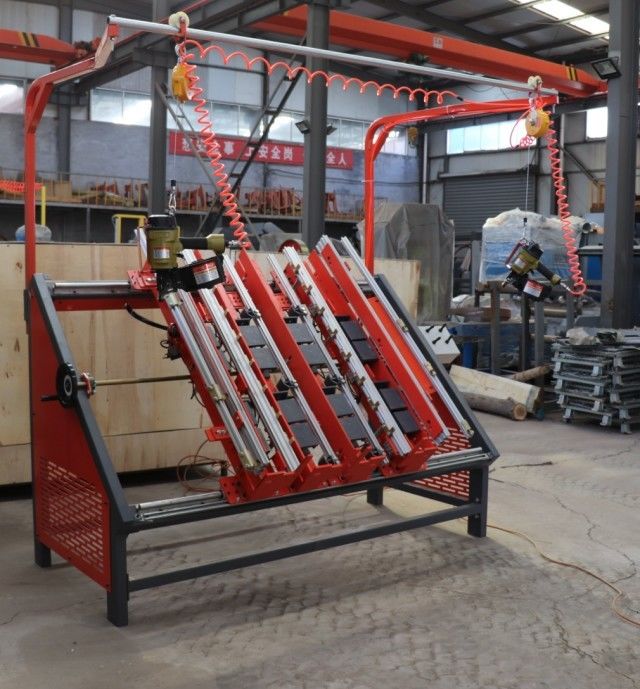

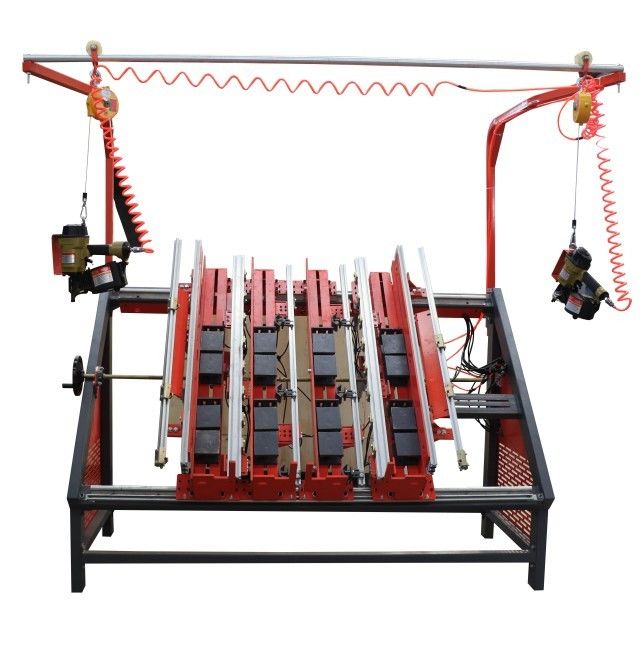

A universal pneumatic nailing table, Pneumatico PT-1600 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Instruction:

Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:
Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table

Technical specifications:

Model	PT-1600
Wood pallet length	600-1300mm
Wood pallet width	800-1600mm
Operational mode	Pneumatic operation
Air pressure	0.8MPA
Production efficiency	30-40pcs /h
Number of beams	3p
Number of nail guns	2P (CN70,CN55)
Weight	650kg

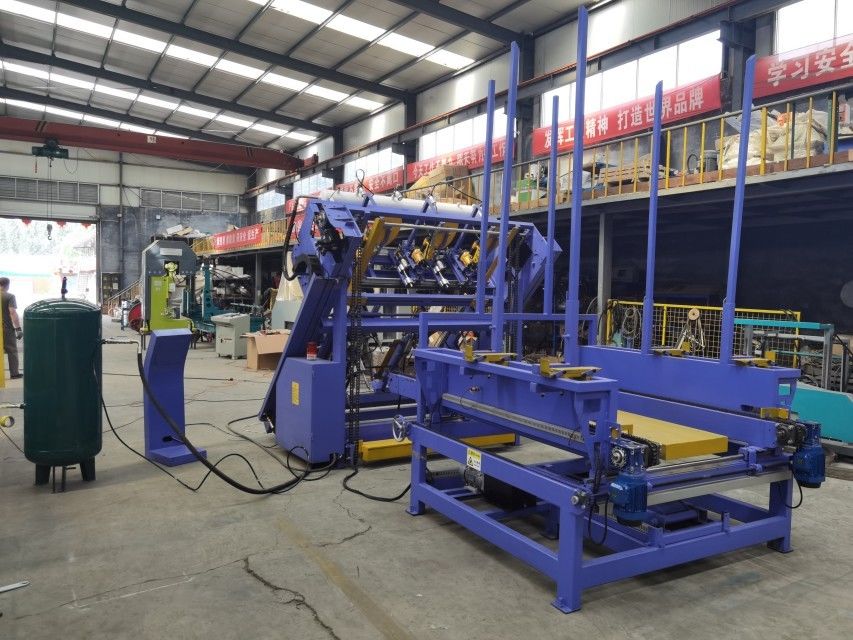

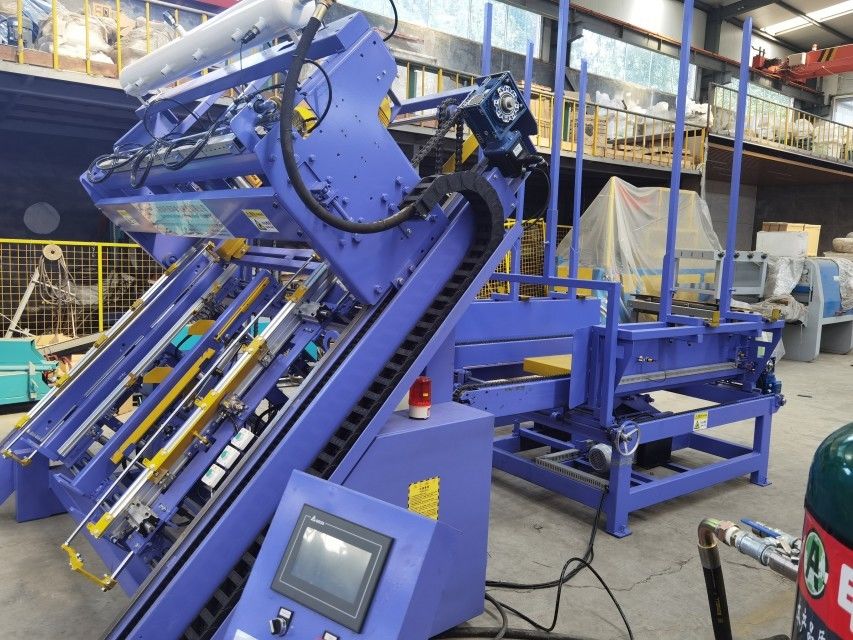

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data

			Model
			AWPN-1300

			Wood pallet length
			600-1300mm

			Wood pallet width
			800-1300mm

			Working mode
			Automatic feeding and stacking

			Operation mode
			Touch screen

			Operational mode
			Pneumatic operation

			Voltage and power
			220V/ 2kw Servo motor

			Air pressure
			0.8MPA

			Tank size
			0.2 cubic

			Nail gun speed
			7 times /second.

			Production efficiency
			1-2pcs /min

			Apply a nail
			Less than 90mm

			Number of nail guns
			3P OR 4P

			Weight
			2000kg

			Size
			Host machine 1660*1970*2217mm

			Stacking 2945*2054*1410
