Detail Information

Name:	Wood Shavings Press Baling Machine	Application:	Wood Sawdust And Shaving Packing
Power:	11kw, 22kw/3phase	Automatic Grade:	Manual +automatic
Bagging Weight:	15 To 20kgs/bag	Capacity:	60 To 80bags/hour
Feeding:	Automatic	Dimension(LWH):	392029001700MM
Warranty:	1 Year	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	Hydraulic Sawdust Wood Shaving Baler , Vertical Hydraulic Wood Shaving Baler , Baler Machine To Make Wood Shavings

Product Description

vertical hydraulic sawdust wood shavings press baler machine/baler for wood shavings

Wood Shaving Baler

Corn Hay Agriculture Material Filling And Bagging Machine Baler
The wood shaving baler is widely used for compressing and packing wood sawdust wood shavings into bags with specified size.
It also can compress and pack the wood sawdust or wood shaving of animal bedding litter, such as for horse litter, sheep litter and other poutry litter, the final packed sawdust can recycled for making paper and other usage.

Technical data:

Wood Shavings Baler/Bagging Machine
Model	SHDB-20	SHDB-13	SHDB-1
Main electric motor	22KW	22kw	22KW
Hydraulic pump	25VQ25	25VQ25	25VQ25
Hydraulic vave	LQ32	LQ32	LQ32
Hydraulic oil tank	ɸ140 &ɸ160	ɸ140 &ɸ160	ɸ80&ɸ125&ɸ63
Electrical System	PLC control	PLC control	PLC control
Operation system	manual +automatic	manual +automatic	manual +automatic
Filter	400L/min	400L/min	400L/min
Cooling system	air cooling	air cooling	air cooling
Heating system	3kw	3kw	3kw
Oil tank	500L	500L	260L
bale size	700300400mm	700300400mm	35013060mm
bale weight	15-20kgs/bag	8-13kgs/bag	1kg/bag
Capacity	60-80bags/hour	100-120bags/hour	200bags/hour

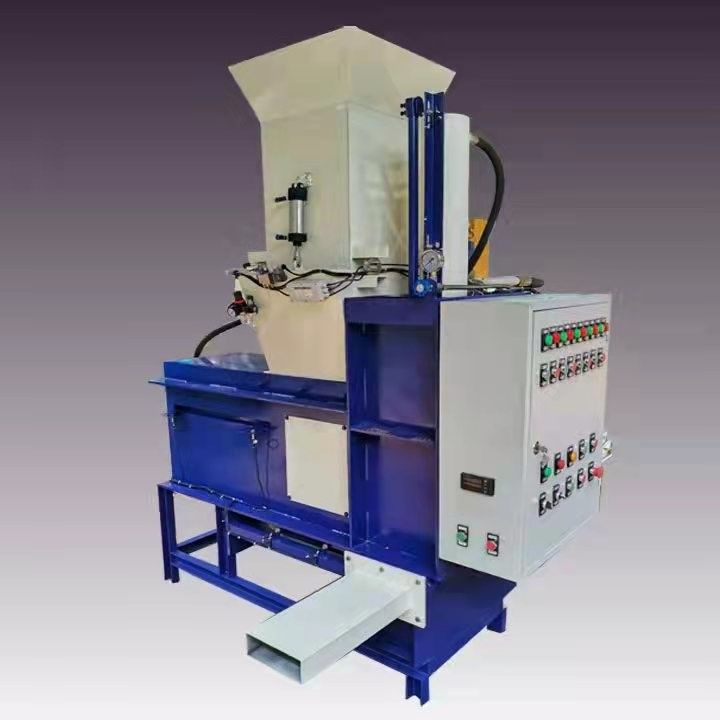

Vertical Hydraulic Sawdust Wood Shaving Baler Machine To Make Wood Shavings 0

Vertical Hydraulic Sawdust Wood Shaving Baler Machine To Make Wood Shavings 1

Vertical Hydraulic Sawdust Wood Shaving Baler Machine To Make Wood Shavings 2

Related Products

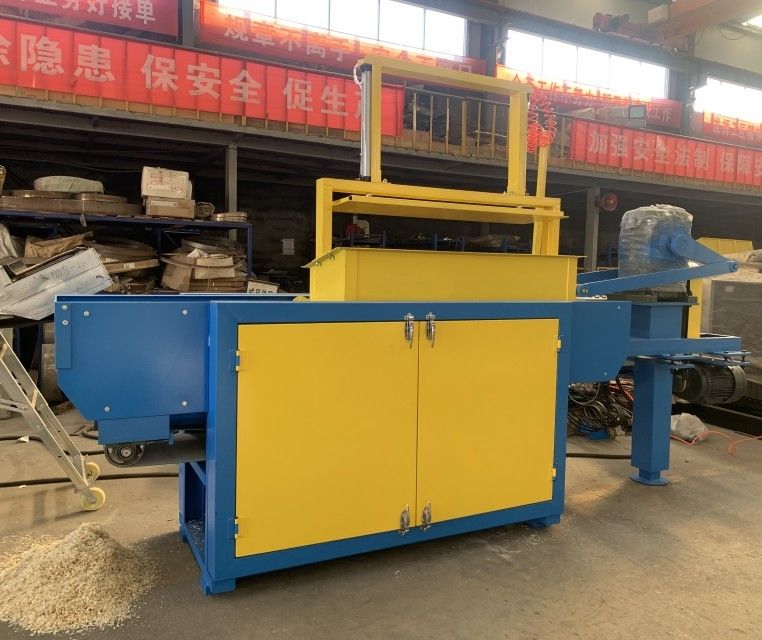

Wood Shavings Making Machine
Model	SHBH500-6
Max. processing wood length	1400mm
Max. processing wood width	500mm
Shaft quantity	6pcs
blade quantity	24pcs
capacity	1500kgs/hour
total power	25.

Vertical Hydraulic Sawdust Wood Shaving Baler Machine To Make Wood Shavings 3

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHDB-20,SHDB-13,SHDB-1

Minimum Order Quantity:	1 SET
Price:	US $13,900 - 17,000 / Set
Packaging Details:	wooden pallet or iron frame packing
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year

Vertical Hydraulic Sawdust Wood Shaving Baler Machine To Make Wood Shavings

Hydraulic Sawdust Wood Shaving Baler
