Wood Shaving Machine
Technical Specifications:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 8 | 16 | 24 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
| 1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; | |||

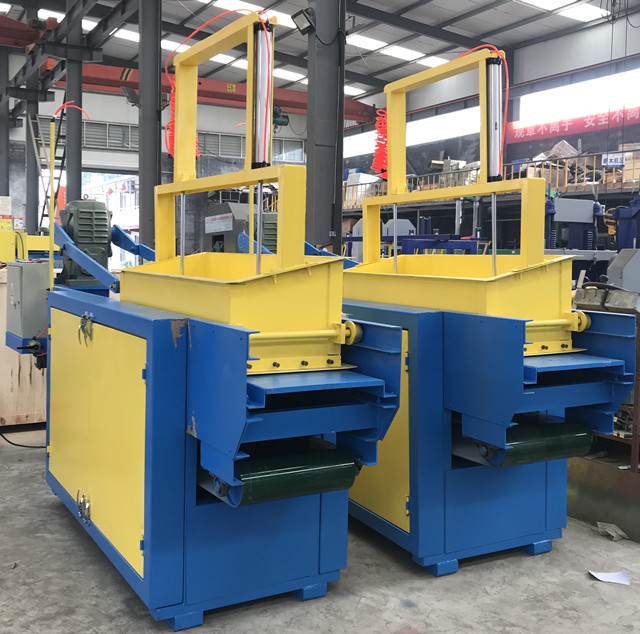

Model SHBH500-4 & SHBH500-6
Model SHBH500-2
Screw Shaft Wood Shaving Machine
| Model | SHBH500-2-L | SHBH500-4-L | SHBH500-6-L |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 84pcs/shaft | 84pcs/shaft | 84pcs/shaft |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.1-0.5mm adjustable | 0.1-0.5mm adjustable | 0.1-0.5mm adjustable |
| Shavings output | 300KG/H | 700KG/H | 1000KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
| 1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; | |||
Screw Shaft
