Detail Information

Name:	Wood Shaving Machine	Capacity:	1000kgs/Hour
Shaft Quantity:	2, 4, 6pcs	Blade Quantity:	4, 6, 24pcs
Bucket Length:	1400mm	Power(w):	10.5kw, 23.25kw, 30.75kw
Operation:	Automatic	Shaving Depth:	0.2-1mm Adjustable
Application:	Making Wood Shavings,cut The Wood Into Shavings Making Bed For Animal	After-sales Service Provided:	Video Technical Support,Free Spare Parts
Keywords:	Wood Shaving Machine,Wood Log Shaver,shaving Mill
Highlight:	Horse Bedding Wood Shaving Machine , Horse Bedding Sawdust Press Machine , 1Ton/H Wood Shaving Machine

Product Description

Wood shaving machine for horse beddings South Africa wood sawdust machine

Wood Shaving Machine

Processing raw materials :Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.

Technical Specifications:

Model	SHBH500-2	SHBH500-4	SHBH500-6
Processing wood max. length(mm)	800	1400	1400
Processing max. width/diameter(mm)	500	500	500
Shaft quantity	2	4	6
Blade (pcs)	8	16	24
Motor speed (rpm)	3500	3500	3500
Bin length (mm)	800	1400	1400
Total Motor power (kw)	10.5KW	23.25KW	30.75KW
Shaving depth (mm)	0.2-1	0.2-1	0.2-1
Shavings output	500KG/H	1000KG/H	1500KG/H
Machine weight	950kgs	1800kgs	2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;

Model SHBH500-4 & SHBH500-6

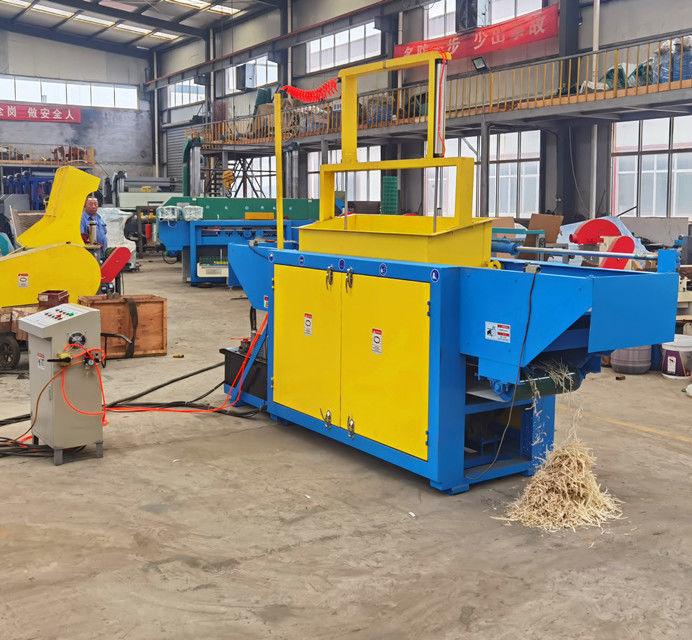

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 0

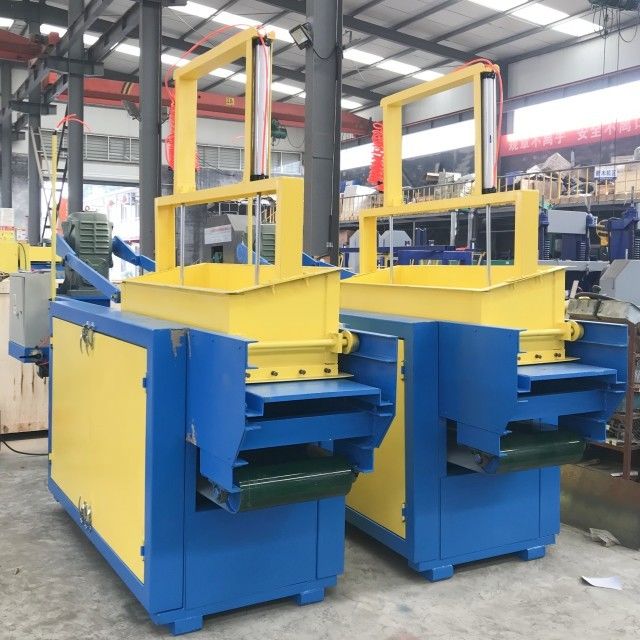

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 1

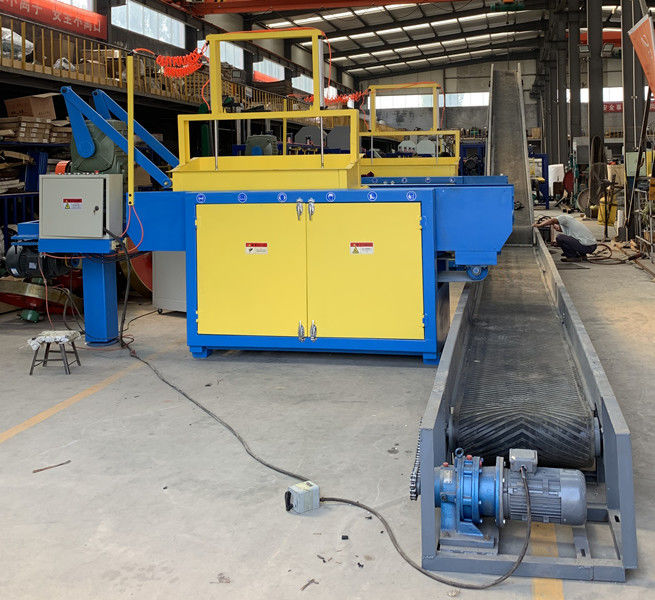

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 2

Model SHBH500-2

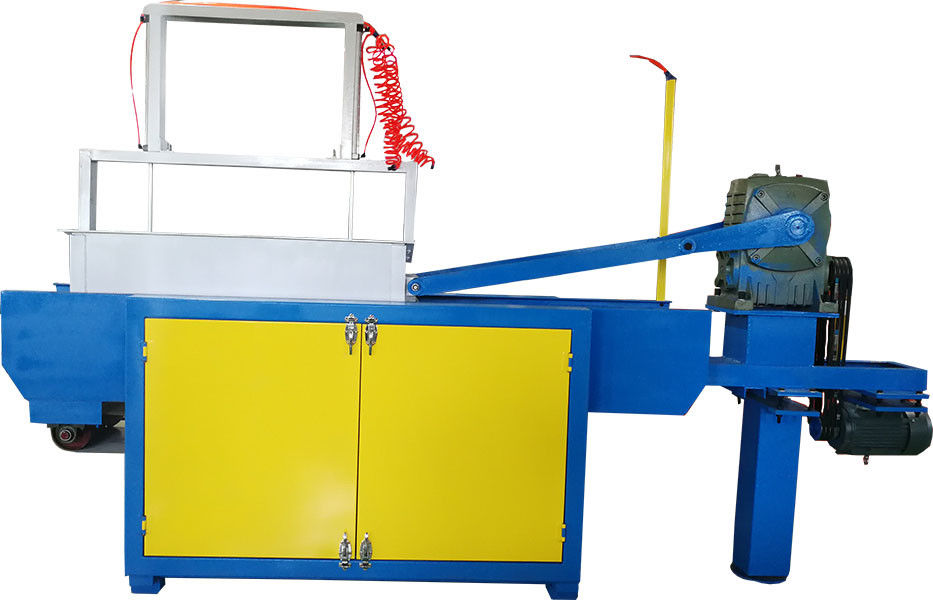

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 3

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 4

Hydraulic type Wood Shaving Machine

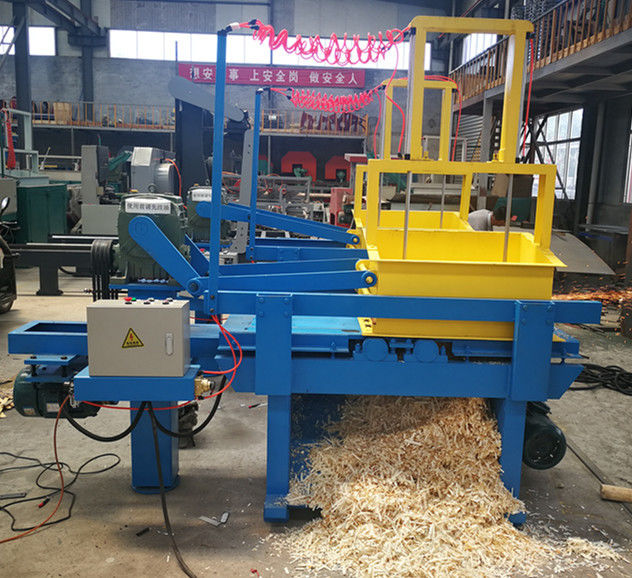

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 5

Screw Shaft Wood Shaving Machine

Model	SHBH500-2-L	SHBH500-4-L	SHBH500-6-L
Processing wood max. length(mm)	800	1400	1400
Processing max. width/diameter(mm)	500	500	500
Shaft quantity	2	4	6
Blade (pcs)	84pcs/shaft	84pcs/shaft	84pcs/shaft
Motor speed (rpm)	3500	3500	3500
Bin length (mm)	800	1400	1400
Total Motor power (kw)	10.5KW	23.25KW	30.75KW
Shaving depth (mm)	0.1-0.5mm adjustable	0.1-0.5mm adjustable	0.1-0.5mm adjustable
Shavings output	300KG/H	700KG/H	1000KG/H
Machine weight	950kgs	1800kgs	2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 6

Screw Shaft

Wood Shaving Machine Horse Bedding Equipment Wood Shavings Making Machine 8

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHBH500-2,SHBH500-4,SHBH500-6

Minimum Order Quantity:	1 SET wood shaving machine
Price:	US $3,800 - 15,800 / Set
Packaging Details:	export pallet packing or film wrapped container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year
