Detail Information

Name:	Wood Chipper	Feeding Inlet Size:	2000x1400mm, Etc
Power(W):	110kw, 160KW,250kw, 450KW	Raw Material::	Tree , Log, Wood Pallet, Waste Wood, Etc
Capacity:	10-100tons/Hour	Processing Max. Log Diameter:	＜800MM
Wheels:	Available , Mobile Usage	Feeding Conveyor Length:	6m
Outlet Conveyor Length:	10meters	Wood Chipper Size:	2cm To 5cm
Magnetic System:	Available	Control:	Automatic Operation, Distant Control
Highlight:	400HP diesel wood chipper , wood drum chipper shredder , pallet crusher machine

Product Description

Heavy Duty Wood Chipper/Crusher Machine

Processing raw materials:

Wood Branches,Logs,wasted wood Pallets with nails,used building plywood with stones

Wood Stumps/ Roots,Rail Sleepers,Straw,cotton stalk.

2. Magnetic machine is workable for sucking out nails, iron products.

3. Tehnical data:

Model	SH 800-500	SH 1300-600	SH 1600-600
Feeding Inlet	800*500mm	1300*600mm	1600*600mm
Blade Roller Diameter	850mm	850mm	850mm
Blade Roller Speed	850RPM
Capacity	10-15tons/hour	15-20tons/hour	25-30tons/hour
YG8 Hammer Blade Quantity	16pcs	20pcs	28pcs
Knife Blade Quantity	2groups/4pcs
Max. Processing Wood Diameter	300mm	450mm	450mm
Motor Power	110kw	160kw	250kw
Wood Chipper Size	20-40cm(Custmized)
Working Life of the Hammer Blades	4000T-5000T

Heavy Duty Large Wood Crusher

Model	SH2000-1400
Feeding inlet size	2000*1400MM
Blade roll diameter	1400MM
Blade roll rotation speed	750RPM
Production capacity	70-100Ton/Hour
Blade quantity	3sets/9pcs(H12 materials)
Processing max. Log diameter	＜800MM
Power	450KW
Chipper size	30-50MM
Blade life	About 5000T
Steel plate thickness of host machine	30mm

4. Photos:

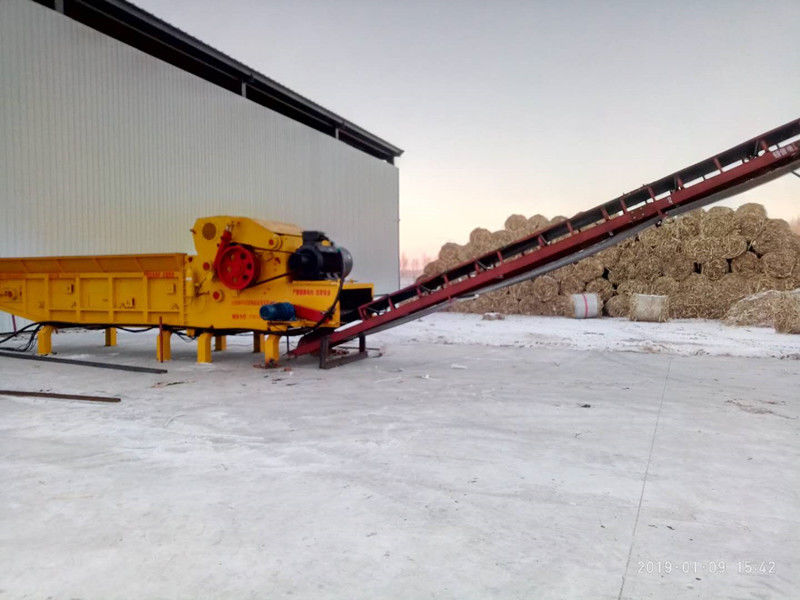

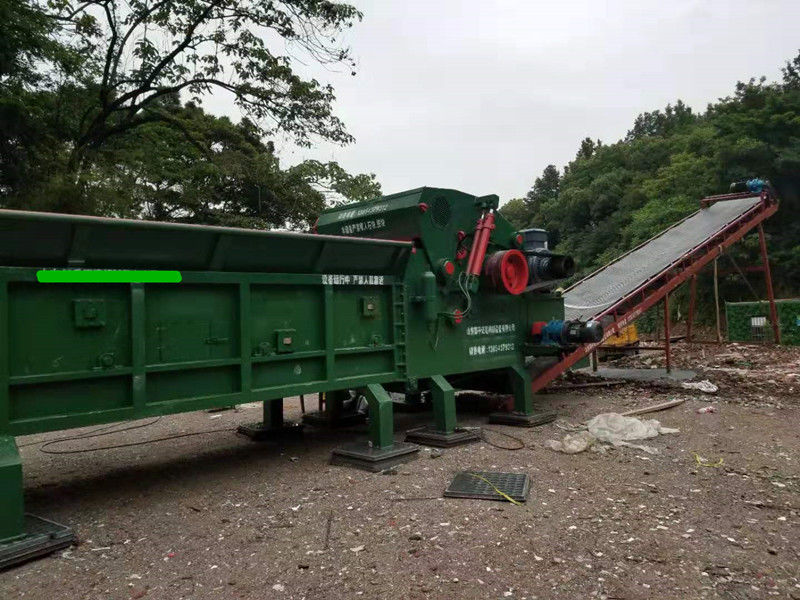

Electrical type
Wood Chipper, 400HP Diesel Wood Drum Chipper Shredder Pallet Crusher 0

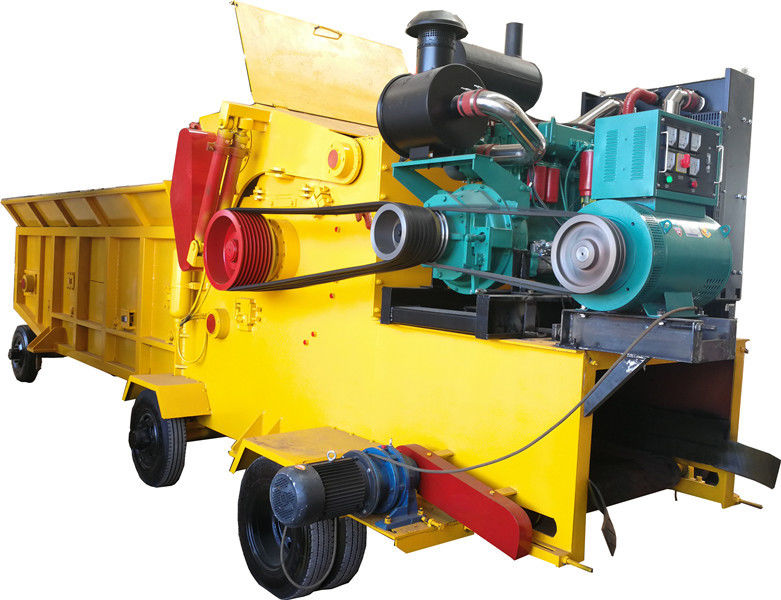

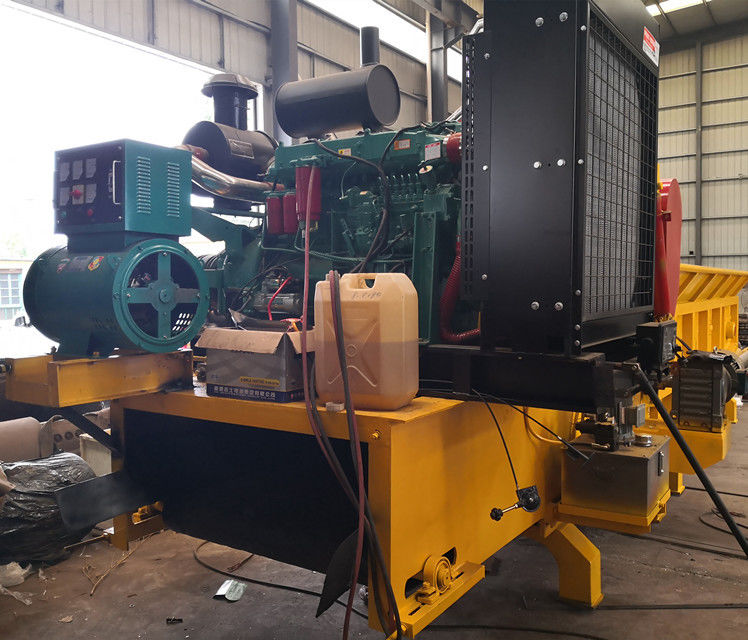

Diesel engine + generator type

Feeding Inlet(mm)	1300*600
Blade Roll Diameter(mm)	880MM
Hammer Blade Quantity	22
Blade Roll Speed (R/Min)	800
Max Processing Wood Diameter	380MM
Wood Chipper Size	20-30MM
Production Capacity	15 Tons/Hour
National Standard Copper Motor Power	160 KW
Feeding Suspension Inverter Motor	7.5KW*1
Chain Plate Feeding Inverter Motor	11KW
Electromagnetic valve integrated Oil Pump Motor	3KW
Conveyor Gear Motor Power	5.5 KW
Weight	14 Tons

Wood Chipper, 400HP Diesel Wood Drum Chipper Shredder Pallet Crusher 1

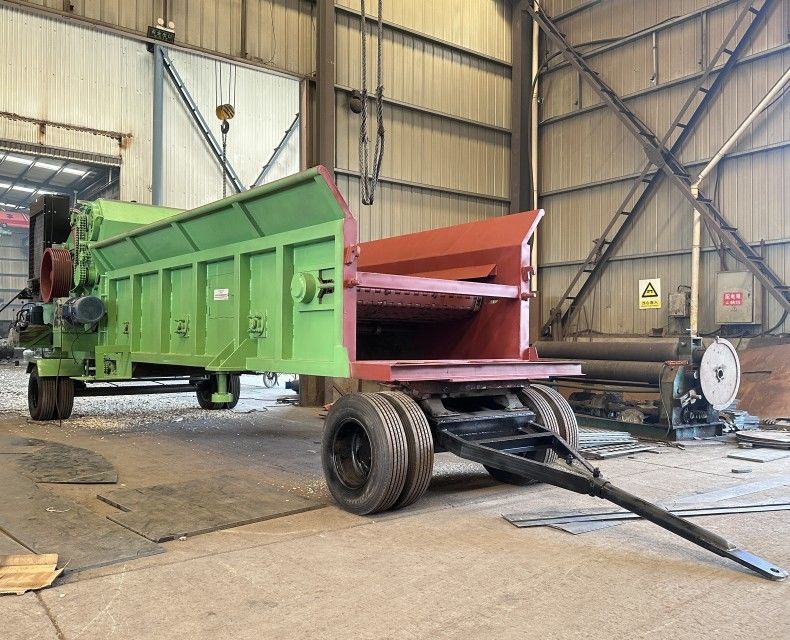

With wheels for mobile usage

Hydraulic Collapsible outlet conveyor

Control Cabinet

Container Loading -

Related Products:
Wood Roots Crusher/Grinder
Specification:

Technical data	Model SH3600-1600
Blade shaft size	1600x850mm
Rotor diameter	800mm
Blade quantity	4
Main motor power	185KW
Feeding inlet diameter	3600mm
Out feed conveyor	12meters
Capacity	25-30Ton/Hour
Weight	18000kg

Wood Chipper, 400HP Diesel Wood Drum Chipper Shredder Pallet Crusher 7
Disc Chipper

Wood Chipper Machine
Specification	SHJP1600	SHJP1800
Feeding inlet size	450*450mm	500*500mm
Knife No.	6pcs	6pcs
Main motor power	185kw	220kw
Horizontal feed conveyor	8000mm	8000mm
Slope outfeed conveyor	10000mm	10000mm
Wood chipper size	20-35mm	20-35mm
Discharging type	down	down
Production capacity	20t/h	30t/h

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH2000-1400,SH1300-600, SH1400-600, SH1600-600

Minimum Order Quantity:	1 SET Wood Crusher
Price:	US $24,500-31,900 / Set
Packaging Details:	container loading
Delivery Time:	within 15 days
Payment Terms:	T/T, Western Union
Supply Ability:	500 sets/year
