Shredding Wood Pallet Machine 37KW Wooden Pallet Crusher
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SHTF1350, SH800-500, SH1300-600,etc |
| Minimum Order Quantity | 1 SET |
| Price | US $8,900-12,900 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000 Sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Wood Pallet/tray Crusher Machine | Condition | New |
|---|---|---|---|
| Application | Grinding Wooden Pallets Into Chippers, And Nails Suck Out | Capacity | 60pcs Pallets/hour |
| Power | 37KW | Feeding Inlet Size | 1350*230mm |
| Blade Shaft Diameter | 450mm | Blades Quantity | 16pcs |
| Discharging Conveyor Belt | 3meters Length | Optional Part | Magnetic Roller To Suck Out Nails |
| After-sales Service | Video Technical Support, Online Support | Guarantee | 1 Year |
| High Light | Shredding Wood Pallet Machine,37KW Wooden Pallet Crusher,Wood Pallet Machine 37KW |
||
Product Description
Wooden Pallet Crusher, Wood Crusher Machine for sale, pallet shredding machines

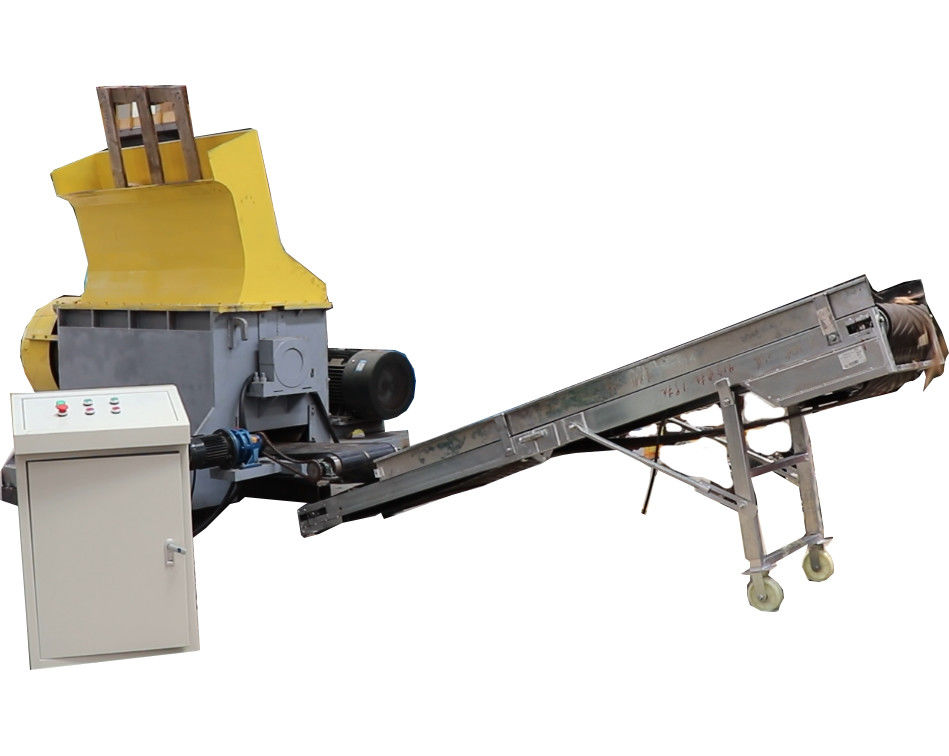

Wood Pallet Crusher
| Model | SHTF1350 |
| Feeding Inlet | 1350*230mm |
| Blade Shaft Diameter | 450mm |
| Blade Quantity1 | 16pcs |
| Motor Power | 37KW |
| Conveyor belt length | 3000mm |
| Production Capacity | 60 Pallets/Hour |
| Weight | 3200KG |
|
Optional part: Magnetic machine for sucking nails ,etc iron products Extended outlet conveyor |
|
Optional - magnetic machine

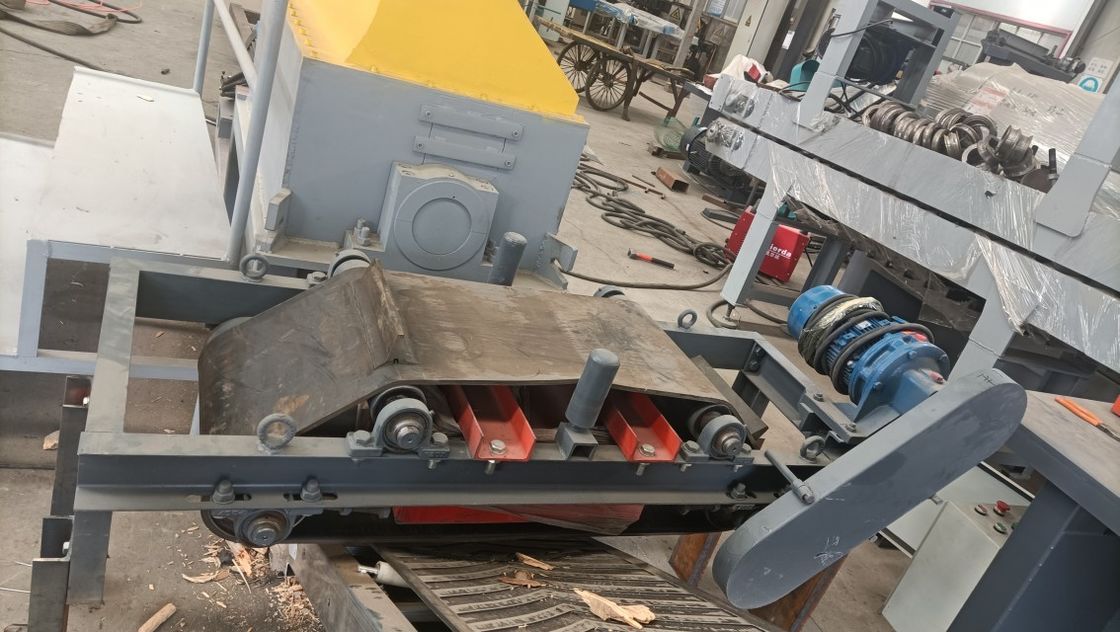

Roller and blade

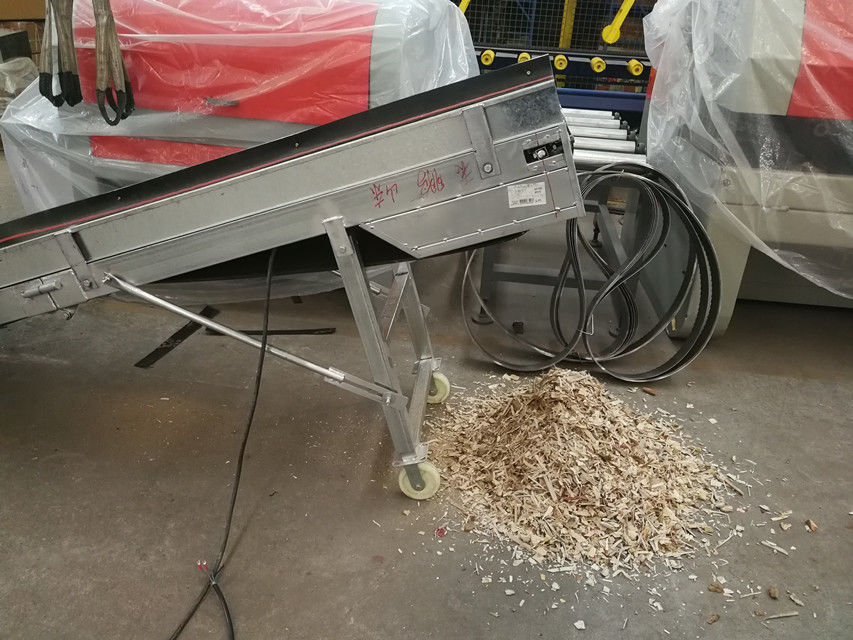

Finished chippers
Related Wood Crusher Machine
It is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Technical Parameter Of Host System Equipment
| Model | SH2000-1000 | SH1300-600 | SH1400-600 | SH1600-600 | |
| Feeding inlet size | 2000x1000mm | 1250x600mm | 1400x600mm | 1600x600mm | |
| Blade roller diameter | 1400mm | 850mm | 850mm | 850mm | |
| Blade roller speed | 750RPM | 850RPM | 850RPM | 850RPM | |
| Production capacity | 70-100ton/H | 12-15ton/H | 18-20ton/H | 25-30ton/H | |
| 1 | YG8 hammer blade qty | 86pcs | 20pcs | 24pcs | 28pcs |
| 2 | Blade qty | 3groups/9tablets | 2groups/4tablets | 2groups/4tablets | 2groups/4tablets |
| Max. Processing log diameter | <800mm | 450mm | 450mm | 450mm | |
| Main motor power | 450kw | 160kw | 200kw | 250kw | |
| Wood chipper size | 3-5cm | 2-4cm | 2-4cm | 2-4cm | |
| Working life of blades | 4000T-5000T | 4000T-6000T | 4000T-6000T | 4000T-6000T | |
|
Optional :
|
|||||
Photos:

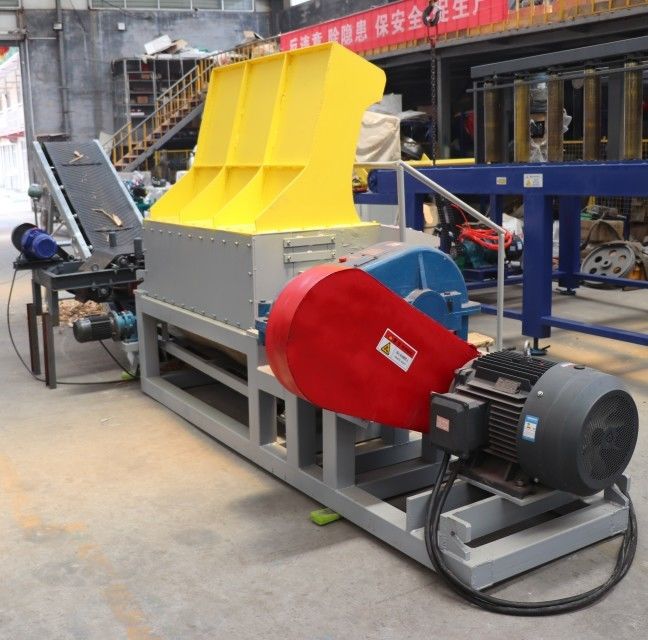

Electrical type
Diesel type
Mobile usage
Wood Pallet Dismanling Sawmill
1. easy operation
2. Ideal tool to take apart wooden pallet to save engrgy.
3. Strong saw blade to cutting the nail .
Specifications :
|
Model |
TP1400 |
|
Working Table Width |
1700mm |
|
Horizontal table width |
600mm |
|
Cutting Thickness |
5mm-150mm |
|
Saw Wheel Diameter |
600mm |
|
Motor Power |
7.5KW |
|
Processing Pallet Efficiecy |
40-60 pcs/min |
|
Band Saw Blade Size |
USA Blade 6900*41*1.3 mm |
|
Overall Size |
3300*1500*1500mm |
| Weight | 800KG |
