L1200mm Wood Pallet Machine Lumber Wood Cutoff Saw Siemens PLC
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | DZ-450,DZ-600 |
| Minimum Order Quantity | 1 SET |
| Price | US $6,800 - 18,500 / Set |
| Packaging Details | container loading of wood chamfer machine |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Automatic Wood Cut Off Saw Machine | Saw Blade Diameter | 600mm*30mm |
|---|---|---|---|
| Feeding Table Length | 2m/ 4m/ 6m | Discharge Table Length | 1200mm |
| Cutting Height | 10-140mm | Cutting Width | 30- 300mm |
| Cutting Section Thickness*width | Max.120*300mm 140*280mm | Total Power | 12.5kw |
| Operation | Siemens PLC Touching Screen | Weight | 1500kgs |
| Warranty | 1 Year | ||
| High Light | Lumber Wood Cutoff Saw,L1200mm Wood Pallet Machine,Siemens PLC Wood Pallet Machine |
||
Product Description

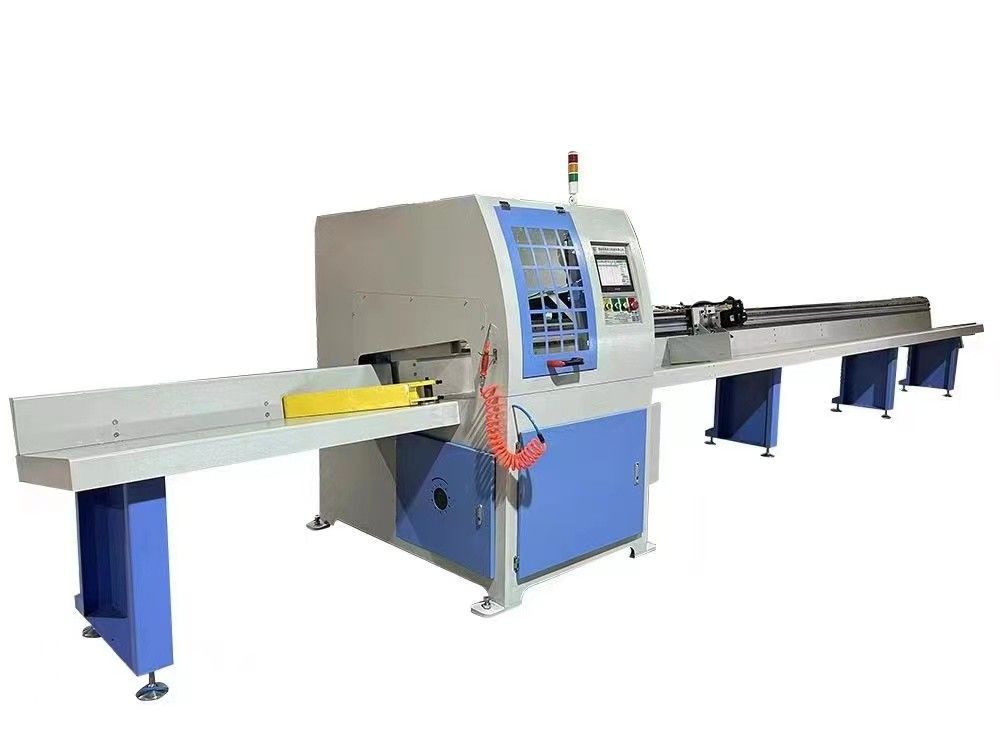

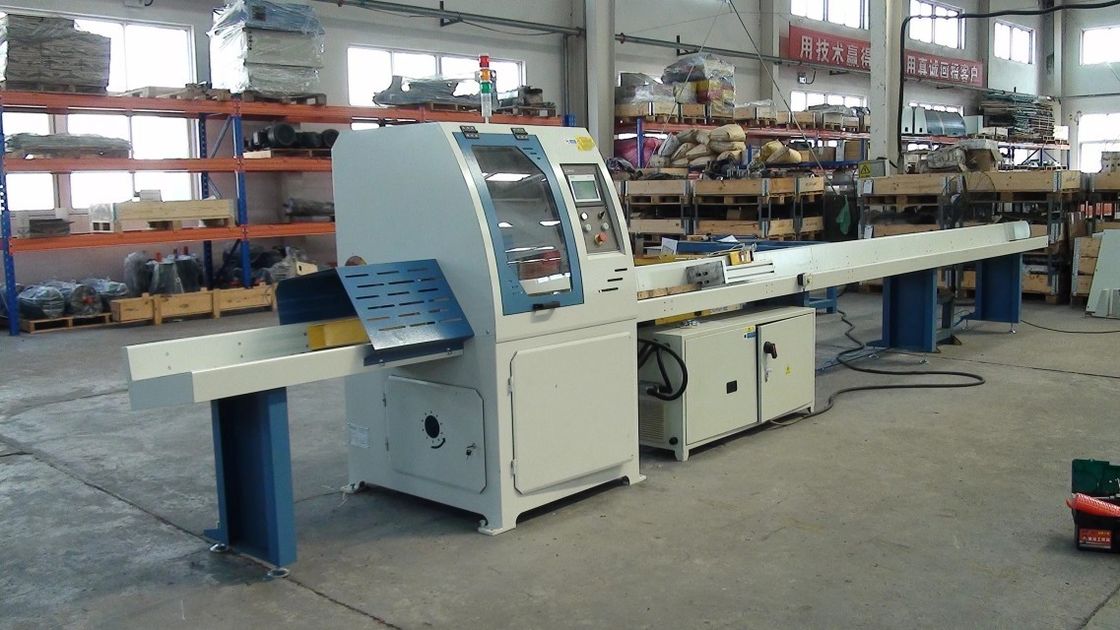

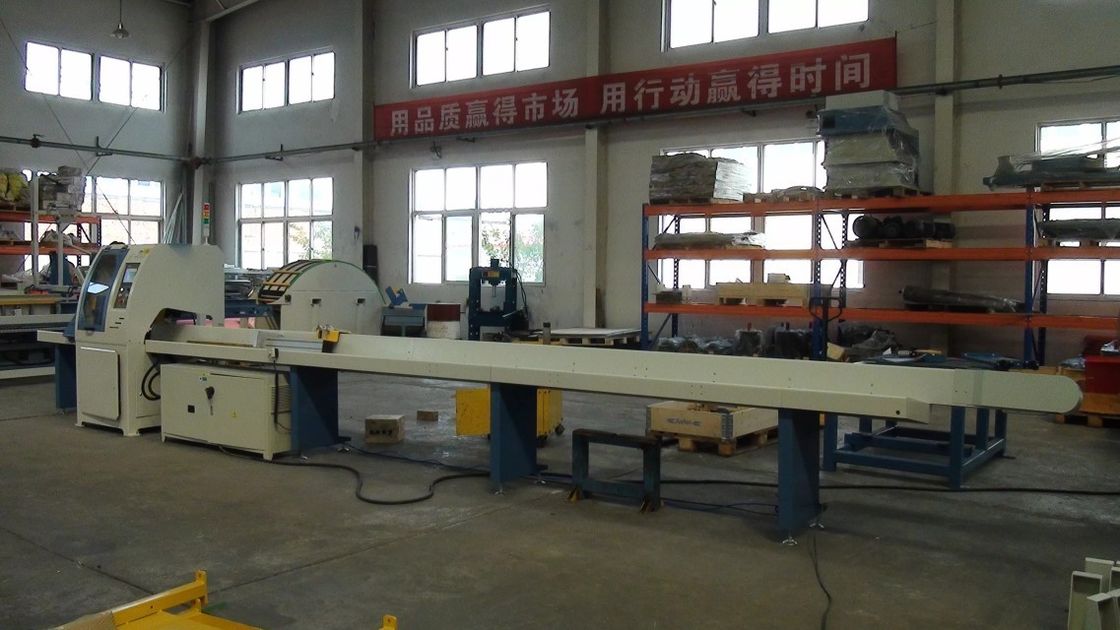

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table
Automatic Wood Cut Off Saw Machine
Wood Chamfer Machine
Technical data:
| Model | EPWC-7050 |
| Convey servo motor | 1kw |
| Hydraulic motor | 2.2kw |
| Total motor | 7.2kw |
| Voltage | 380v 50Hz 3phase |
| Cutter type | 45° V milling cutter, left and right |
| Working length | 600-1500mm |
| Working thickness | 17-35mm |
| Working width | 80-150mm |
| Productivity | 500-700pc/h |
| Hydraulic pressure | 0.4-0.5Mpa |
| Control system | Siemens |
| Machine dimension | 4450*800*1400mm |
| Packing dimension | 3220*920*1760mm |
| Machine weight | 1040kg |
Photo:
Related Products:

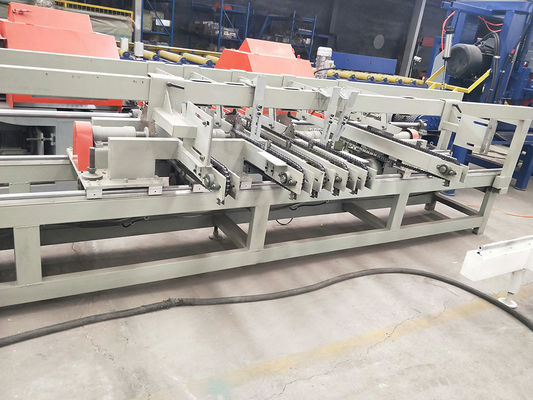

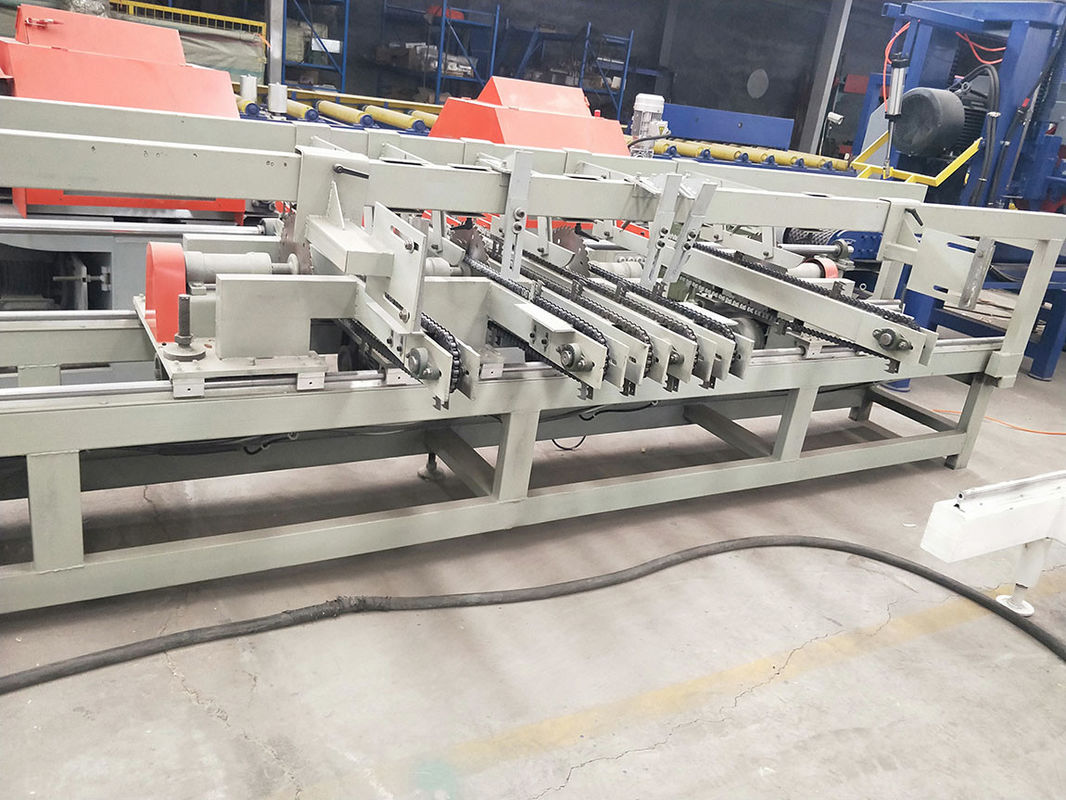

Pallet Foot Pier Cutting Saw Machine
| Model | JD-1500 |
| Cutting wood max. length | 1500mm |
| Cutting Thickness | 50-120mm |
| Cutting Width | 60-200mm |
| Pallet foot pier size | 30-200mm |
| Saw Diameter | 400mm |
| Motor | 7.5kw/3phase |
| Production capacity | 1500-1800P/H |
| Weight | 350kgs |

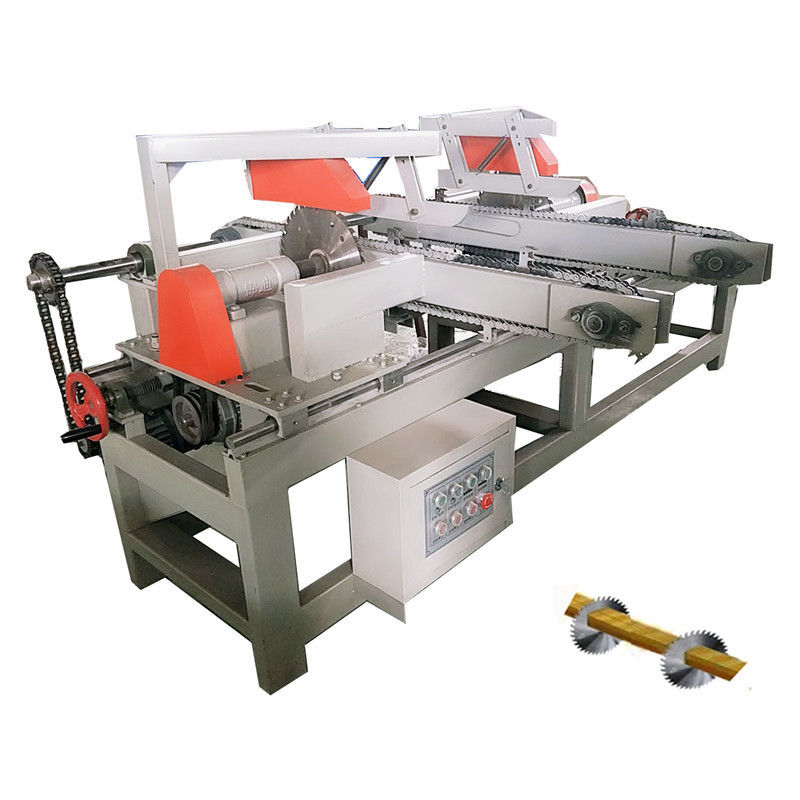

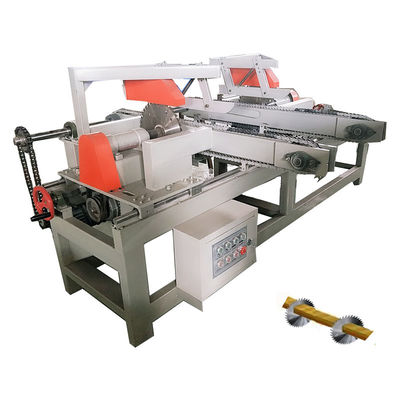

Multi Blades Circular Saw for wood panels cutting off
- cutting both ends of the panels in same length
- cutting length is adjustable
- with auto feeding
- chain drive
Technical data:
| Multi blades cutting off circular saw | |||
| Model | QT2000 | QT3000 | QT4000 |
| Cutting height | 100mm | 100mm | 100mm |
| Cutting width | 2000mm | 3000mm | 4000mm |
| Circular blade diameter | 300mm | 300mm | 300mm |
| Main motor power | 3kw x2 | 3kw x3 | 3kw x4 |
| weight | 620kgs | 820kgs | 1020kgs |
| Overall size | 3200x1800x1150mm | 2200x1800x1150mm | 4800x1800x1150mm |
Photos:
Pneumatic Cross Cut Sawmill For Planks
| Model | SH274 | SH276 |
| Max Cutting Width |
150mm(Thick about 110mm) 300mm(Thick about 40mm) |
650mm(Thick about 50mm) 200mm(Thick about200mm) |
| Saw Blade Diameter | 450MM | 620MM |
| Motor Power | 5.5KW | 7.5KW |
| Weight | 300KG | 550KG |
| Overall Dimension | 2900*930*1100MM | 4250*1150*1300MM |
