Detail Information

Name:	Double End Trim Saw Machine	Saw Blade Diameter:	450mm
Cutting Length :	400-1500mm (or Customized)	Cutting Thickness :	10-120mm (or Customized)
Cutting Width:	10-400mm (or Customized)	Feeding Speed:	30m/min (adjustable Speed)
Motor :	4KW2 0.75kw2	Efficiency :	2000-3000pcs/h
Weight:	1500kgs	Warranty:	1 Year
Highlight:	woodworking double end trim saw , pallet board cross cutting saw , wood pallet machine with warranty

Product Description

Wood Pallet Machine - Automatic Wood Plank Edge Cross Cutting Double End Trim Saw Machine

Automatic Wood Plank Edge Cross Cutting Double End Trim Saw Machine

Technical data

Model	PE-1500
Cutting Length	400-1500mm (or customized)
Cutting Thickness	10-120mm (or customized)
Cutting Width	10-400mm (or customized)
Feeding Speed	30m/min (adjustable speed)
Saw Diameter	450mm
Motor	4KW2 0.75kw2
Efficiency	2000-3000pcs/h
Weight	1500kg
Size	225018001200mm

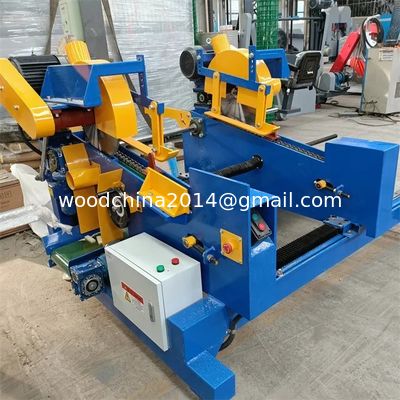

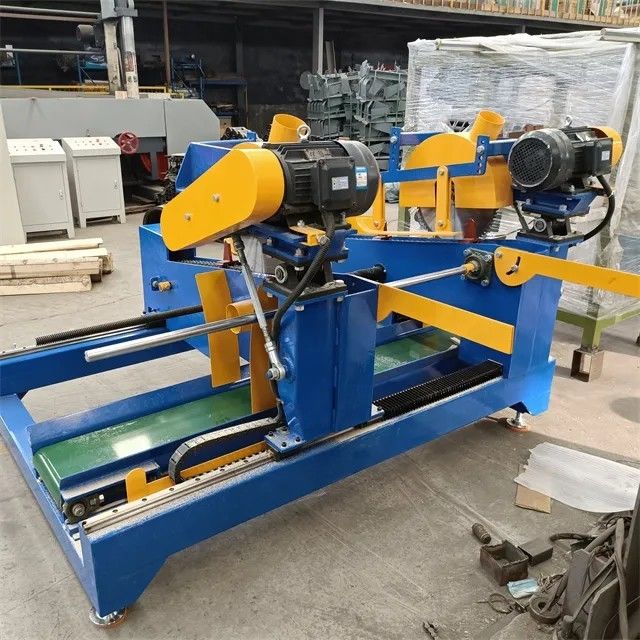

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 0

450mm Diameter Circular Saw Blade

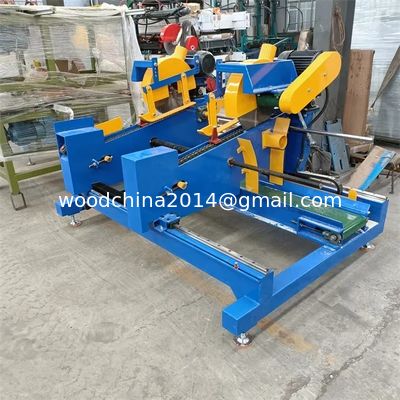

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 1

Dust Collection Collect Sawdust To Prevent Splattering

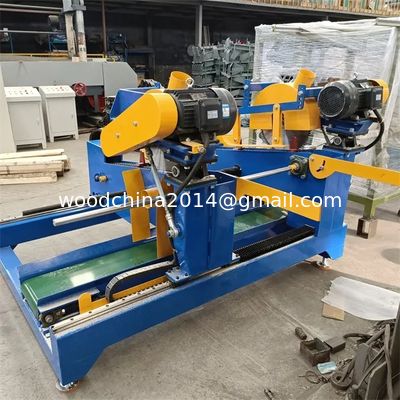

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 2

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

Automatic Wood Cut Off Saw Machine

Model	DZ-450	DZ-600
Saw Blade diameter	450mm*30mm	600mm*30mm
Feeding table length	2m/ 4m/ 6m	2m/ 4m/ 6m
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30- 300mm
Cutting section thickness*width	Max. 120150mm,100200mm	Max.120300mm,140280mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, 0.5-0.7Mpa	Cylinder, 0.5-0.7Mpa
Cutting tolerance	In +/-1mm	In +/-1mm
Dust collection port	100mm*2pc	100mm*2pc
Electrical components	Schneider	Schneider
PLC Touching screen	Siemens	Siemens
Voltage	380v 50Hz 3 phase	380v 50Hz 3 phase

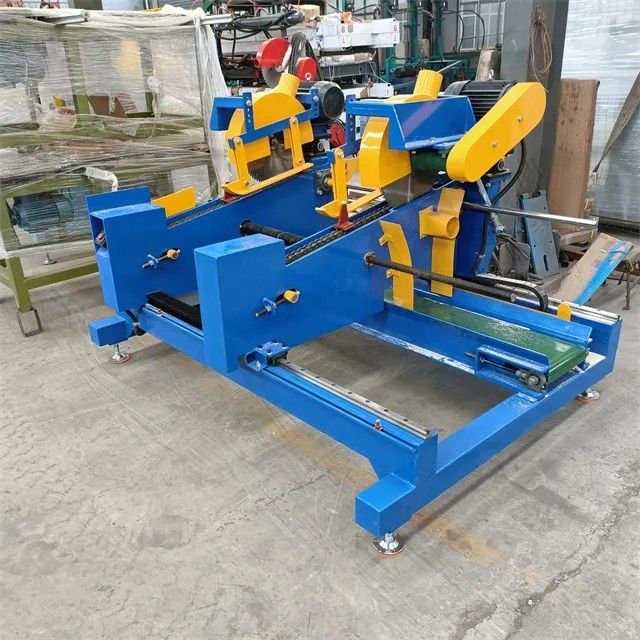

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 3

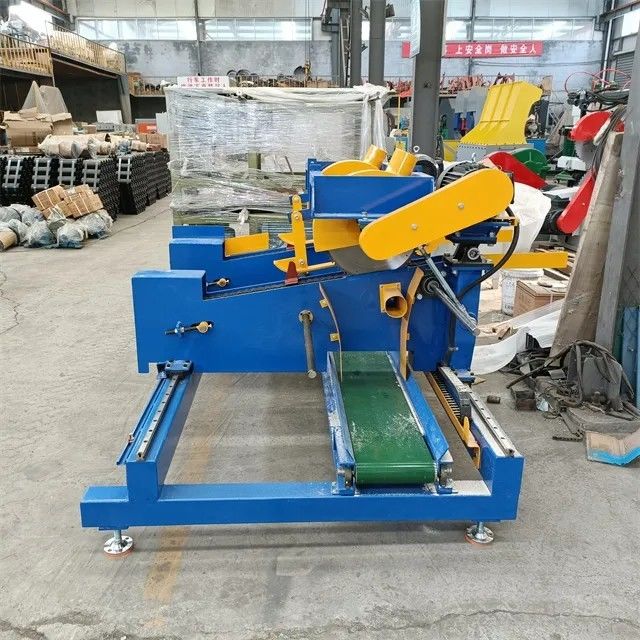

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 4

Wood Chamfer Machine

Technical data:

Model	EPWC-7050
Convey servo motor	1kw
Hydraulic motor	2.2kw
Total motor	7.2kw
Voltage	380v 50Hz 3phase
Cutter type	45° V milling cutter, left and right
Working length	600-1500mm
Working thickness	17-35mm
Working width	80-150mm
Productivity	500-700pc/h
Hydraulic pressure	0.4-0.5Mpa
Control system	Siemens
Machine dimension	44508001400mm
Packing dimension	32209201760mm
Machine weight	1040kg

Photo:

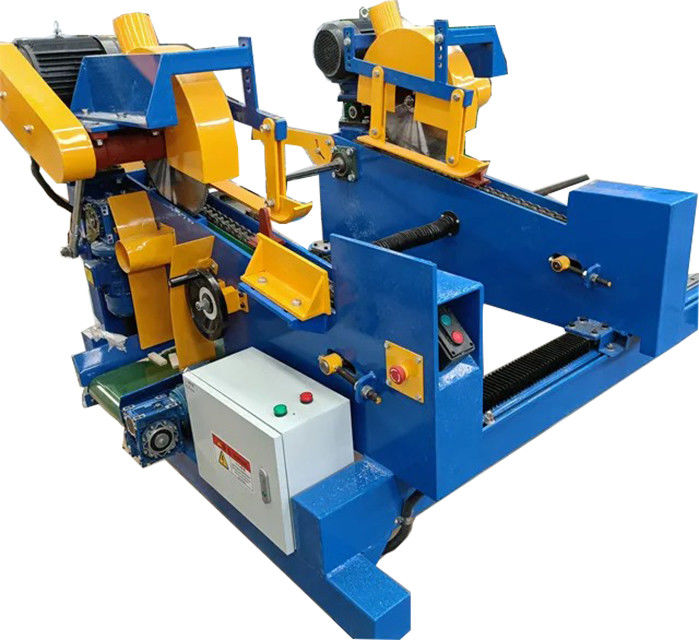

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 5

Pallet Foot Pier Cutting Saw Machine

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

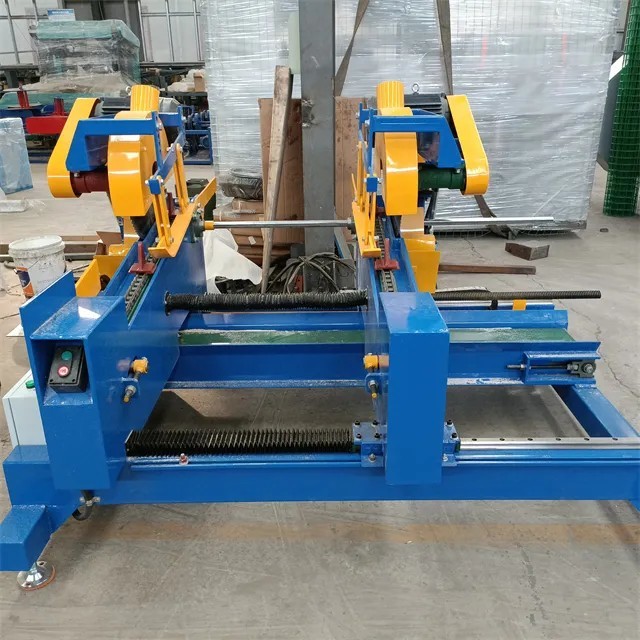

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 6

Multi Blades Circular Saw for wood panels cutting off

cutting both ends of the panels in same length
cutting length is adjustable
with auto feeding
chain drive

Technical data:

Multi blades cutting off circular saw
Model	QT2000	QT3000	QT4000
Cutting height	100mm	100mm	100mm
Cutting width	2000mm	3000mm	4000mm
Circular blade diameter	300mm	300mm	300mm
Main motor power	3kw x2	3kw x3	3kw x4
weight	620kgs	820kgs	1020kgs
Overall size	3200x1800x1150mm	2200x1800x1150mm	4800x1800x1150mm

Photos:

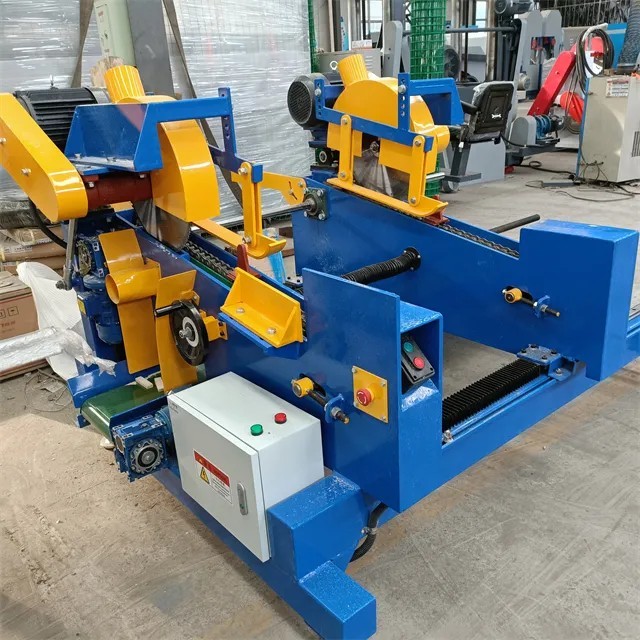

Quality Woodworking Double End Trim Saw Mills Machine, pallet board cross cutting saw 7

Pneumatic Cross Cut Sawmill For Planks


			Model
			SH274
			SH276

			Max Cutting Width
			150mm(Thick about 110mm)
300mm(Thick about 40mm)

			650mm(Thick about 50mm)
200mm(Thick about200mm)

			Saw Blade Diameter
			450MM
			620MM

			Motor Power
			5.5KW
			7.5KW

			Weight
			300KG
			550KG

			Overall Dimension
			2900*930*1100MM
			4250*1150*1300MM

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	PE-1500

Minimum Order Quantity:	1 SET
Price:	US $1,800 - 18,500 / Set
Packaging Details:	container loading of wood chamfer machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1500sets/year
