High efficiency Double end trim saw wood cutting machine panel saw Circular Saw
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | PE-1500 |
| Minimum Order Quantity | 1 SET |
| Price | US $1,800 - 18,500 / Set |
| Packaging Details | container loading of wood chamfer machine |
| Delivery Time | within 20 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1500sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Double End Trim Saw Machine | Saw Blade Diameter | 450mm |
|---|---|---|---|
| Cutting Length | 400-1500mm (or Customized) | Cutting Thickness | 10-120mm (or Customized) |
| Cutting Width | 10-400mm (or Customized) | Feeding Speed | 30m/min (adjustable Speed) |
| Motor | 4KW*2 0.75kw*2 | Efficiency | 2000-3000pcs/h |
| Weight | 1500kgs | Warranty | 1 Year |
Product Description

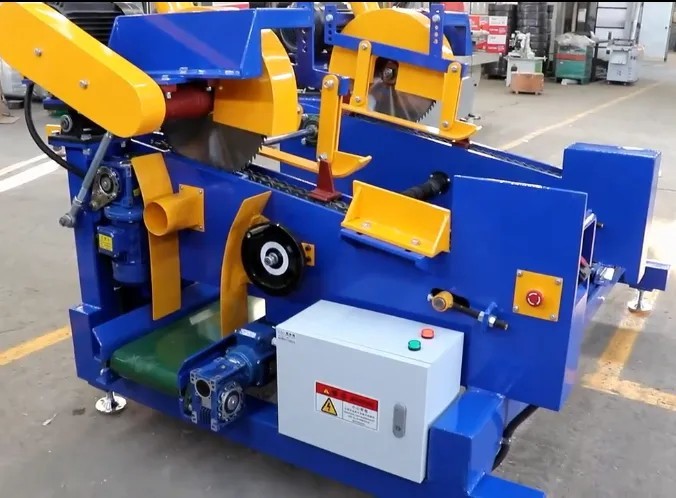

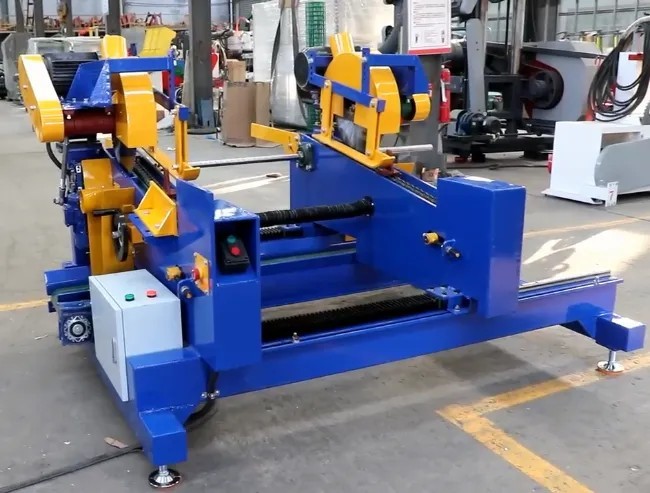

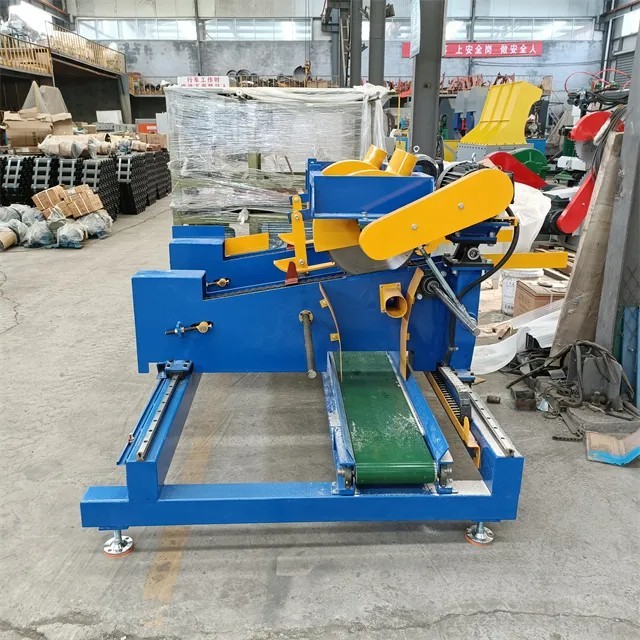

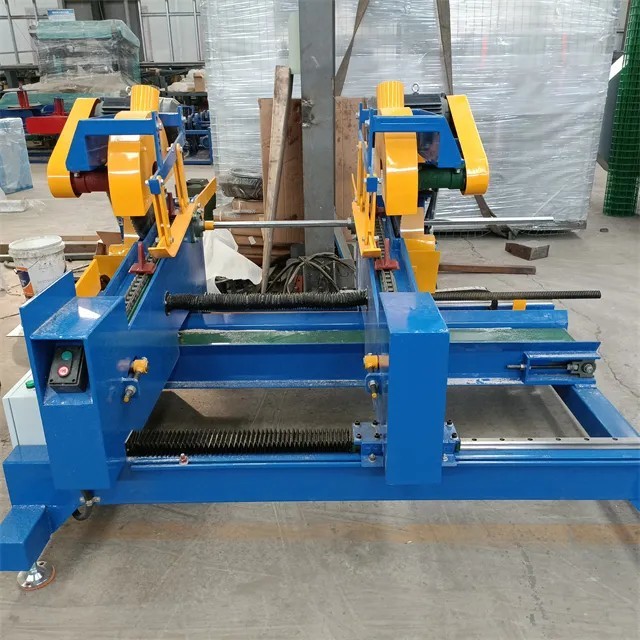

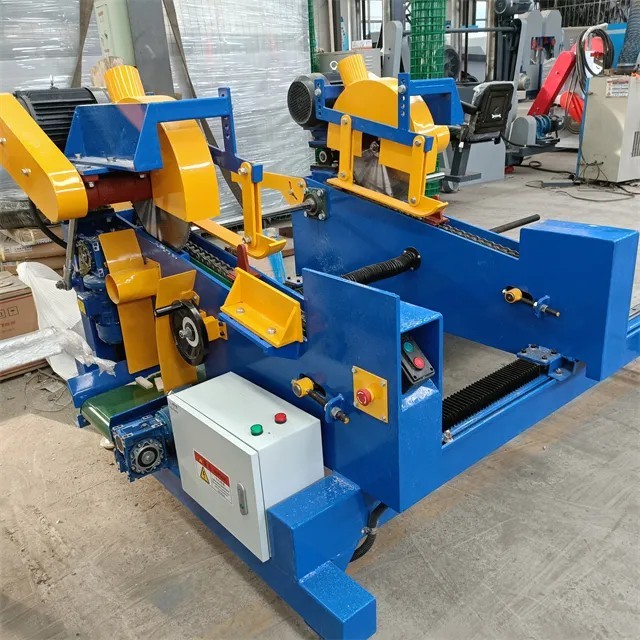

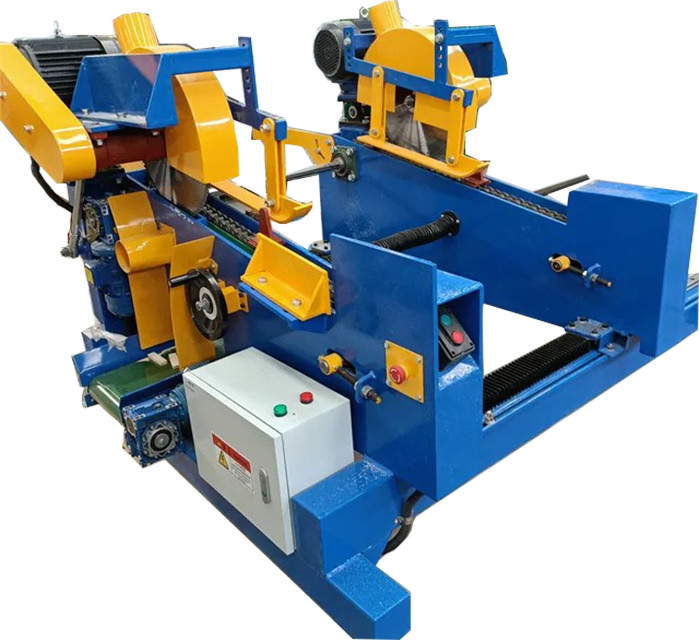

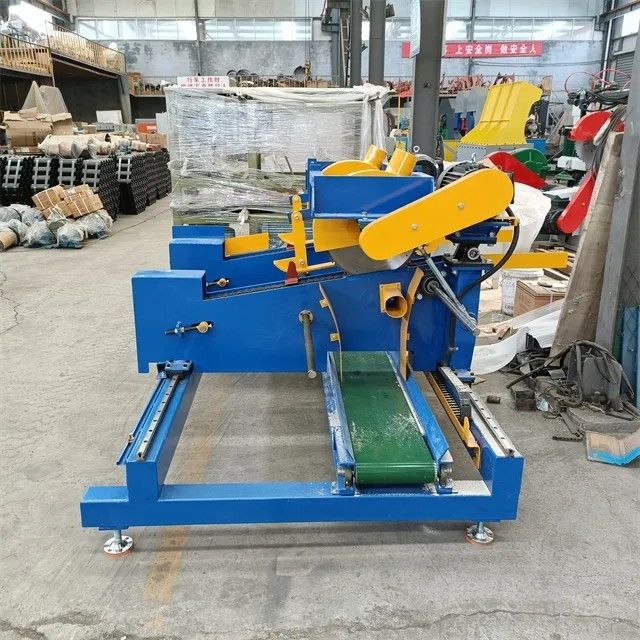

Wood Pallet Machine - Automatic Wood Plank Edge Cross Cutting Double End Trim Saw Machine
Automatic Wood Plank Edge Cross Cutting Double End Trim Saw Machine
- Technical data
| Model | PE-1500 |
| Cutting Length | 400-1500mm (or customized) |
| Cutting Thickness | 10-120mm (or customized) |
| Cutting Width | 10-400mm (or customized) |
| Feeding Speed | 30m/min (adjustable speed) |
| Saw Diameter | 450mm |
| Motor | 4KW*2 0.75kw*2 |
| Efficiency | 2000-3000pcs/h |
| Weight | 1500kg |
| Size | 2250*1800*1200mm |
- Image
450mm Diameter Circular Saw Blade
Dust Collection Collect Sawdust To Prevent Splattering
Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table
Automatic Wood Cut Off Saw Machine
Wood Chamfer Machine
Technical data:
| Model | EPWC-7050 |
| Convey servo motor | 1kw |
| Hydraulic motor | 2.2kw |
| Total motor | 7.2kw |
| Voltage | 380v 50Hz 3phase |
| Cutter type | 45° V milling cutter, left and right |
| Working length | 600-1500mm |
| Working thickness | 17-35mm |
| Working width | 80-150mm |
| Productivity | 500-700pc/h |
| Hydraulic pressure | 0.4-0.5Mpa |
| Control system | Siemens |
| Machine dimension | 4450*800*1400mm |
| Packing dimension | 3220*920*1760mm |
| Machine weight | 1040kg |
Photo:
Related Products:
Pallet Foot Pier Cutting Saw Machine
| Model | JD-1500 |
| Cutting wood max. length | 1500mm |
| Cutting Thickness | 50-120mm |
| Cutting Width | 60-200mm |
| Pallet foot pier size | 30-200mm |
| Saw Diameter | 400mm |
| Motor | 7.5kw/3phase |
| Production capacity | 1500-1800P/H |
| Weight | 350kgs |
Multi Blades Circular Saw for wood panels cutting off
- cutting both ends of the panels in same length
- cutting length is adjustable
- with auto feeding
- chain drive
Technical data:
| Multi blades cutting off circular saw | |||
| Model | QT2000 | QT3000 | QT4000 |
| Cutting height | 100mm | 100mm | 100mm |
| Cutting width | 2000mm | 3000mm | 4000mm |
| Circular blade diameter | 300mm | 300mm | 300mm |
| Main motor power | 3kw x2 | 3kw x3 | 3kw x4 |
| weight | 620kgs | 820kgs | 1020kgs |
| Overall size | 3200x1800x1150mm | 2200x1800x1150mm | 4800x1800x1150mm |
Photos:
Pneumatic Cross Cut Sawmill For Planks
| Model | SH274 | SH276 |
| Max Cutting Width |
150mm(Thick about 110mm) 300mm(Thick about 40mm) |
650mm(Thick about 50mm) 200mm(Thick about200mm) |
| Saw Blade Diameter | 450MM | 620MM |
| Motor Power | 5.5KW | 7.5KW |
| Weight | 300KG | 550KG |
| Overall Dimension | 2900*930*1100MM | 4250*1150*1300MM |
