Woodpallet heat treatment machine for ISPM 15,Wood Timber Wood Plank Dryer Drying Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | 10CBM, 30CBM, 50CBM, 100CBM,etc |
| Minimum Order Quantity | 1SET |
| Price | USD2800-33200/SET |
| Packaging Details | container loading |
| Delivery Time | about 15 days |
| Payment Terms | T/T, Western Union |
| Supply Ability | 1000sets/year of wood pallet heat treatment |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wood Pallet Heat Treatment | Voltage | 3 Phase |
|---|---|---|---|
| Condition | New | Application | Drying Of Various Woods, As Well As Wood Sterilization, Insecticide And Wood Heat Treatment |
| Capacity | 10cbm To 150cbm | Raw Material | All-aluminum, Color Steel Plate |
| Color | Customer's Request | Moisture | 8%-15% |
| Warranty | 1 Year | After-sales Service Provided | Engineers Available To Service Machinery Overseas |
Product Description

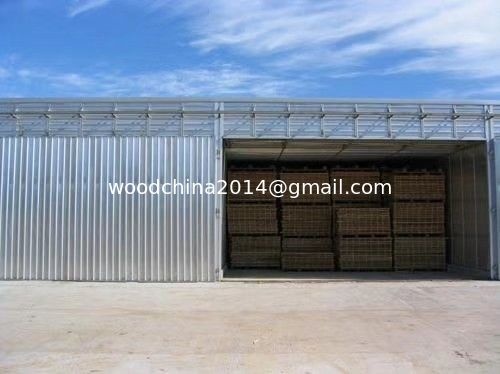

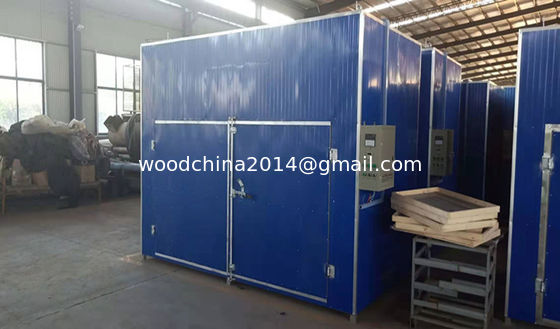

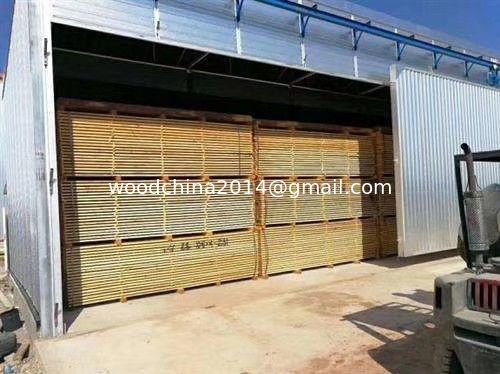

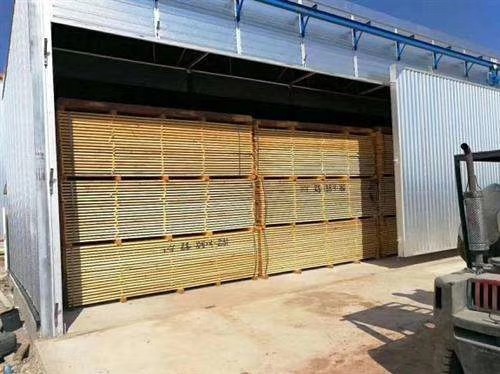

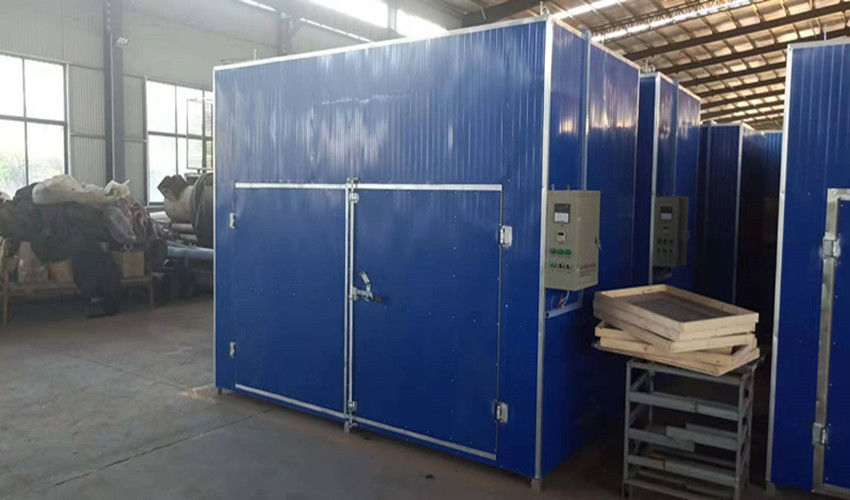

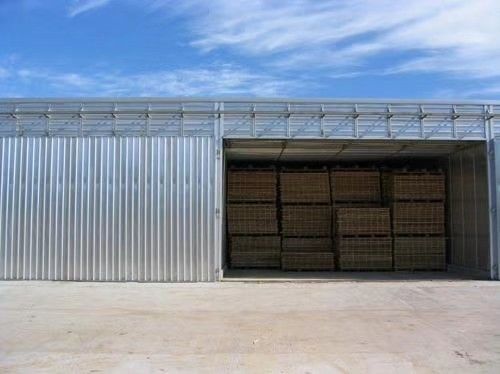

Wood Drying Machine
The capacity of drying room can be customized as your requests.

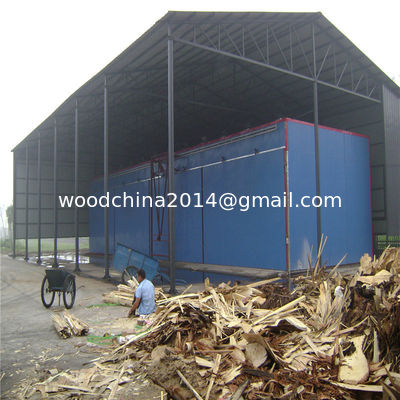

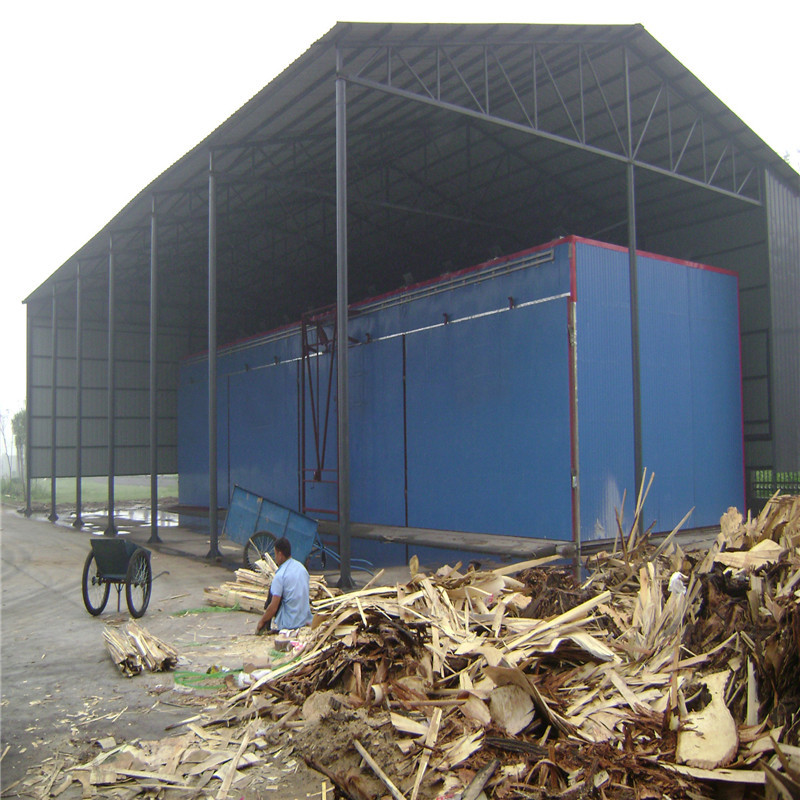

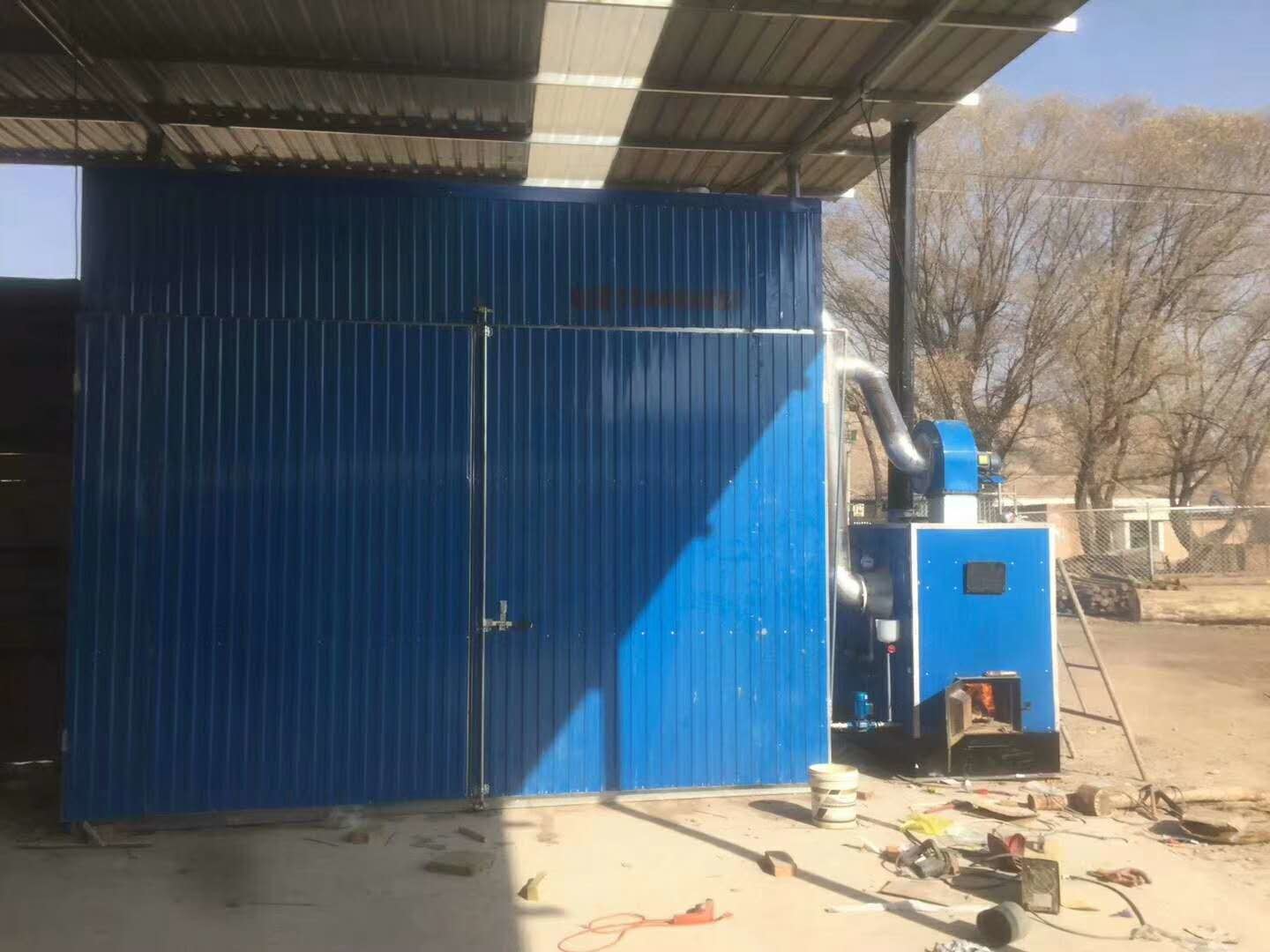

Firewood, Coal Wood Drying Kiln
| Capacity 30cbm wood drying kiln Configuration List | |||||
| Kiln (ZCM-30) | |||||
| No. | Name | Description: steam hot air boiler heating | QTY | ||
| 1 | Kiln |
Drying products:Suitable for drying of various woods, as well as wood sterilization, insecticide and wood heat treatment
Kiln Inner size, L: 6500mm, W: 4500mm , H: 4000mm
Kiln wall materials:The inner wall is made of all-aluminum for anti-corrosion and high temperature resistance The outer wall is made of color steel plate, and the middle insulation fiber cotton insulation. Rock wool insulation 50mm thick
|
1 PC | ||
| Heat Source System | |||||

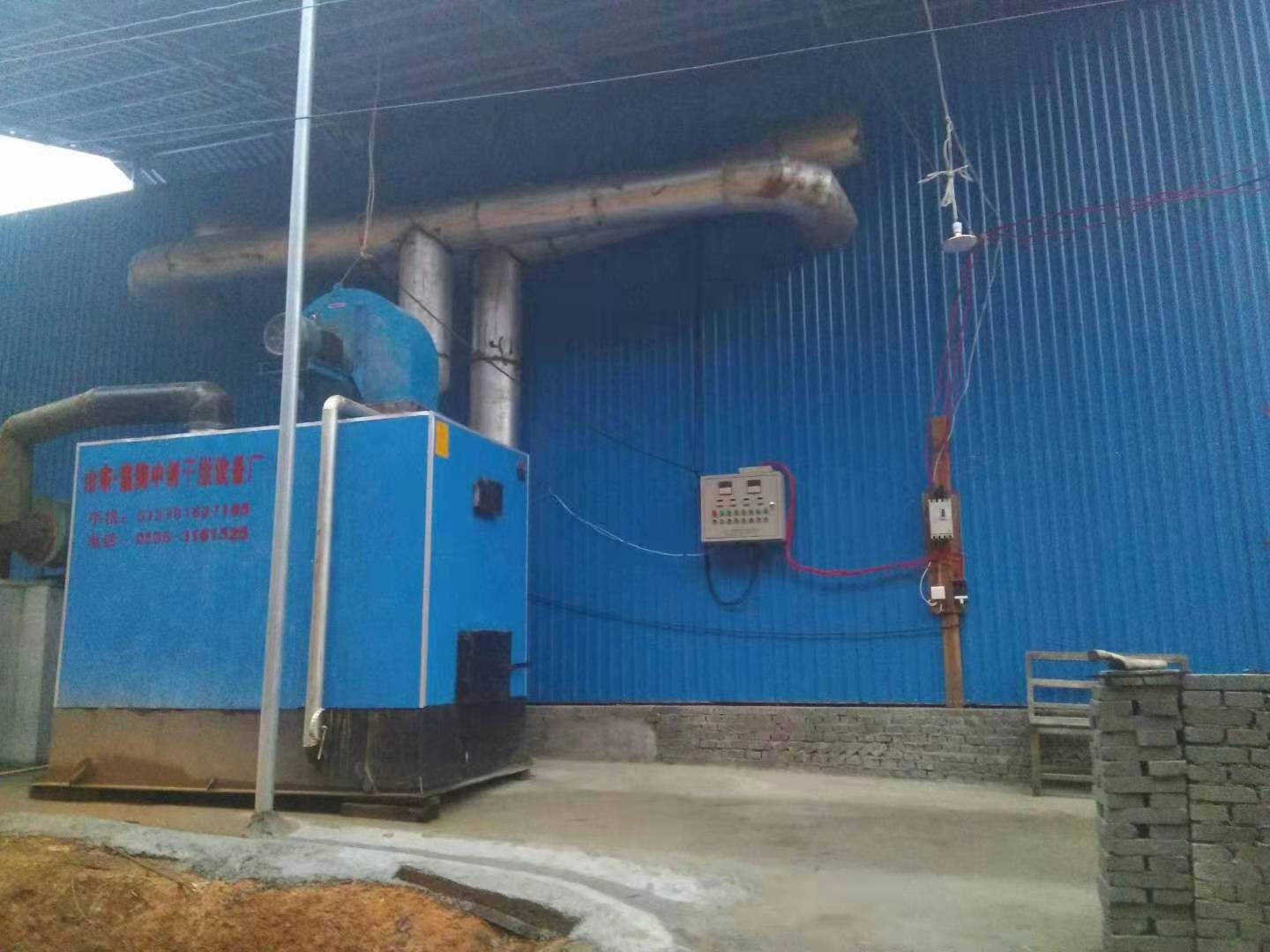

| 1 | Boiler |
300000 kcal steam hot air boiler Materials: welded with special steel plate. 300000 kcal steam hot air boiler, woods usage (forcing type, air outlet temperature of boiler: 180°-200°, main fuel: wood, sawdust, coal, etc. Materials of boiler insulation: special steel plate for full steel boiler) |
1 set | ||
| 2 | Steam generator | materials:welded with special steel plate, thickness: 8mm | 1 unit | ||
| 3 | Chimney | Materials: welded with special steel plate. φ240mm, length :6700mm,each piece length 3350mm x2pcs , Diameter 280mm, wall thickness 2mm | 2pcs | ||
| 4 | Automatic exhaust valves | Materials: Special cast iron | 1 pc | ||
| 5 | Glass tube | φ20mm, Length: 450mm | 2pcs | ||
| 6 | Water tank | Thickness 8.0mm,capacity: 200L. materials: welded with special steel plate | 1 unit | ||
| 7 | Tap | Materials: cast steel type | 1 pc | ||
| 8 | Steam valves | Materials: cast steel type | 1 pc | ||
| 9 | Water bucket | Materials: steel plate type | 1 pc | ||
| Pipe System | |||||
| 1 | Inlet pipe | Φ318mm. materials: full welded with steel plate | 1 unit | ||
| 2 | Return air duct | Φ318mm. materials: full welded with steel plate | 1 unit | ||
| 3 | Recycling part | Φ318mm. materials: full welded with steel plate | 1 unit | ||
| 4 | Bends | Φ318mm. materials: full welded with steel plate | 4pcs | ||
| 5 | Air outlet iron plate | Φ318mm. materials: full welded with steel plate | 1 unit | ||
| 6 | Inlet pipe flange | Φ318mm. materials: full welded with steel plate | 1 unit | ||
| 7 | Return air duct flange | Φ318mm. materials: full welded with steel plate | 1 unit | ||
| 8 | Heat outlet pipe | Φ318mm. materials: full welded with steel plate | 1 unit | ||
| Air-blower System | |||||
| 1 | High temperature main blower | power: 4.00KW. Materials: full carbon steel , Volute fan | 1 set | ||
|
2
|
Axial flow blower with high temperature and high humidity | power:1.50KW, dia:850mm. materials: full aluminum |
3 sets
|
||
| Control System | |||||
| 1 | Thermometer of outlet | Materials: stainless steel , temperature: 300C° | 1 pc | ||
| 2 | Thermonuclear | stainless steel | 1 pc | ||
| 3 | thermometer | Digital showing | 1 pc | ||
| 4 | Control cabinet | Full automatic controlling. Inner electric parts are made by Chint | 1 set | ||
| Exhaust moisture system | |||||
| 1 | Exhaust moisture system | Materials: full welded with steel plate, thickness 2mm,φ240mm | 1 unit | ||
| 2 |
Steel wire rope |
Materials: oil wick | 1 unit | ||
| 3 | Cork | Materials: full copper | 1 unit | ||
| 4 | Re-tractor of moisture exhaust hole | Materials: steel type, thickness : 2mm | 1 unit | ||
| 5 | Support bar of moisture exhaust hole | Materials: steel type, thickness : 2mm | 1 unit | ||
| 6 | Deflector | Materials: full aluminum | 1 unit | ||
| 7 | Windshield | Materials: full aluminum | 1 unit | ||
| 8 | Deflector skeleton | Materials: full steel | 1 unit | ||
| 9 | Windshield skeleton | Materials: full steel | 1 unit | ||
| Thermal insulation door | |||||
| 1 | thermal insulation door |
The inner wall is made of all-aluminum for anti-corrosion and high temperature resistance The outer wall is made of color steel plate, and the middle insulation fiber cotton insulation. |
1unit | ||
| 2 | Door opener | Material: full steel | 1unit | ||
| 3 | Door parts | Material: full steel | 1unit | ||
| 4 | Door hinge | Material: full steel | 1unit | ||
