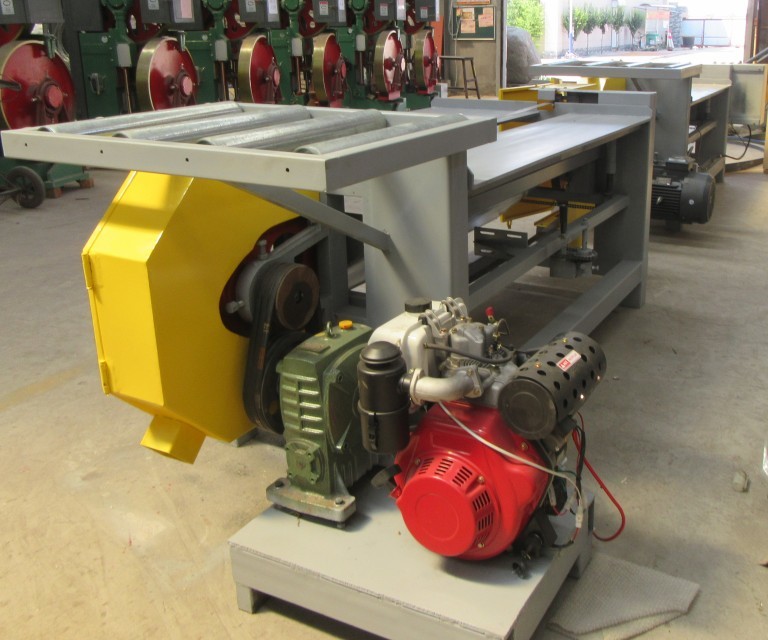

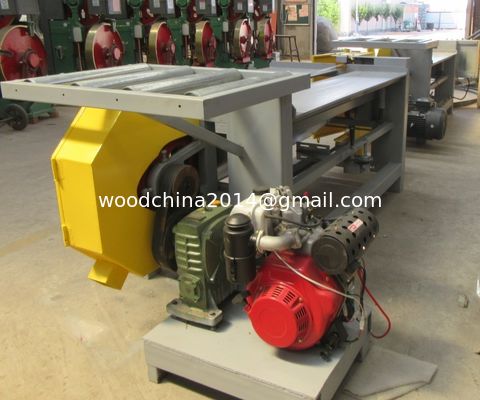

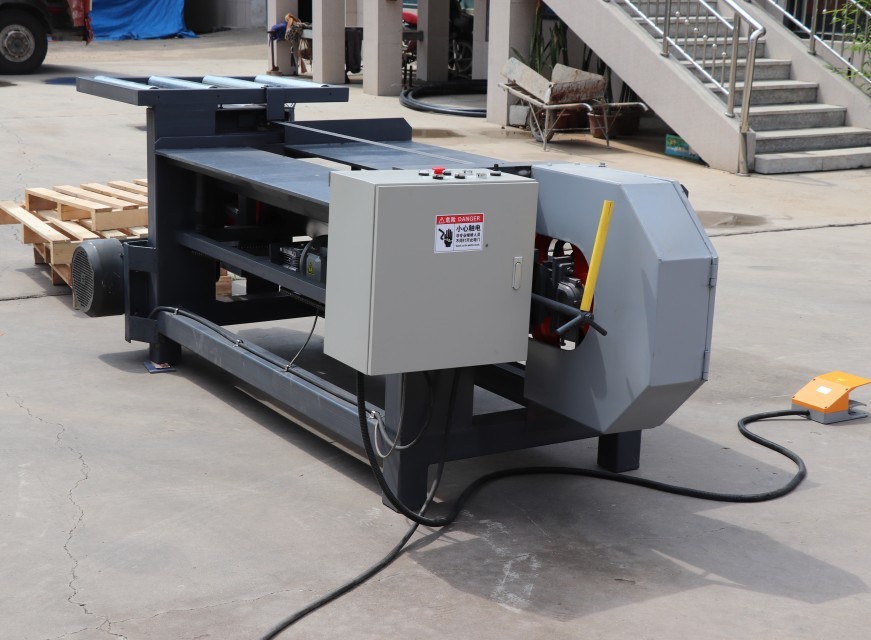

Pallet Dismantling Machine For Nail Cuttings , Diesel Wood Pallet Dismantler
Place of Origin | Shandong Province, China |
---|---|
Brand Name | SH |
Certification | ISO9001 |
Model Number | TP1400 |
Minimum Order Quantity | 1 SET Pallet dismantling band saw machine |
Price | US $4,900 - 6,000 / Set |
Packaging Details | wooden crates or iron frame packings |
Delivery Time | within 15 days |
Payment Terms | T/T or L/C at sight, Western Union |
Supply Ability | 200 Sets/month of pallet dismantler |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Pallet Dismantling Band Saw Machine | Application | Nail Cuttings |
---|---|---|---|
Working Table Length | 1700mm | Working Table Width | 1400mm |
Power(W) | 7.5KW | Saw Wheel Diameter | 600mm |
Pallet Dismantlling Capacity | 40-60pcs/Minute | Nail Cutting Saw Blade | USA Blade 6850*41*1.3 Mm |
Dimension(L*W*H) | 3300*1500*1500MM | Warranty | One Year |
After-sales Service Provided | Online Support,Free Spare Parts,Field Installation,commissioning And Training | ||
High Light | Nail Cuttings Pallet Dismantler,Pallet Dismantling Machine 60pcs/Minute,Diesel Wood Pallet Dismantler |
Hot selling CE Approved Wood Pallet Dismantling Band Saw Machine For Pallet Nail Cutting
Wooden Pallet Dismanling Sawmill/Pallet Dismantler
|
|
|
1700mm |
|
1400mm |
|
5mm-150mm |
|
600mm |
|
7.5KW |
|
40-60 pcs/min |
|
USA Blade 6850*41*1.3 mm |
|
3300*1500*1500mm |
Weight | 800KG |

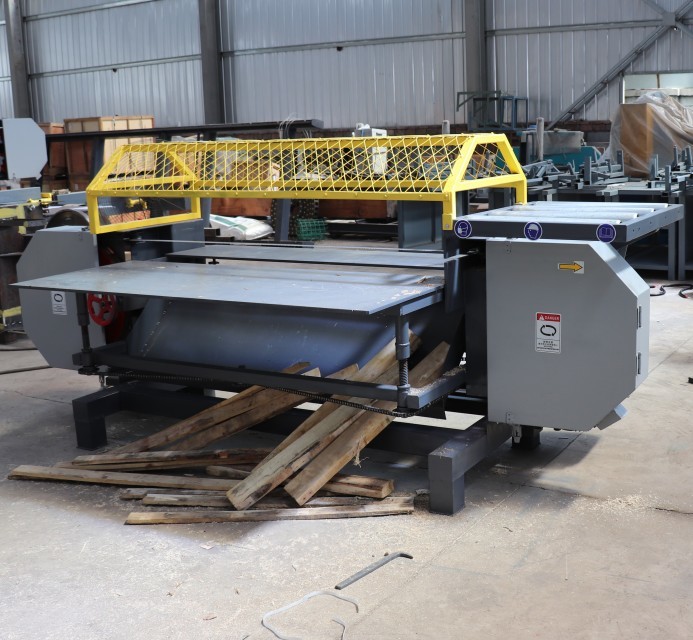

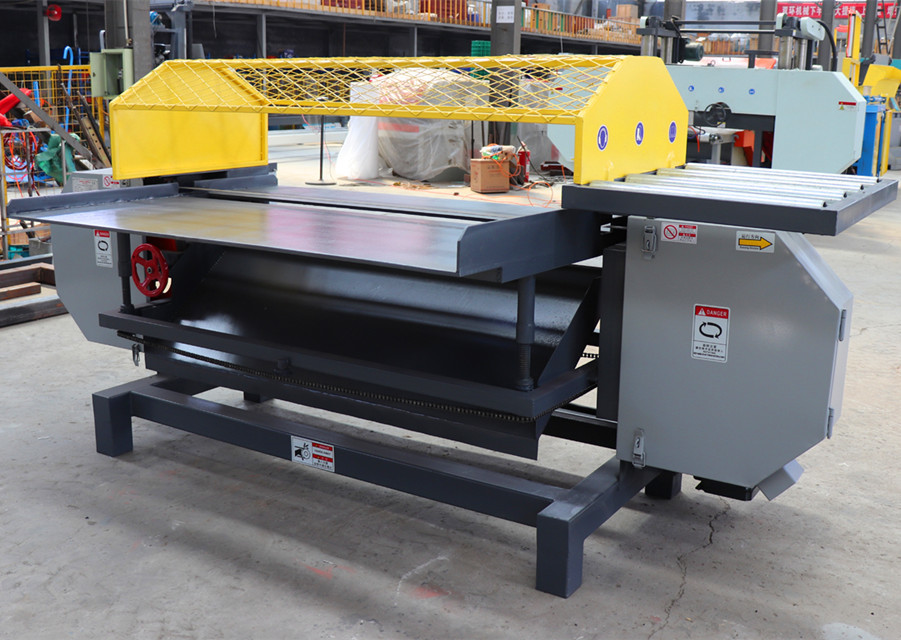

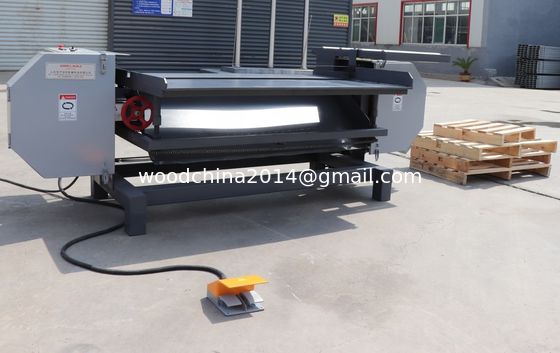

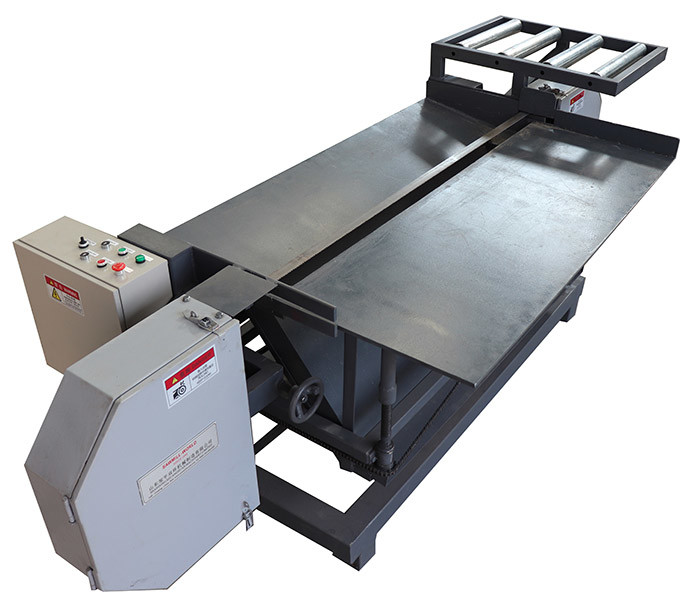

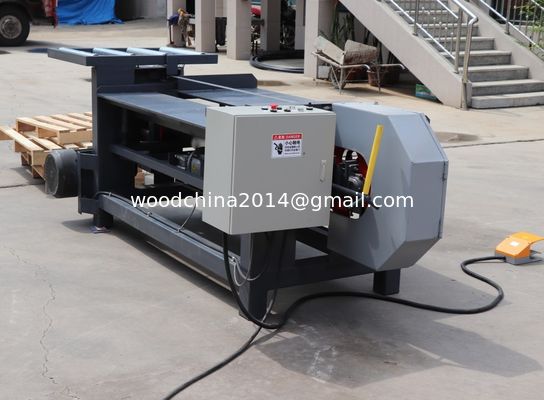

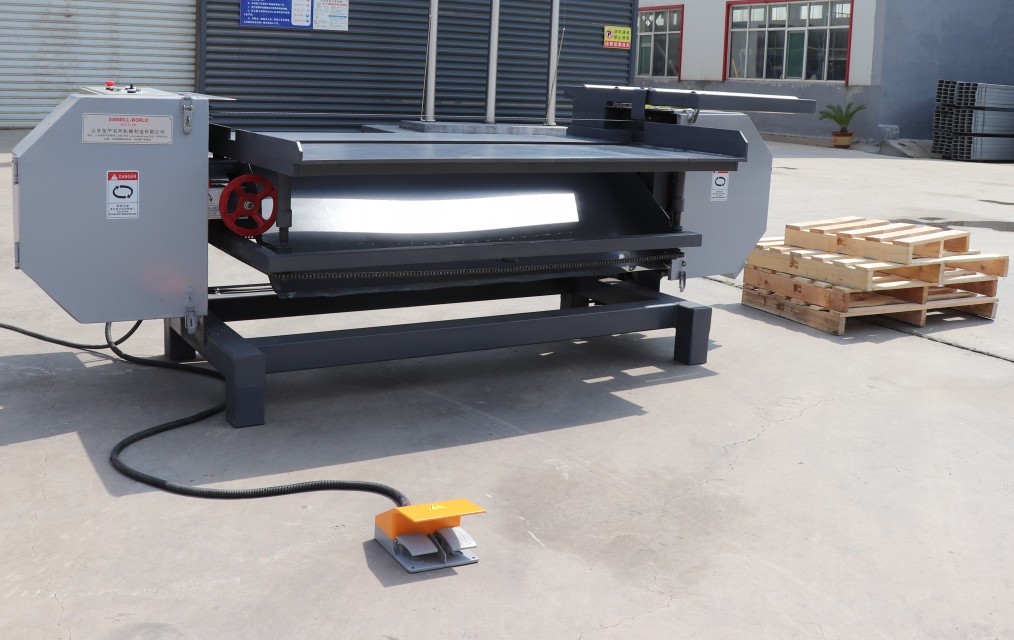

Detailed Image
Optional : protective cover
Optional : also make machine as customer needs
USA Starrett Bi-Metal Woodworking Blade 6850mm*41mm*1.3mm
Spare parts Optional:
Items | Qty/year usage |
Bearings SKF307 on saw wheel | 2 |
Right/left axis on saw wheel | 1 |
Bearing house of axis | 2 |
Contactor | 1 |
Starting button | 2 |
Lifting button | 2 |
Saw Clip Skid | 10 |
V-belt | 2 |
Potentiometer | 3 |
USA Starrett Bi-Metal Woodworking Blade 6850mm*41mm*1.3mm | 10 |
Auto blade sharpener | 1 |
Related Products
Wooden Pallet Crusher Machine
- Specifications:
Model | TF1350 |
Feeding Inlet | 1350*230mm |
Blade Shaft Diameter | 450mm |
Blade Quantity | 16 |
Main Electric Motor Power | 37KW/3phase |
Slope conveyor length | 3meters |
Capacity | 60-100 Pallets/Hour |
Weight | 3200KG |
With magnetic machine for nails sucking out |
- Photos:
Magnetic Machine
Semi-Automatic Pallet Nailing Machine with Palletizer
Technical data :
Model | AWPN-1500 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1700mm |
Feeding mode | Hand pull |
Palletizing mode | Automatic |
Operational mode | Pneumatic operation |
Voltage | 380V,480V or other |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Palletizing quantity | 10P |
Weight | 2000kg |
Wood Pallet Crusher Machine
Introduction :
SH Series crusher is mainly used for building film faced plywood, wasted wood pallet, Tree bark, Slabs, off cuts, branches, straw and so on. It can work together with the baler breaker. This machine includes Host, chain plate, feeding & outlet conveyor system, intelligent electrical control. Chain Plate Feeding conveyor feeds raw materials more freely, no need changing the belt all the time. It is with reasonable structure, simple operation, high automatic level, and high safety coefficient and production capacity, less manpower, easy maintenance. It is the ideal equipment for biomass power generation enterprises.
Technical data:
型号 | Model | SH1300-600 |
进料口尺寸 | Feeding Inlet | 1250*600MM |
刀辊直径 | Blade Roller Diameter | 850MM |
刀辊转速 | Blade Roller Speed | 850RPM |
产量 | Capacity | 12-20T/Hour |
锤刀 | YG8 Hammer blade quantity | 16pcs |
最大加工木材直径 | Max Processing Wood Diameter | 450MM |
电机功率 | Main Electric Motor Power | 160KW |
木片尺寸 | Wood Chipper Size | 2-4CM |
刀片寿命 | Working Life Of THE Hammer Blades | 4000T-6000T |
