Detail Information

Name:	Automatic Wood Pallet Block Saw Cutting Machine	Saw Blade Diameter:	400mm
Processing Max. Length:	1500mm	Cutting Thickness:	50 To 120mm
Cutting Width:	60- 200mm	Total Power:	7.5kw
Efficiency:	1500-1800P/H	Weight:	350kgs
Warranty:	1 Year	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	automatic wood pallet block saw , small pallet cutting machine , wood pallet cutter making machine

Product Description

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

Automatic Wood Cut Off Saw Machine

Model	DZ-450	DZ-600
Saw Blade diameter	450mm*30mm	600mm*30mm
Feeding table length	2m/ 4m/ 6m	2m/ 4m/ 6m
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30- 300mm
Cutting section thickness*width	Max. 120150mm,100200mm	Max.120300mm,140280mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, 0.5-0.7Mpa	Cylinder, 0.5-0.7Mpa
Cutting tolerance	In +/-1mm	In +/-1mm
Dust collection port	100mm*2pc	100mm*2pc
Electrical components	Schneider	Schneider
PLC Touching screen	Siemens	Siemens
Voltage	380v 50Hz 3 phase	380v 50Hz 3 phase

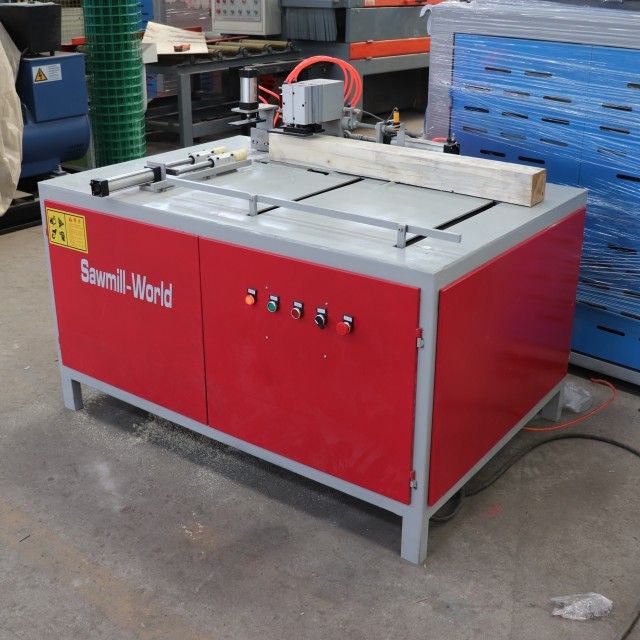

Automatic small Wood Pallet Block Saw Cutting Cutter making Machine 0

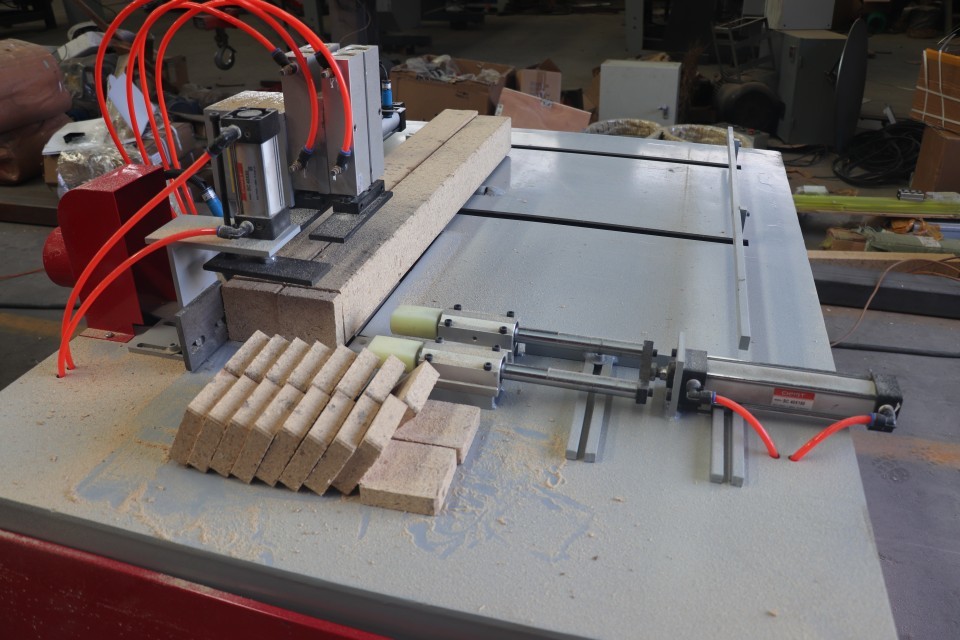

Automatic small Wood Pallet Block Saw Cutting Cutter making Machine 1

Wood Chamfer Machine

Technical data:

Model	EPWC-7050
Convey servo motor	1kw
Hydraulic motor	2.2kw
Total motor	7.2kw
Voltage	380v 50Hz 3phase
Cutter type	45° V milling cutter, left and right
Working length	600-1500mm
Working thickness	17-35mm
Working width	80-150mm
Productivity	500-700pc/h
Hydraulic pressure	0.4-0.5Mpa
Control system	Siemens
Machine dimension	44508001400mm
Packing dimension	32209201760mm
Machine weight	1040kg

Photo:

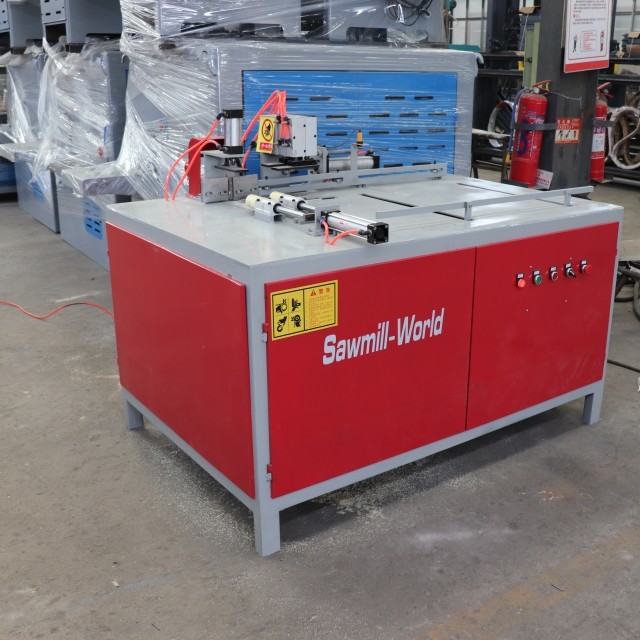

Automatic small Wood Pallet Block Saw Cutting Cutter making Machine 2

Pallet Foot Pier Cutting Saw Machine

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

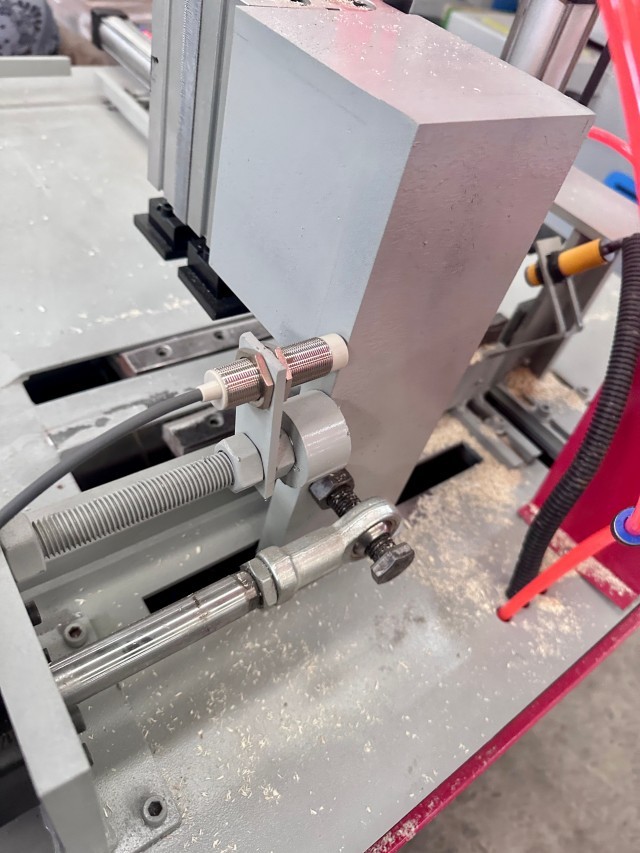

Automatic small Wood Pallet Block Saw Cutting Cutter making Machine 3

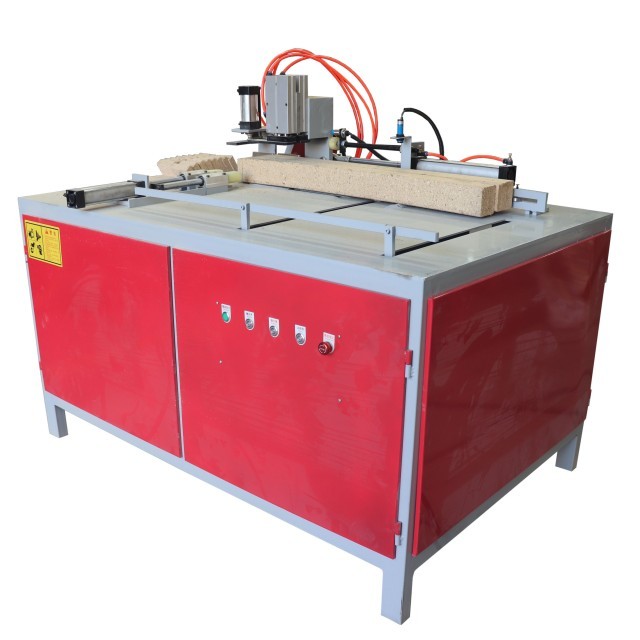

Automatic small Wood Pallet Block Saw Cutting Cutter making Machine 4

Multi Blades Circular Saw for wood panels cutting off

cutting both ends of the panels in same length
cutting length is adjustable
with auto feeding
chain drive

Technical data:

Multi blades cutting off circular saw
Model	QT2000	QT3000	QT4000
Cutting height	100mm	100mm	100mm
Cutting width	2000mm	3000mm	4000mm
Circular blade diameter	300mm	300mm	300mm
Main motor power	3kw x2	3kw x3	3kw x4
weight	620kgs	820kgs	1020kgs
Overall size	3200x1800x1150mm	2200x1800x1150mm	4800x1800x1150mm

Photos:

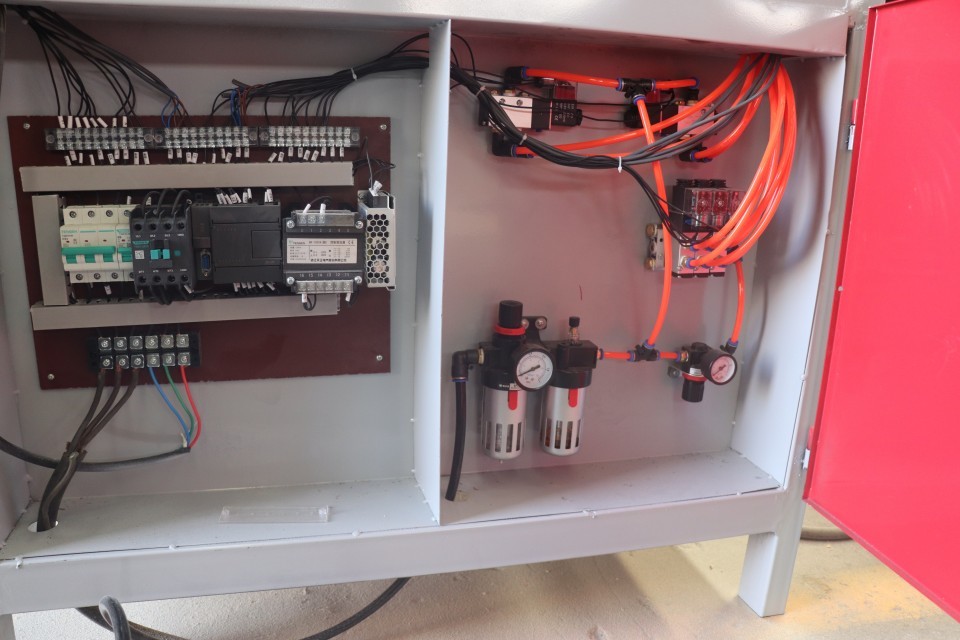

Automatic small Wood Pallet Block Saw Cutting Cutter making Machine 5

Pneumatic Cross Cut Sawmill For Planks


			Model
			SH274
			SH276

			Max Cutting Width
			150mm(Thick about 110mm)
300mm(Thick about 40mm)

			650mm(Thick about 50mm)
200mm(Thick about200mm)

			Saw Blade Diameter
			450MM
			620MM

			Motor Power
			5.5KW
			7.5KW

			Weight
			300KG
			550KG

			Overall Dimension
			2900*930*1100MM
			4250*1150*1300MM

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	JD-1500

Minimum Order Quantity:	1 SET
Price:	US $6,800 - 18,500 / Set
Packaging Details:	container loading of wood chamfer machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1500sets/year

Automatic small Wood Pallet Block Saw Cutting Cutter making Machine

automatic wood pallet block saw

small pallet cutting machine

wood pallet cutter making machine

Pallet Foot Pier Cutting Saw Machine

pallet making machine,

wood pallet making machine,

wood pallet nailing machine

Professional Wood Pallet Making Machine / Machine To Make Wood Pallet

Pneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making Machine

Double Head Notcher Wood Pallet Machine, pallet notching machine 1800pcs/H Capacity

Fully Automatic Stacker Wood Timber Stacking Machine For Wood Length Customized

New Automatic 2-Head Wood Chip Saw Dust Block Machine Wood Pallet Making Machine

100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

Automatic Wood Pallet Nailing Machine/ Pallet Wood Making Machine/ Wood Pallet Machine

Wood Stringer Pallet Block Making Machine, Pallet Nailing Machine, Pneumatic Wood Pallet Nailing Table

Model	SH274	SH276
Max Cutting Width	150mm(Thick about 110mm) 300mm(Thick about 40mm)	650mm(Thick about 50mm) 200mm(Thick about200mm)
Saw Blade Diameter	450MM	620MM
Motor Power	5.5KW	7.5KW
Weight	300KG	550KG
Overall Dimension	29009301100MM	425011501300MM
