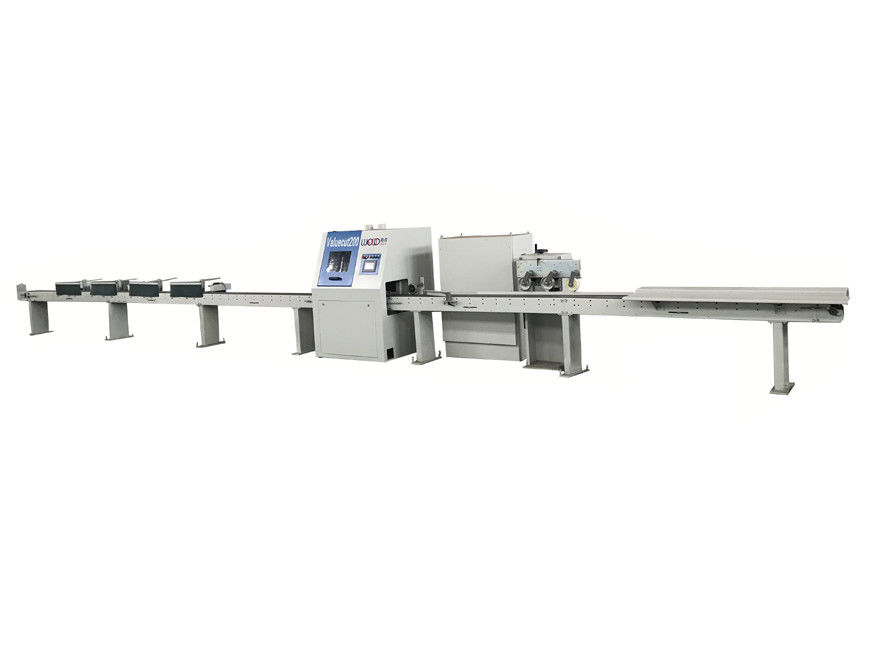

Detail Information

Name:	Optimizing Cut-off Saw	Sawing Width:	30-200mm
Sawing Height:	10-70mm	Saw Blade Motor:	5.5KW
Saw Blade Diameter:	600mm	Saw Blade Rotation:	0-3500r/min, Adjustable
Feeding Speed:	0-100m/min, Adjustable	Maximum Feed Length:	4000mm, Customize It
Minimum Feed Length:	450mm, Customize It	Total Motor Power:	11.25KW
Warranty:	1 Year
Highlight:	wood cutting circular saw machine , log cut off saw table , wood pallet cutting saw

Product Description

optimizing cut off saw machine table circular saw log cut off saw wood cutting wood cut off saw machine

Model	BC200
Sawing width	30-200mm
Sawing height	10-70mm
starting Saw Servo Motor	Omron - Japan 2KW
starting Saw driver	Omron - Japan 2KW
Feed servo motor	Omron - Japan 3KW
feed drive	Omron - Japan 3KW
PLC	Omron - Japan
display screen	Kinko-China 10 寸
electrical appliances	Schneider-USA-CHINT-China
sensor	Omron - Japan
reducer	Planetary reducer - China
Saw blade motor	5.5KW
Saw blade motor inverter	JACT 11KW
saw blade diameter	600mm
saw blade rotation	0-3500r/min (Infinitely adjustable)
Press height	Manual adjustment
feeding speed	0-100m/min (adjustable)
Actual sawing speed	30--50m/min
starting saw speed	2 times/min(adjustable)
starting saw height	0-120mm (adjustable)
Maximum feed length	4000mm (Optional)
Minimum feed length	450mm (Optional)
sawing precision	1m (±1mm) ,1.5m (±1.5mm)
Feed Parallelism	1-3mm
total motor power	11.25KW
Electric voltage	380V
Vacuum pipe diameter	110mm
Host size	150015001500(mm)
Feeding platform size	9m
Discharge platform size	4m
Total length of equipment	14.5m

optimizing cut off saw machine table circular saw log cut off saw wood cutting wood cut off saw machine 0

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

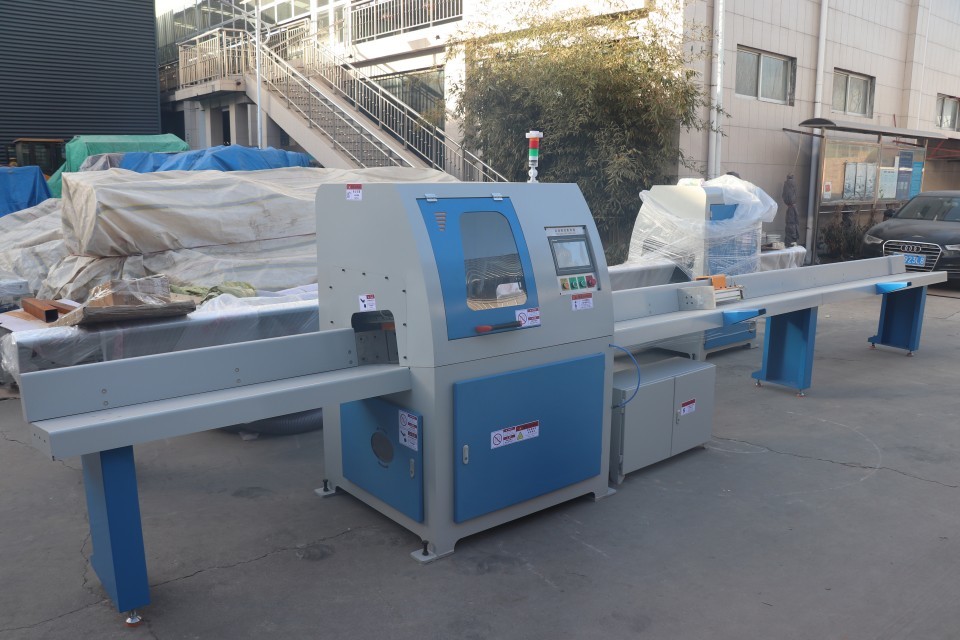

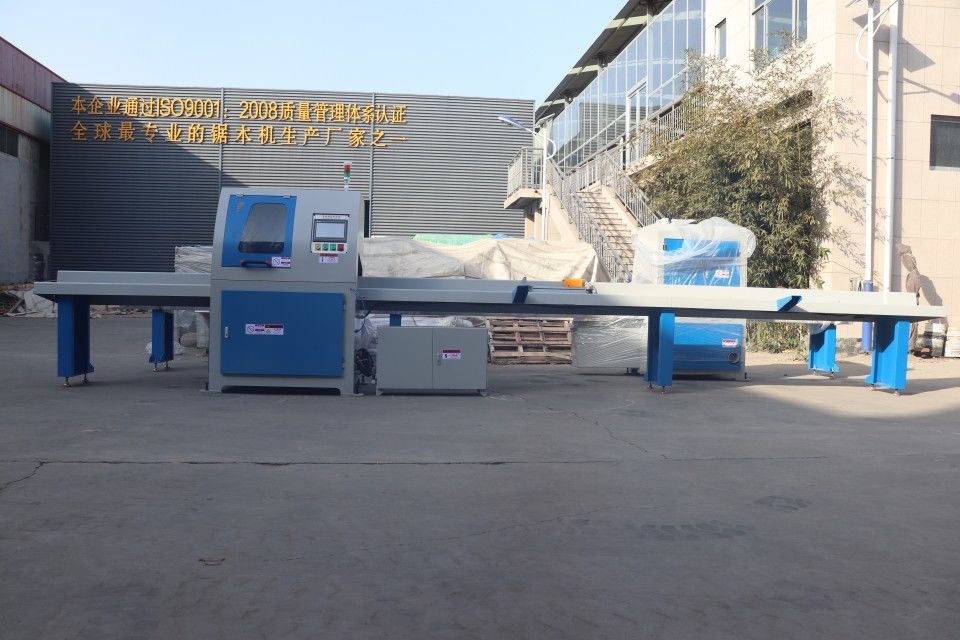

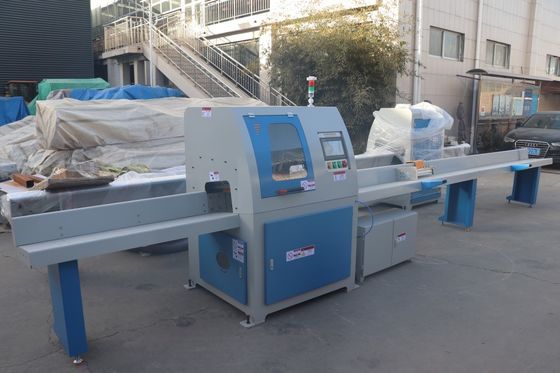

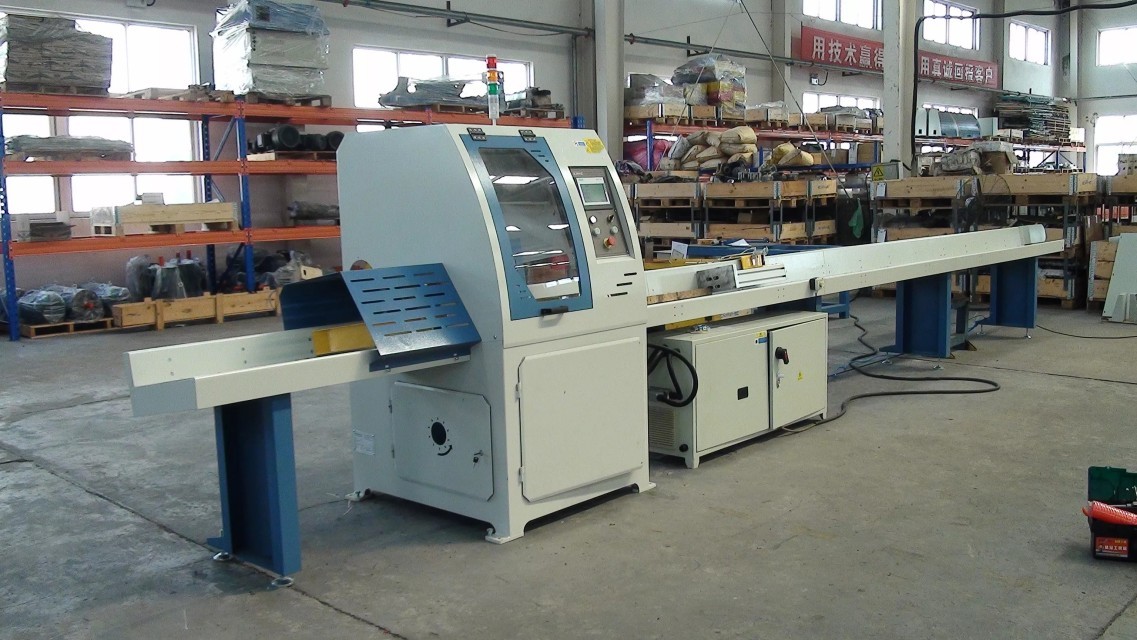

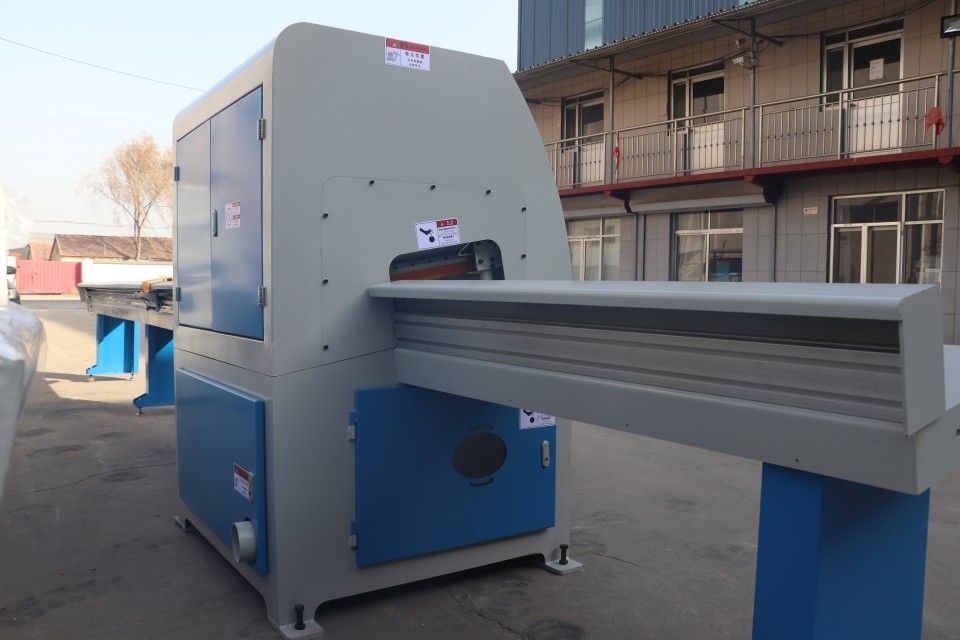

Automatic Wood Cut Off Saw Machine

Model	DZ-450	DZ-600
Saw Blade diameter	450mm*30mm	600mm*30mm
Feeding table length	2m/ 4m/ 6m	2m/ 4m/ 6m
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30- 300mm
Cutting section thickness*width	Max. 120150mm,100200mm	Max.120300mm,140280mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, 0.5-0.7Mpa	Cylinder, 0.5-0.7Mpa
Cutting tolerance	In +/-1mm	In +/-1mm
Dust collection port	100mm*2pc	100mm*2pc
Electrical components	Schneider	Schneider
PLC Touching screen	Siemens	Siemens
Voltage	380v 50Hz 3 phase	380v 50Hz 3 phase

optimizing cut off saw machine table circular saw log cut off saw wood cutting wood cut off saw machine 1

optimizing cut off saw machine table circular saw log cut off saw wood cutting wood cut off saw machine 2

Pallet Foot Pier Cutting Saw Machine

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

optimizing cut off saw machine table circular saw log cut off saw wood cutting wood cut off saw machine 3

Multi Blades Circular Saw for wood panels cutting off

cutting both ends of the panels in same length
cutting length is adjustable
with auto feeding
chain drive

Technical data:

Multi blades cutting off circular saw
Model	QT2000	QT3000	QT4000
Cutting height	100mm	100mm	100mm
Cutting width	2000mm	3000mm	4000mm
Circular blade diameter	300mm	300mm	300mm
Main motor power	3kw x2	3kw x3	3kw x4
weight	620kgs	820kgs	1020kgs
Overall size	3200x1800x1150mm	2200x1800x1150mm	4800x1800x1150mm

Photos:

optimizing cut off saw machine table circular saw log cut off saw wood cutting wood cut off saw machine 4

optimizing cut off saw machine table circular saw log cut off saw wood cutting wood cut off saw machine 5

Pneumatic Cross Cut Sawmill For Planks


			Model
			SH274
			SH276

			Max Cutting Width
			150mm(Thick about 110mm)
300mm(Thick about 40mm)

			650mm(Thick about 50mm)
200mm(Thick about200mm)

			Saw Blade Diameter
			450MM
			620MM

			Motor Power
			5.5KW
			7.5KW

			Weight
			300KG
			550KG

			Overall Dimension
			2900*930*1100MM
			4250*1150*1300MM

Wood Slasher
Technical data


			Technical Parameter
			DM1100
			DM1300
			DM1600
			DM1900
			DM2100
			DM2400


			Guide Plate Length(MM)
			1100
			1300
			1600
			1900
			2100
			2400


			Log Diameter(MM)
			900
			1100
			1300
			1600
			1900
			2200


			Motor(KW)
			3
			3
			4
			4
			5.5
			5.5


			Weight(KG)
			180
			190
			200
			220
			250
			280






Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	BC200, DZ-450,DZ-600

Minimum Order Quantity:	1 SET
Price:	US $6,800 - 18,500 / Set
Packaging Details:	container loading of wood chamfer machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1500sets/year
