Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw

1 SET
MOQ
US $6,800 - 18,500 / Set
Price
Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic Wood Cut Off Saw Machine
Max Cutting Width: 650mm(Thick About 50mm) 200mm(Thick About200mm)
Saw Blade Diameter: 450MM, 620MM
Motor Power: 5.5KW, 7.5KW
Weight: 300KG, 550KG
Overall Dimension: 2900*930*1100MM,4250*1150*1300MM
Blade Arrangement: From Down To Up
Warranty: 1 Year
After-sales Service: Video Technical Support, Spare Parts
Highlight:

Woodworking Cutting Machine 5.5KW

,

Wood Pallet Circular Cut Off Saw

,

Circular Wood Pallet Cut Off Saw
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SH274, SH276
Payment & Shipping Terms
Packaging Details: container loading of wood chamfer machine
Delivery Time: within 20 days
Payment Terms: T/T, Western Union
Supply Ability: 1500sets/year
Product Description

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

Pneumatic Cross Cut Sawmill For Planks
Model SH274 SH276
Max Cutting Width

150mm(Thick about 110mm)

300mm(Thick about 40mm)

650mm(Thick about 50mm)

200mm(Thick about200mm)
Saw Blade Diameter 450MM 620MM
Motor Power 5.5KW 7.5KW
Weight 300KG 550KG
Overall Dimension 2900*930*1100MM 4250*1150*1300MM

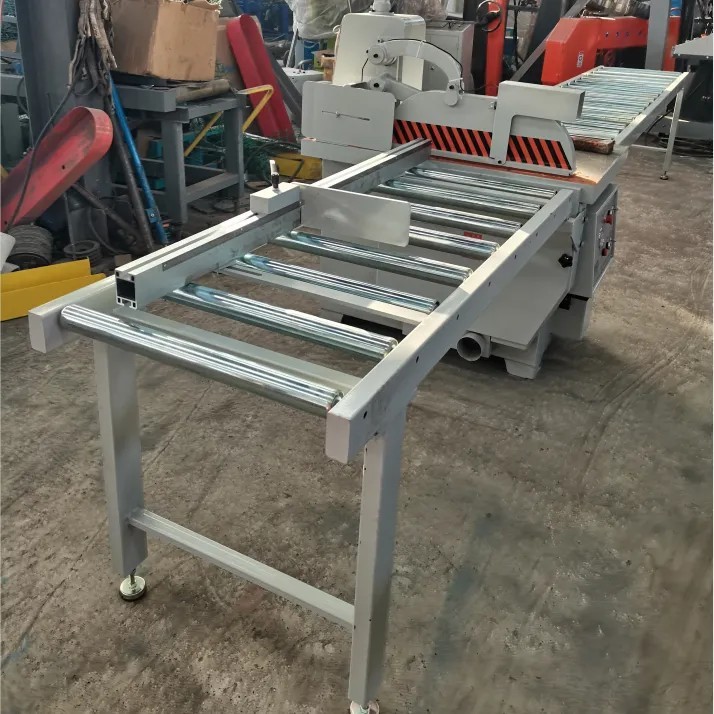

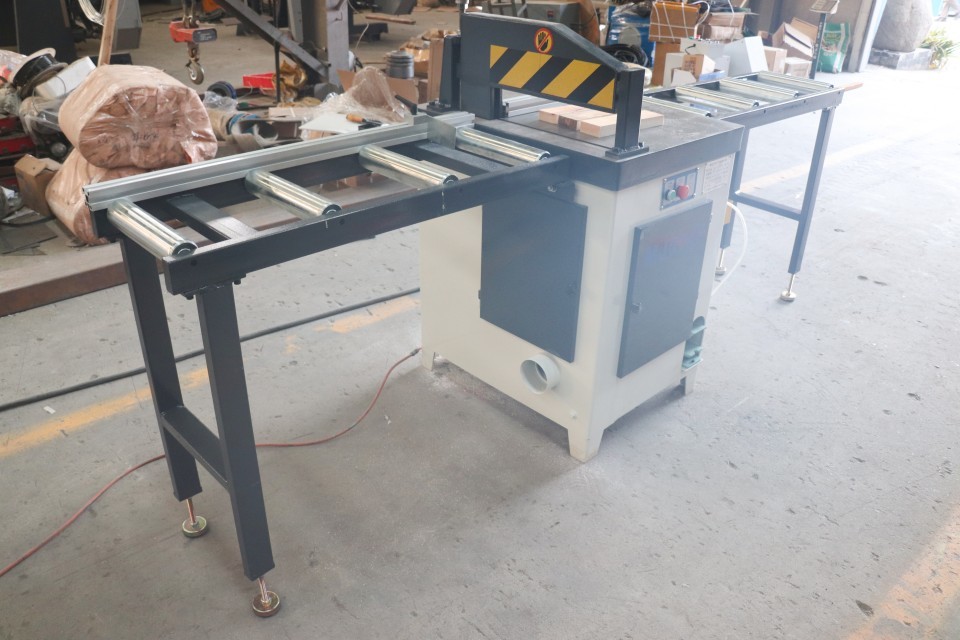

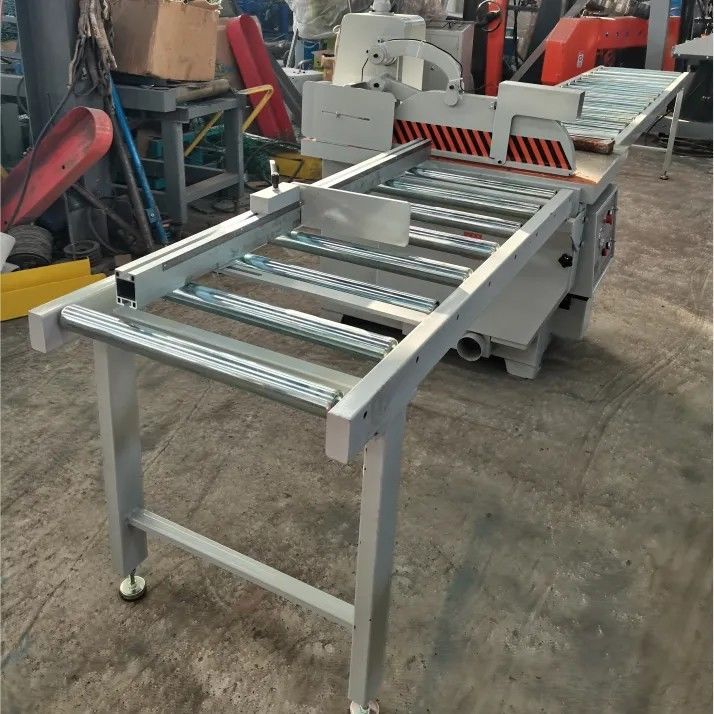

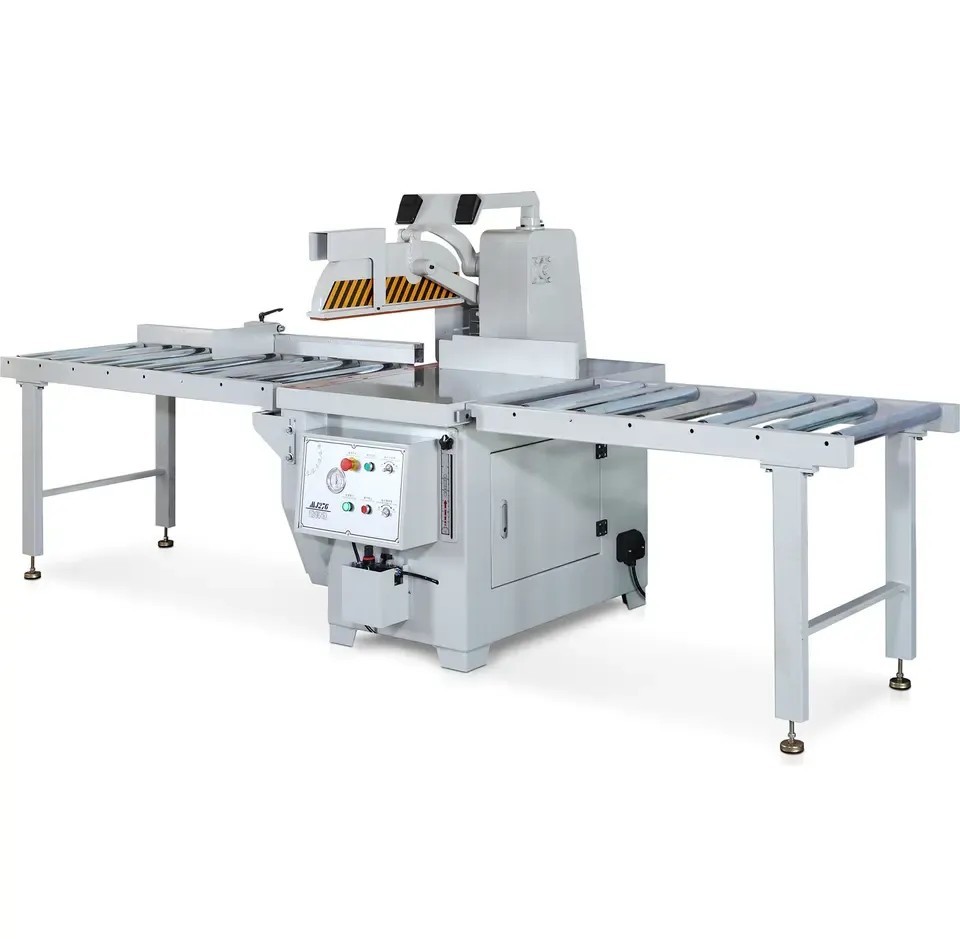

Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 0Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 1


Automatic Wood Cut Off Saw Machine



Model
DZ-450
DZ-600
Saw Blade diameter
450mm*30mm
600mm*30mm
Feeding table length
2m/ 4m/ 6m
2m/ 4m/ 6m
Discharge table length
1200mm
1200mm
Cutting height
10-120mm
10-140mm
Cutting width
30- 200mm
30- 300mm
Cutting section thickness*width
Max. 120*150mm,100*200mm
Max.120*300mm,140*280mm
Feeding speed
5-30m/min
5-30m/min
Cutting speed
40pcs/min
45pcs/min
Cutter spindle rotation speed
3000rpm
3000rpm
Servo drive motor power
0.75kw
1kw
Cutting motor power
7.5kw/11HP
11kw/15HP
Total power
8.5kw
12.5kw
Pressing method
Cylinder, 0.5-0.7Mpa
Cylinder, 0.5-0.7Mpa
Cutting tolerance
In +/-1mm
In +/-1mm
Dust collection port
100mm*2pc
100mm*2pc
Electrical components
Schneider
Schneider
PLC Touching screen
Siemens
Siemens
Voltage
380v 50Hz 3 phase
380v 50Hz 3 phase

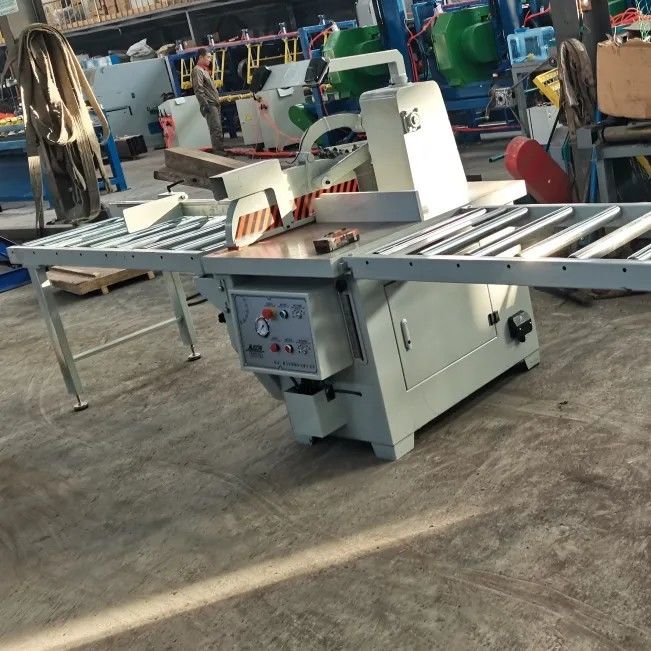

Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 2

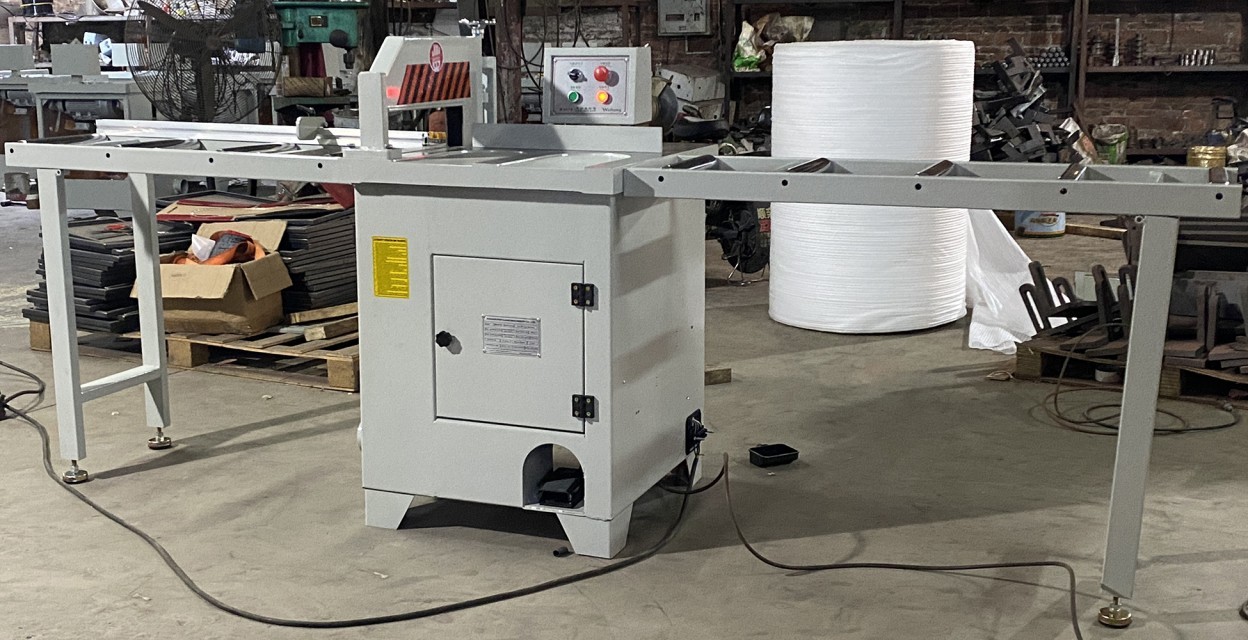

Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 3



Related Products:

Heavy Duty Multi Heads Cut-off Saw



Model PE-40003 PE-50004 PE-60005
Cutting Length 600-4000mm 600-5000mm 600-6000mm
Cutting Thickness 10-120mm 10-120mm 10-120mm
Cutting Width 10-400mm 10-400mm 10-400mm
Saw Diameter 450mm 450mm 450mm
Blade Pieces 3P 4P 5P
Motor

7.5kW*3

0.75kW*2

7.5kW*4

0.75kW*2

7.5kW*5

0.75kW*2
Efficiency 100m³/8h 150m³/8h 200m³/8h
Weight 2000kg 2500kg 3000kg

Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 4Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 5



Pallet Foot Pier Cutting Saw Machine



Model JD-1500
Cutting wood max. length 1500mm
Cutting Thickness 50-120mm
Cutting Width 60-200mm
Pallet foot pier size 30-200mm
Saw Diameter 400mm
Motor 7.5kw/3phase
Production capacity 1500-1800P/H
Weight 350kgs

Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 6



Multi Blades Circular Saw for wood panels cutting off

  • cutting both ends of the panels in same length
  • cutting length is adjustable
  • with auto feeding
  • chain drive

Technical data:



Multi blades cutting off circular saw
Model QT2000 QT3000 QT4000
Cutting height 100mm 100mm 100mm
Cutting width 2000mm 3000mm 4000mm
Circular blade diameter 300mm 300mm 300mm
Main motor power 3kw x2 3kw x3 3kw x4
weight 620kgs 820kgs 1020kgs
Overall size 3200x1800x1150mm 2200x1800x1150mm 4800x1800x1150mm



Photos:

Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 7

Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 8



Wood Slasher

  • Technical data
Technical Parameter DM1100 DM1300 DM1600 DM1900 DM2100 DM2400
Guide Plate Length(MM) 1100 1300 1600 1900 2100 2400
Log Diameter(MM) 900 1100 1300 1600 1900 2200
Motor(KW) 3 3 4 4 5.5 5.5
Weight(KG) 180 190 200 220 250

280





Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 9Woodworking Pneumatic High Speed Timber Board Panel Woodworking Circular Cutting Off Sawing Cross Cut Wood Cut Off Saw 10
