Automation Making Machine Wood Shavings Press Sawdust Machine Chicken Bedding Wood Shaving Machines
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SHBH500-2,SHBH500-4,SHBH500-6 |
| Minimum Order Quantity | 1 SET |
| Price | US $3,100 - 23,500 / Set |
| Packaging Details | wooden pallet or iron frame packings |
| Delivery Time | within 20 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Wood Shaving Machine | Condition | New |
|---|---|---|---|
| Application | Produce Wood Shavings | Production Capacity | 250-1500kg/hour |
| Max. Processing Wood Length | 1400mm | Max. Processing Width | 500mm |
| Blade Quantity | 24pcs | Spindle Quantity | 6pcs |
| Operation | Automatic | Keywords | Wood Shaving Machine,Wood Log Shaver,shaving Mill |
| High Light | Chicken Bedding Wood Shaving Machines,Wood Shavings Press Sawdust Machine,Automation Wood Shaving Making Machine |
||
Product Description
Wood Shavings Machine For Sale Dura Wood Shaving Machine poultry farm used
Wood Shaving Machine
- Process wood sticks,twigs,branches,wood scraps into shaving.
- Adjust the size and thickness of the wood shaving.
- It is the material for Plywood,furniture or paper factory.
- Add as filler to prevent damage when transport some fragile items.
- Use as nest shavings filler in poultry or animal breeding.
- Bio-energy ignition material.
Technical data
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Max Processing wood Length | 800MM | 1400MM | 1400MM |
| Max Processing wood Width | 500MM | 500MM | 500MM |
| Shaft Quantity | 2pcs | 4pcs | 6pcs |
| Blade Quantity | 8pcs | 16pcs | 24pcs |
| Speed (r/min) | 3500 | 3500 | 3500 |
| Bucket Length (mm) | 800 | 1400 | 1400 |
| Total Power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving Depth(mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Production(KG/Hour) | 500 | 1000 | 1500 |
| With pneumatic press cover | |||
Detailed Image

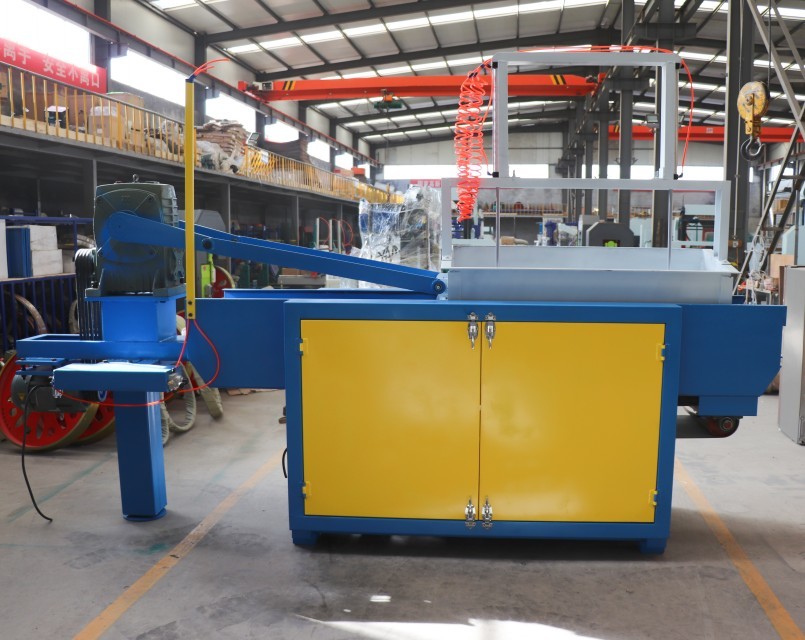

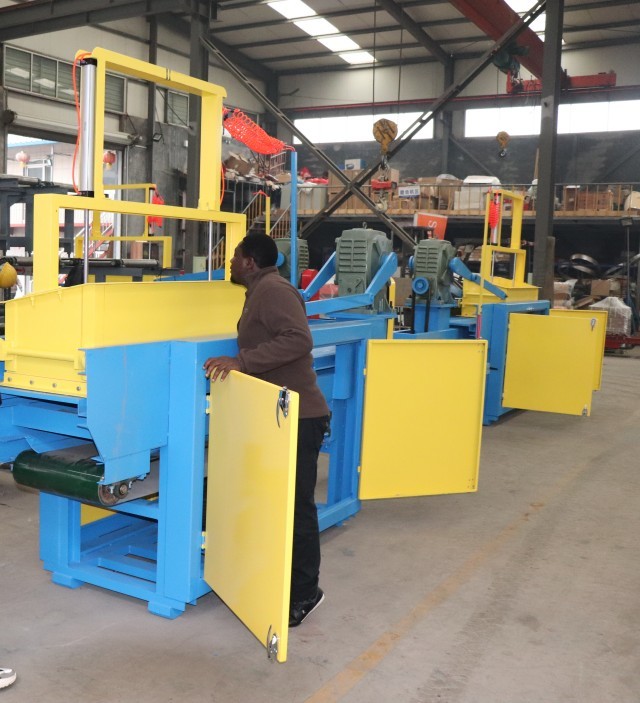

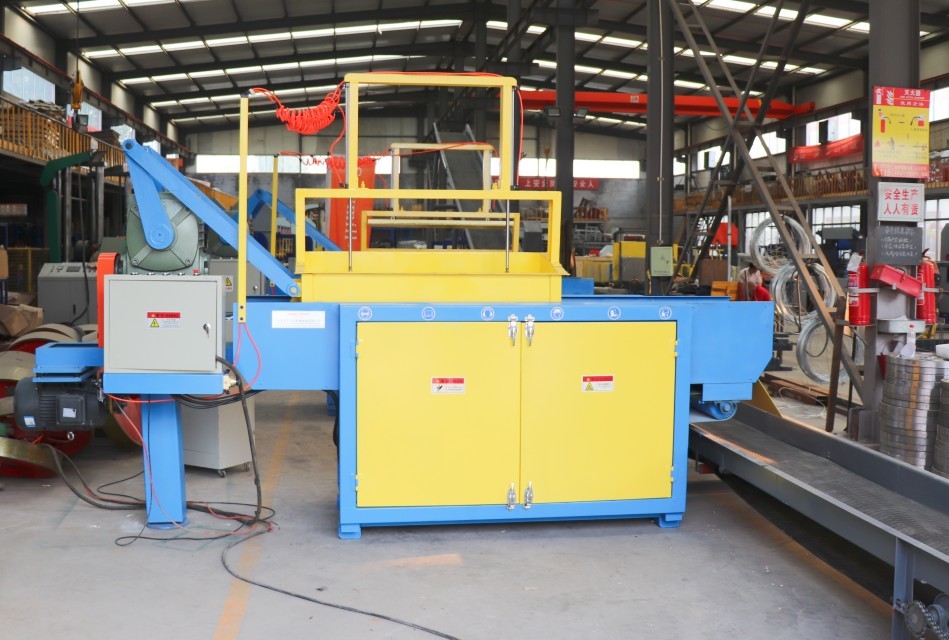

Model SHBH500-6, SHBH500-4

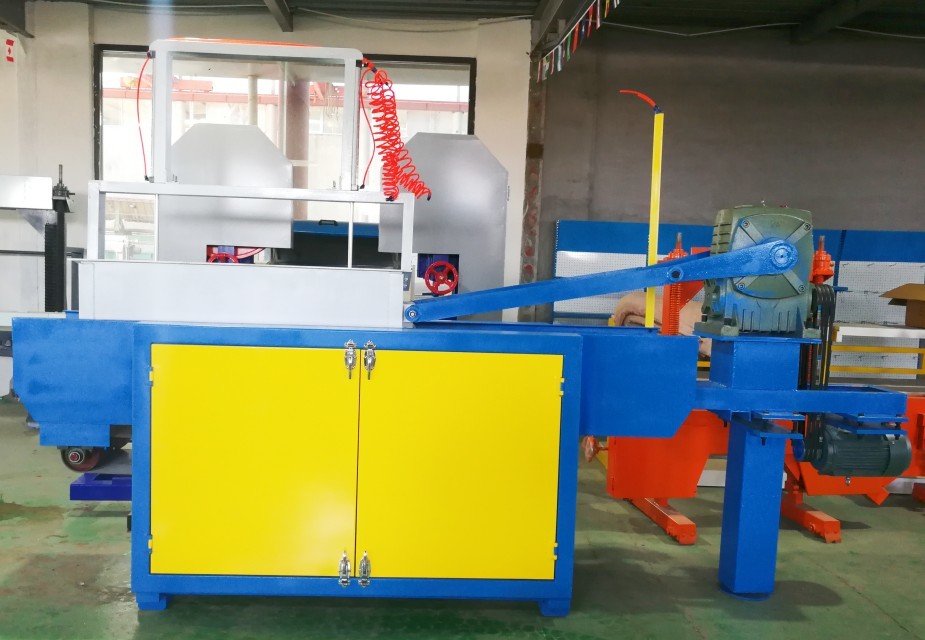

Model SHBH500-2
Optional Parts: Conveyor
Feedback from User
Spiral Shaft Wood Shavings Making Machine for pets animals
| Model | SHBH500-6-L |
| Processing wood max. length(mm) | 1400 |
| Processing max. width/diameter(mm) | 500 |
| Shaft quantity | 6 |
| Blade (general pcs) | 84pcs/shaft |
| Motor speed (rpm) | 3500 |
| Bin length (mm) | 1400 |
| Total Motor power (kw) | 30.75KW |
| Shaving depth (mm) | 0.1-0.5mm adjustable |
| Shavings output | 1000KG/H |
| Machine weight | 2200kgs |
|
1, With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |
|
Container Loading
Export pallet packing
Blade Sharpener
Rotary dryer
| Model (m) | Volume/m3 |
Capacity (ton/h) |
Feeding air max. temperature |
Main motor kw |
Weight ton |
| Φ1.2×10 | 9.0 | 1-1.5 | 700-800 | 7.5 | 9 |
| Φ1.2×15 | 11.3 | 1.5-2 | 700-800 | 7.5 | 11 |
| Φ1.5×15 | 21.2 | 2-3 | 700-800 | 15 | 18.5 |
| Φ1.8×18 | 30.5 | 3-4 | 700-800 | 18.5 | 21.5 |
