Detail Information

Name:	Automatic Wood Cut Off Saw Machine	Max Cutting Width:	650mm(Thick About 50mm) 200mm(Thick About200mm)
Saw Blade Diameter:	450MM, 620MM	Motor Power:	5.5KW, 7.5KW
Weight:	300KG, 550KG	Overall Dimension:	29009301100MM,425011501300MM
Blade Arrangement:	From Down To Up	Warranty:	1 Year
After-sales Service:	Video Technical Support, Spare Parts
Highlight:	620mm Pneumatic Cut-Off Saw , Wood Cross Cut Circular Saw Blades , Automatic Wood Cut Off Saw

Product Description

Wood Pallet Machine Lumber Cutoff Saw, Automatic Woodworking Cross Cutoff Saw With Table

Pneumatic Cross Cut Sawmill For Planks

Model	SH274	SH276
Max Cutting Width	150mm(Thick about 110mm) 300mm(Thick about 40mm)	650mm(Thick about 50mm) 200mm(Thick about200mm)
Saw Blade Diameter	450MM	620MM
Motor Power	5.5KW	7.5KW
Weight	300KG	550KG
Overall Dimension	29009301100MM	425011501300MM

Automatic Wood Cut Off Saw Machine

Model	DZ-450	DZ-600
Saw Blade diameter	450mm*30mm	600mm*30mm
Feeding table length	2m/ 4m/ 6m	2m/ 4m/ 6m
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30- 300mm
Cutting section thickness*width	Max. 120150mm,100200mm	Max.120300mm,140280mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, 0.5-0.7Mpa	Cylinder, 0.5-0.7Mpa
Cutting tolerance	In +/-1mm	In +/-1mm
Dust collection port	100mm*2pc	100mm*2pc
Electrical components	Schneider	Schneider
PLC Touching screen	Siemens	Siemens
Voltage	380v 50Hz 3 phase	380v 50Hz 3 phase

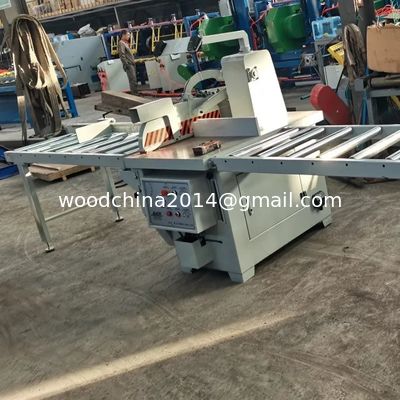

SH274 /276 Pneumatic Cut-Off Saw, High Efficiency Wood Cross Cut Circular Saw Blade 2

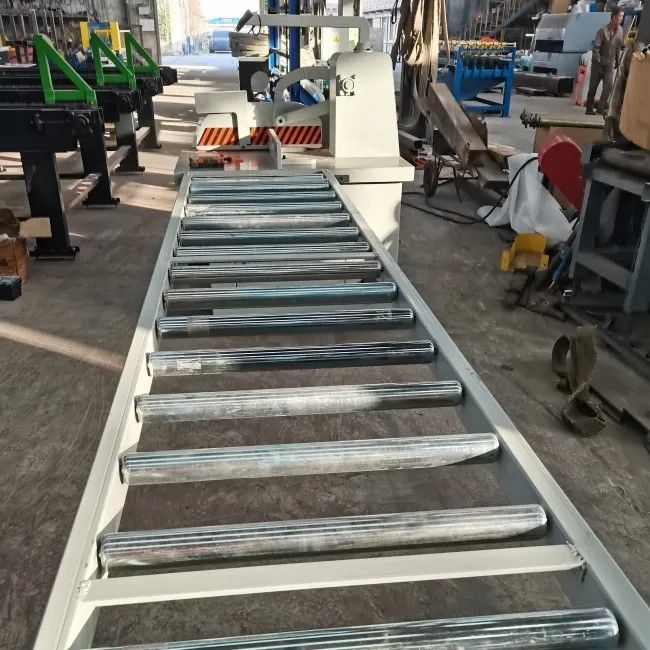

SH274 /276 Pneumatic Cut-Off Saw, High Efficiency Wood Cross Cut Circular Saw Blade 3

Pallet Foot Pier Cutting Saw Machine

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

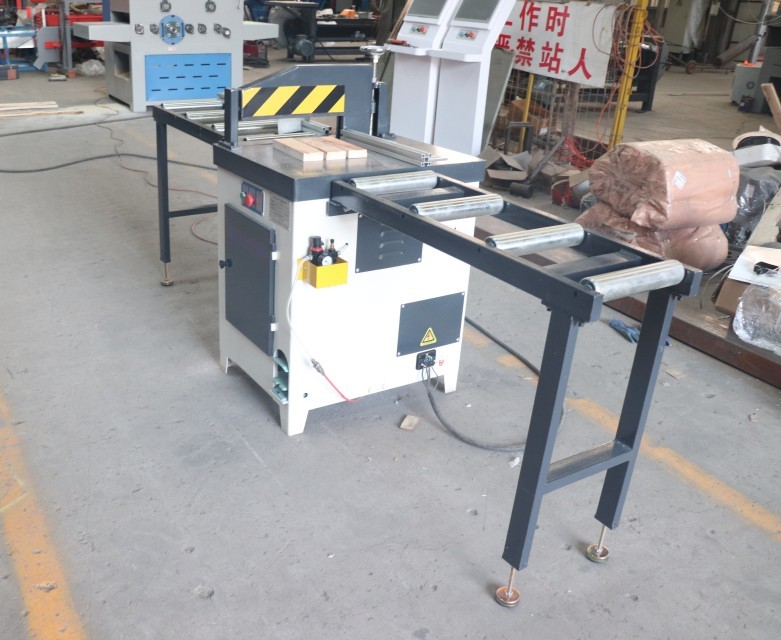

SH274 /276 Pneumatic Cut-Off Saw, High Efficiency Wood Cross Cut Circular Saw Blade 6

Multi Blades Circular Saw for wood panels cutting off

cutting both ends of the panels in same length
cutting length is adjustable
with auto feeding
chain drive

Technical data:

Multi blades cutting off circular saw
Model	QT2000	QT3000	QT4000
Cutting height	100mm	100mm	100mm
Cutting width	2000mm	3000mm	4000mm
Circular blade diameter	300mm	300mm	300mm
Main motor power	3kw x2	3kw x3	3kw x4
weight	620kgs	820kgs	1020kgs
Overall size	3200x1800x1150mm	2200x1800x1150mm	4800x1800x1150mm

Photos:

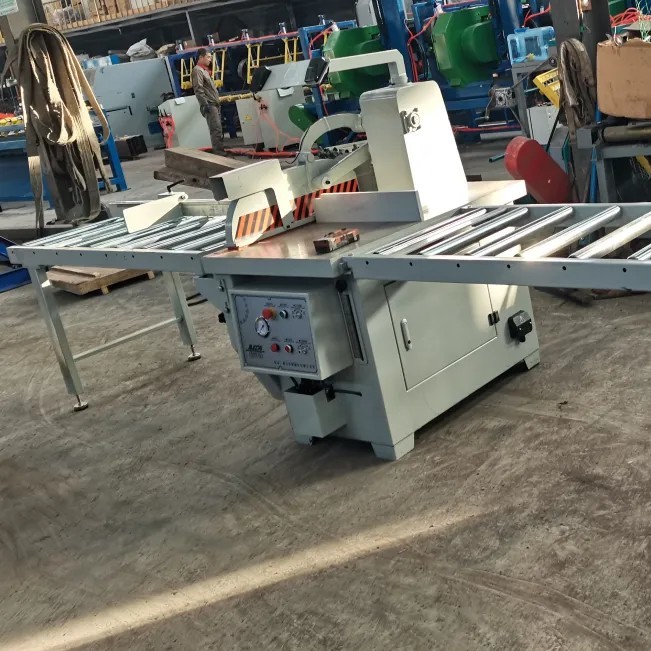

SH274 /276 Pneumatic Cut-Off Saw, High Efficiency Wood Cross Cut Circular Saw Blade 7

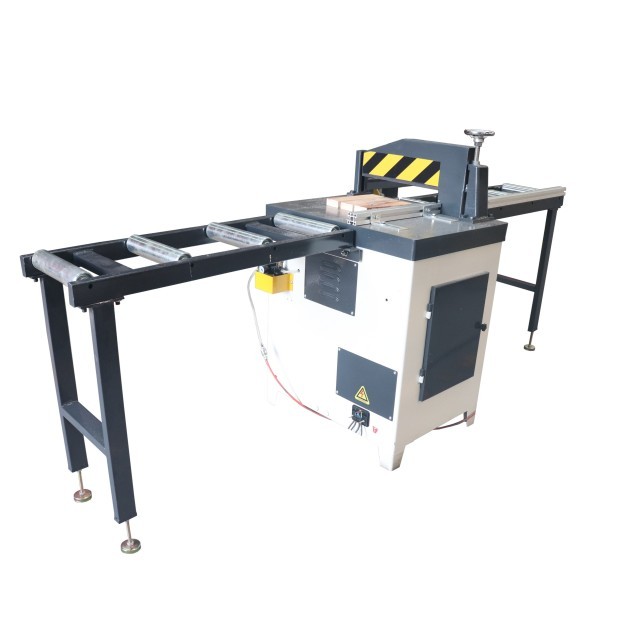

SH274 /276 Pneumatic Cut-Off Saw, High Efficiency Wood Cross Cut Circular Saw Blade 8

Wood Slasher
Technical data


			Technical Parameter
			DM1100
			DM1300
			DM1600
			DM1900
			DM2100
			DM2400


			Guide Plate Length(MM)
			1100
			1300
			1600
			1900
			2100
			2400


			Log Diameter(MM)
			900
			1100
			1300
			1600
			1900
			2200


			Motor(KW)
			3
			3
			4
			4
			5.5
			5.5


			Weight(KG)
			180
			190
			200
			220
			250
			280






Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SH274, SH276

Minimum Order Quantity:	1 SET
Price:	US $6,800 - 18,500 / Set
Packaging Details:	container loading of wood chamfer machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1500sets/year

Model	PE-40003	PE-50004	PE-60005
Cutting Length	600-4000mm	600-5000mm	600-6000mm
Cutting Thickness	10-120mm	10-120mm	10-120mm
Cutting Width	10-400mm	10-400mm	10-400mm
Saw Diameter	450mm	450mm	450mm
Blade Pieces	3P	4P	5P
Motor	7.5kW3 0.75kW2	7.5kW4 0.75kW2	7.5kW5 0.75kW2
Efficiency	100m³/8h	150m³/8h	200m³/8h
Weight	2000kg	2500kg	3000kg

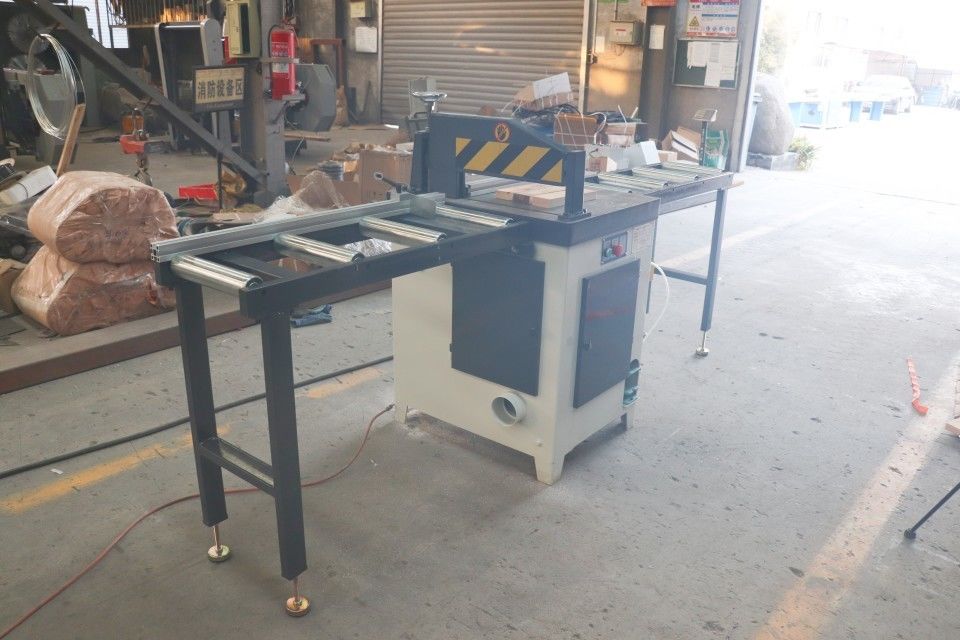

SH274 /276 Pneumatic Cut-Off Saw, High Efficiency Wood Cross Cut Circular Saw Blade

620mm Pneumatic Cut-Off Saw

Wood Cross Cut Circular Saw Blades

Automatic Wood Cut Off Saw

Pallet Foot Pier Cutting Saw Machine

pallet making machine,

wood pallet making machine,

wood pallet nailing machine

Professional Wood Pallet Making Machine / Machine To Make Wood Pallet

Pneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making Machine

Double Head Notcher Wood Pallet Machine, pallet notching machine 1800pcs/H Capacity

Fully Automatic Stacker Wood Timber Stacking Machine For Wood Length Customized

New Automatic 2-Head Wood Chip Saw Dust Block Machine Wood Pallet Making Machine

100mm To 500mm Wooden Pallet Machine Wood Pallet Manufacturing Equipment

Automatic Wood Pallet Nailing Machine/ Pallet Wood Making Machine/ Wood Pallet Machine

Wood Stringer Pallet Block Making Machine, Pallet Nailing Machine, Pneumatic Wood Pallet Nailing Table

Technical Parameter	DM1100	DM1300	DM1600	DM1900	DM2100	DM2400
Guide Plate Length(MM)	1100	1300	1600	1900	2100	2400
Log Diameter(MM)	900	1100	1300	1600	1900	2200
Motor(KW)	3	3	4	4	5.5	5.5
Weight(KG)	180	190	200	220	250	280
