Detail Information

Name:	Automatic Pallet Nailing Machine	Application:	Nailing Wood Pallets
Wood Pallet Length:	600-1300mm	Wood Pallet Width:	800-1300mm
Operation:	PLC Touching Screen Auto Setworks	Air Pressure:	0.8MPA
Number Of Coil Nail Guns:	3pcs Or 4pcs	Production Prodedure:	Manual Feeding/automatic Nailing/automatic Palletizing
Palletizer Equipment:	With It ,automatic Working	Pallet Type:	Stringer Pallet, Euro Block Pallet
Coil Nails:	Yes	After-sales Service Provided:	Online Support,Free Spare Parts,commissioning And Training
Highlight:	Automatic Stringer Pallet Production Line , Stringer Pallet Pallet Nailing Machine

Product Description

Automatic Wood Pallet Nailer, Pallet Nailer with 4 nail guns ,wood pallet nailing machine

USA and National Style Wooden Pallet Nailing Machine – Advanced Automation for Efficient Production

Overview
Our fully automated wooden pallet nailing machine combines PLC & touchscreen control, pneumatic operation, and intelligent stacking to streamline pallet production. Designed for USA and national-style pallets, this machine ensures high precision, durability, and ease of operation with minimal manual intervention.

Key Features1. Intelligent Control System​
	15-inch Touchscreen Interface: Allows operators to set nail positions, adjust nailing speed, and customize pallet dimensions effortlessly.

Siemens PLC: Ensures reliable and precise automation for consistent performance.
Remote Monitoring & Troubleshooting: Enables real-time diagnostics, remote software upgrades, and lifetime technical support.
2. High-Performance Nailing MechanismStanley Nail Guns (USA): Delivers high-speed, durable nailing for robust pallet construction.
MAC High-Speed Solenoid Valves (USA): Enhances nail gun responsiveness for faster production cycles.
Airtac (Taiwan) Pneumatic Components: Includes solenoid valves and cylinders for smooth, efficient operation.
3. Automatic Stacking & HandlingAutomatic Pallet Turning & Stacking: After nailing, the pallet is automatically flipped onto the stacking platform, ready for forklift transport.
Hydraulic Stacking System: Provides greater lifting power for stable and secure pallet stacking.
Automatic Counting Function: Tracks production quantities via the display interface for easy inventory management.
4. Flexible Pallet CustomizationAdjustable Beam Configuration: Easily switch between 3-beam and 4-beam pallets by loosening screws and repositioning the nail gun.
Customizable Pallet Sizes: Supports various dimensions, with maximum beam length of 1300mm (to fit standard shipping containers).
5. Durable & Low-Maintenance DesignPowder-Coated Frame: Anti-rust, wear-resistant finish for long-term durability.
ZhengTai Electrical Components: Ensures stable and safe operation.
--- Technical Data

			Model
			AWPN-1300

			Wood pallet length
			600-1300mm

			Wood pallet width
			800-1300mm

			Voltage and power
			220V/ 2kw Servo motor

			Air Pressure
			0.8MPA

			Tank size
			0.2 cubic

			Nail Guns
			4pcs

			Nail Gun Speed
			7 Times/Second

			Production Capacity
			40-60 Pallets/Hour

			Operation Mode
			Touch Screen control

			Apply a nail
			Less than 90mm

			Weight
			2000kgs

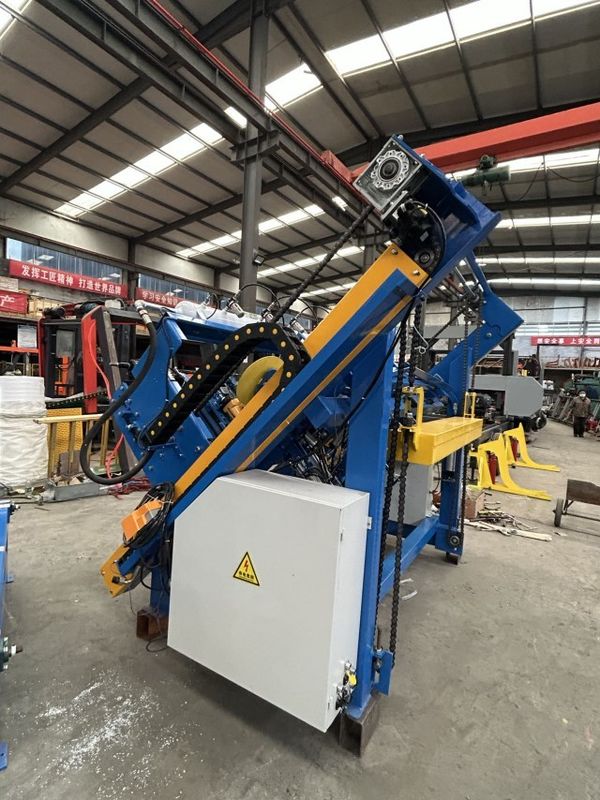

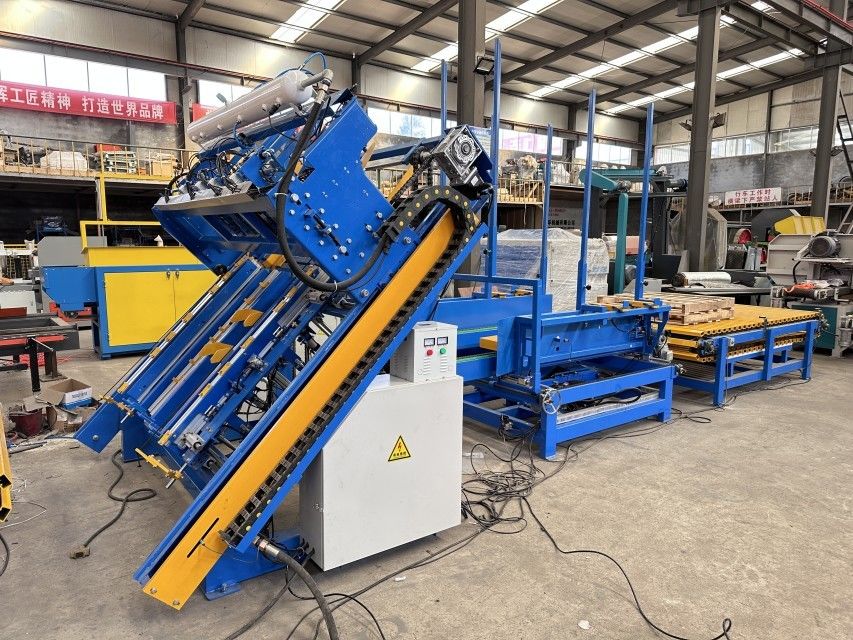

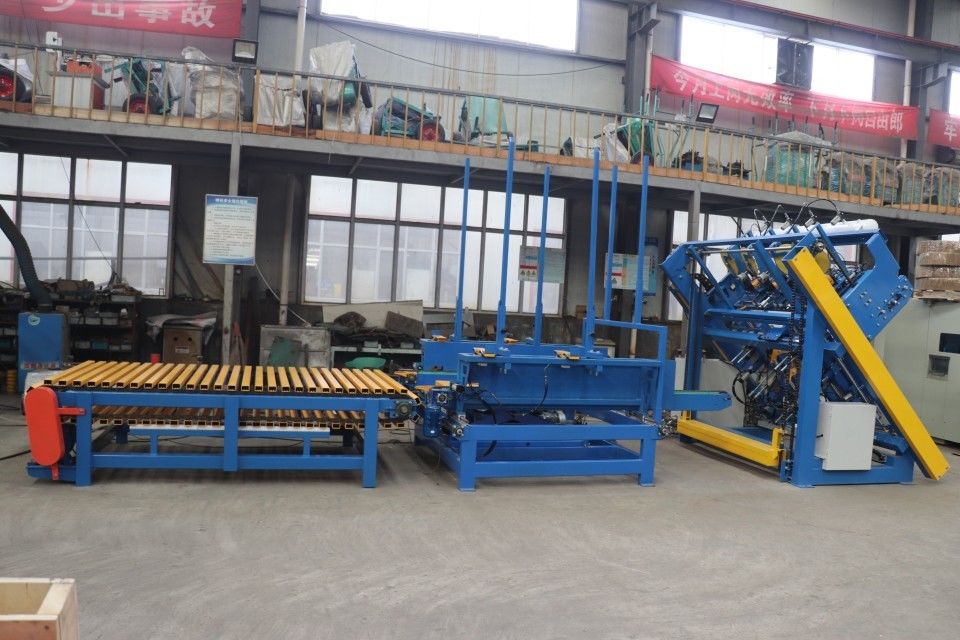

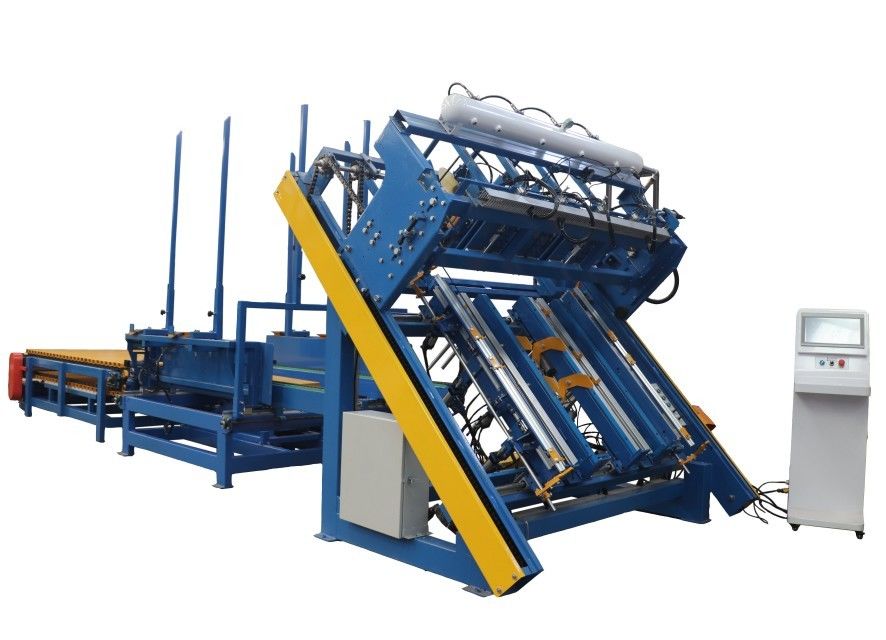

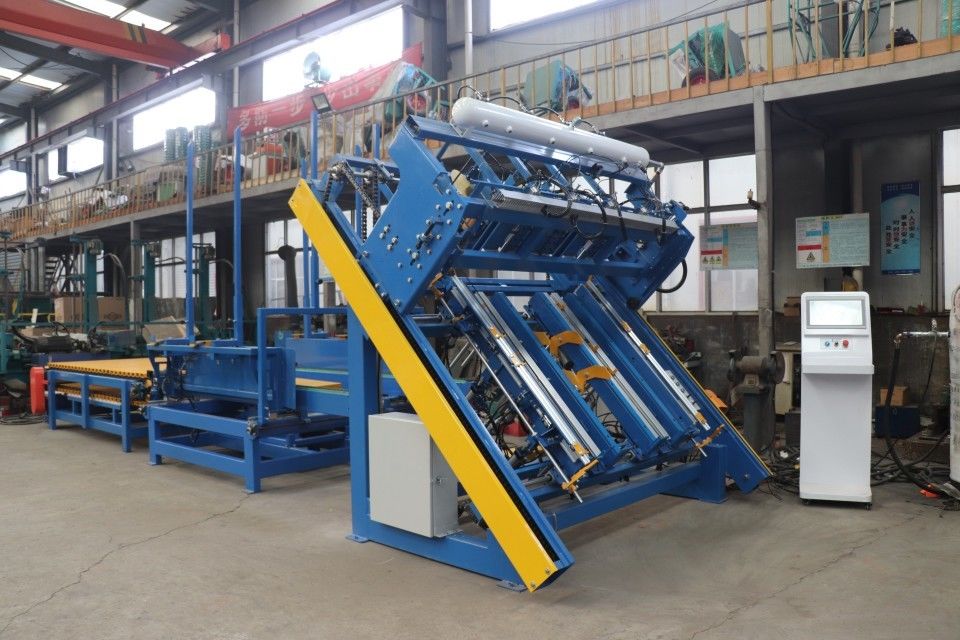

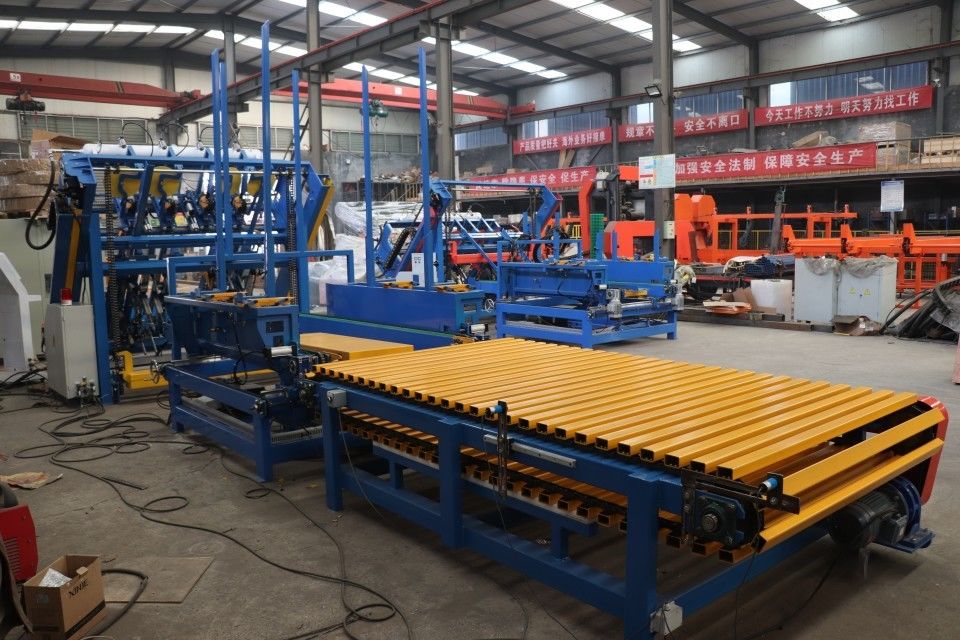

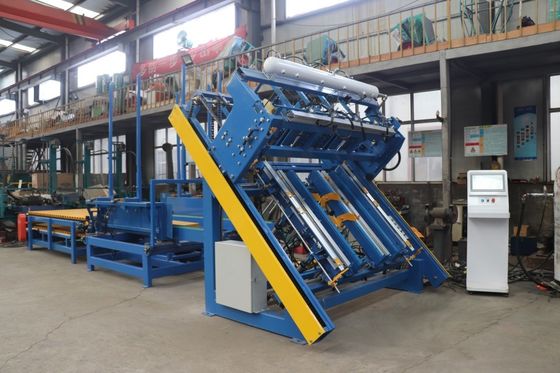

--- Detailed Images

Related Products

Automatic Euro Wood Pallet Nailing Production Line
1,Automatic Euro Pallet Block Nailing Machine

			Model
			SLDJ-1300-3

			Block width
			60-150mm

			Board Length
			600-1300mm

			Nail gun
			Stanley BOSTITCH Stitch CN70*3

			Nailing method
			1 nail, 2 nails, 3 nails, 4 nails, 5 nails

			Air pressure
			0.8MPA

			Nail gun speed
			4-8 s/time

			Motor power
			1.5KW Servomotor

			Voltage
			220V(Customized )

			Operating mode
			Touch screen

			Production mode
			Automatic Nailing

			Weight
			1240kg

2,Automatic European pallet nailing machine

			Model
			AEPN-1300

			Wood pallet length
			700-1300mm

			Wood pallet width
			800-1300mm

			Working mode
			Automatic feeding and stacking

			Operation mode
			Touch screen

			Operational mode
			Pneumatic operation

			Voltage and power
			2kw Servo motor

			Air pressure
			0.8MPA

			Nail gun speed
			7 times /second.

			Production efficiency
			1-2pcs /min

			Number of nail guns
			6P CN70,CN58

			Weight
			2000kg

3. Pallet rotating Machine

			Model
			XZ1300

			Processing Size
			800-1300mm

			Operation mode
			Production line automatic control

			Air pressure
			0.8MPA

			Production mode
			Auto feeding, auto rotation

			Motor power
			1.5kw

			Size
			2700 x 2200 x 1600mm

4. Wood pallet branding machine

			Model
			LY-4

			Processing Size
			800-1300mm

			Branding material
			Copper/die steel

			Air pressure
			0.8MPA

			Branding speed
			4-8 s/time with pallet machine speed

			Motor power
			0.75KW*2

			Number of branding
			1-6 pcs

			Control mode
			Pallet machine production line integrated supporting

			Voltage
			380V(Customized)

			Machine size
			2500*2100*1600mm

5,Pallet angle cutting machine

			Model
			PQ1300-4

			Processing size
			800-1300mm

			Circular saw blade diameter
			300mm

			Motor power
			2.2KW*4

			Working mode
			Automatic feed,Automatic Angle cutting

			Weight
			350kg

6.Wood pallet turning machine

			Model
			FB-1300

			Processing size
			800-1300mm

			Turning speed
			4-8s/time

			Motor power
			1.5kw +0.75kw x 2

			Working mode
			Pallet machine automatic line

			Air pressure
			0.8MPA

7,Wooden pallet stacking/

			Model
			MD-1300Z

			Processing size
			800-1300mm

			Lift control
			Hydraulic

			Palletizing speed
			4-8 s/time

			Model power
			3.7KW

			Control mode
			Automatic

			Voltage
			220V(Customize)

			Production mode
			Automatic chain conveying

			Machine size
			3500*2000*1800mm

8.Wood pallet storage platform

			Model
			CL-3000

			conveyor length
			3000mm

			Table Length
			1600mm

			Operating speed
			5-6m/min

			Motor power
			2.2KW

			Control mode
			Pallet machine production line integrated supporting

			Voltage
			380V(Customized )

			Production mode
			Feeding pallet machine automatic line

Conclusion
Our automated wooden pallet nailing machine is engineered for precision, speed, and durability, making it an ideal solution for modern pallet production. With advanced PLC control, high-quality components, and smart automation, it maximizes efficiency while minimizing manual effort.
Upgrade your production line today—contact us for customization and pricing!

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	AWPN-1300, PT-1700, PT-3400, AWPN-1500

Minimum Order Quantity:	1 SET Pallet nailing machine
Price:	US $19,800 - 21,500 / Set
Packaging Details:	container loading of Pallet nailing machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of Pallet nailing machine
