Detail Information

Name:	Pneumatic Pallet Nailing Table	Pallet Width:	800-1600 Mm
Pallet Length:	600-1300mm	Capacity:	240-320 Pallets /8hours
Operating Pressure:	0.8MPA	Number Of Coil Nail Guns:	2P (CN70、CN55)
Weight:	650kgs	Qty Of Stringers:	2, 3, 4, Or 5 Stringers
Pneumatic Clamp:	Easily Centers The Blocks	Pneumatic Lift:	Raises Pallet To Minimize Operator Lifting
After-sales Service Provided:	Online Support,Free Spare Parts,commissioning And Training
Highlight:	Pneumatic Pallet Nailing Table , Pneumatic Wood Pallet Nailing Table , Wood Stringer Pallet Block Making Machine

Product Description

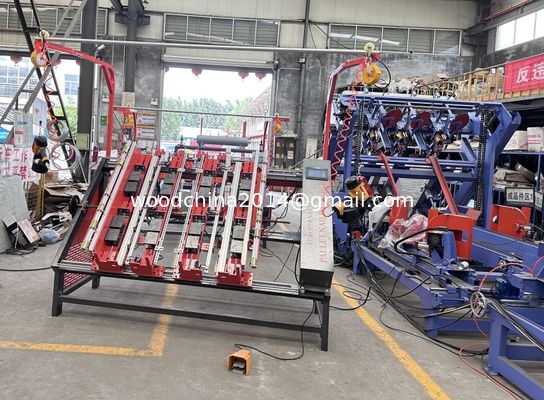

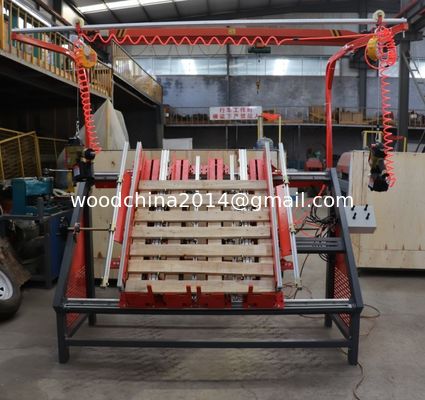

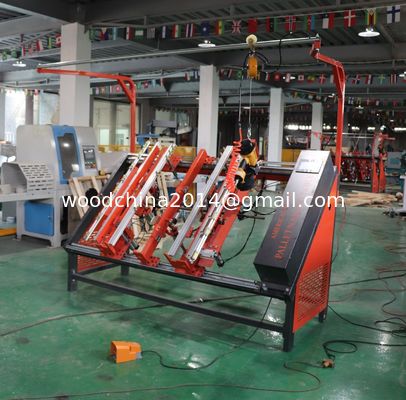

A universal pneumatic nailing table, Pneumatico PT-1600 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Instruction:

Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:
Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table

Technical specifications:

Model	PT-1600	PT-3300
Wood pallet length	600-1300mm	700-1500mm
Wood pallet width	800-1600mm	900-3300mm
Operational mode	Pneumatic operation	Pneumatic operation
Air pressure	0.8MPA	0.8MPA
Production efficiency	30-40pcs /h	30-40pcs /h
Number of beams	3p (customized)	5p (customized)
Number of nail guns	2P (CN70,CN55) American Stanley staple gun	2P (CN70,CN55) American Stanley staple gun
Weight	650kg	950kg
Size	24009801900mm	40009801900mm

Wood Stringer Pallet Block Making Machine, Pallet Nailing Machine, Pneumatic Wood Pallet Nailing Table 0

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- Euro and National Style Wooden Pallets

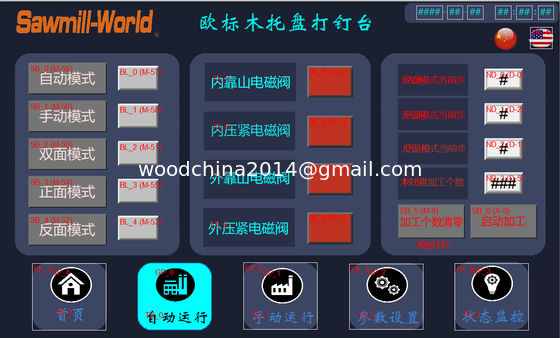

-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data

			Model
			AEPN-1300

			Wood pallet length
			700-1300mm

			Wood pallet width
			800-1300mm

			Working mode
			Automatic feeding and stacking

			Operation mode
			Touch screen

			Operational mode
			Pneumatic operation

			Voltage and power
			2kw Servo motor

			Air pressure
			0.8MPA

			Nail gun speed
			7 times /second.

			Production efficiency
			1-2pcs /min

			Number of nail guns
			6P CN70,CN58

			Weight
			2000kg

Euro Wood Pallet Automatic Production Line
Related Products
Wood Pallet Feet Nailing Machine for Euro Pallets

			Model
			SLDJ-1300-3

			Block width
			60-150mm

			Board Length
			600-1300mm

			Nail gun
			Stanley BOSTITCH Stitch CN70*3

			Nailing method
			1 nail, 2 nails, 3 nails, 4 nails, 5 nails

			Air pressure
			0.8MPA

			Nail gun speed
			4-8 s/time

			Motor power
			1.5KW Servomotor

			Voltage
			220V(Customized)

			Operating mode
			Touch screen

			Production mode
			Manual discharge/automatic pin pier

			Weight
			1240kg

Multi Blades Rip Saw

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	PT-1600, PT-3300, AEPN-1300, etc

Minimum Order Quantity:	1 SET Pallet nailing machine
Price:	US $4,200 - 21,500 / Set
Packaging Details:	container loading of Pallet nailing machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of Pallet nailing machine
