Detail Information

Name:	Pneumatic Pallet Nailing Table	Pallet Width:	800-1500 Mm
Pallet Length:	1300 Mm Max.	Capacity:	210-230 Pallets /8hours
Operating Pressure:	Up To 8 Bar	Number Of Coil Nail Guns:	1pc
Weight:	440kgs	Qty Of Stringers:	2, 3, 4, Or 5 Stringers
Pneumatic Clamp:	Easily Centers The Blocks	Pneumatic Lift:	Raises Pallet To Minimize Operator Lifting
After-sales Service Provided:	Online Support,Free Spare Parts,commissioning And Training
Highlight:	Stringer Wood Pallet Nailing table , Pneumatic Pallet Making Machine , Pneumatic Pallet Nailing table

Product Description

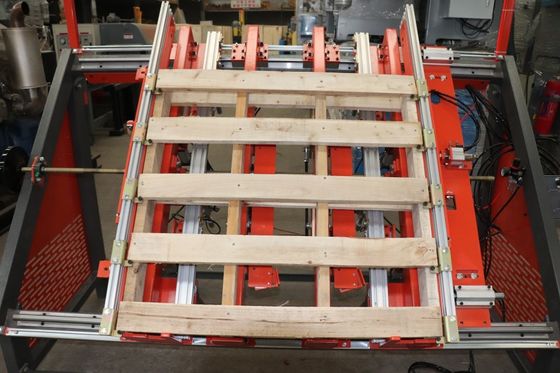

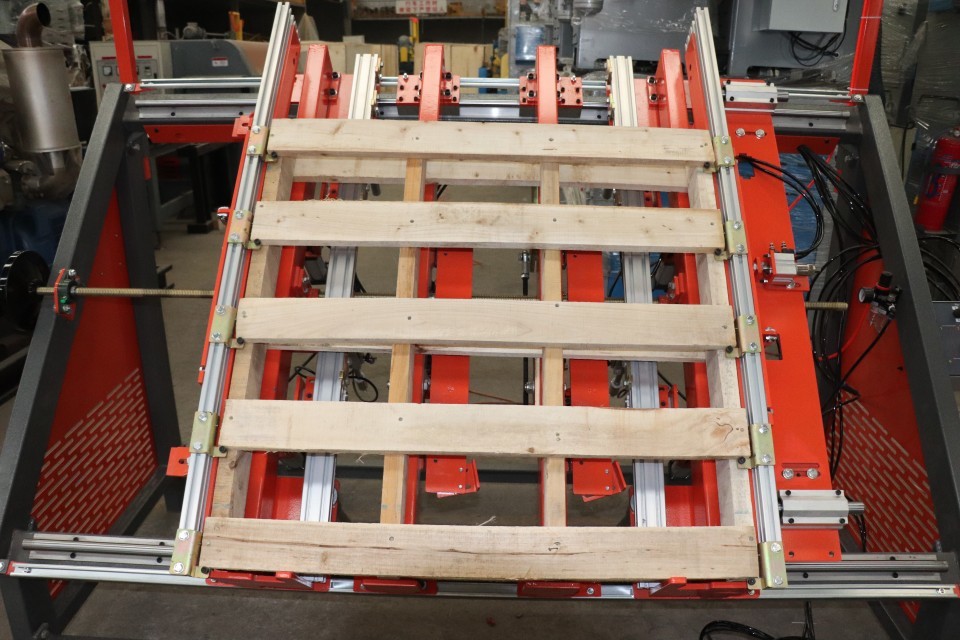

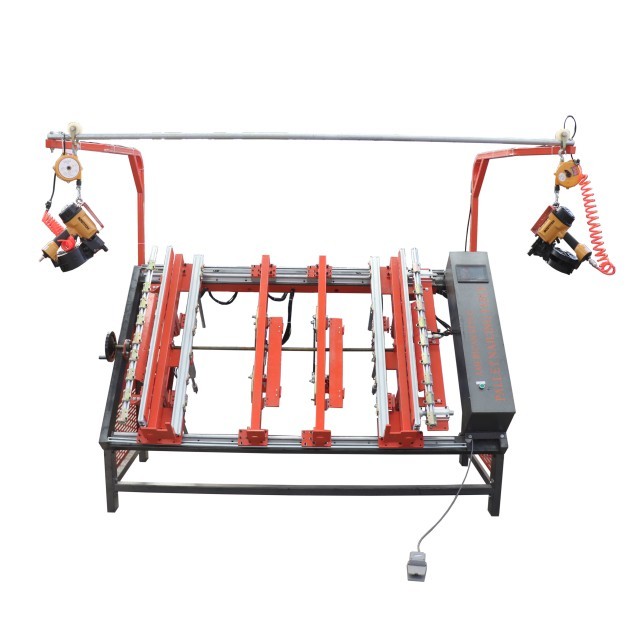

A universal pneumatic nailing table, Pneumatico PT-1600/PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Technical specifications:

Weight: 440 kg
Operating pressure: up to 8 bar
Material: structural steel

Dimensions of the pallets:

Length: 700mm – 1300 mm
Widht: 700mm-1600 mm

Instruction:

Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:

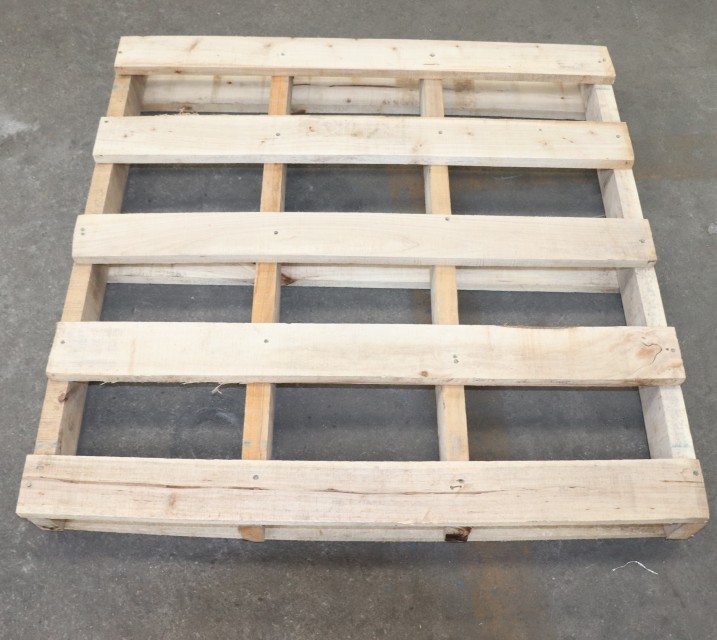

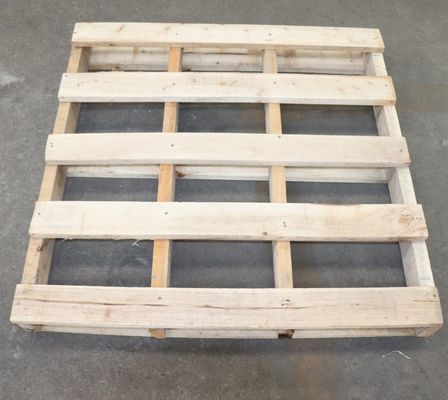

Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting
Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table

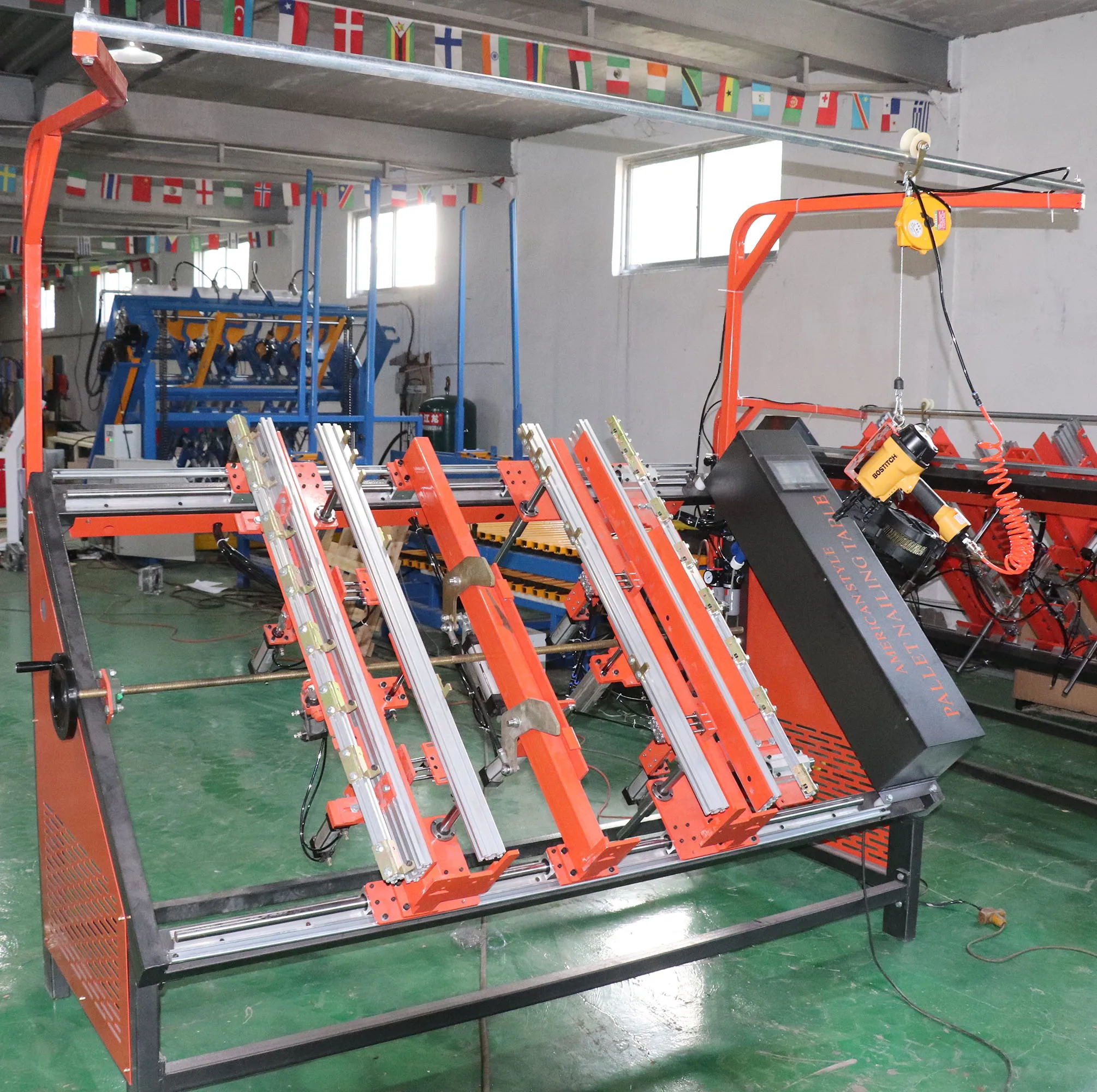

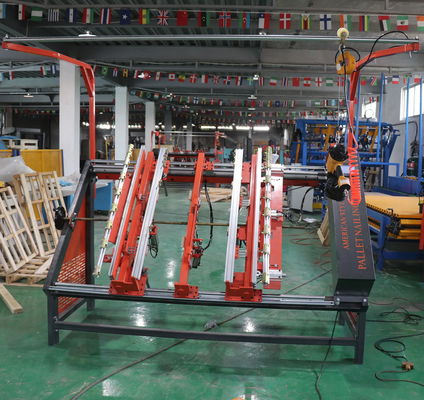

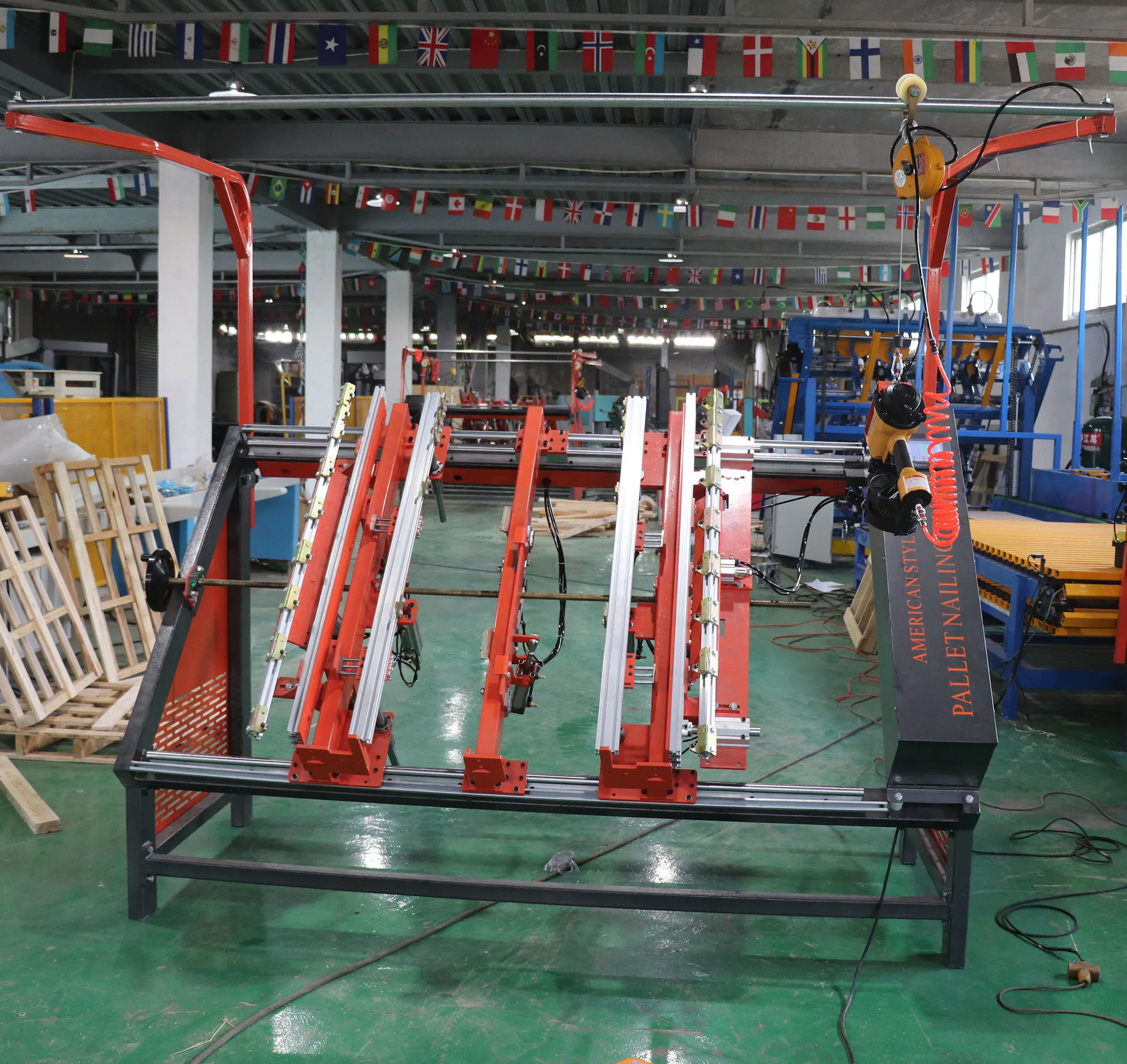

Semi-Automatic American Pallet Pneumatic Nailing Table

Model	PT-1700	PT-3400
Wood pallet length	600-1300mm	700-1500mm
Wood pallet width	800-1700mm	900-3400mm
Operational mode	Pneumatic operation	Pneumatic operation
Air pressure	0.8MPA	0.8MPA
Production efficiency	30-40pcs /h	20-30pcs /h
Number of beams	3p (or customized)	5p (or customized)
Number of nail guns	1P (CN70) American Stanley staple gun	1P (CN70) American Stanley staple gun
Weight	440kg	840kg
Size	22509801900mm	405010502100mm

Pneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making Machine 0

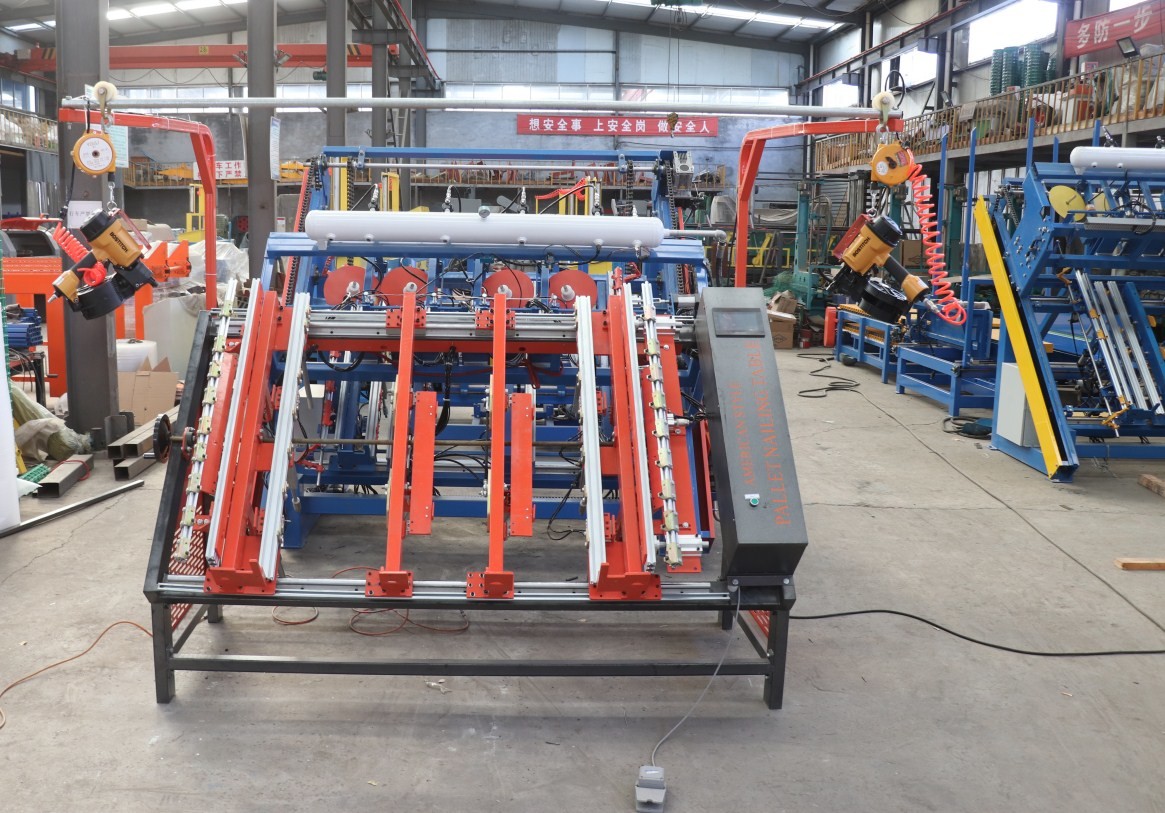

Semi-Automatic European Pallet Pneumatic Nailing Table

Model	PT-1600	PT-3300
Wood pallet length	600-1300mm	700-1500mm
Wood pallet width	800-1600mm	900-3300mm
Operational mode	Pneumatic operation	Pneumatic operation
Air pressure	0.8MPA	0.8MPA
Production efficiency	30-40pcs /h	30-40pcs /h
Number of beams	3p (customized)	5p (customized)
Number of nail guns	2P (CN70,CN55) American Stanley staple gun	2P (CN70,CN55) American Stanley staple gun
Weight	650kg	950kg
Size	24009801900mm	40009801900mm

Pneumatic Pallet Nailing Table, Stringer Wood Pallet Nailing Machine, Pallet Making Machine 3

Automatic Wood Pallet Nailing Machine with Automatic palletizer

-- USA and National Style Wooden Pallets
-- PLC & Touch Screen control,Pneumatic Operation
-- Manual Feeding,Automatic Nailing and Automatic Stacking
-- Automatic Pallet Lifting Device,Automatic Counting Function on the display interface of the pallet nailing machine. Can store 16 Pallets*2.
-- After the nailing process,The pallets are turned over to the stacking platform automatically.
-- Convenient for forklift transport.
-- Save time and space.
-- Technical data

			Model
			AWPN-1300

			Wood pallet length
			600-1300mm

			Wood pallet width
			800-1300mm

			Working mode
			Automatic feeding and stacking

			Operation mode
			Touch screen

			Operational mode
			Pneumatic operation

			Voltage and power
			2kw Servo motor

			Air pressure
			0.8MPA

			Nail gun speed
			7 times /second.

			Production efficiency
			1-2pcs /min

			Number of nail guns
			3P OR 4P

			Weight
			2000kg

			Size
			Host machine 1660*1970*2217mm

			Stacking 2945*2054*1410

Related Products
Pallet Notcher
https://www.chinawoodsawmill.com/sale-31191544-double-slot-wood-pallet-notcher-double-head-pallet-notcher-notching-machine-for-wood-pallet.html

Multi Blades Rip Saw
https://www.chinawoodsawmill.com/sale-34529699-log-multi-blade-rip-saw-circular-saw-blade-wood-cutting-machine-multi-ripsaw-machine.html

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	PT-1500,AS1250- 3 ,AS1250- 4
Document:	wood pallet nailing machine...ne.pdf

Minimum Order Quantity:	1 SET Pallet nailing machine
Price:	US $4,200 - 21,500 / Set
Packaging Details:	container loading of Pallet nailing machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of Pallet nailing machine
