Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal

1 SET wood pallet grinder
MOQ
US $8,000-11,000 / Set
Price
Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Wooden Pallet Grinder
Nails: With Magnetic Machine For Sucking Out Nails
Application: Crushing Wood Pallets Into Chippers
Capacity: 60pcs Pallets/hour
Power: 37KW
Feeding Inlet Size: 1350*230mm
Blade Shaft Diameter: 450mm
Blade Quantity: 36pcs
Discharging Conveyor Length: 3meters
Guarantee: 1year
Highlight:

nail removal Small wood pallet crusher

,

chippers Small wood pallet crusher

,

Nail Wooden Pallet Crusher Machine
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SHTF1350, SH1300-600, SH1600-600
Payment & Shipping Terms
Packaging Details: container loading
Delivery Time: within 15 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets per year
Product Description

Wood Pallet Crusher/Wood Pallet Shredder/industrial shredder for wood pallet

Wood Pallet Crusher

Technical data

Model SHTF1350
Feeding Inlet 1350*230mm
Blade Shaft Diameter 450mm
Blade Quantity 36
Motor Power 37KW
Conveyor belt length 3000mm
Production Capacity 60 Pallets/Hour
Weight 3200KG

Optional part:

Magnetic machine for sucking nails ,etc iron products

Extended outlet conveyor

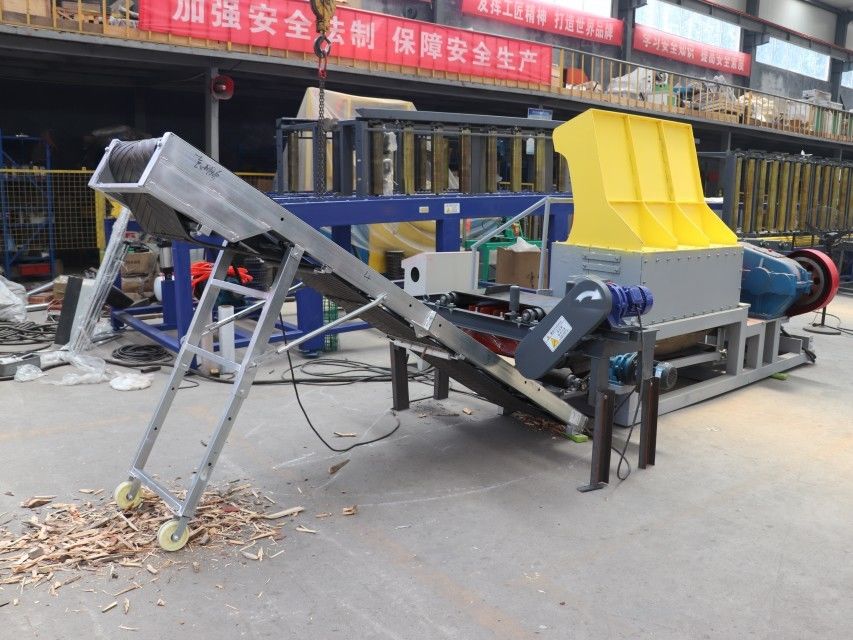

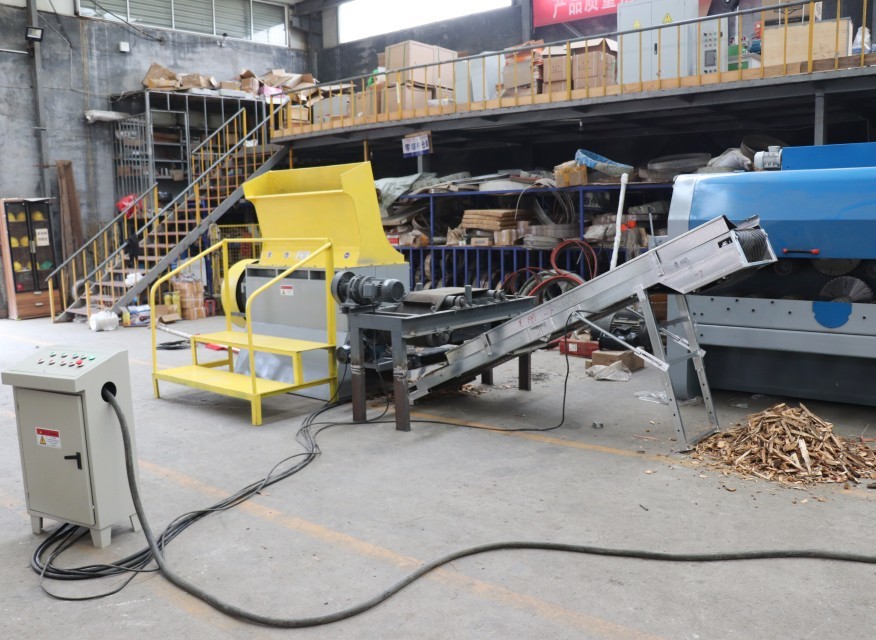

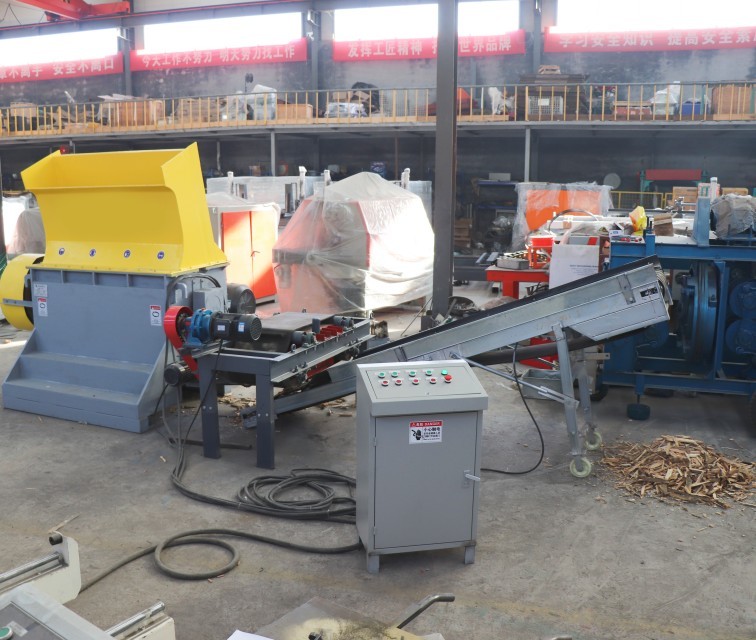

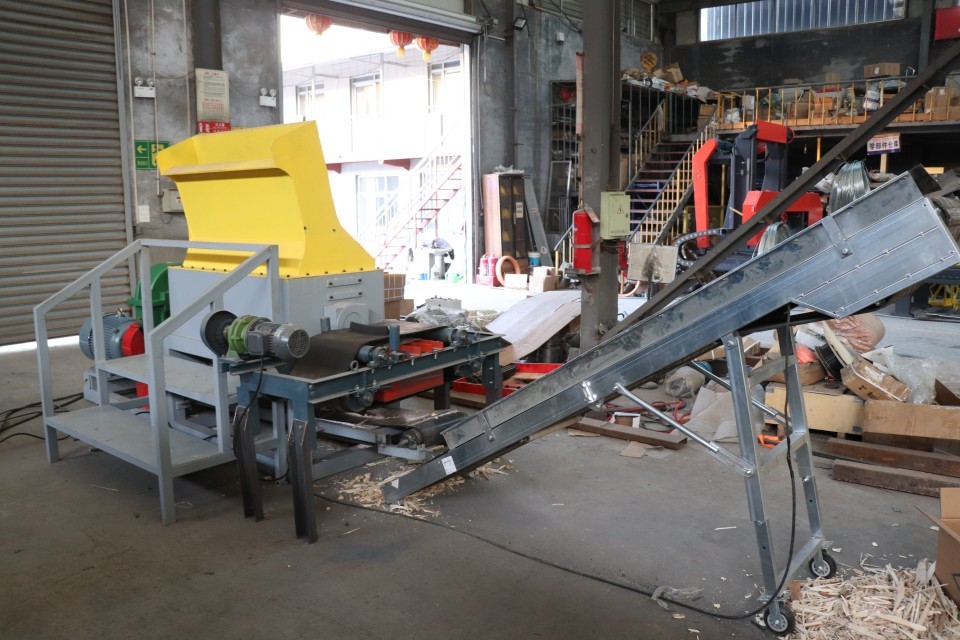

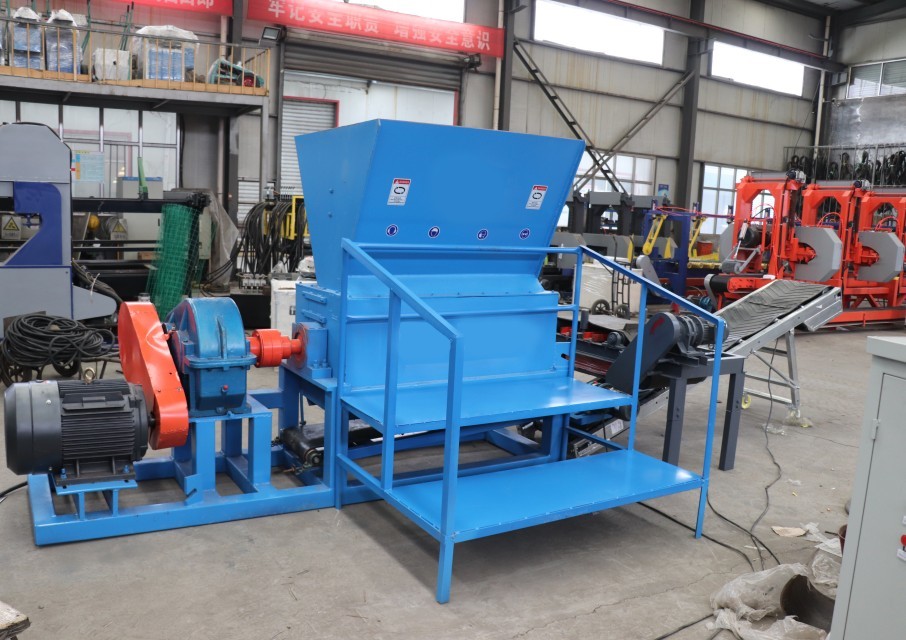

Detailed Image



Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 0

Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 1

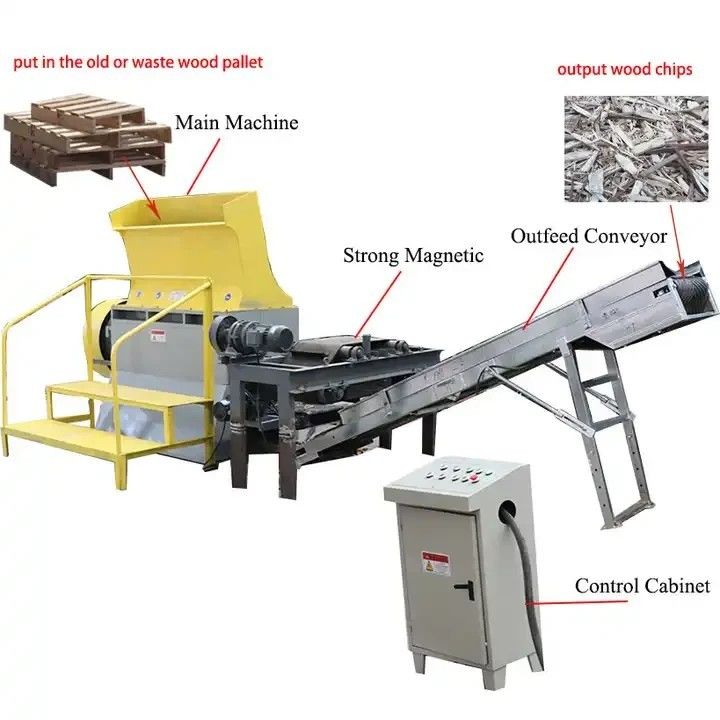

Optional -magnetic machine

Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 2

Roller and blades

Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 3Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 4

Wood Chippers

Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 5

Export Pallet Packing

Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 6



Related Products



Wood Composite Crusher



Specification
SH1300-600E
SH1300-600D
Feeding Inlet
1300*600mm
1300*600mm
Blade Roll Diameter
850mm
850mm
Blade Quantity
4 PCS
20 PCS
Blade Roll Speed
850R/Min
850R/Min
Max processing wood diameter
500mm
550mm
Wood Chipper Size
20-50mm
20-50mm
Production Capacity
15 Tons/Hour
15 Tons/Hour
Motor Power
160 KW Electric Engine
400HP Diesel Engine
Feeding Suspension Inverter Motor
7.5KW*1
7.5KW*1
Chain Plate Feeding Inverter Motor
11KW
11KW
Electromagnetic valve integrated Oil Pump Motor
3KW
3KW
Conveyor Gear Motor Power
4KW
4KW
Weight
20Tons
20Tons
Overall Size
8500*2200*2200mm
8500*2200*2200mm

Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 7

Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 8

STUMP CRUSHER

Specification:

Technical data Model SH3600-1600
Blade shaft size 1600x850mm
Rotor diameter 800mm
Blade quantity 4
Main motor power 185KW
Feeding inlet diameter 3600mm
Out feed conveyor 12meters
Capacity 25-30Ton/Hour
Weight 18000kg



Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 9

Wooden Pallet Dismanling Sawmill/Pallet Dismantler


Model
TP1400

Working Table Length		 1700mm

Horizontal table width		 1400mm

Cutting Thickness		 5mm-150mm

Saw Wheel Diameter		 600mm

Motor Power		 7.5KW

Processing Pallet Efficiecy		 40-60 pcs/min

Band Saw Blade Size		 USA Blade 6850*41*1.3 mm

Overall Size		 3300*1500*1500mm
Weight 800KG



Detailed Image
Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 10Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 11
Optional : protective cover
Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 12
Optional : also make machine as customer needs
Small Wood Pallet Crusher / Nail Wooden Pallet Crusher Machine Used To Pallet And Wood Chippers For Nail Removal 13
