Name: High Efficiency Pallet Shredder Pallet Crusher Machine Wood Pallet Cutting Machine
Brand: Weifang Jiuyi Information technology co., LTD
SKU: SHTF1350, SH1300-600, SH1600-600
Price: 9.00 USD
Availability: InStock

High Efficiency Pallet Shredder Pallet Crusher Machine Wood Pallet Cutting Machine

1 SET

MOQ

US $8,000-11,000 / Set

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Wooden Pallet Crusher Machine

Feeding Inlet Size: 1350*230mm

Capacity: 60pcs Pallets/hour

Power: 37KW

Blade Quantity: 16pcs

Condition: New

Application: Crushing Wood Pallets Into Chippers

Blade Shaft Diameter: 450mm

Discharging Conveyor Length: 3meters

Guarantee: 1year

Highlight:

Wood Pallet Cutting Machine

High Efficiency Pallet Shredder

Pallet Crusher Machine

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: SHTF1350, SH1300-600, SH1600-600

Payment & Shipping Terms

Packaging Details: container loading

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1000sets per year

Gallery

High Efficiency Pallet Shredder Pallet Crusher Machine Wood Pallet Cutting Machine

Product Description

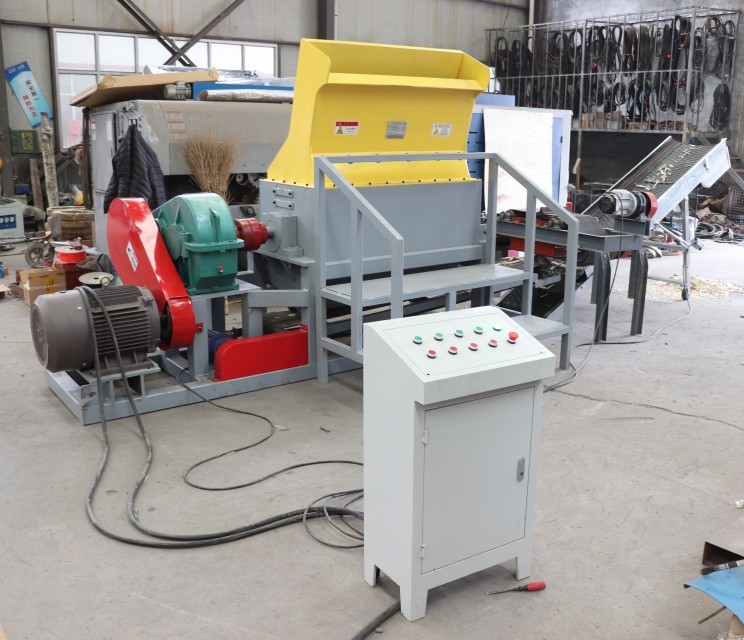

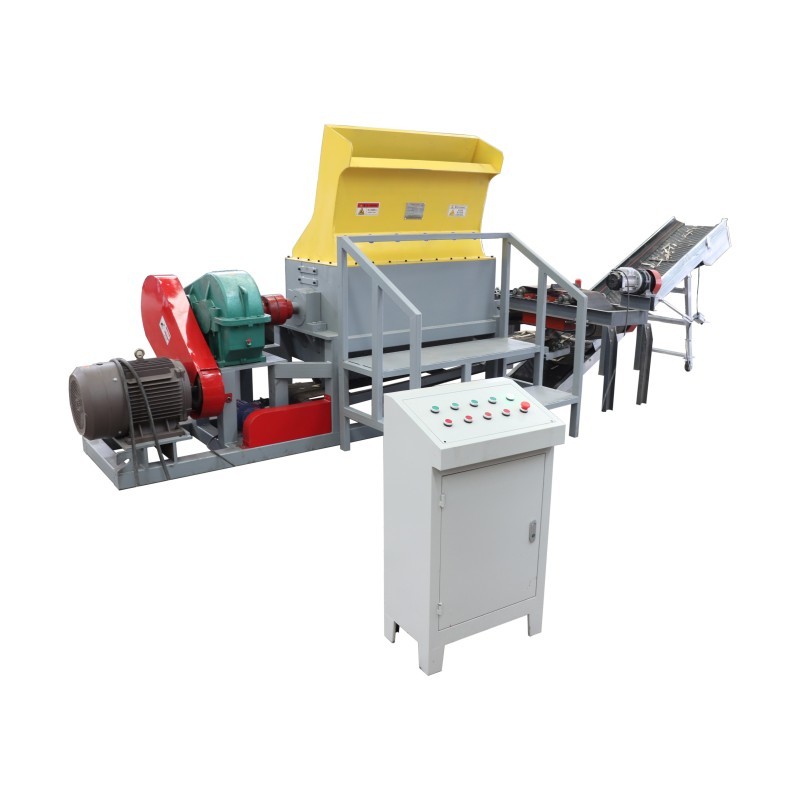

Wood pallet shredder wood pallet crusher, Wooden pallet crushing machine with nails out

Wood Pallet Crusher

Technical data

Model	SHTF1350
Feeding Inlet	1350*230mm
Blade Shaft Diameter	450mm
Blade Quantity	16
Main Electric Motor Power	37KW/3phase
Slope conveyor length	3meters
Capacity	60-100 Pallets/Hour
Weight	3200KG
with magnetic machine for nails sucking out

Detailed Image

Optional -magnetic machine

Roller and blades

Wood Chippers

Related Products

Wood Composite Crusher

Tehnical data:

Model		SH2000-1000	SH1300-600	SH1400-600	SH1600-600
Feeding inlet size		2000x1000mm	1250x600mm	1400x600mm	1600x600mm
Blade roller diameter		1400mm	850mm	850mm	850mm
Blade roller speed		750RPM	850RPM	850RPM	850RPM
Production capacity		70-100ton/H	12-15ton/H	18-20ton/H	25-30ton/H
1	YG8 hammer blade qty	86pcs	20pcs	24pcs	28pcs
2	Blade qty	3groups/9tablets	2groups/4tablets	2groups/4tablets	2groups/4tablets
Max. Processing log diameter		<800mm	450mm	450mm	450mm
Main motor power		450kw	160kw	200kw	250kw
Wood chipper size		3-5cm	2-4cm	2-4cm	2-4cm
Working life of blades		4000T-5000T	4000T-6000T	4000T-6000T	4000T-6000T
Optional : Diesel engine power 400HP is workable Wheels for mobile usage Hydraulic collapsible outlet conveyor Magnetic machine for sucking out iron products

Photos:

High Efficiency Pallet Shredder Pallet Crusher Machine Wood Pallet Cutting Machine 6

Wood Sawdust Machine

Technical Data:

Model	SHMF1300-700	SHMF1500-800
Feeding inlet size	1300X700mm	1500X800mm
Blade shaft diameter	700mm	800mm
Blade quantity	84pcs	84pcs
Main motor power	132kw	160kw
Production capacity	4-5ton/hour	6-8ton/hour
Feeding system	1set,5.5KW,With strong magnetic machine
Discharging system	1set
Bag dust collection	1 unit(40bags, with Supports and pipes)
Sacron Cyclone Dust Collector	1unit(1200MM dia., with Supports and pipes)
With Soft start inverter integrated control cabinet

High Efficiency Pallet Shredder Pallet Crusher Machine Wood Pallet Cutting Machine 7

Wood Pallet Dismanling Sawmill

Specifications :

Model	TP1400
Working Table Width	1700mm
Horizontal table width	600mm
Cutting Thickness	5mm-150mm
Saw Wheel Diameter	600mm
Motor Power	7.5KW
Processing Pallet Efficiecy	40-60 pcs/min
Band Saw Blade Size	USA Blade 6900411.3 mm
Overall Size	330015001500mm
Weight	800KG

High Efficiency Pallet Shredder Pallet Crusher Machine Wood Pallet Cutting Machine 9

High Efficiency Pallet Shredder Pallet Crusher Machine Wood Pallet Cutting Machine 10
