Wood Planks Timber Stacking Machine Automatic Pallet Wood Boards Conveying Stacker Machine

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	ZL1400

Minimum Order Quantity:	1 SET
Price:	US $26,700 - 30,000 / Set
Packaging Details:	luo packing of wood finishing and palletizing machine
Delivery Time:	about 20 days after receiving deposit
Payment Terms:	T/T, Western Union
Supply Ability:	500sets/year

Get Best Price Contact Now

Detail Information

Machine Type:	Pallet Timber Stacking Machine	Operation Mode:	Touch Screen
Stacking Length:	700-1400mm Or As Customer Needs	Stacking Width:	700-1400mm
Stacking Height:	0-1100mm	Power:	5.5kw
Total Weight:	3500kgs	Color:	Customer's Request
Quality Guarantee:	1 Year	After-sales Service:	Video Technical Support
Highlight:	Timber Stacking Machine , Wood Planks Stacking Machine , Wood Planks Timber Stacking Machine

Product Description

Wood Finishing and Palletizing Machine

Model	ZL1400
Stacking Plate Length	700-1400mm
Stacking Plate Width	700-1400mm
Stacking Plate height	0 to 1100mm
Motor Power	5.5kW
Control	Touch Screen+PLC
Weight	3500kgs

Detailed Images

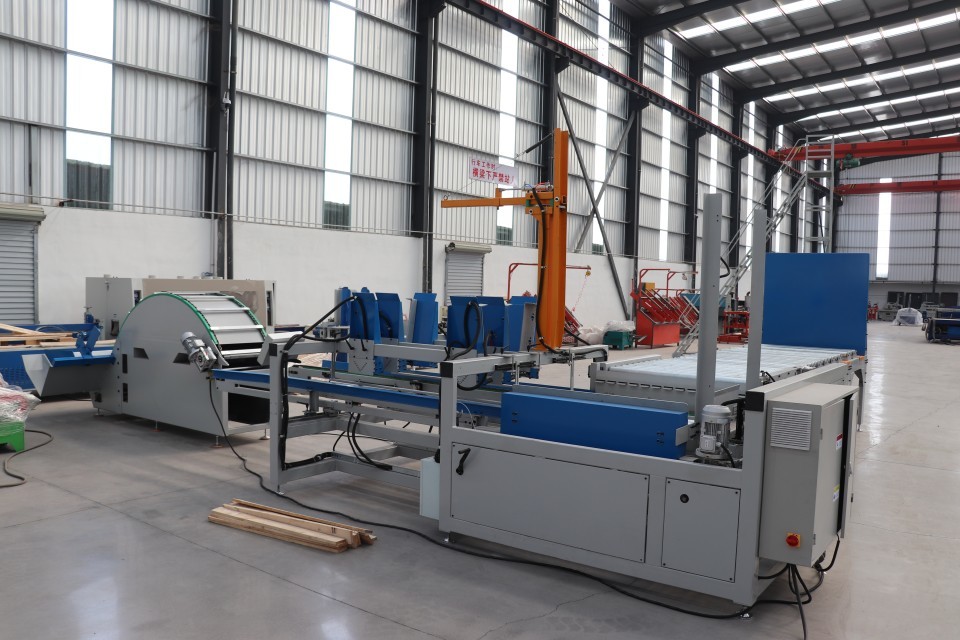

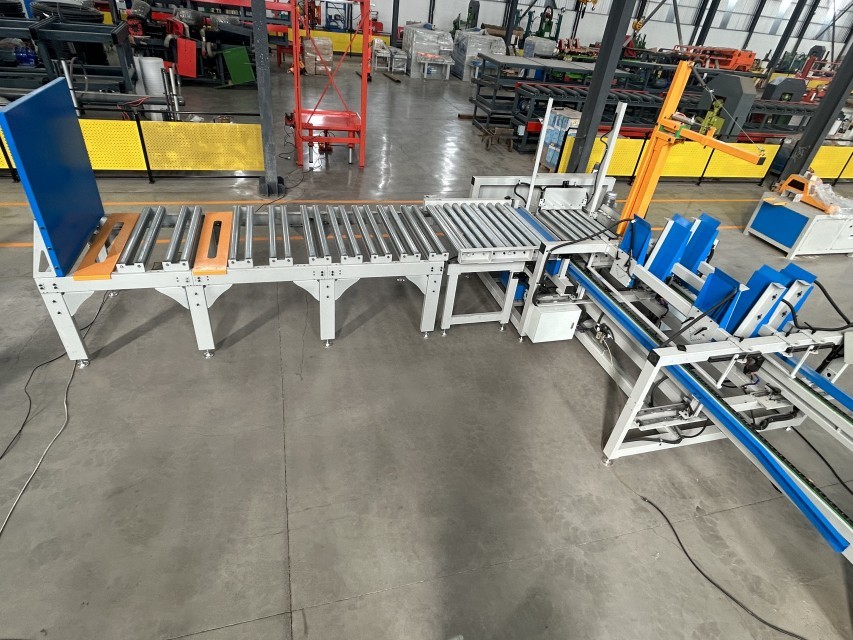

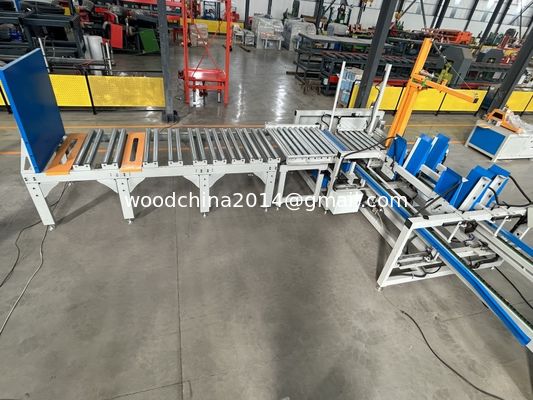

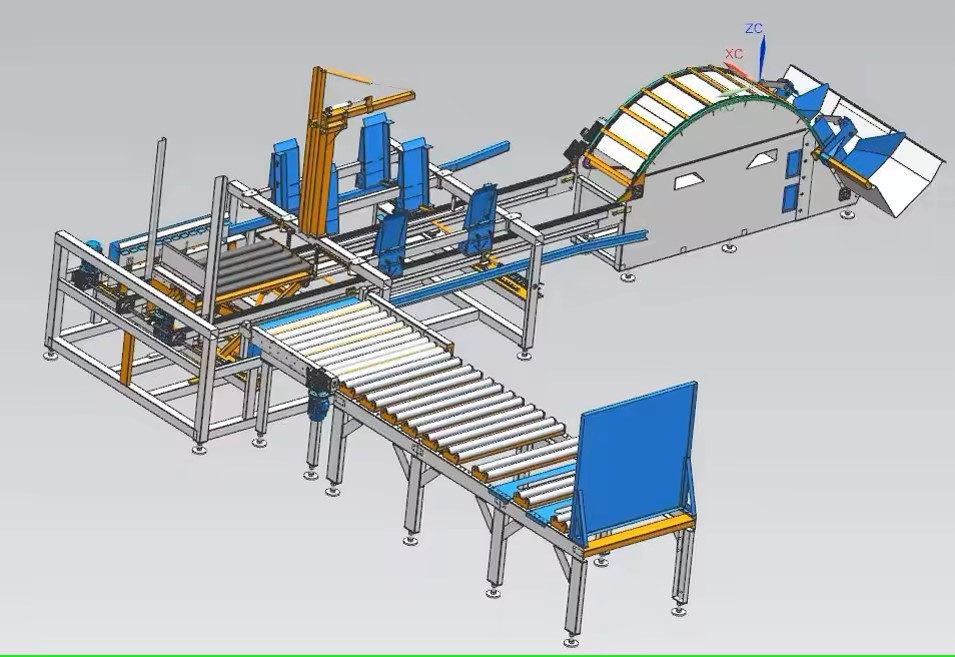

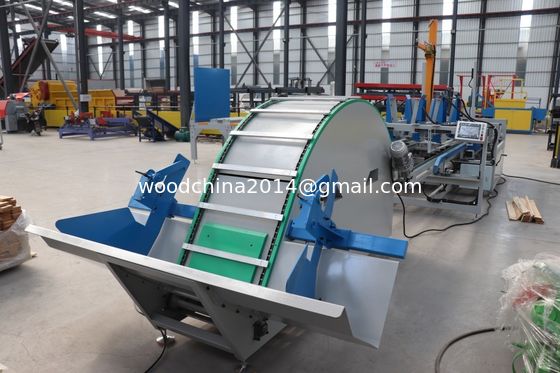

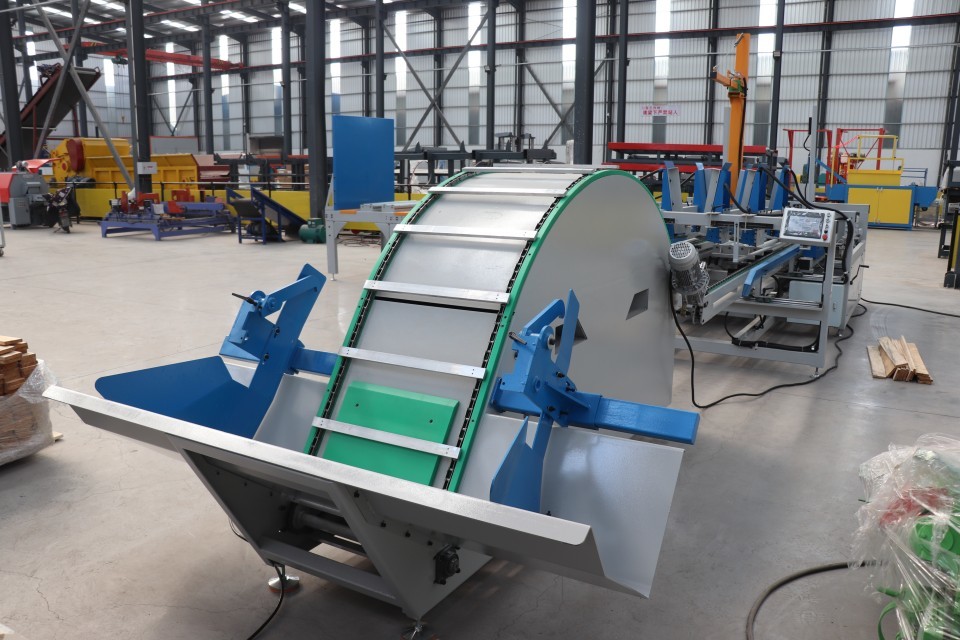

Wood Planks Timber Stacking Machine Automatic Pallet Wood Boards Conveying Stacker Machine 0

Automatic Wood Cut Off Saw Machine

Model	DZ-450	DZ-600
Saw Blade diameter	450mm*30mm	600mm*30mm
Feeding table length	2m/ 4m/ 6m	2m/ 4m/ 6m
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30- 300mm
Cutting section thickness*width	Max. 120150mm,100200mm	Max.120300mm,140280mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, 0.5-0.7Mpa	Cylinder, 0.5-0.7Mpa
Cutting tolerance	In +/-1mm	In +/-1mm
Dust collection port	100mm*2pc	100mm*2pc
Electrical components	Schneider	Schneider
PLC Touching screen	Siemens	Siemens
Voltage	380v 50Hz 3 phase	380v 50Hz 3 phase

Wood Planks Timber Stacking Machine Automatic Pallet Wood Boards Conveying Stacker Machine 3

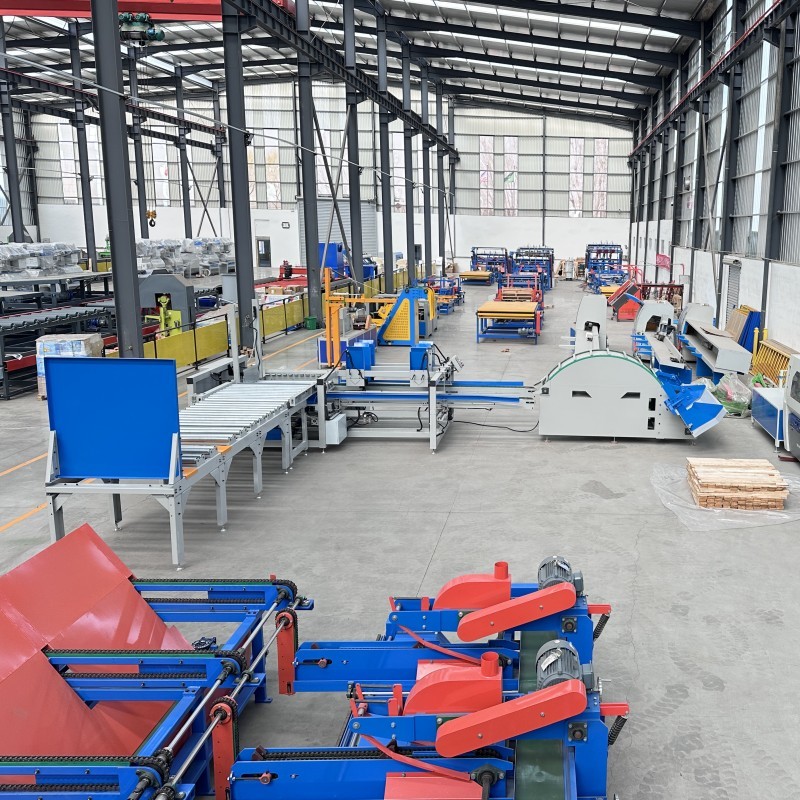

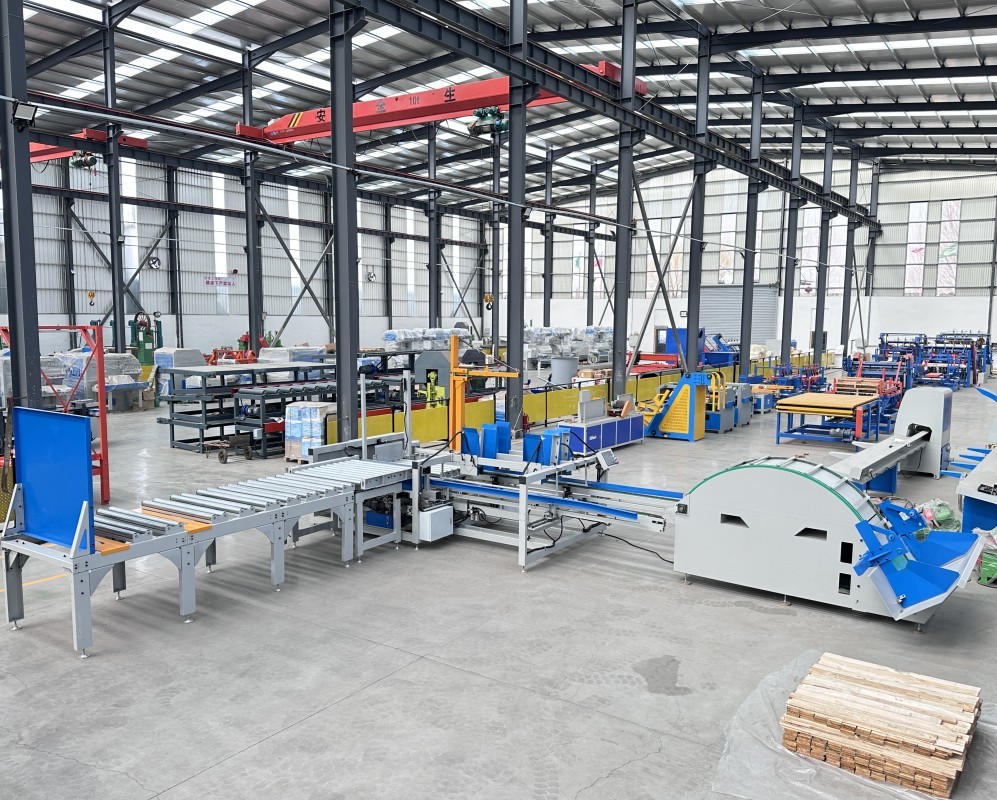

Pallet Production Line

Wood Planks Timber Stacking Machine Automatic Pallet Wood Boards Conveying Stacker Machine 5
