Detail Information

Machine Type:	Pallet Timber Stacking Machine	Operation Mode:	Touch Screen
Stacking Length:	700-1400mm Or As Customer Needs	Stacking Width:	700-1400mm
Stacking Height:	0-1100mm	Power:	5.5kw
Total Weight:	3500kgs	Color:	Customer's Request
Quality Guarantee:	1 Year	After-sales Service:	Video Technical Support
Highlight:	Automatic Wood Stacking Machine , Wood Plank Palletizer , Woodworking Timber Stacker

Product Description

Fully Automatic Timber Finishing & Stacking Machine for Wood Processing

High-Efficiency Wood Stacking Solution

Our Automatic Stacker Stacking Machine is designed for high-speed, precision stacking of wood and timber in finishing lines. With a productivity rate of 8-12 layers per minute, it ensures seamless workflow integration while maintaining consistent stacking quality.

Key Features & Benefits

✔ Smart Height Calculation – Automatically adjusts stacking height with a maximum capacity of 1100mm, ensuring optimal space utilization.
✔ Programmable Partition Silo – Customize partition release timing based on different stacking requirements for enhanced flexibility.
✔ Continuous Operation – Equipped with full-stack sensors that trigger automatic transfer to the exit conveyor, allowing uninterrupted feeding and stacking.
✔ User-Friendly Touchscreen Control – Intuitive interface for easy operation and real-time adjustments.
✔ Durable Electrical Components – Built with high-quality parts for long-lasting performance and minimal downtime.
✔ Seamless Integration – Compatible with resaws, cut-off saws, notchers, chamfering machines, moulders, and other wood processing equipment.

Customizable Solutions for Your Needs

We offer tailor-made configurations to match your production demands, ensuring maximum efficiency and automation in your woodworking workflow.

Ideal Applications

Timber & lumber finishing lines
Pallet & packaging wood production
Furniture & flooring manufacturing
Custom wood processing plants

Technical Data

Model	ZL1400
Stacking Plate Length	700-1400mm
Stacking Plate Width	700-1400mm
Stacking Plate height	0 to 1100mm
Motor Power	5.5kW
Control	Touch Screen+PLC
Weight	3500kgs

Detailed Images

Automatic Wood Stacking Machine Wood Plank Palletizer Woodworking Timber Stacker 0

Automatic Wood Cut Off Saw Machine

Model	DZ-450	DZ-600
Saw Blade diameter	450mm*30mm	600mm*30mm
Feeding table length	2m/ 4m/ 6m	2m/ 4m/ 6m
Discharge table length	1200mm	1200mm
Cutting height	10-120mm	10-140mm
Cutting width	30- 200mm	30- 300mm
Cutting section thickness*width	Max. 120150mm,100200mm	Max.120300mm,140280mm
Feeding speed	5-30m/min	5-30m/min
Cutting speed	40pcs/min	45pcs/min
Cutter spindle rotation speed	3000rpm	3000rpm
Servo drive motor power	0.75kw	1kw
Cutting motor power	7.5kw/11HP	11kw/15HP
Total power	8.5kw	12.5kw
Pressing method	Cylinder, 0.5-0.7Mpa	Cylinder, 0.5-0.7Mpa
Cutting tolerance	In +/-1mm	In +/-1mm
Dust collection port	100mm*2pc	100mm*2pc
Electrical components	Schneider	Schneider
PLC Touching screen	Siemens	Siemens
Voltage	380v 50Hz 3 phase	380v 50Hz 3 phase

Automatic Wood Stacking Machine Wood Plank Palletizer Woodworking Timber Stacker 3

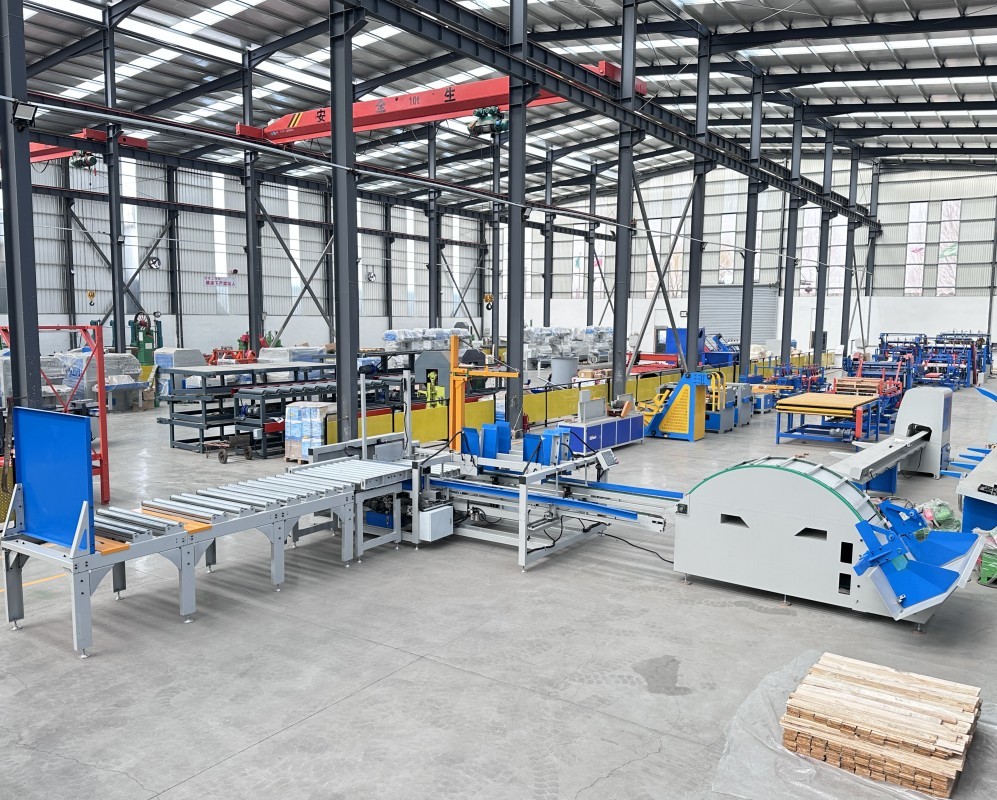

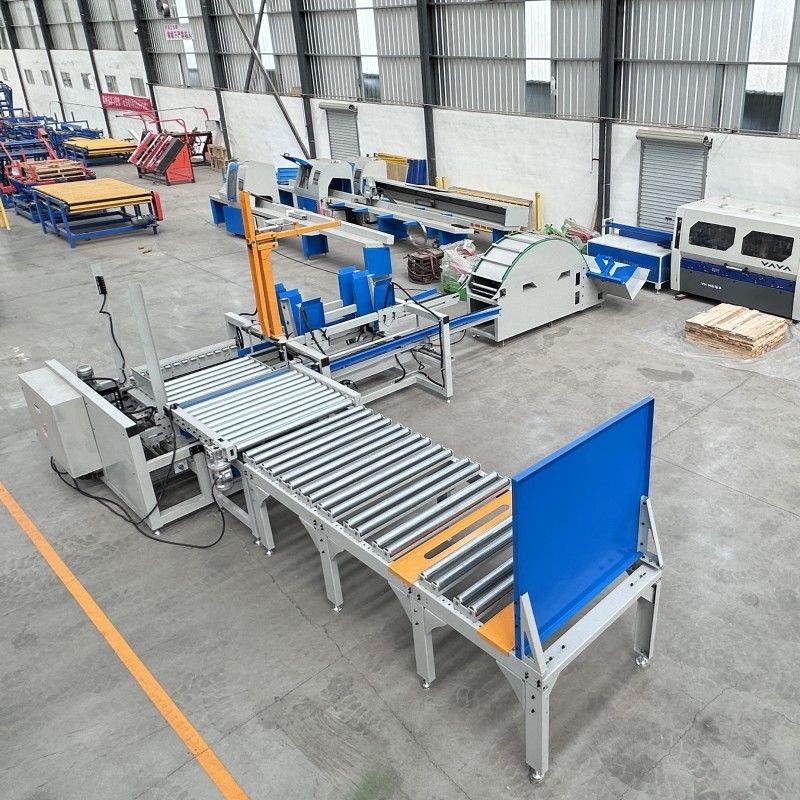

Pallet Production Line

Automatic Wood Stacking Machine Wood Plank Palletizer Woodworking Timber Stacker 5

Why Choose Our Automatic Stacker?

✅ Boosts productivity with fast, automated stacking
✅ Reduces manual labor with intelligent sensor-based operation
✅ Enhances workflow consistency with programmable settings
✅ Adaptable to various wood types & sizes

Upgrade your production line with our high-performance stacking machine—designed for speed, precision, and reliability. Contact us today for a customized solution!

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	ZL1400

Minimum Order Quantity:	1 SET
Price:	US $26,700 - 30,000 / Set
Packaging Details:	luo packing of wood finishing and palletizing machine
Delivery Time:	about 20 days after receiving deposit
Payment Terms:	T/T, Western Union
Supply Ability:	500sets/year
