Detail Information

Name:	Wood Shavings Sawdust Block Production Line	Head Quantity:	4head, 6head
Capacity:	4-6m3/24hour, 6-8m3/24hours	Gkue Water Amount:	100-120kgs/m3
Density:	550-600kgs/m3	Motor Power:	16 To 24kw
Block Size:	75 X 75mm, 80 X 100mm, 90x90mm, Etc As Customer Needs	Weight:	1500kgs, 2200kgs
Warranty:	1 Year	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	automatic wood pallet block machine , compressed sawdust pallet production line , hot extruder wooden pallet maker

Product Description

Compressed Wood Sawdust Hot Extruder Automatic Wooden Pallet Block Making Production Line Machine

Product Attributes

Attribute	Value
Name	Wood Shavings Sawdust Block Production Line
Head quantity	4head, 6head
Capacity	4-6m3/24hour, 6-8m3/24hours
Glue water amount	100-120kgs/m3
Density	550-600kgs/m3
Motor power	16 to 24kw
Block size	75 x 75mm, 80 x 100mm, 90x90mm, etc as customer needs
Weight	1500kgs, 2200kgs
Warranty	1 Year
After-sales service	video technical support, spare parts

Overview

The compressed wood pallet feet making machine transforms waste wood and other wood-fiber-rich materials into high-quality pallet blocks, serving as an ideal replacement for traditional solid wood pallet feet. These blocks are widely used in European pallets, offering superior durability, waterproofing, and cost-efficiency while complying with international export standards (no fumigation required).

Specifications

Model	Four Head WBM-4	Six head WBM-6
Head/Outlet Quantity	Four Head	Six Head
Size(mm)	48005801420	49009401420
Capacity	4-6m3/24h	6-8m3/24h
Glue Water Amount	100-120kg/m³	100-120kg/m³
Density	550-600kg/m³	550-600kg/m³
Power	16-18kW	24kW
Weight	1500kg	2200Kg

Various Sizes Can Be Customized: 75*75mm, 80*100mm, 80*120mm, 90*90mm, 90*140mm, 100*100mm, 100*115mm, 100*140mm, 140*140mm

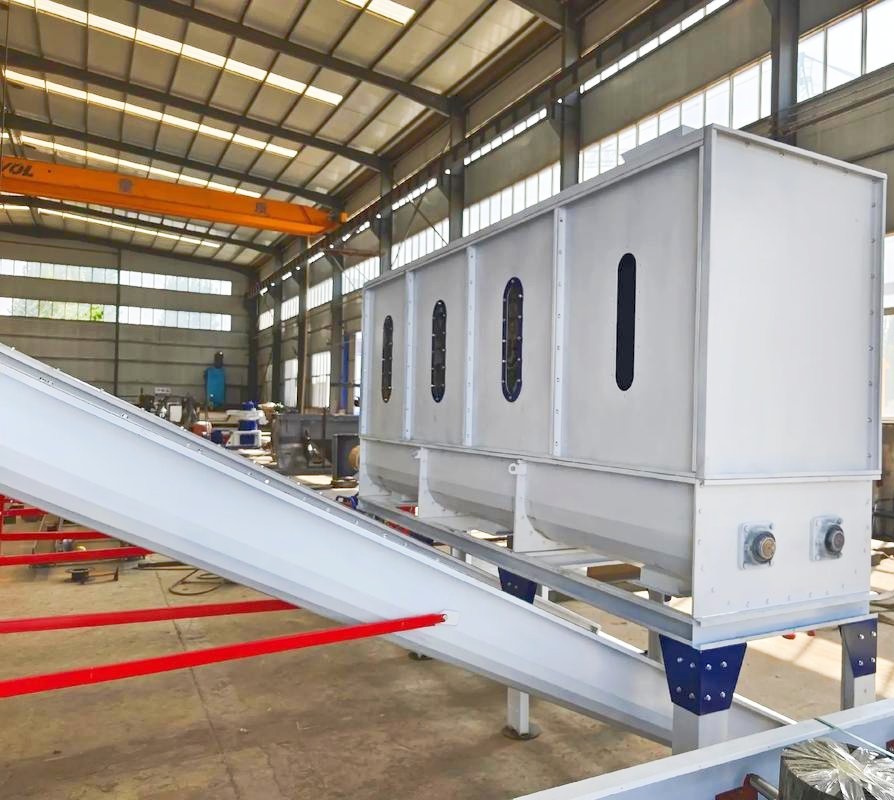

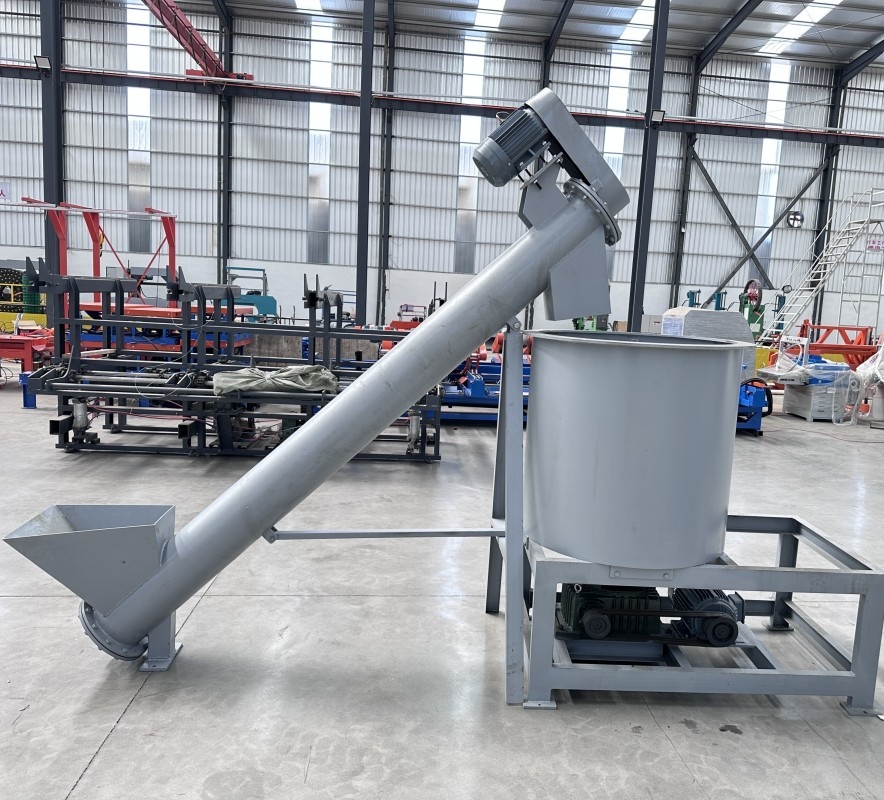

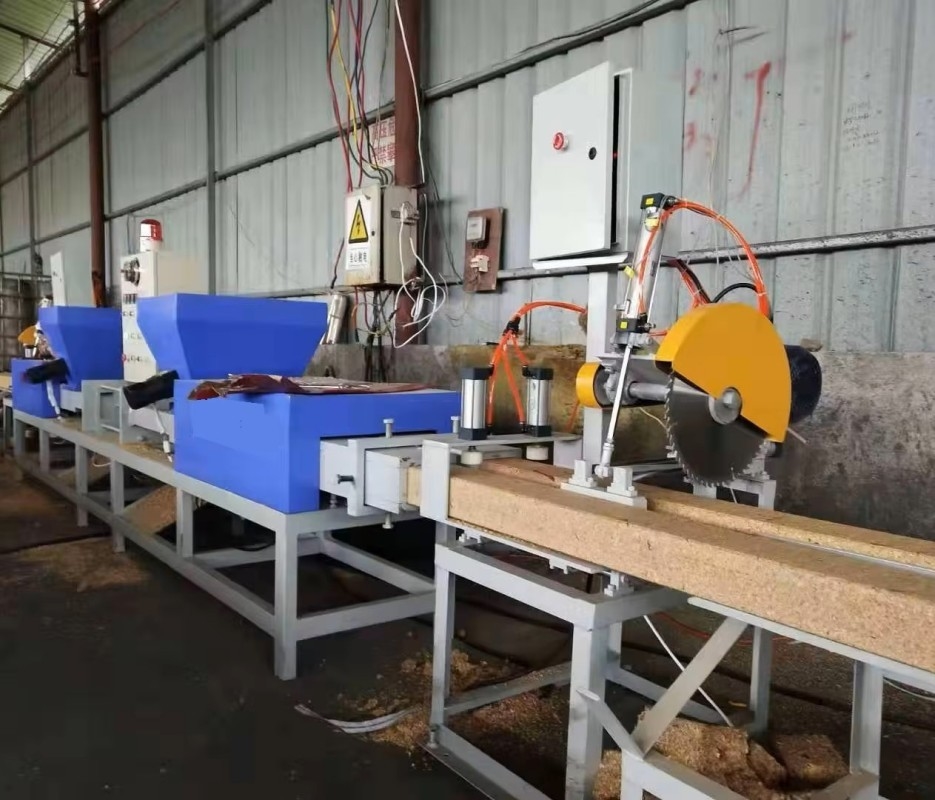

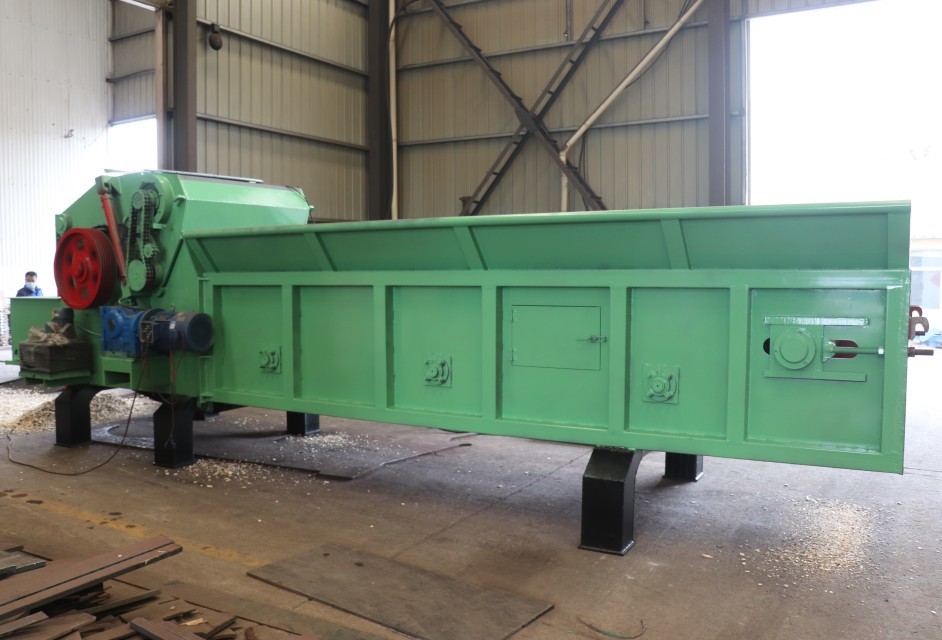

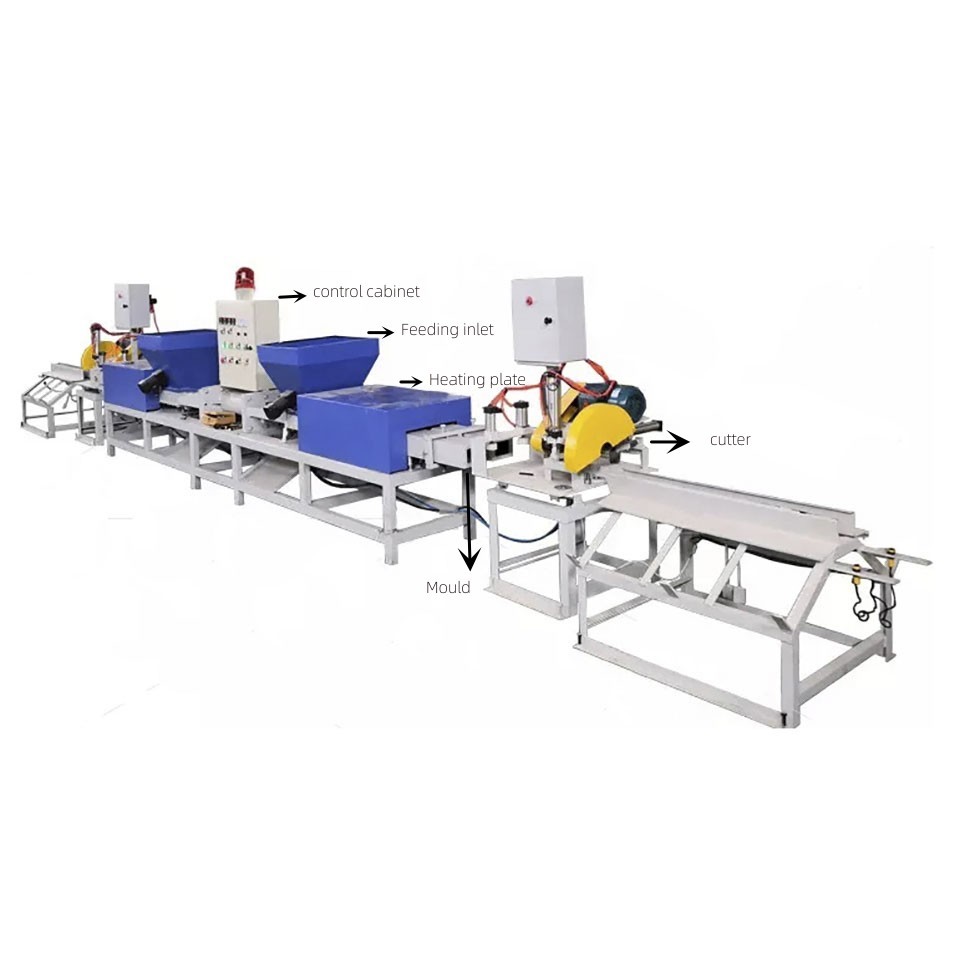

Product Images

Key Features & Benefits

1. High-Quality, Durable Pallet Blocks

Smooth & Sturdy Surface - Precision-engineered for a flat finish, ensuring seamless pallet assembly.
Waterproof & Weather-Resistant - No cracking after 48 hours of water immersion or exposure to wind and sunlight.
Exceptional Nail-Holding Strength - Vertical screw holding force: 1,590N; flat screw holding force: 1,660N.
Strong Internal Bonding - Internal bonding strength reaches 1.07 MPa, ensuring long-lasting performance.

2. Eco-Friendly & Cost-Effective Production

Uses Waste Wood & Recyclable Materials - Reduces deforestation and lowers production costs.
No Fumigation Required - Complies with ISPM-15 standards for international shipping.
Low Formaldehyde Emission (E2 Standard) - Meets national environmental regulations.

3. Customizable Sizes & Molds

The machine can produce pallet blocks in various dimensions, including (but not limited to):

75×75 mm
80×100 mm / 80×120 mm
90×90 mm / 90×140 mm
100×100 mm / 100×115 mm / 100×140 mm
140×140 mm

Custom molds can be designed to meet specific customer requirements (75 mm to 145 mm).

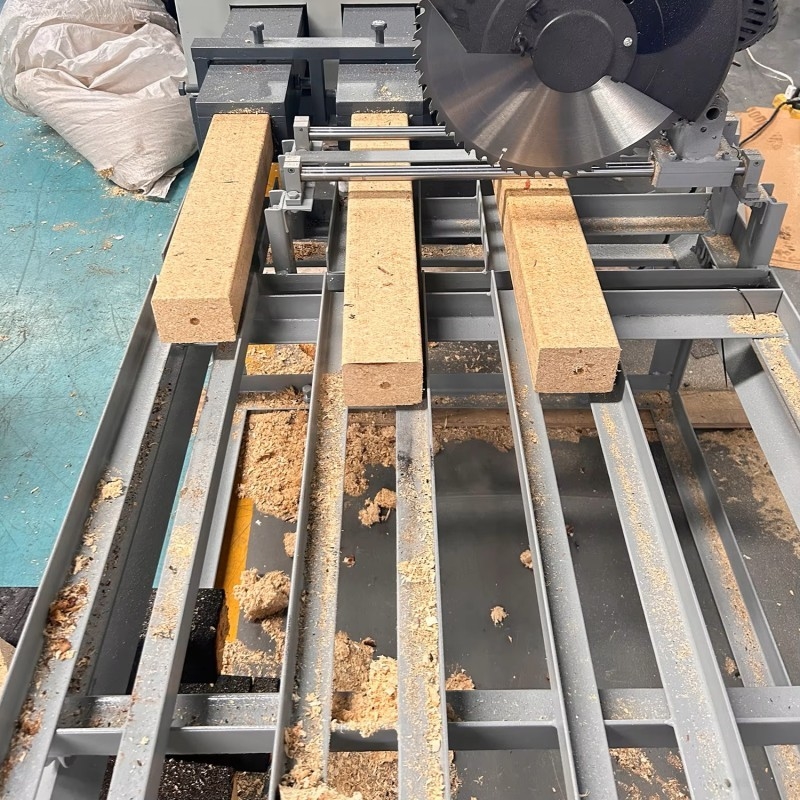

Related Products: Automatic Pallet Block Cutting Machine

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

Why Choose Our Machine?

✔ High Efficiency - Continuous production with minimal downtime.
✔ Low Maintenance - Robust design for long-term operation.
✔ Export-Ready Pallets - No fumigation or heat treatment needed.
✔ Cost Savings - Utilizes low-cost recycled materials without sacrificing quality.

Upgrade your pallet production with our compressed wood pallet feet making machine--delivering strength, sustainability, and customization for modern logistics needs!

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SBM-4, WBM-6

Minimum Order Quantity:	1 SET
Price:	US $7,800 - 18,500 / Set
Packaging Details:	container loading of wood chamfer machine
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1500sets/year
