Detail Information

Name:	Euro Pallet Block Nailing Machine	Capacity:	600P/H
Power(w):	1.5KW Servomotor	Block Width:	60-150mm
Board Length:	600-1300mm Or As Customer Needs	Nail Gun:	Stanley BOSTITCH Stitch Gun70mm*3
Nailing Method:	1 Nail, 2nails, 3nails, 4nails, 5nails	Warranty:	12 Month After Receiving The Machine
Labor Needed:	1 Operator	After-sales Service Provided:	Commissioning And Training, Video Technical Support

Product Description

Automatic Euro Pallet Block Nailing Machine

– High-Efficiency Automated Pallet Production

Overview

Our Automatic Euro Pallet Block Nailing Machine is a heavy-duty, high-performance industrial solution designed for the automated assembly of Euro pallet blocks and stringers. It streamlines the traditional, labor-intensive nailing process, ensuring maximum safety, uniform quality, and high-speed output.

Technical Highlights & Features:

Advanced PLC Control System: User-friendly touch screen interface allows for quick adjustment of nail spacing, block dimensions, and production speed.
High Compatibility: Perfectly handles standard Euro pallet blocks ( $145 times 145text{ mm}$ , $145 times 100text{ mm}$ , etc.) with precise positioning.
Pneumatic / Hydraulic Nailing System: Delivers strong, consistent driving force, ensuring nails are perfectly flush or countersunk according to your requirements.
Automatic Pallet Nailing Machine & Stacking (Optional): Can be customized with automatic pallet nailing machine and pallet stackers to minimize manual handling.
Durable & Robust Design: Built with high-grade industrial steel to withstand continuous, high-intensity factory environments.

Technical data

Model	SLDJ-1300-3
Block width	60-150mm
Board Length	600-1300mm
Nail gun	Stanley BOSTITCH Stitch gun70mm*3
Air pressure	0.8MPA
Nail gun speed	4-8 s/time
Motor power	1.1KW Servomotor
Capacity	600P/H
Voltage	220V(Customized)
Operating mode	Touch screen
Production mode	Manual discharge/automatic pin pier
Machine size	250018002100mm

Images

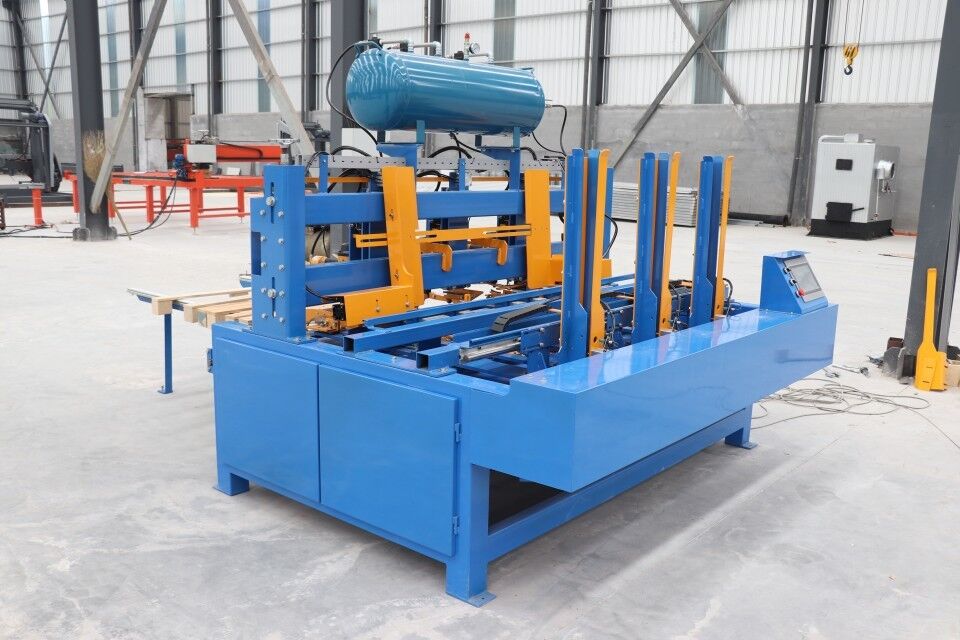

Heavy-Duty European Standard (EPAL) Pallet Block Nailing Equipment- Factory Direct Price 0

Heavy-Duty European Standard (EPAL) Pallet Block Nailing Equipment- Factory Direct Price 2

Applications & Benefits

Ideal for Euro pallet manufacturing, block pallet production, and custom pallet assembly.
Suitable for large-scale industrial operations requiring high-speed, repeatable nailing precision.
Reduces production time and costs while maintaining consistent, high-quality output.

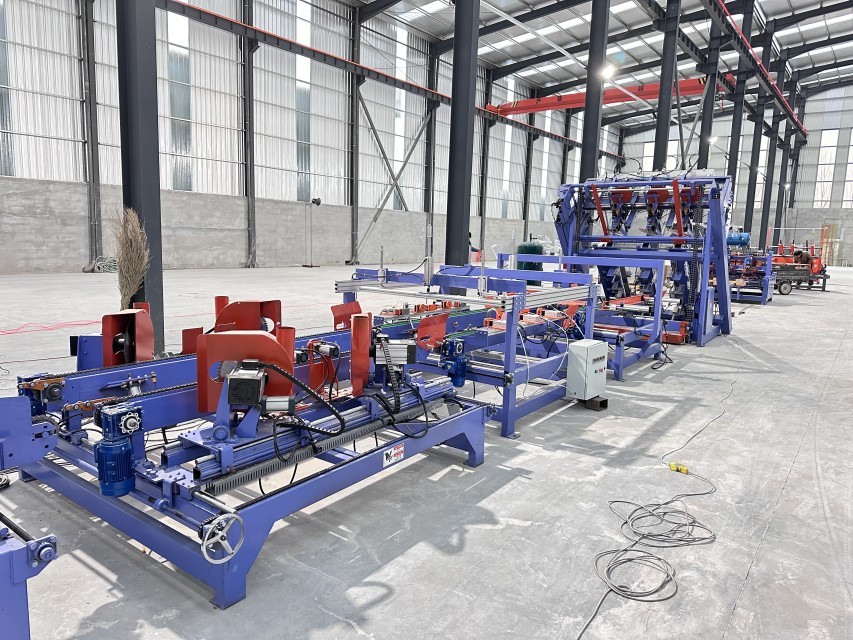

Wood Pallet Production Line

Pallet block nailing machine + Automatic pallet nailing machine + Rotating machine + Logo Branding machine

+ Pallet corners cutting machine + Pallet turnover machine + Stacking/Palletizing machine + Conveyor

are connected into a production line.

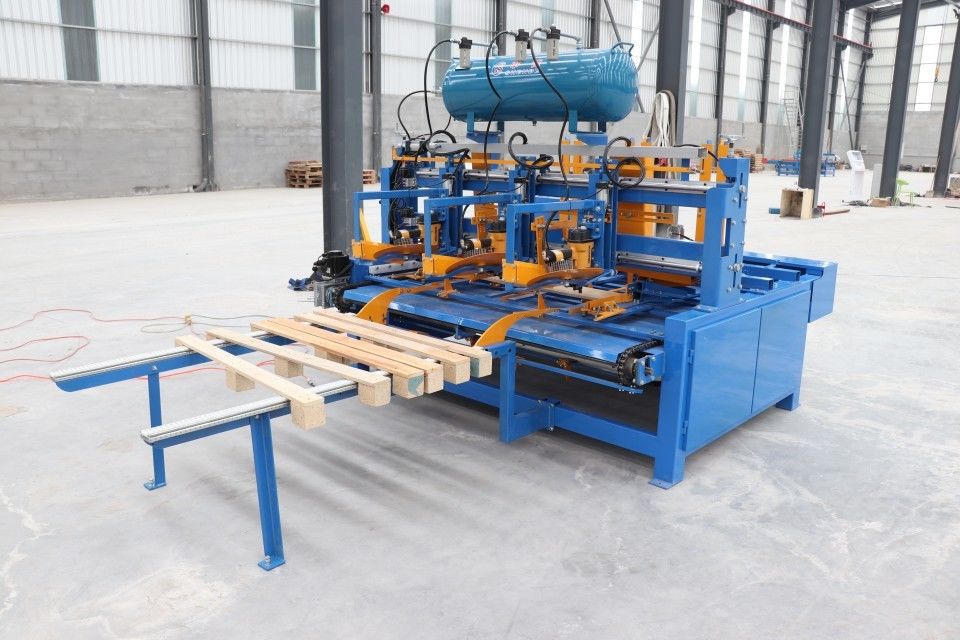

Heavy-Duty European Standard (EPAL) Pallet Block Nailing Equipment- Factory Direct Price 4

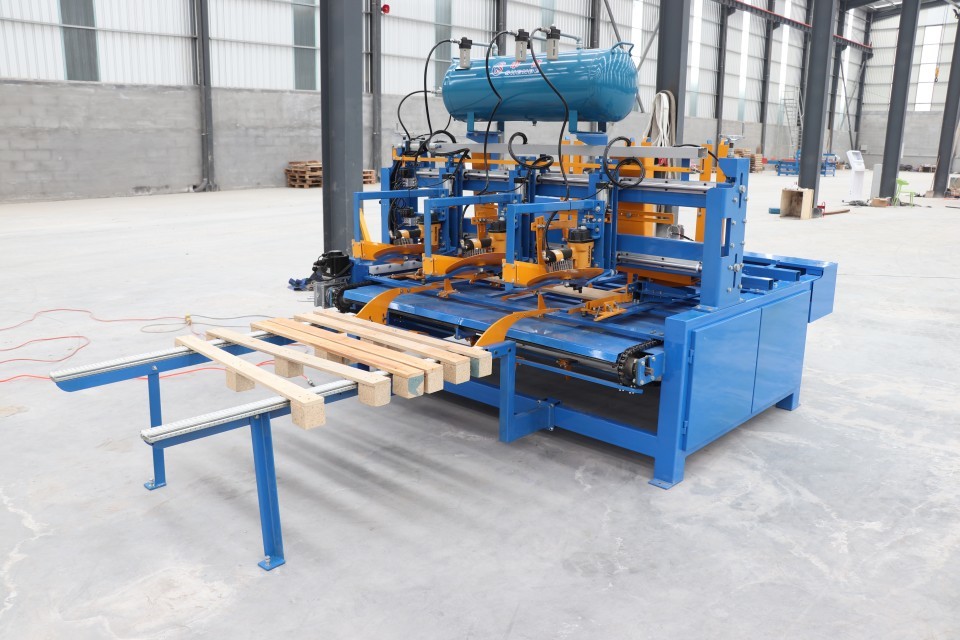

Heavy-Duty European Standard (EPAL) Pallet Block Nailing Equipment- Factory Direct Price 5

Related Hot Selling Machines

Plywood pallet block nailing machine

Model	PB200
Working mode	Automatic feeding ,automatic nailing and cutting
Operating mode	Touch screen control
Operational mode	Pneumatic operation
Motor power	7.5KW,2.2KW*2,1KW
Raw material length	1000-3000mm
Block Length	40-200mm
Cutting height	40-120mm
Cutting width	40-100mm
Cutting blade	350-400mm
Number of planer	2
Nail quantity	1-3 pcs (adjustable)
Working Efficiency	5-6m3/day
Voltage	380V/3 Phase
Weight	1200Kg
Dimension	540014001600mm

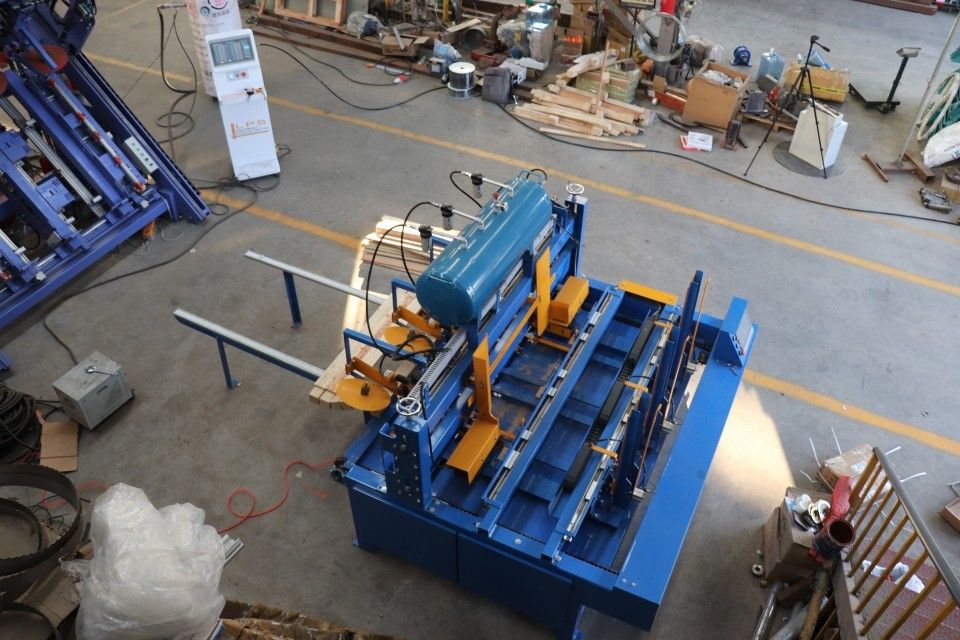

Heavy-Duty European Standard (EPAL) Pallet Block Nailing Equipment- Factory Direct Price 6

Wood block multi-blade saw

Model	BM-1250
Cutting Length	1250mm
Cutting Thickness	100mm
Cutting Width	200mm
Saw Diameter	355mm
Motor	30kw
Weight	1600kg

Heavy-Duty European Standard (EPAL) Pallet Block Nailing Equipment- Factory Direct Price 8

Heavy-Duty European Standard (EPAL) Pallet Block Nailing Equipment- Factory Direct Price 9

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001,CE
Model Number:	SLDJ-1300-3, etc
Document:	wood pallet nailing machine...ne.pdf

Minimum Order Quantity:	1 SET wood pallet pier automatic connecting nailing machine
Price:	US $7,800 - 12,400 / Set
Packaging Details:	export packing or film wrapped container loading
Delivery Time:	within 20 days
Payment Terms:	T/T, Western Union
Supply Ability:	1000sets/year of wood pallet pier automatic connecting nailing machine
