Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number WPN-1, WPN-2
Minimum Order Quantity 1 SET
Price USD2800-3200/SET
Packaging Details wooden pallet or iron frame packings
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 300sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Pallet Notcher Condition New
Application Making Slot On The Boards Power(w) 15KW, 30kw
Processing Width 160mm, 90mm Processing Height 40mm To 60mm
Material Of Knife Hard Alloy Weight 490kgs, 1180kgs
Voltage 380V Or Customize For Client Style Single Faced
Warranty 1 Year After-sales Service Provided Online Support,commissioning And Training
Leave a Message
Product Description

Wooden Pallet Notcher Machine
1.usage: making slots for pallet
2.easy usage, high speed working

3.Technical data :

Model WPN-1 WPN-2
Power 15kw 30kw
Material of knife Alloy Alloy
Capacity 600-800pics/h 1800pics/h
Processing size Wood pallet length: max 1800mm Wood pallet length: max 1400mm
Wood pallet width: 160mm Wood pallet width: max 90mm
Wood pallet thickness:40-60mm Wood pallet thickness: 40-60mm
Slot depth: <45mm Slot depth: <45mm
Slot width: 200-230mm Slot width: 200-230mm
Machine size 1200*1100*1200mm 2300*1300*1300mm
Machine wight 400kg 1000kg
Feature Slot smooth, size consistent
Apply for many kinds of slots, also can customized.

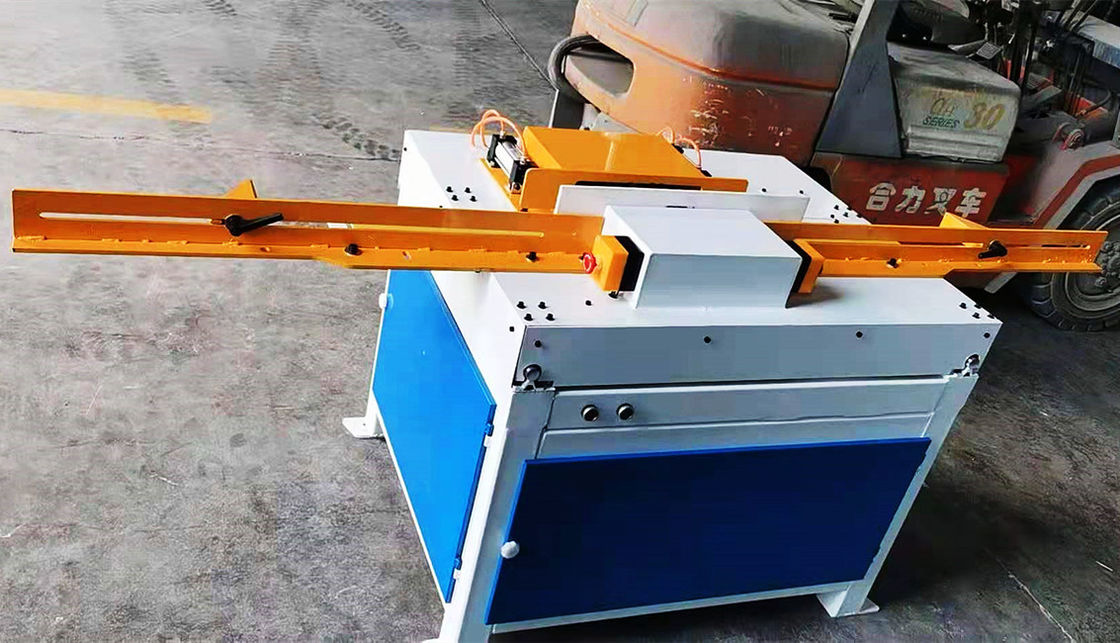

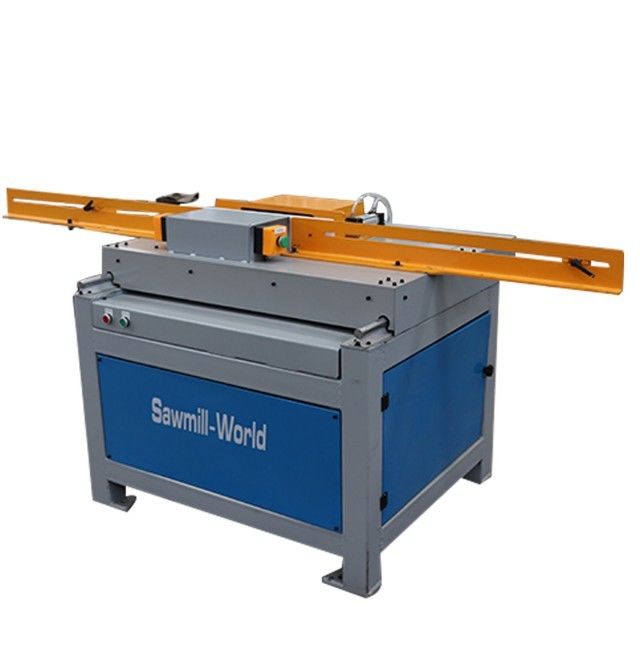

Single blade type
Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine 0
Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine 1

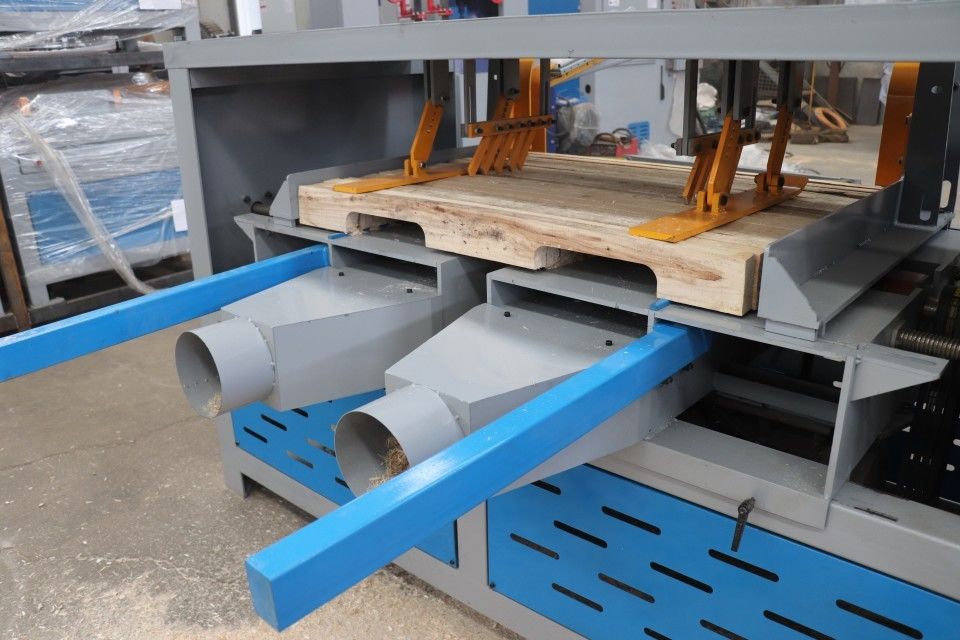

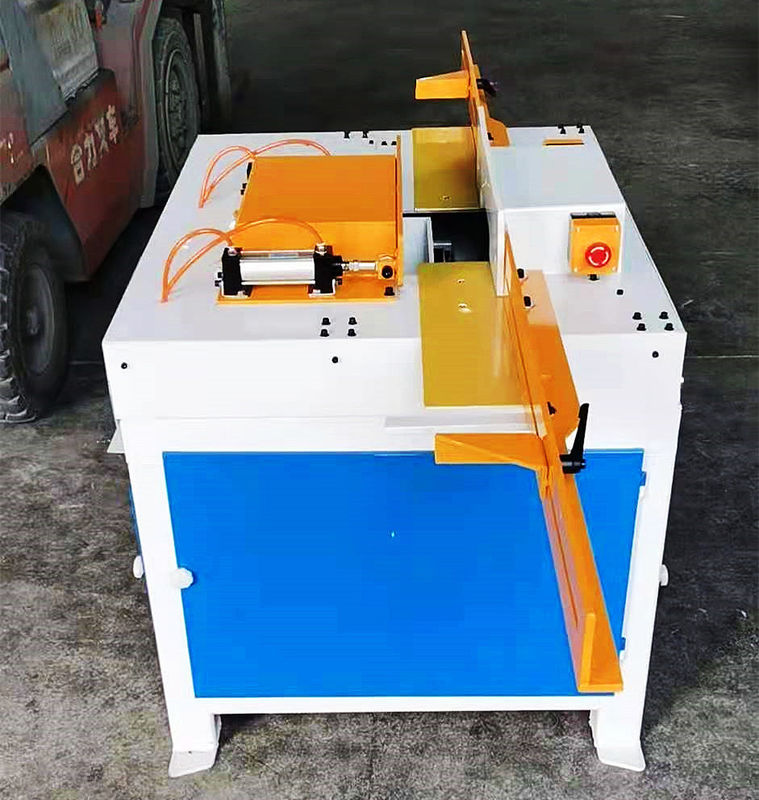

Double blade type
Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine 2
Automatic wooden pallet nailing machine

Model AWPN-1300
Wood pallet length 600-1300mm
Wood pallet width 800-1300mm
Working mode Automatic feeding and stacking
Operation mode Touch screen
Operational mode Pneumatic operation
Voltage and power 220V/ 2kw Servo motor
Air pressure 0.8MPA
Tank size 0.2 cubic
Nail gun speed 7 times /second.
Production efficiency 1-2pcs /min
Apply a nail Less than 90mm
Number of nail guns 3P OR 4P
Weight 2000kg
Size Host machine 1660*1970*2217mm
Stacking 2945*2054*1410


Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine 3Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine 4
Double Spindle Panel Cutting Multiple Blades Rip Saw
1.Used for Lumber/Panels/Planks Cutting
2.Max. cutting depth/thciness is upto 160mm
3.Max. cutting width is upto 400mm
4.Big motor power, fit for hardwood cutting
5.Blades is placed on up/down abrod/spindle .
6.We present one set discs on your cutting thickness

Specifications:

Model SH80-300 SH120-250 SH160-250
Max. sawing width 300mm 250mm 250mm
Max. sawing thickness 80mm 120mm 160mm
Min sawing length 600mm 500mm 500mm
Motor power 15kw x2 22kw x2 30kw x2
Saw blade diameter 180mm 230mm 255mm
Machine weight 1200kg 1800kg 2000kg
Model SH120-300 SH160-300 SH160-400
Max. sawing width 300mm 300mm 400mm
Max. sawing thickness 120mm 160mm 160mm
Min sawing length 600mm 600mm 600mm
Motor power 22kw x2 30kw x2 37kw x2
Saw blade diameter 230mm 280mm 280mm
Machine weight 2500kg 2800kg 3000kg
Feeding Variable frequency speed adjustable automatic feeding
Cooling blade Spindle center water cooling blade

Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine 5
Wood Pallet Stringer Notching Machine/Wood Pallet Notcher /slot milling machine 6
