| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | SHBH500-1,SHBH500-2,SHBH500-4, SHBH500-6, etc |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $3,900 - 12,800 / Set |
| Packaging Details: | wooden crates or iron frame packing |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1000sets/year |
| Condition: | New | Application: | Making Wood Shavings |
|---|---|---|---|
| Production Capacity: | 500-1500kgs | Voltage: | 380V/3phase/50hz Or As Customer Needs |
| Power(W): | 7.5-50kw | Dimension(L*W*H): | 2.6*0.7*1.1m,2.9*0.85*1.2m |
| Weight: | 700-1500kg | Warranty: | 12 Months |
| After-sale Service Provide: | Engineers Available To Service Machine Overseas | Raw Materials: | Wood, Log, Tree Branch Etc |
| Axle Quantity: | 1 - 6 Pcs | Blade Quantity: | 4-48 Pcs |

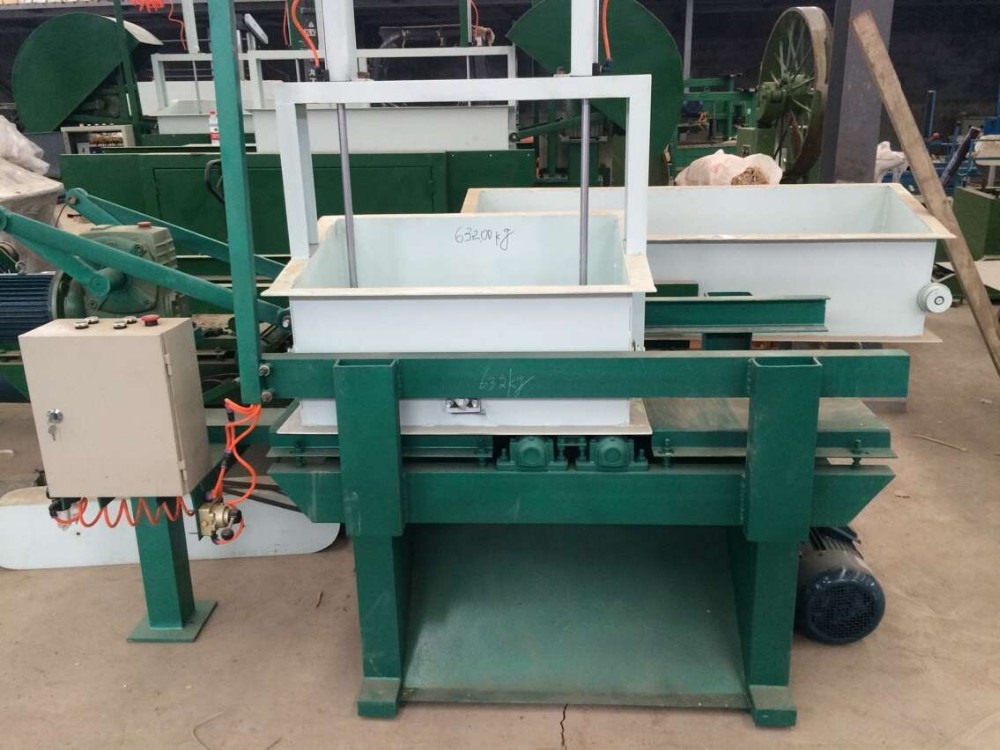

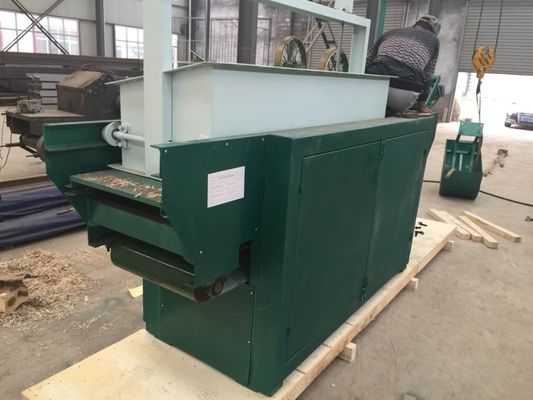

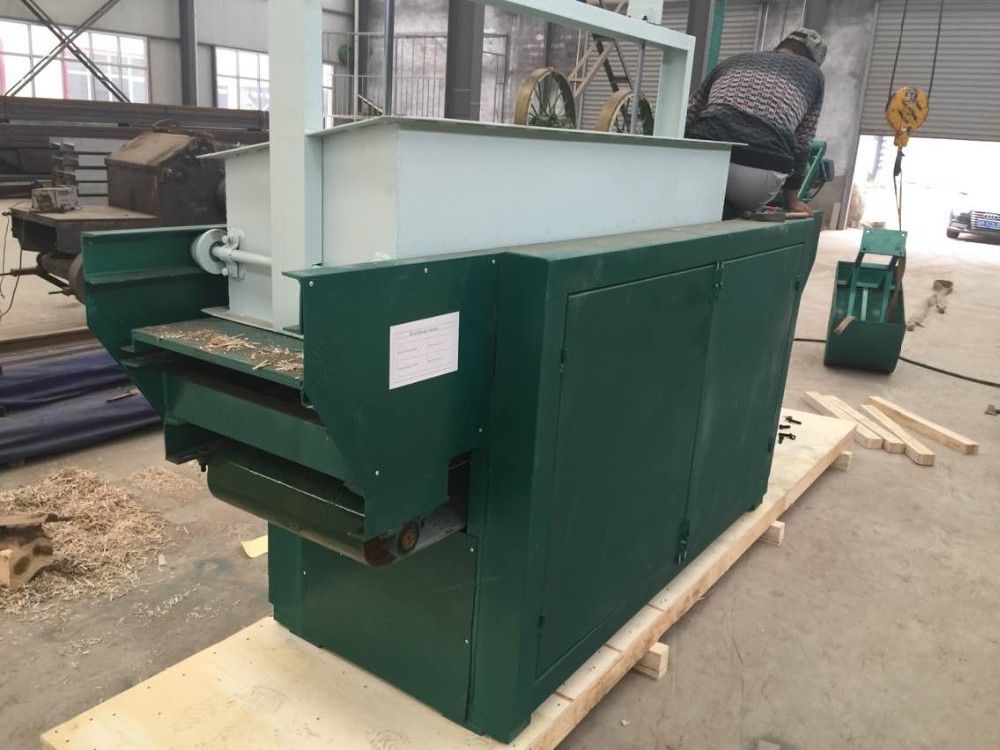

Wood Shaving Machine

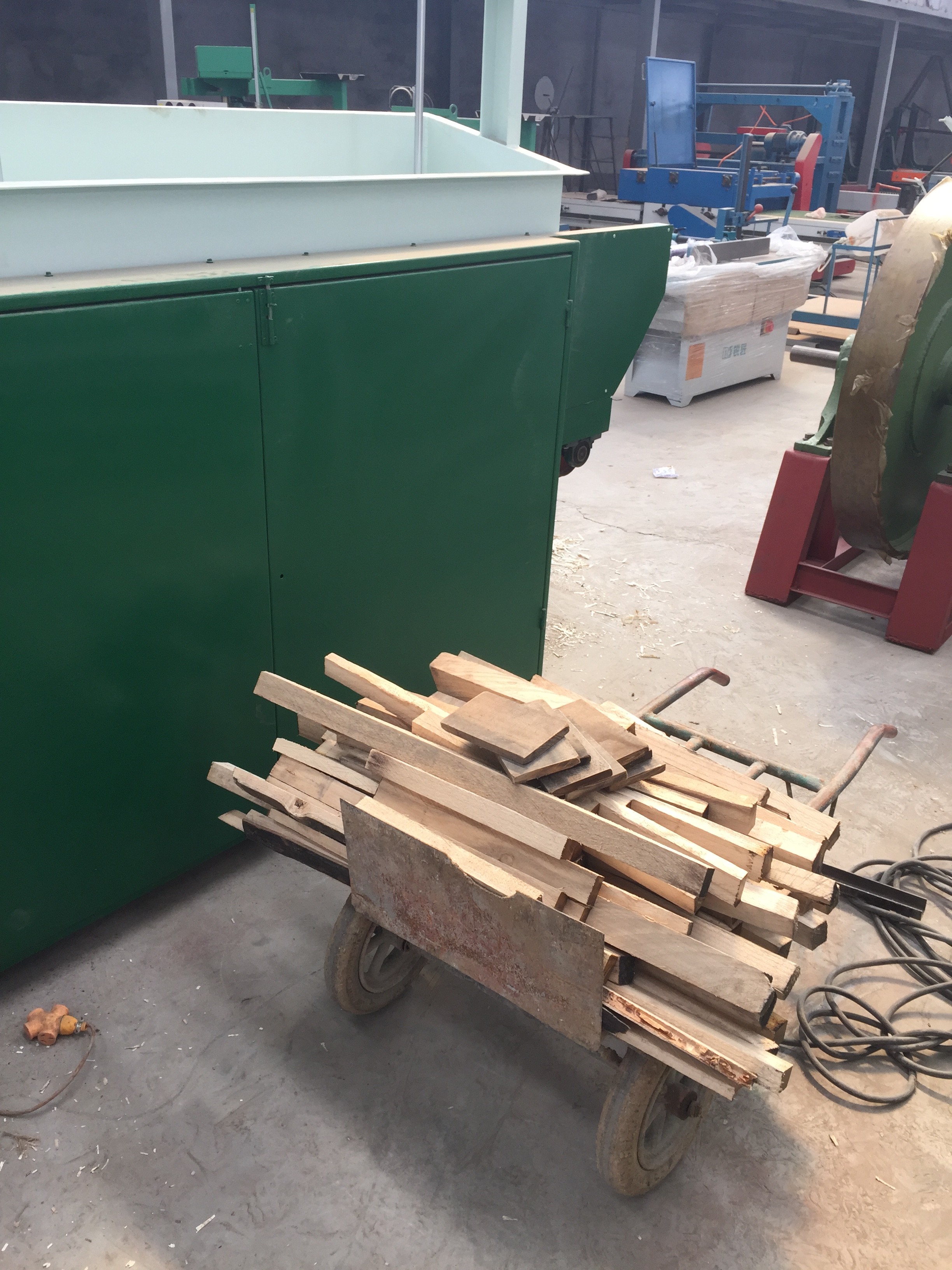

Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.
| Model | SHBH500-1 | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Max Processing Length | 800MM | 800MM | 1400MM | 1400MM |
| Max Processing Width | 500MM | 500MM | 500MM | 500MM |
| Axle Quantity | 1 | 2 | 4 | 6 |
| Blade Quantity | 4 | 8 | 16 | 24 |
| Speed (r/min) | 4500 | 4500 | 4500 | 4500 |
| Hopper Length (mm) | 800 | 800 | 1400 | 1400 |
| Total Power (kw) | 7.7KW | 10.5KW | 18.5KW | 25.5KW |
| Shaving Depth(mm) | 1-5 | 1-5 | 1-5 | 1-5 |
| Production(KG/Hour) | 250 | 500 | 1000 | 1500 |
| With pneumatic press cover | ||||
Diesel Engine Powered Wood Shaving Machine
| Model | SHD500-2 | SHD500-4D | SHD500-6 |
| Max Processing Length | 800MM | 1600MM | 1600MM |
| Production(KG/Hour) | 500 | 1000 | 1500 |
| Max Processing Width | 500MM | 500MM | 500MM |
| Axle Quantity | 2 | 4 | 6 |
| Blade Quantity | 8 | 16 | 24 |
| Speed R/Min | 3500 | 3500 | 3500 |
| Bucket Length | 800 | 1600 | 1600 |
| Diesel Engine | 22HP | 30HP | 40HP |
| Generator | 10KW | 15KW | 15KW |
| Shaving Depth(mm) | 0.2-2 | 0.2-2 | 0.2-2 |
