| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | SHBH500-2,SHBH500-4,SHBH500-6 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $3,900 - 9,800 / Set |

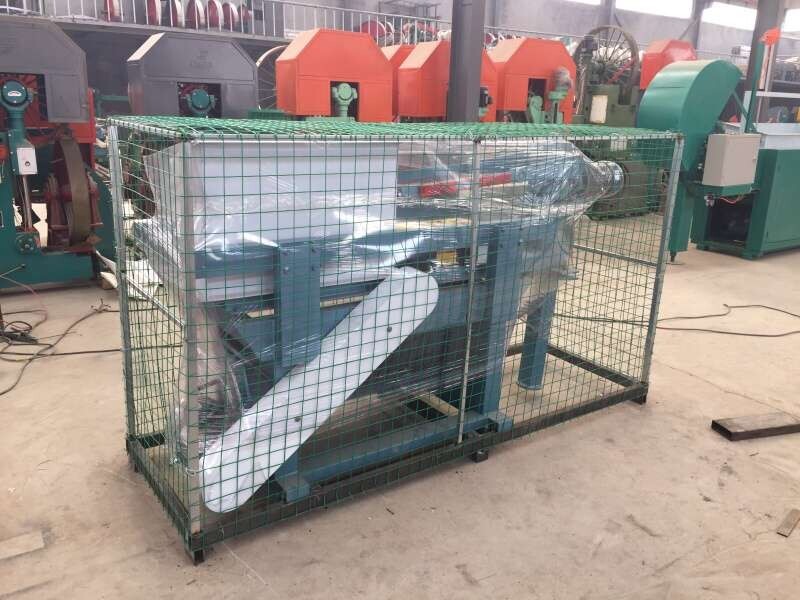

| Packaging Details: | wooden pallet or iron frame packings |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1000 Sets/year |
| Condition: | New | Application: | Make Wood Shavings |
|---|---|---|---|
| Production Capacity: | 250-1500kg/hour | Warranty: | 12 Months |
| Keywords: | Wood Shaving Machine,Wood Log Shaver,shaving Mill | Max Width Of Wood: | 500mm |
| Shaft Quantity: | 2 Shafts-6shafts | Applicable Industries: | Energy & Mining,Farms |

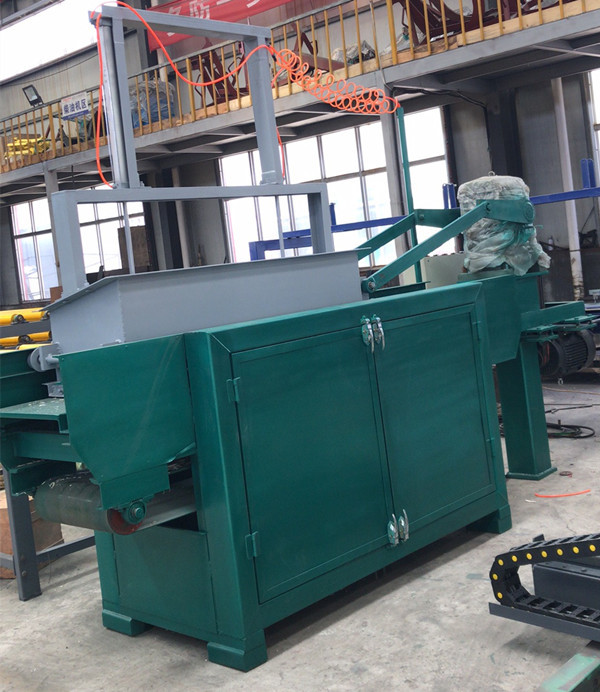

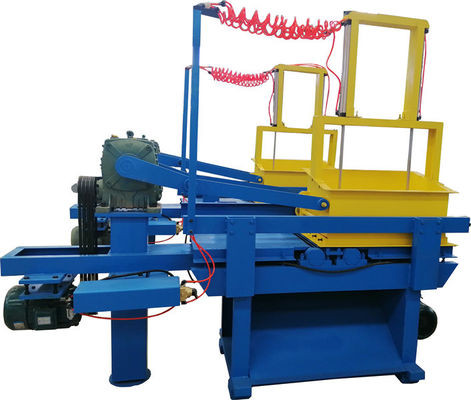

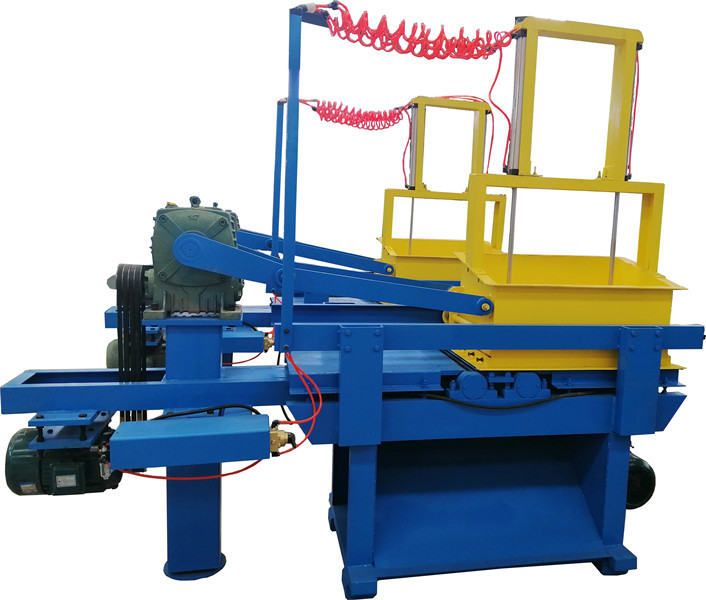

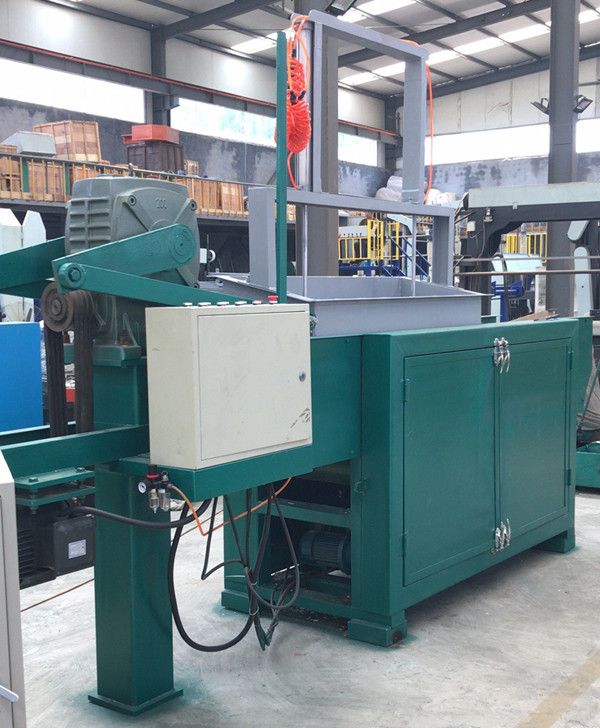

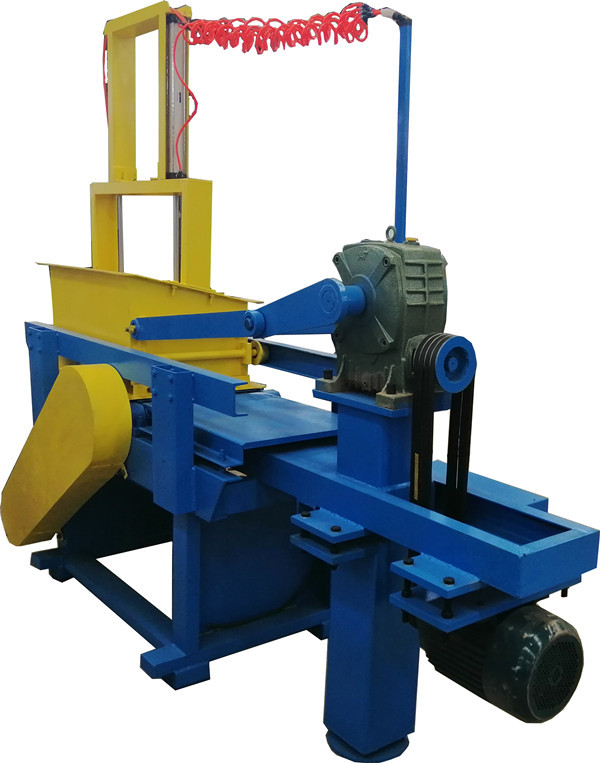

Wood Shaving Machine

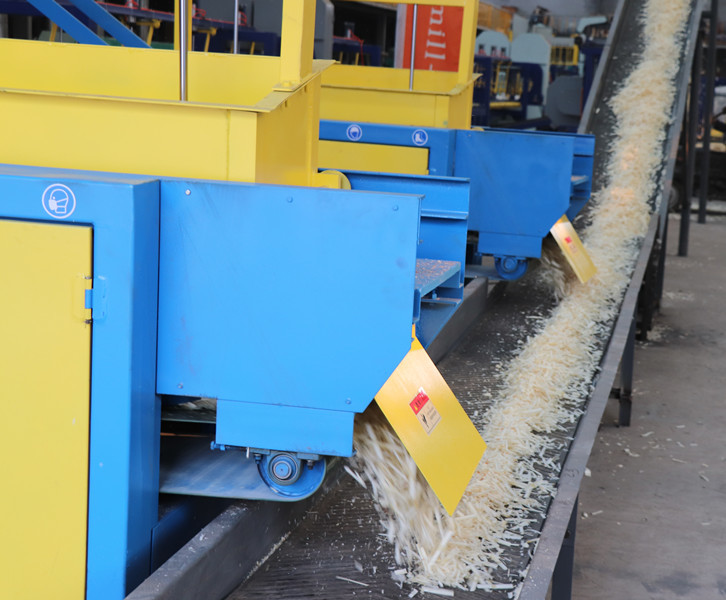

Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.
Working video link : https://youtu.be/hYl98MumWqI
video link : https://youtu.be/Ls9bCIdzzpU
Technical Specifications:
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Processing wood max. length(mm) | 800 | 1400 | 1400 |
| Processing max. width/diameter(mm) | 500 | 500 | 500 |
| Shaft quantity | 2 | 4 | 6 |
| Blade (pcs) | 8 | 16 | 24 |
| Motor speed (rpm) | 3500 | 3500 | 3500 |
| Bin length (mm) | 800 | 1400 | 1400 |
| Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
| Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
| Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
| Machine weight | 950kgs | 1800kgs | 2200kgs |
| 1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; | |||
