Detail Information

Product Name:	Wood Shaving Making Machine For Horse Chicken Animal Bedding	Production Capacity:	1000kg/hour
Usage:	Aimal Bedding,Chip.shaving.sawdust	Max Width Of Wood:	500mm
Max Length Of Wood:	1400mm	Dimension(lwh):	4500x 1100x1800mm
Weight:	2200kgs	Keywords:	Wood Shaving Machine,Wood Log Shaver,shaving Mill
After-sales Service Provided:	Video Technical Support	Voltage:	Customized
Color:	Cutomerized	Raw Materials:	Wood Logs Branch Waste Plate Material,log,tree Branch Etc.
Highlight:	pine wood sawdust mill , wood chipping machine for animal bedding , horse bedding wood shaving machine

Product Description

Wood Shaving Machine

Processing raw materials :Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.

Technical Specifications:

Model	SHBH500-2	SHBH500-4	SHBH500-6
Processing wood max. length(mm)	800	1400	1400
Processing max. width/diameter(mm)	500	500	500
Shaft quantity	2	4	6
Blade (pcs)	8	16	24
Motor speed (rpm)	3500	3500	3500
Bin length (mm)	800	1400	1400
Total Motor power (kw)	10.5KW	23.25KW	30.75KW
Shaving depth (mm)	0.2-1	0.2-1	0.2-1
Shavings output	500KG/H	1000KG/H	1500KG/H
Machine weight	950kgs	1800kgs	2200kgs
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity;

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 0

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 1

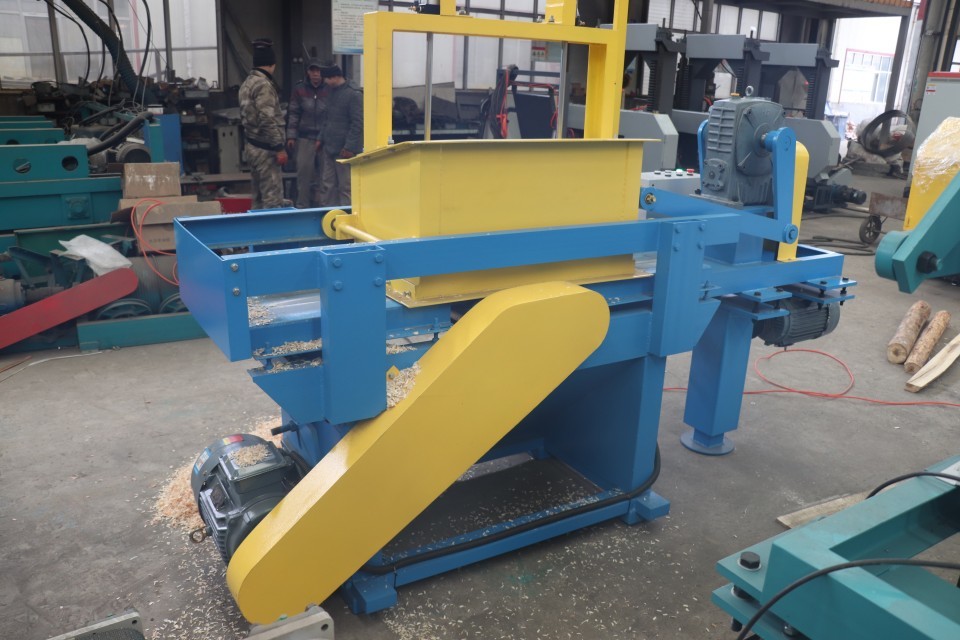

Normal type Wood Shaving Machine

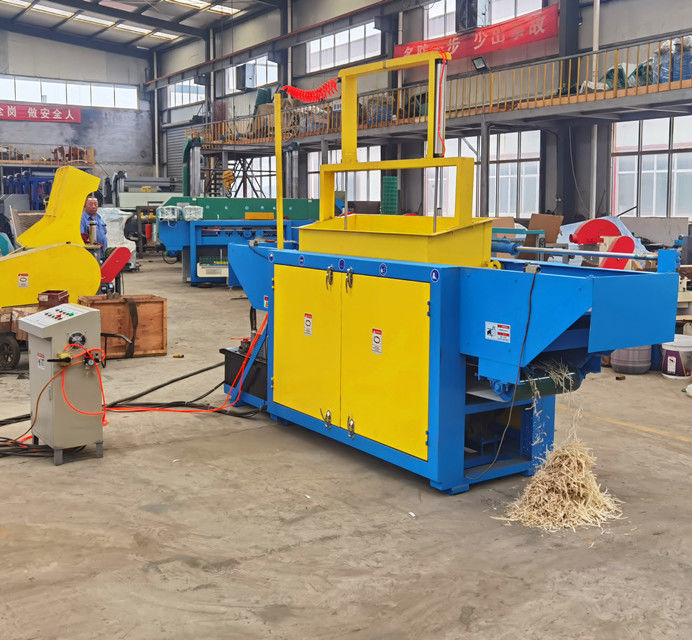

SHBH500-6

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 2

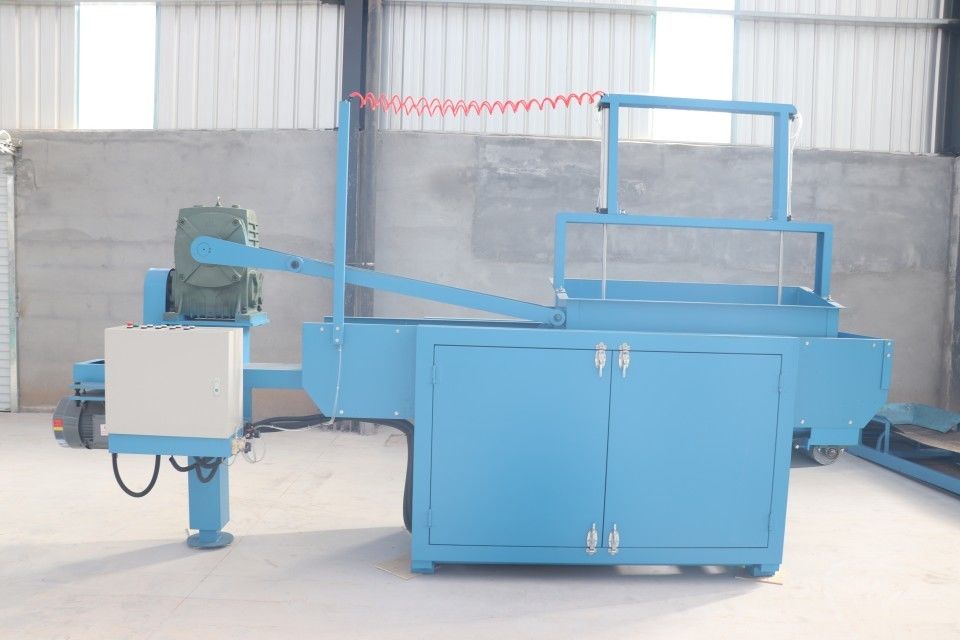

SHBH500-2

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 3

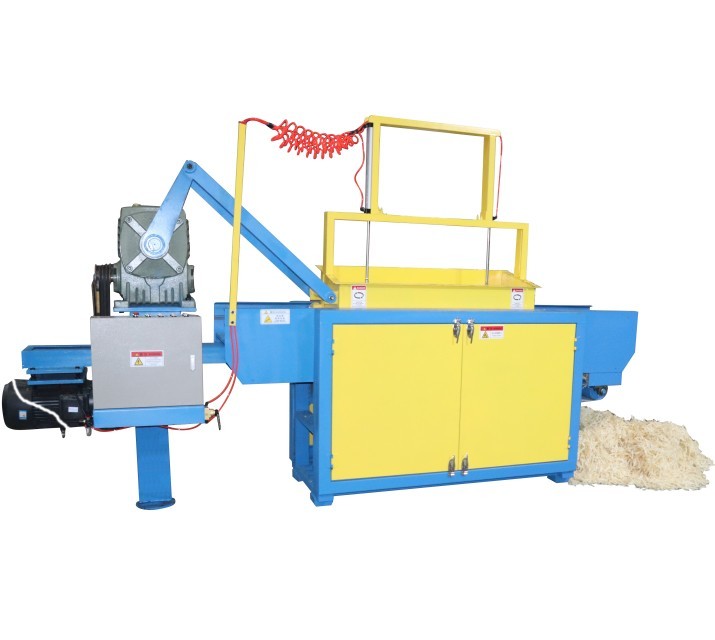

Control cabinet

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 4

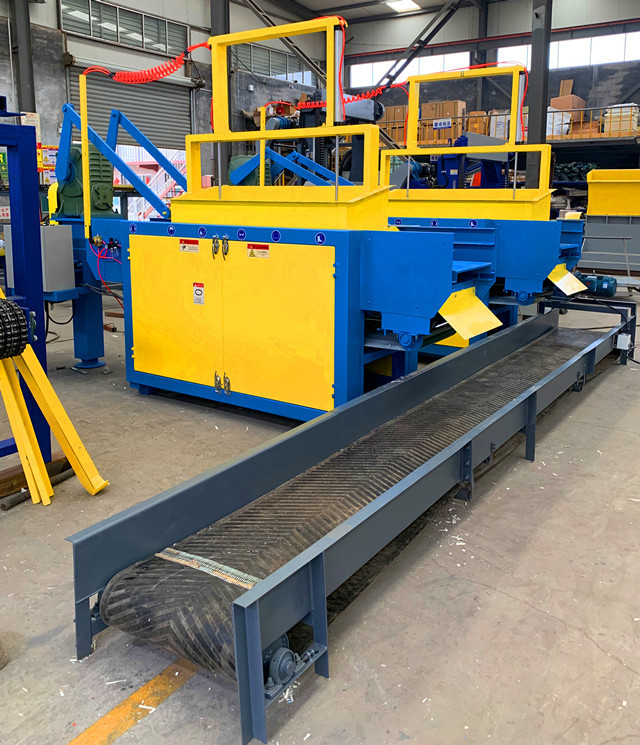

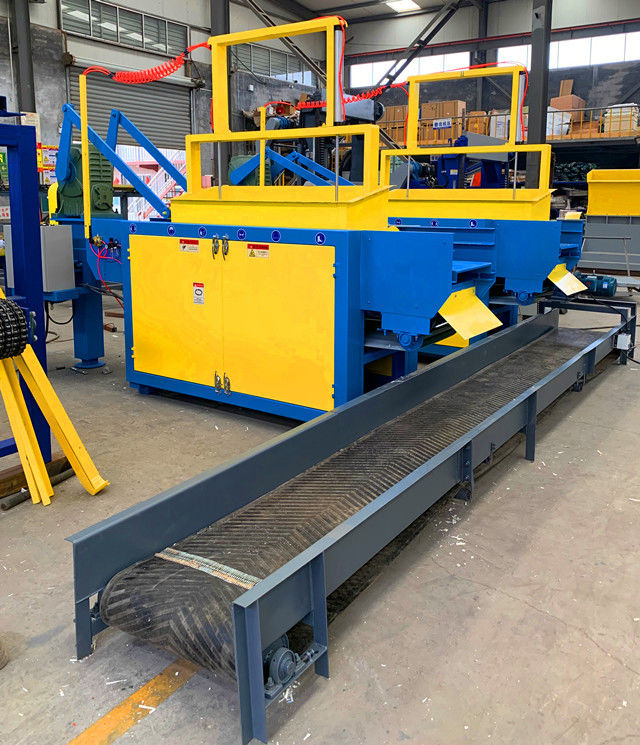

Optional - shavings conveyor

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 5

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 6

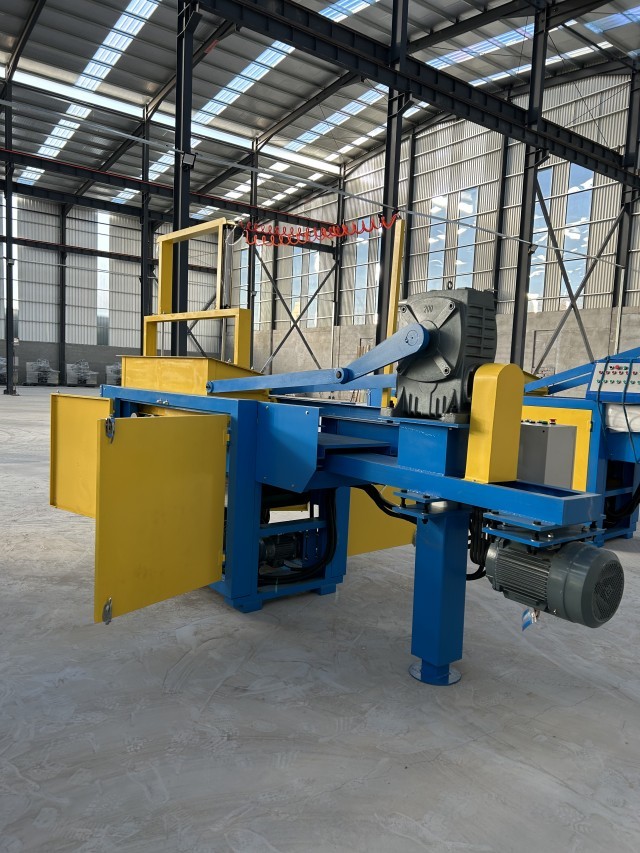

Spiral Shaft type Wood Shaving Machine

Model	SHBH500-2-L	SHBH500-4-L	SHBH500-6-L
Processing wood max. length(mm)	800	1400	1400
Processing max. width/diameter(mm)	500	500	500
Spiral Shaft quantity	2pcs	4pcs	6pcs
Blade (pcs)	84 x 2	84 x 4	84 x 6
Motor speed (rpm)	3500	3500	3500
Bin length (mm)	800	1400	1400
Total Motor power (kw)	10.5KW	23.25KW	30.75KW
Shaving depth (mm)	0.1-0.5	0.1-0.5	0.1-0.5
Shavings output	350KG/H	700KG/H	1000KG/H
Machine weight	950kgs	1800kgs	2200kgs

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 7

Chips Pine wood sawdust mill wood chipping machine wood shaving machine for animal/horse/chicken bedding 9

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	SHBH500-2,SHBH500-4,SHBH500-6

Minimum Order Quantity:	1 SET
Price:	US $3,900 - 15,800 / Set
Packaging Details:	wooden pallet
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year
