| Place of Origin: | shandong province |
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | SHBH500-2,SHBH500-4,SHBH500-6 |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $3,900 - 14,000 / Set |
| Packaging Details: | iron frame or wooden pallet |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1000sets/year |
| Condition: | New | Application: | Make Wood Shavings |
|---|---|---|---|
| Production Capacity: | 250-1500kgs/hour | Voltage: | 380v/3phase/50HZ Or Else |
| Power(W）: | 7.5-50kw | Weight: | 700-2200kg |
| Warranty: | 12 Months | Raw Materials: | Wood, Log, Tree Branch, Offcuts, Scraps, Etc |
| Axle Quantity: | 1 - 6 Pcs | Blade Quantity: | 4-48 Pcs |

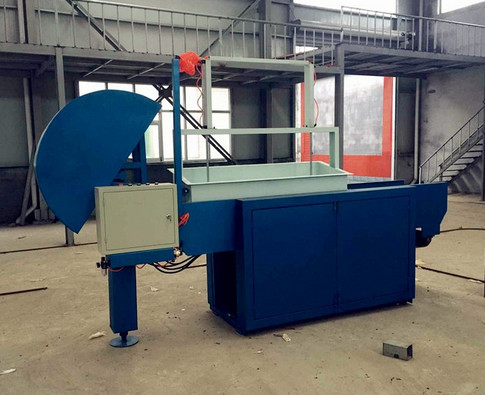

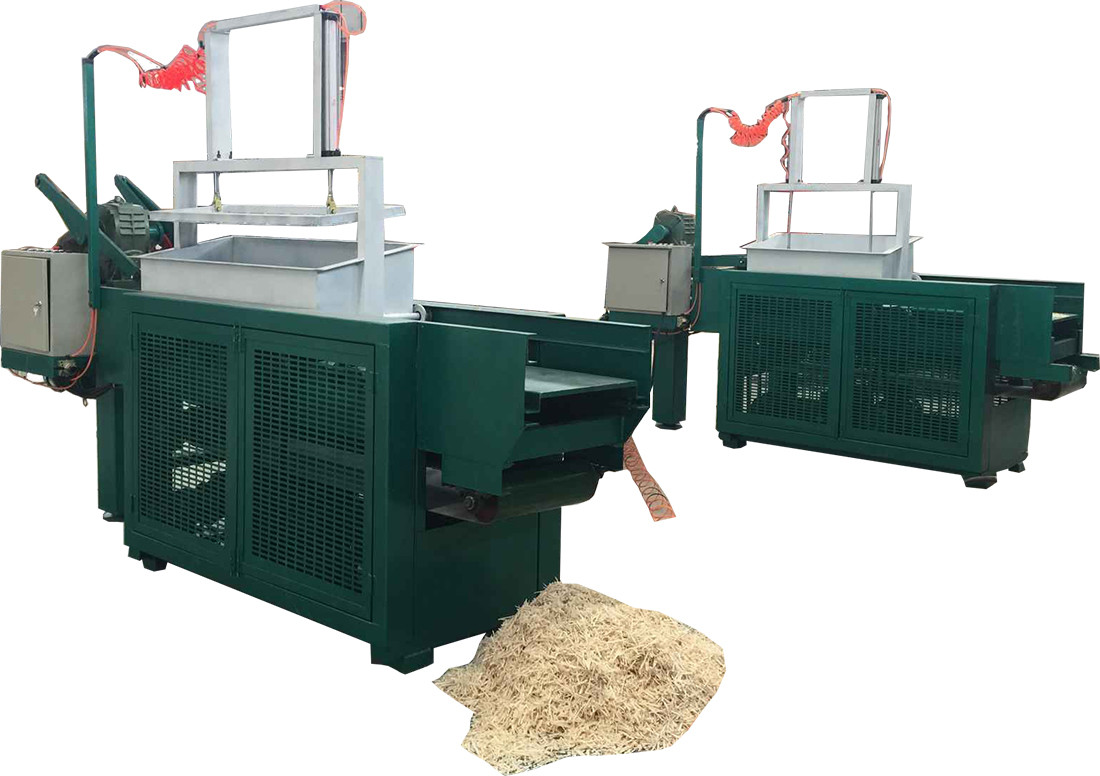

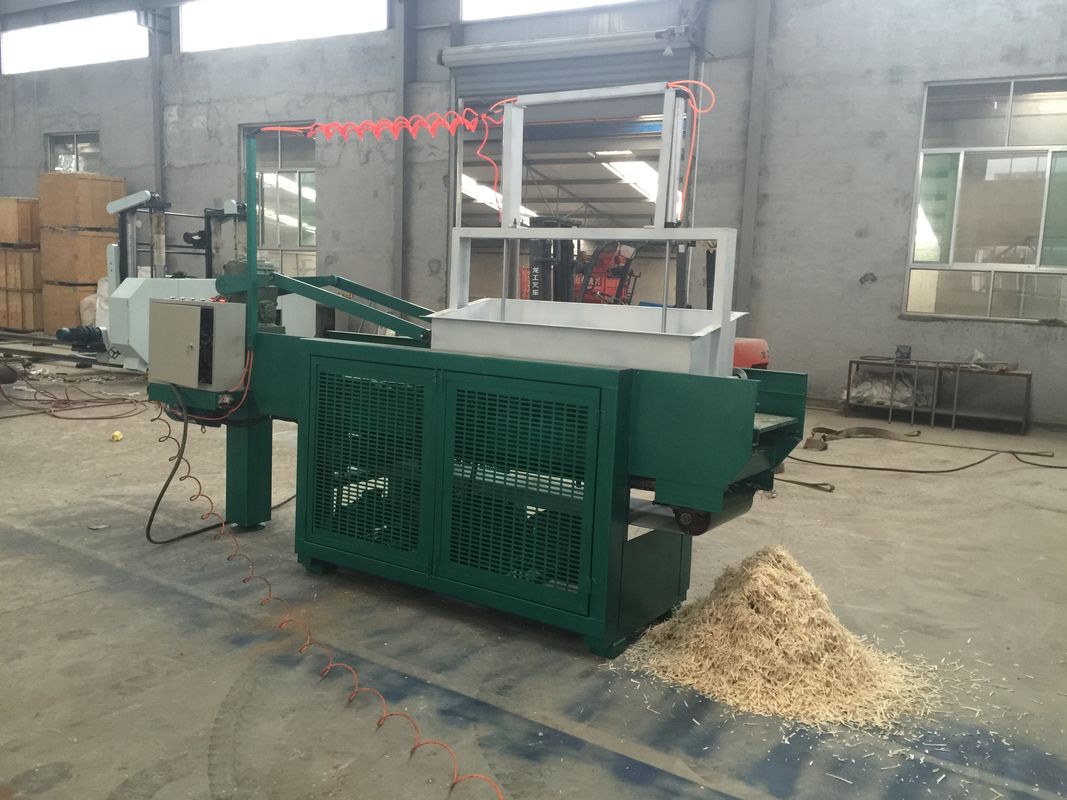

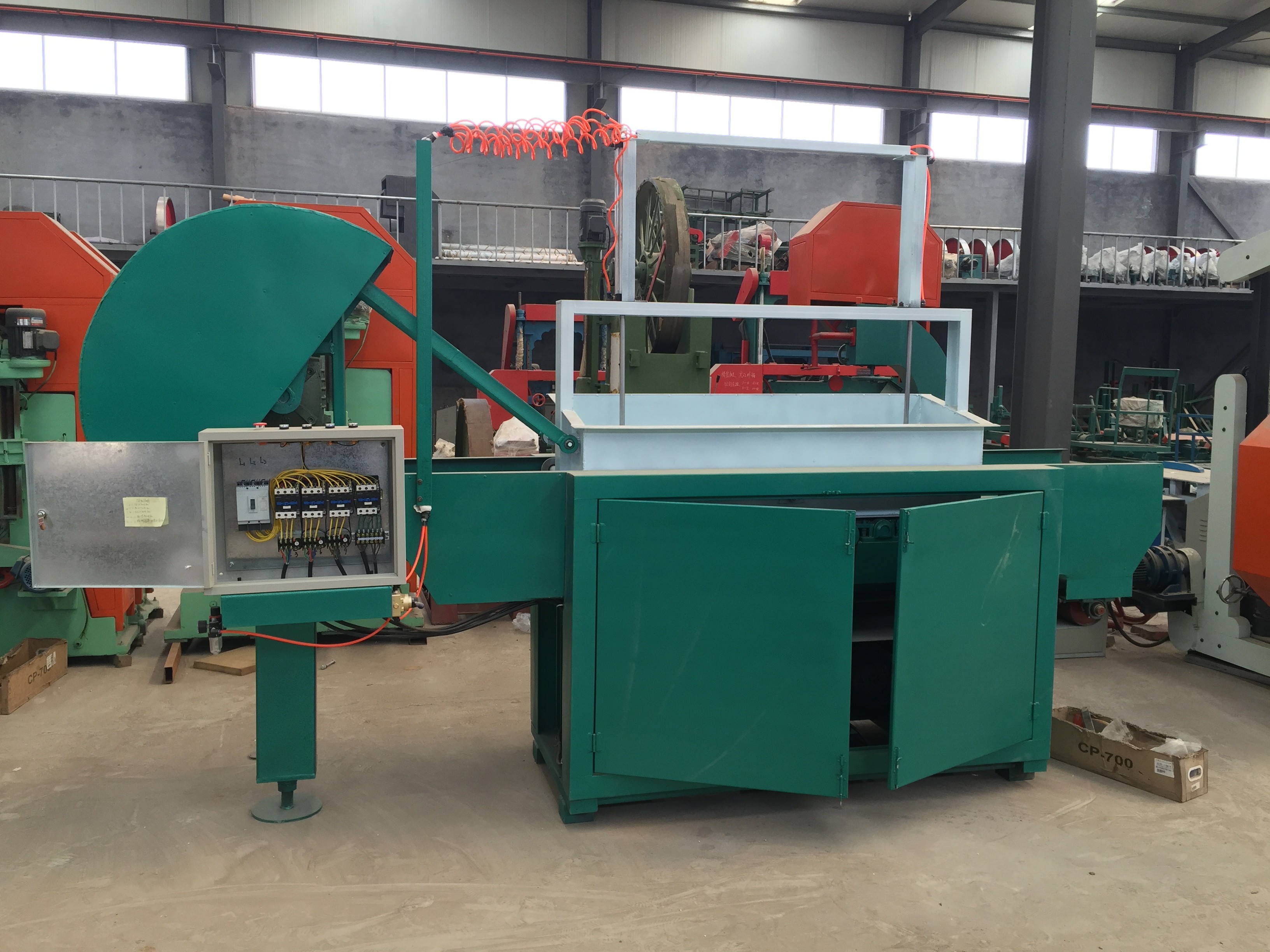

Wood Shaving Machine
Process wood sticks,twigs,branches,wood scraps into shaving.
Adjust the size and thickness of the wood shaving.
It is the material for Plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Use as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.
| Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
| Max Processing Length | 800MM | 1400MM | 1400MM |
| Max Processing Width | 500MM | 500MM | 500MM |
| Axle Quantity | 2 | 4 | 6 |
| Blade Quantity | 8 | 16 | 24 |
| Speed (r/min) | 4500 | 4500 | 4500 |
| Hopper Length (mm) | 800 | 1400 | 1400 |
| Total Power (kw) | 10.5KW | 18.5KW | 25.5KW |
| Shaving Depth(mm) | 1-5 | 1-5 | 1-5 |
| Production(KG/Hour) | 500 | 1000 | 1500 |
| With pneumatic press cover | |||
Diesel Engine Powered Wood Shaving Machine
Model |
SHD500-2D | SHD500-4D | SHD500-6D |
Max Processing Length |
800MM | 1600MM | 1600MM |
Production(KG/Hour) |
500 | 1000 | 1500 |
Max Processing Width |
500MM | 500MM | 500MM |
Axle Quantity |
2 | 4 | 6 |
Blade Quantity |
8 | 16 | 24 |
Speed R/Min |
3500 | 3500 | 3500 |
Bucket Length |
800 | 1600 | 1600 |
Diesel Engine |
22HP | 30HP | 40HP |
Generator |
10KW | 15KW | 15KW |
Shaving Depth(mm) |
0.2-2 | 0.2-2 | 0.2-2 |
