Place of Origin: | Shandong Province, China |
Brand Name: | SH |
Certification: | ISO9001 |
Model Number: | SHBH500-2,SHBH500-4,SHBH500-6 |
Minimum Order Quantity: | 1 SET |
---|---|
Price: | US $3,900 - 15,800 / Set |
Packaging Details: | wooden pallet or iron frame packings |
Delivery Time: | within 15 days |
Payment Terms: | T/T or L/C at sight, Western Union |
Supply Ability: | 1000sets/year |
Product Name: | Sawdust Animal Bedding Wood Shaver Machinery | Production Capacity: | 500-1500 KG/H |
---|---|---|---|
Max Length Of Wood: | 1400mm | Max. Processing Wood Width: | 500mm |
Blade Quantity: | 8,16,24pcs | Raw Materials: | Log,wood Tree,tree Branch Etc. |
Applicable Industries: | Manufacturing Plant,Farms | Warranty: | 1 Year |

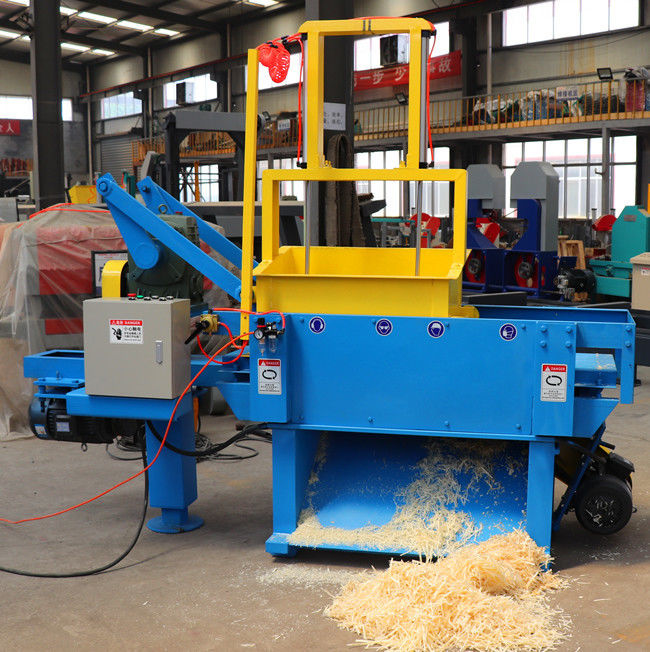

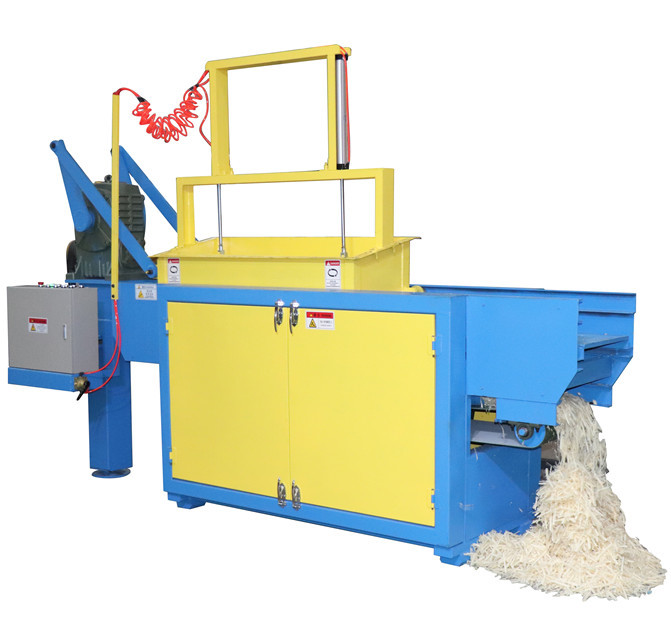

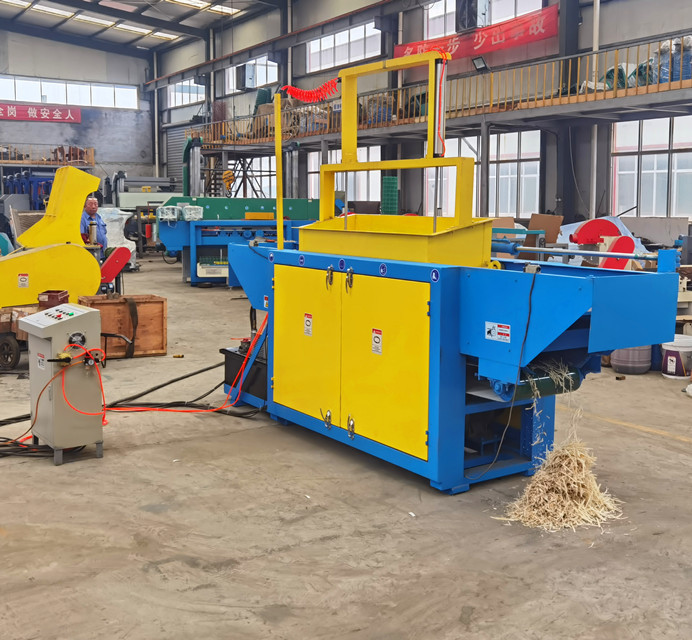

Wood Shaving Machine
Working video link : https://youtu.be/hYl98MumWqI
video link : https://youtu.be/Ls9bCIdzzpU
Technical Specifications:
Model | SHBH500-2 | SHBH500-4 | SHBH500-6 |
Processing wood max. length(mm) | 800 | 1400 | 1400 |
Processing max. width/diameter(mm) | 500 | 500 | 500 |
Shaft quantity | 2 | 4 | 6 |
Blade (pcs) | 8 | 16 | 24 |
Motor speed (rpm) | 3500 | 3500 | 3500 |
Bin length (mm) | 800 | 1400 | 1400 |
Total Motor power (kw) | 10.5KW | 23.25KW | 30.75KW |
Shaving depth (mm) | 0.2-1 | 0.2-1 | 0.2-1 |
Shavings output | 500KG/H | 1000KG/H | 1500KG/H |
Machine weight | 950kgs | 1800kgs | 2200kgs |
1,With one set of blades includes; 2, with pneumatic capping included, which can improve working capacity; |

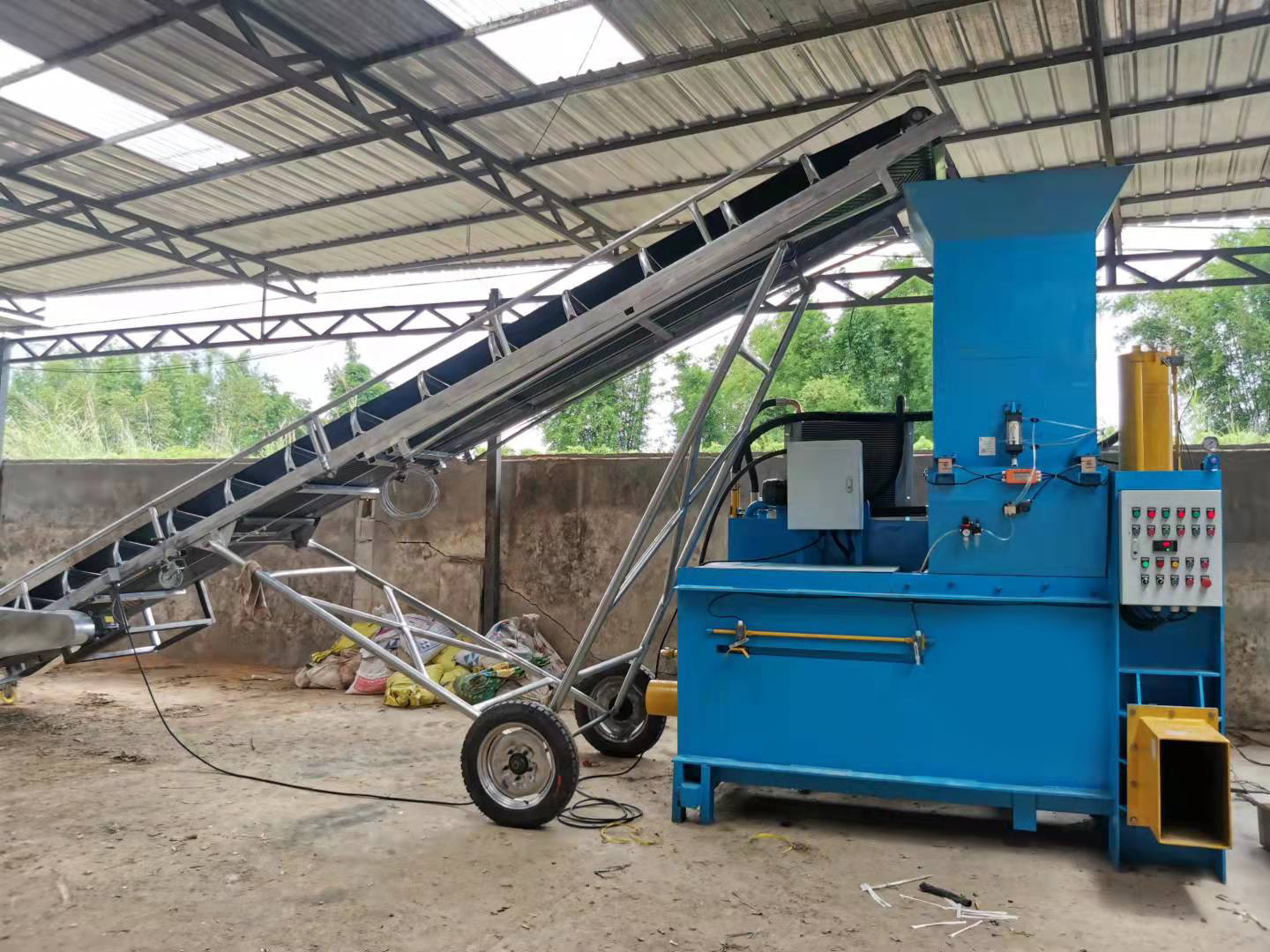

Wood Shavings Baling Machine
