Wood Shaving Production Line
1,Double Slot Double Roller Log Debarker -- Remove the Bark
| Production Capacity | 15 TONS/HOUR |
| Main Motor Power | 7.5*4 KW |
| Gear Motor Power | 2.2*2 KW |
| Oil Pump Motor | 3 KW |
| Machine Dimension | 6500*1300*1900 MM |
| Conveyor Slot Length | 6.5 Meters |
| Machine Weight | 11000 KG |
2,Log Cross Cut Saw---Cut Log Shorter For Shaving Machine

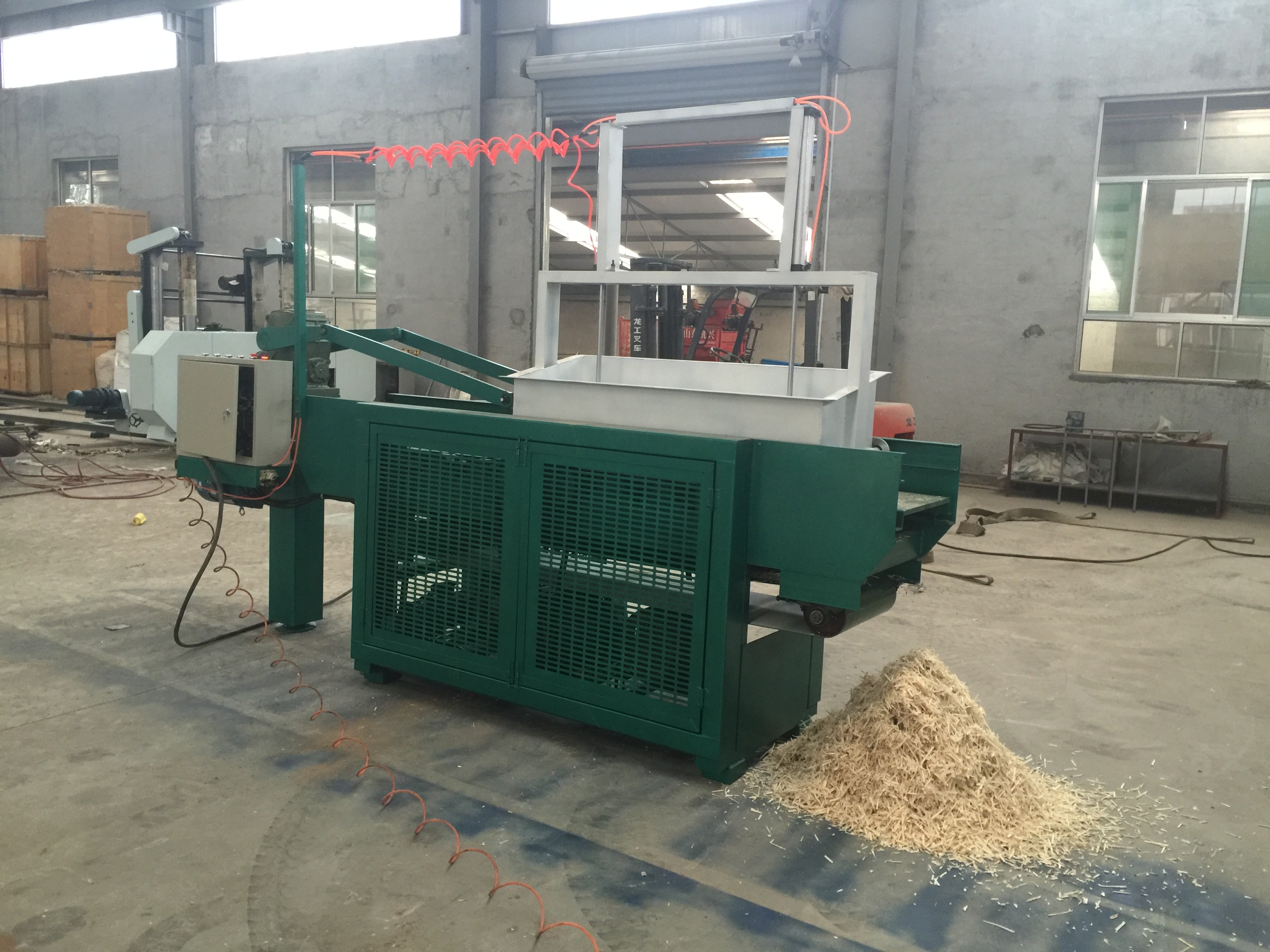

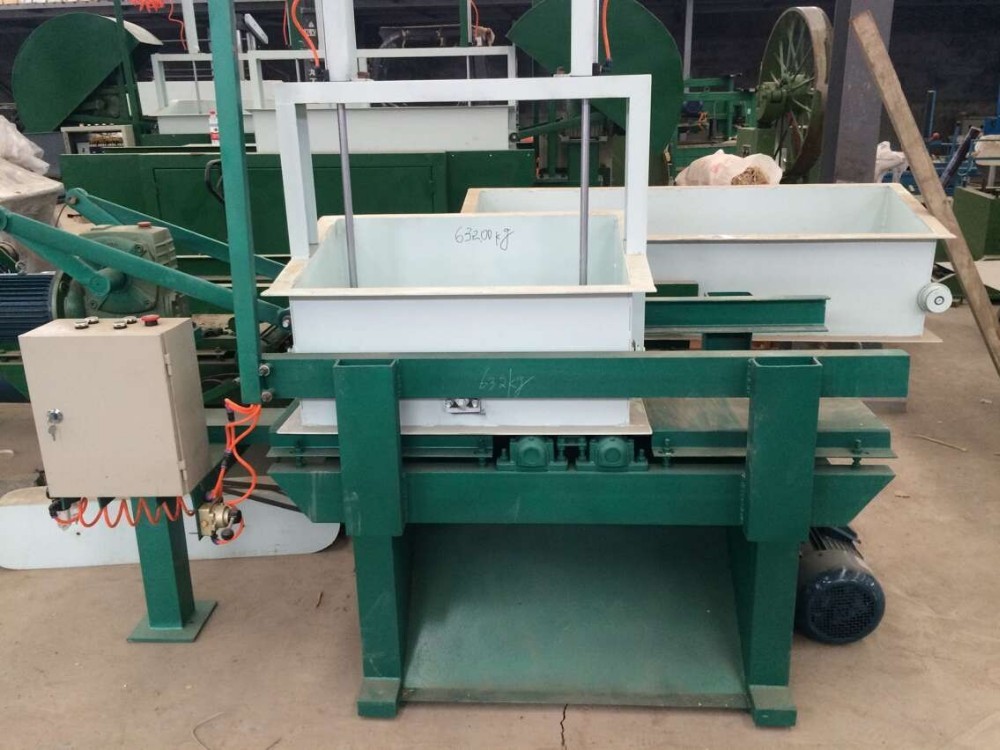

3,Wood Shaving Machine --- (Patent Product)
Process wood sticks,twigs,branches,wood scraps into shavings.
Adjust the size and thickness of the wood shavings
Wood Shaving is widely used for plywood,furniture or paper factory.
Add as filler to prevent damage when transport some fragile items.
Used as nest shavings filler in poultry or animal breeding.
Bio-energy ignition material.
| Model | SHBH500-1 | SHBH500-2 | SHBH500-4 | SHBH500-6 | SHBH1000-6 |
| Max Processing Length | 800MM | 800MM | 1400MM | 1400MM | 1800 |
| Production(KG/Hour) | 250 | 500 | 1000 | 1500 | 4000 |
| Max Processing Width | 500MM | 500MM | 500MM | 500MM | 1000 |
| Axle Quantity | 1 | 2 | 4 | 6 | 6 |
| Blade Quantity | 4 | 8 | 16 | 24 | 48 |
| Total Power (kw) | 7.7KW | 10.5KW | 18.5KW | 25.5KW | 50KW |
| Shaving Depth(mm) | 1-5 | 1-5 | 1-5 | 1-5 | 1-5 |
| With pneumatic press cover | |||||
4, Horizontal Conveyor---Deliver wood shavings.
5,Climping Conveyor---Deliver the wood shavings

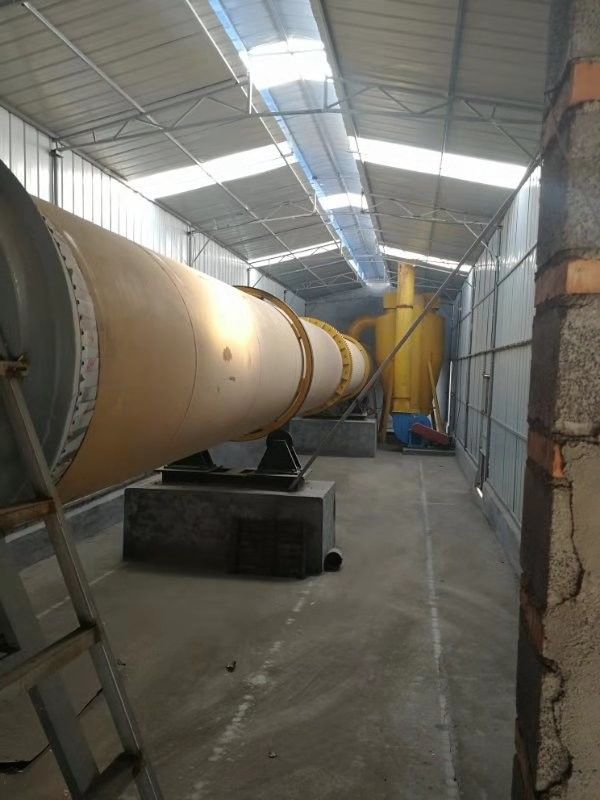

6,Rotary Drying Kiln ----Dry the wood shavings

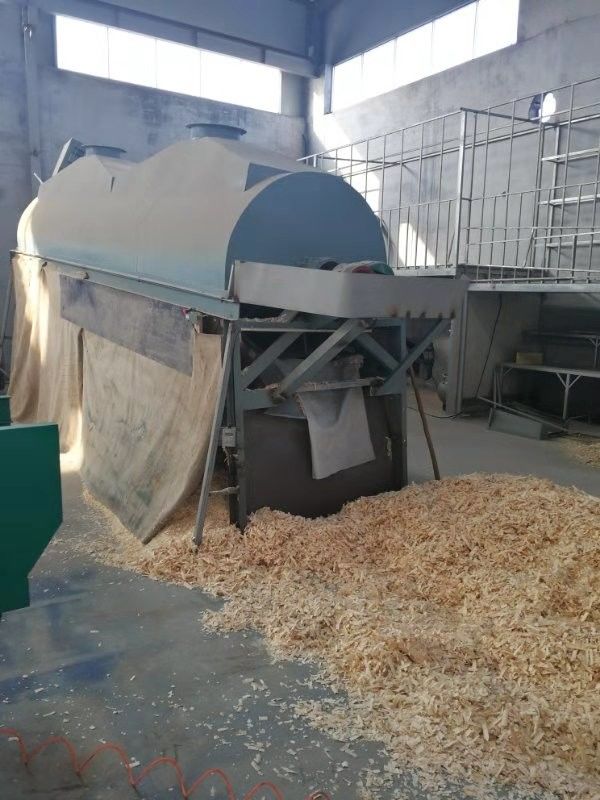

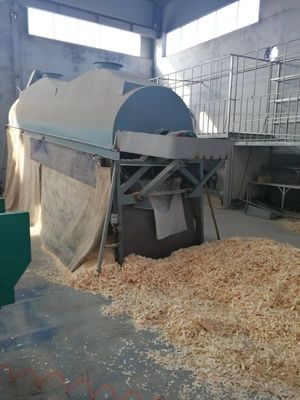

7,Rotary Screen The Wood Shavings

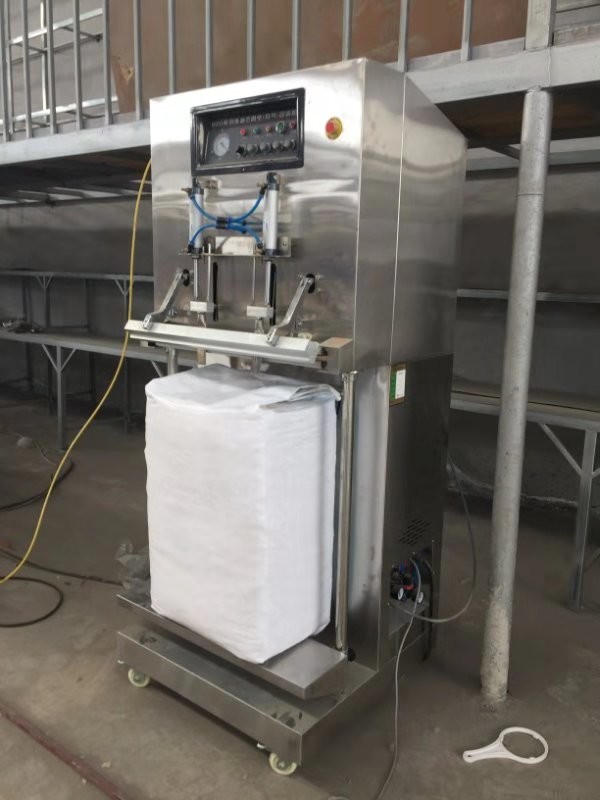

8,Wood Shaving Baler
| Press Force | 30 Tons |
| Motor Power | 7.5 KW |
| Bale Size | 600*400*300 mm |
| Bale Weight | 30 kg |
| Throughput | 60-90 Bales Per Hour |
| Overall Size | 5700*2300*2000MM |
| Weight | 3.5 Tons |
