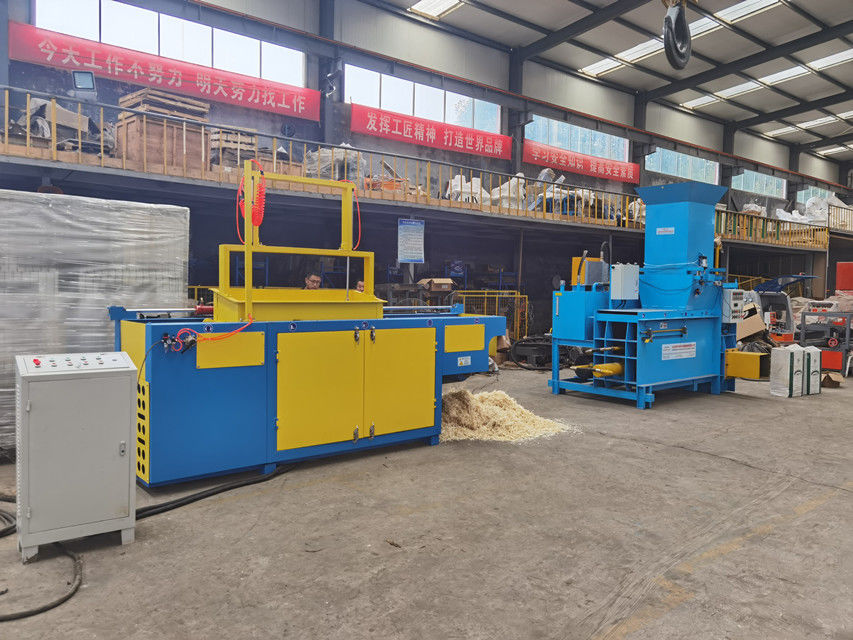

Plastic Bags Wood Shavings Product Line wood shavings bagging machine

Place of Origin Shandong province, China
Brand Name SH
Certification ISO9001
Model Number SH125-1
Minimum Order Quantity 1 SET
Price US $13,000 - 17,000 / Set
Packaging Details wooden crates or iron frame packings
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Application Wood Sawdust And Shaving Packing
Production Capacity 200bags/hour Voltage 380V, 3PHASE,50HZ Or As Customer Needs
Power(W) 22KW Dimension(L*W*H) 3920*2900*1700MM
Weight 2500kg Warranty 12 Months
After-sales Service Provided Engineers Available To Service Machine Overseas
Leave a Message
Product Description

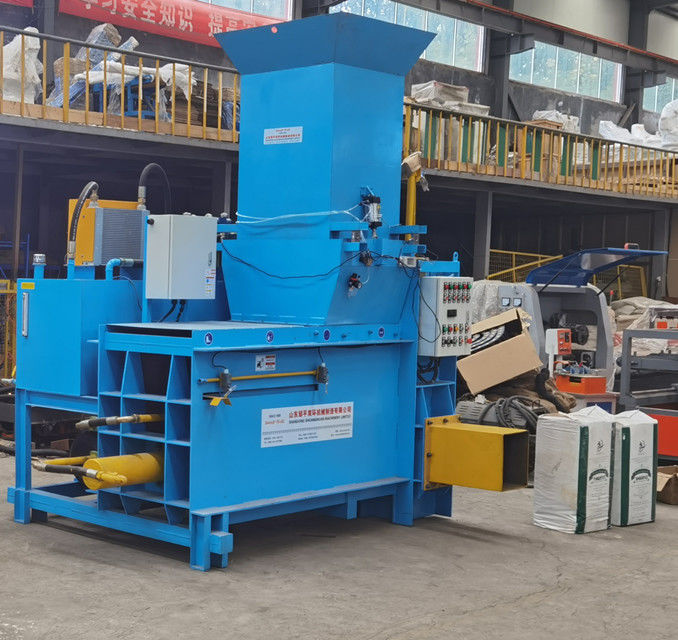

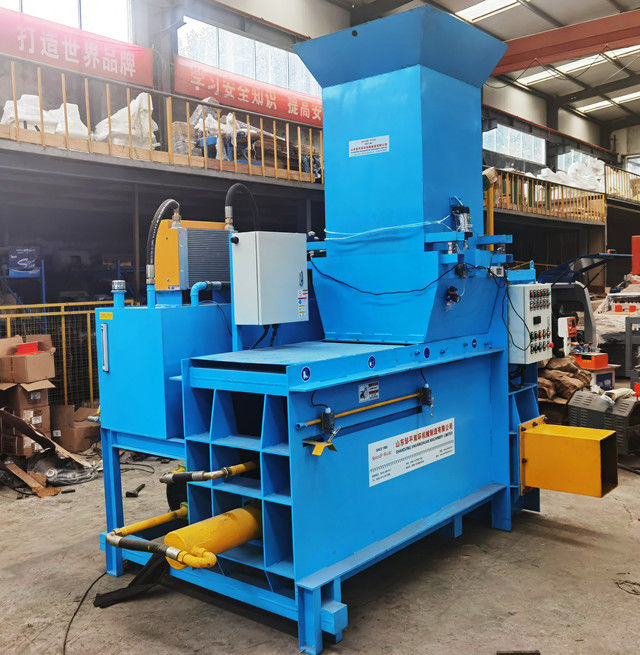

Wood Shaving Baler

Corn Hay Agriculture Material Filling And Bagging Machine Baler
The wood shaving baler is widely used for compressing and packing wood sawdust wood shavings into bags with specified size.It also can compress and pack the wood sawdust or wood shaving of animal bedding litter, such as for horse litter, sheep litter and other poutry litter, the final packed sawdust can recycled for making paper and other usage.

Hydraulic Vertical Metering Baler

Automatic Control,High Productivity, Easy operation.
Suitable for compress and pack wood sawdust,wood shavings,cotton seed hull,peanut shell,Corncob and environment protection building material,agricultural fertilizer,mushroom and so on.



Item Mdoel Qty(pc) Remarks
Electric motor 22KW-4P 1 380V,50HZ
Hydraulic pump 25VQ25 1 Low pressure vane pump
Hydraulic valve LQ32 1 Manifold valve block
Hydraulic oil cylinder ɸ80 2 Thick Wall High Pressure Cylinder
ɸ125 1 Thick Wall High Pressure Cylinder
ɸ63 1 Thick Wall High Pressure Cylinder
Electrical system PLC controlling system
Operation system manaul+fully automatic
Filter 400L/min
Cooling sytem Air cooler 1 warped
Water cooler 1 tube type
Heating system 3KW 2 Special for hydraulic oil heating
Oil tank 260L 1 4mm iron plate
Steel plate Q235B   Main body 10mm steel plate

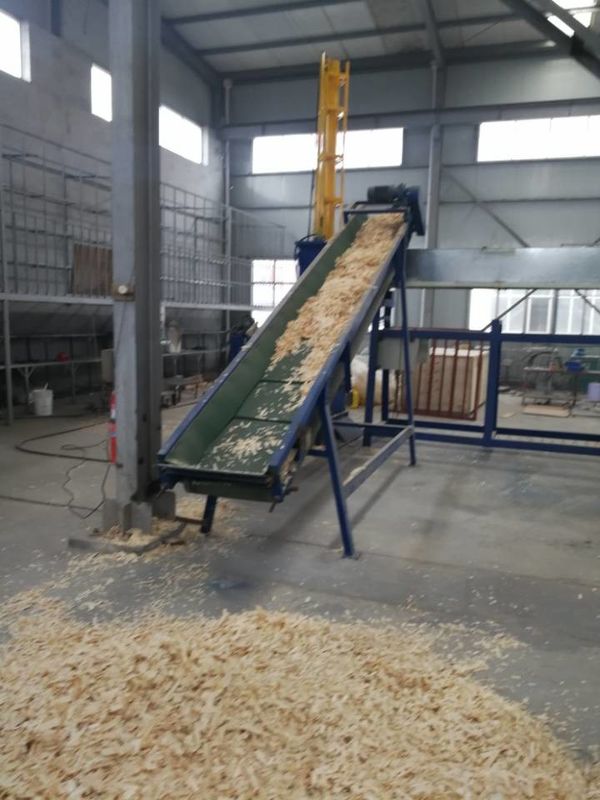

Feeding machine 300*4000mm 1 PVC

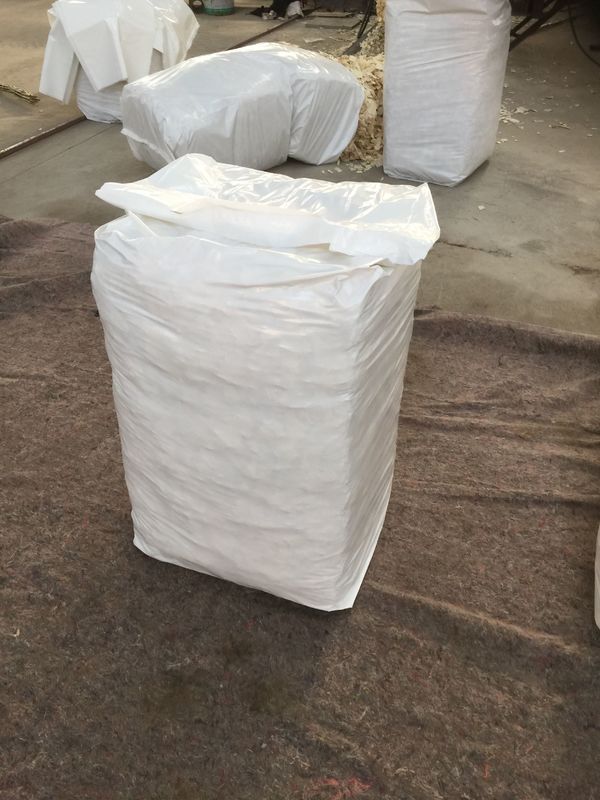

Outlet size:350*130*60mm,capacity:200bags/hour
Weight/bag:1kg
We can make as customer needs
Packing size is adjustable
